PRODUCT DESCRIPTION
GAS CONTROLLER INTRODUCTION
Our company developed a new multi-function intelligent gas controller that can set the gas usage time of cooking , monitor the gas pipeline pressure and temperature, and shut off the gas valve automatically if any abnormality, which has been awarded the invention patent in 2019 and got conformity Certificate of Explosion-Proof. It can one-stop solution to the safety of gas for residents and help gas companies to control the safety of gas remotely, thus saving labor costs. We believe that our new product will open up new markets and business opportunities for you.

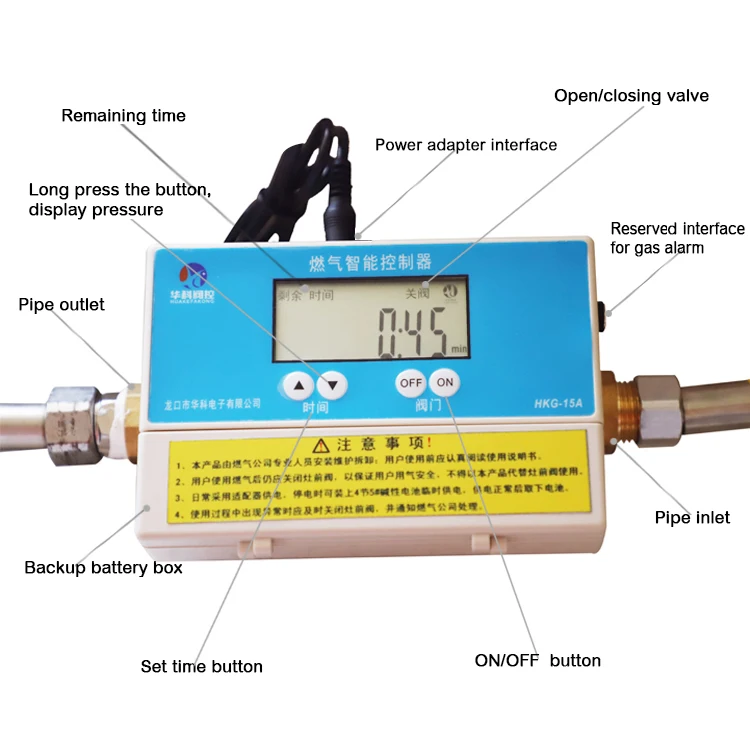

The gas controller consists of controller and remote control. The two use wireless
communication, long communication distance, no dead Angle, easy to install and use.
communication, long communication distance, no dead Angle, easy to install and use.
GAS CONTROLLER FUNCTIONS AND ADVANTAGES
GAS CONTROLLER SPECIFICATION
Main Parameter | Technique Data | parameter specification |
Applicable flow range | 0～6 m3/h | different nominal calibers |
Working voltage range | DC(4.8~6)V | External connection DC5V power supply or 4 no. 5 alkaline batteries (standby) |
Wireless communication frequency | 2.4GHz | common band |
Wireless communication distance | >10m | One machine, one address, no interference |
Measuring pressure range | 0～100kPa | measurement accuracy: ±1%, |
measurement resolution: 1Pa | ||
Measuring temperature range | （-45～80）℃ | Measurement accuracy: 0.1℃, measurement resolution: 0.01℃ |
On/off valve time | (1.5~2.5) m3/h :<2s | Under normal working pressure |
(4.0~6.0) m3/h :<5s | ||
On/off valve current | <100mA | Under normal working pressure |
Motor valve switching times | >10000 times | under normal working conditions |
Timing time range | （5～300）min； | factory setting for 45min, user can modify the setting arbitrarily; |
24h（normally open） | When set to 24h, it is normally open (such as winter heating) | |
Lower pressure alarm value | 1.2kPa±0.2 | factory set value |
Upper pressure alarm value | 3.5kPa±0.2 | factory set value |
Pressure abrupt transition alarm value | 0.5kPa | factory set value |
Installation location | meet the gas installation specifications | Installed in front of the gas meter or gas stove |
Product Dimensions (unit:mm)
The gas controller can be installed in front of the gas meter or between the front valve and the cooker hose
INSTALLATION AND APPLICATION
ABOUT US

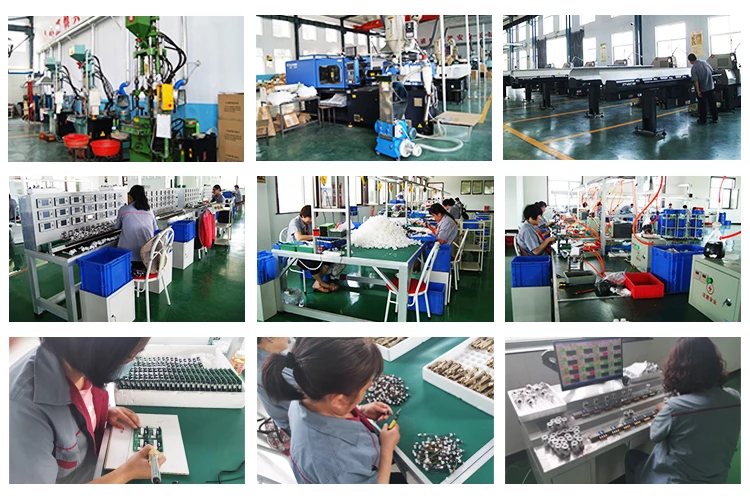

PRODUCTION LINE
