Формы для бетонной колонны аксессуары опалубки ПВХ пластик переработанные материалы пена твердая конструкция многоразовые 50 + в

Product Introduction:

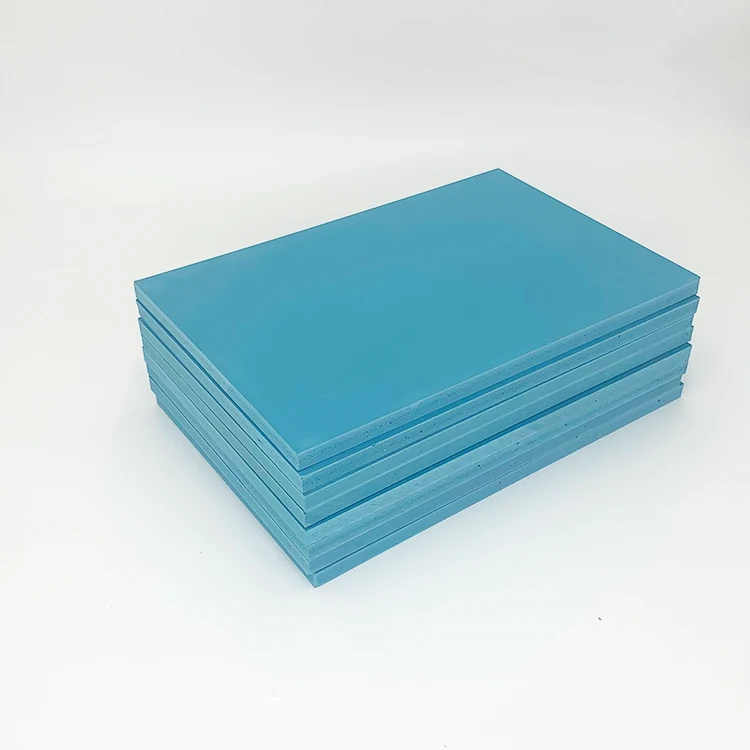

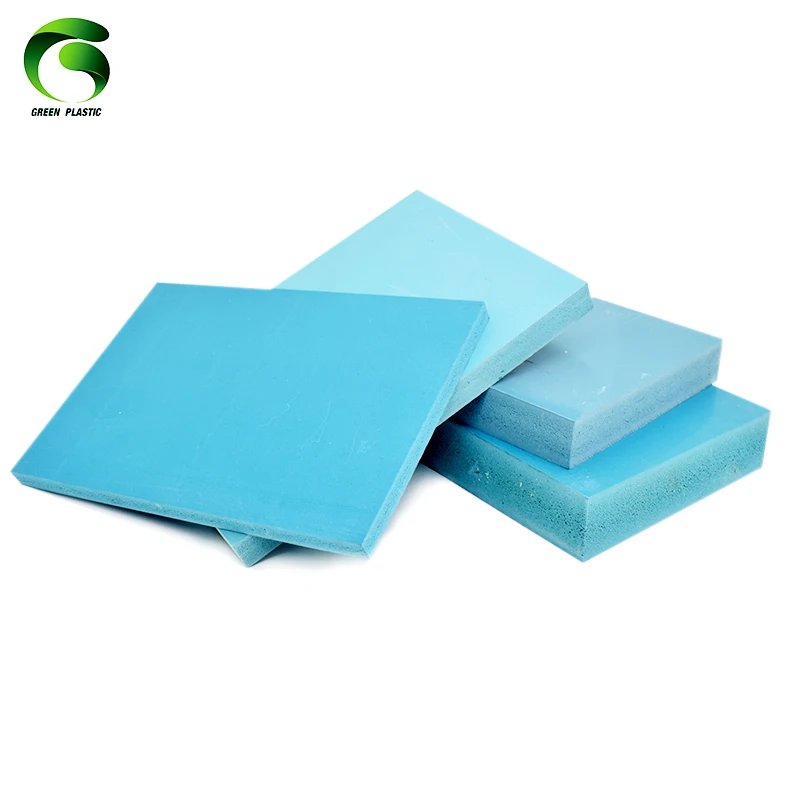

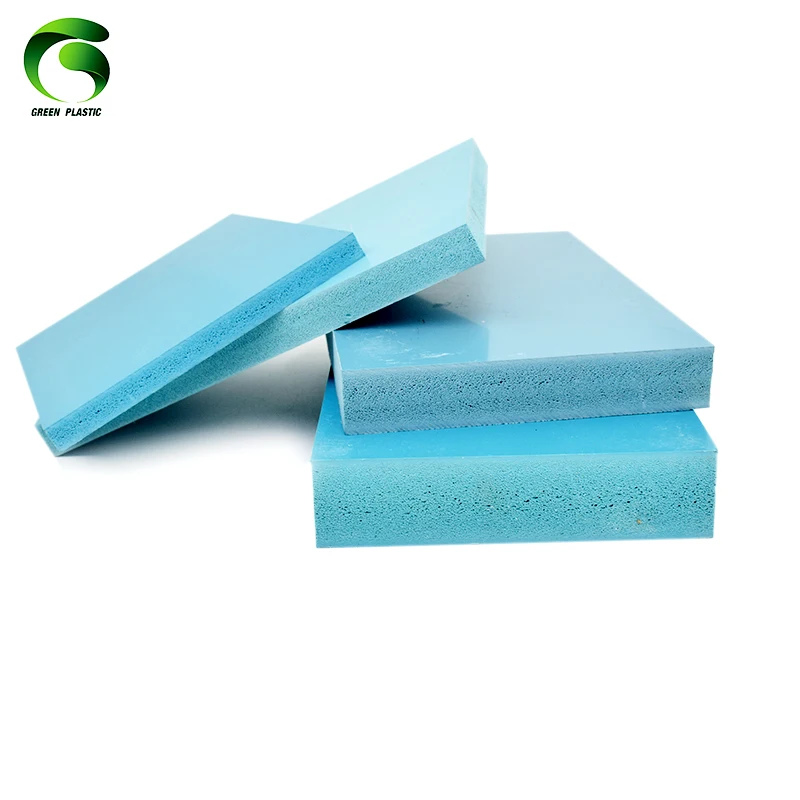

PVC plastic concrete column moulds formwork accessories is a new kind of construction material which can replace plywood,steel formwork and other building material. It’s widely used in concrete construction made by recycled PVC powder or particles. Added with special additives and extruded at high temperature and then extrude the high density and high hardness template.

Advantages:

1. Replace of the plywood and metal formwork. Friendly to environment and energy saving.

2. Can be recycled for more than 30 times. Very economic and cost saving.

3. Easy to Install and move and deliver and save labor.

4. Subject to any temperature and humid regions.

5. Easy to take off from the concrete. Easy to relase mold.

6. Fire resistant, safe use

7. Light blue color and it is lovely in the working site.

8. Light texture, transportation and operation is easy.

9. Can be like wood as drilling, saw, nail, planer, etc.

10.Can be applicable to hot forming, heating and folding process.

Installation:

1.Use the hollow building formwork intersecting surface laid with 15mm thick.

2.Wood square of the distance:

(1) on the surface of the intersection (spacing: wood square distance according to the thickness of the slab concrete, in general, the thickness of less than 0.15 m floor (spacing is 200 ~ 250 mm.)

(2) the shear wall (spacing according to adjust the spacing, height and thickness of the wall to wall height of 2800 mm, 300 mm thick wall, for example, using the formwork (15 mm thickness spacing is 100 ~ 150 mm, if the shear wall, pillar width more than 1 meter, must add the fixed frame.

3.Die shear wall and column puzzle when leaving no gaps, internal Angle (the bottom of the wall) parts must have wood square, beam, wall, formwork connection.Shear wall made

4. After the mold must be assembled into the whole hoisting, then lay flat, reduce labor intensity, forming effect is good.

5. When the nail to the formwork from the formwork edge distance 15 ~ 30 mm, strength wants moderate, nail nails is 40 ~ 50 mm in length, shoulds not be too long or too short.

6.Beam bottom of a piece of wood square must set aside 15 mm seam allowance, wallboard made on wood square seam allowance, it does not leak slurry and wallboard material saving.

Specifications:
