Электромагнитный расходомер воды dn 100 из нержавеющей стали

Электромагнитный расходомер воды dn 100 из нержавеющей стали

Категория: Flow Meters >>>
Поставщик: Kaifeng,Aft,Instrument,Co.,Ltd.

Цена:620,00 $ - 650,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	738.18 $*	775.93 $*
Aug-18-2025	732.19 $*	769.7 $*
Jul-18-2025	614.62 $*	645.44 $*
Jun-18-2025	719.90 $*	755.98 $*
May-18-2025	626.32 $*	657.43 $*
Apr-18-2025	707.95 $*	742.59 $*
Mar-18-2025	701.26 $*	736.33 $*
Feb-18-2025	694.94 $*	729.92 $*
Jan-18-2025	688.9 $*	722.17 $*

Характеристики

Water dn 100 stainless steel ce electromagnetic flow meter

Product Description

raw sewage flow meter sensor.jpg

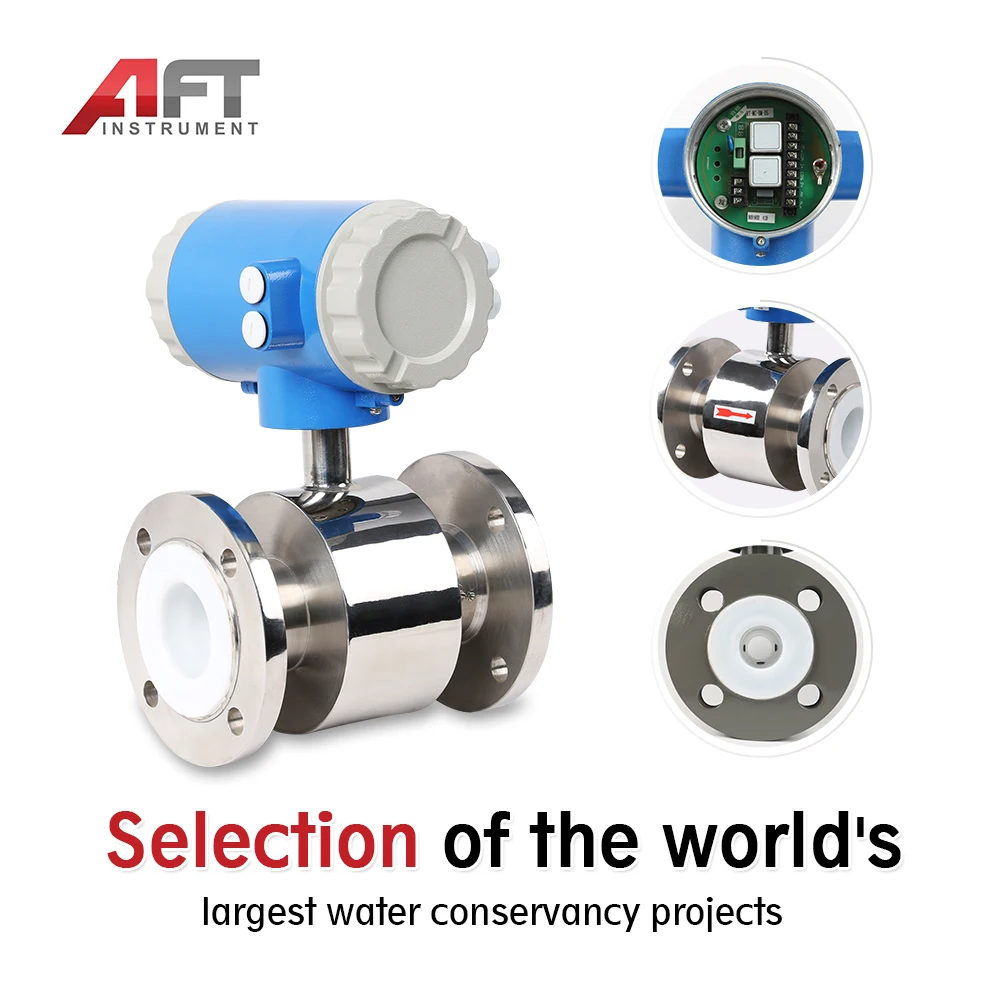

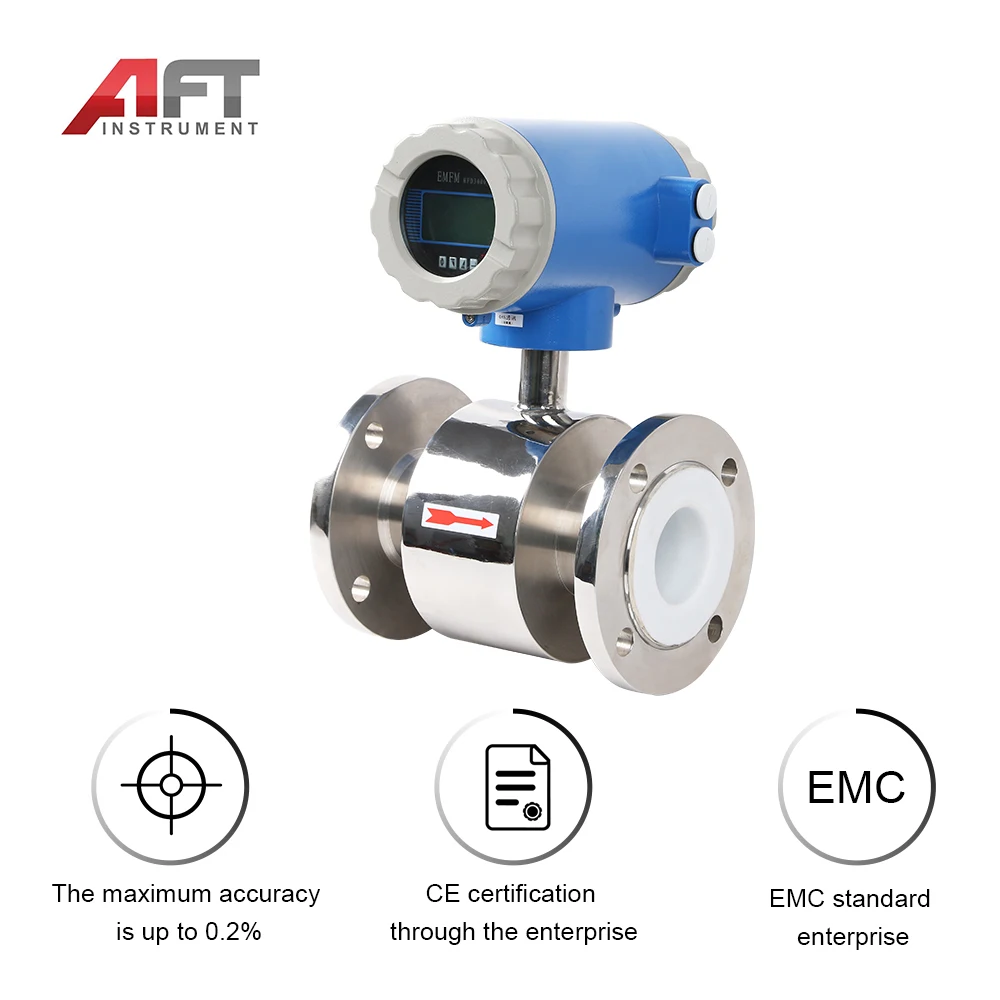

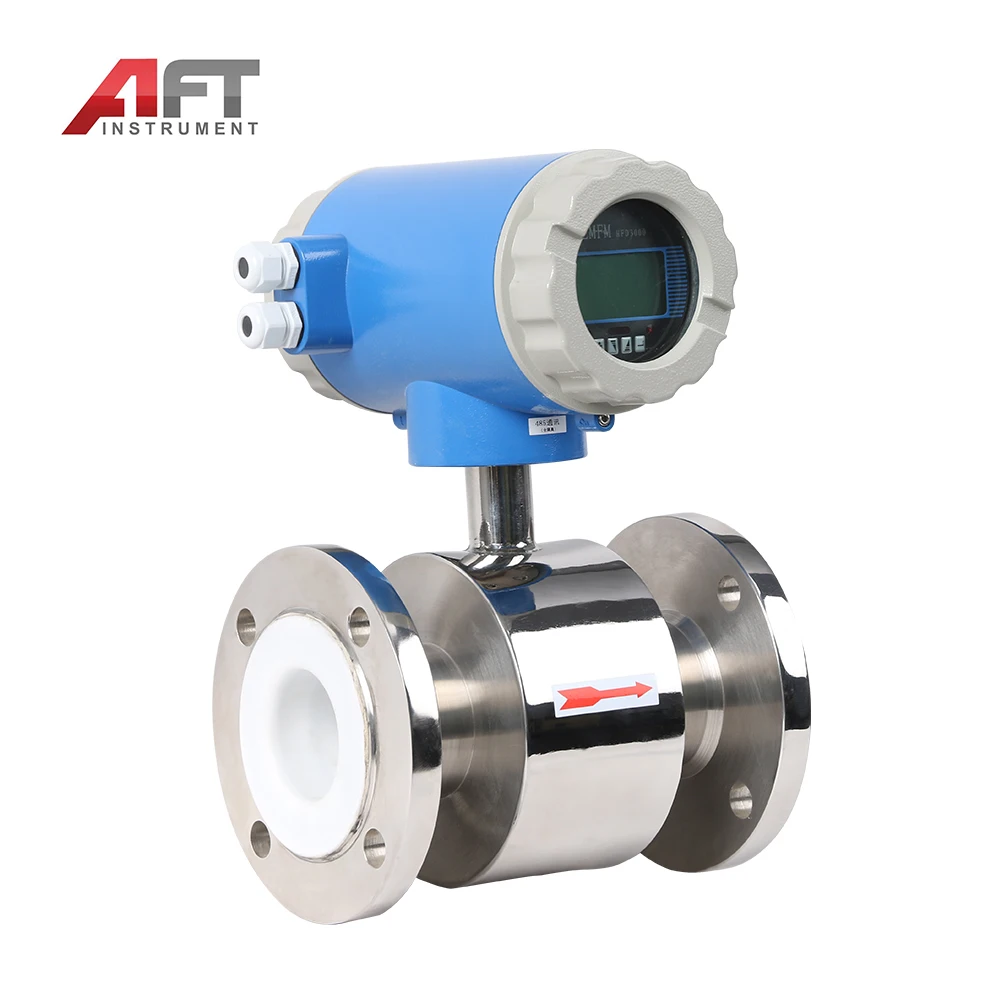

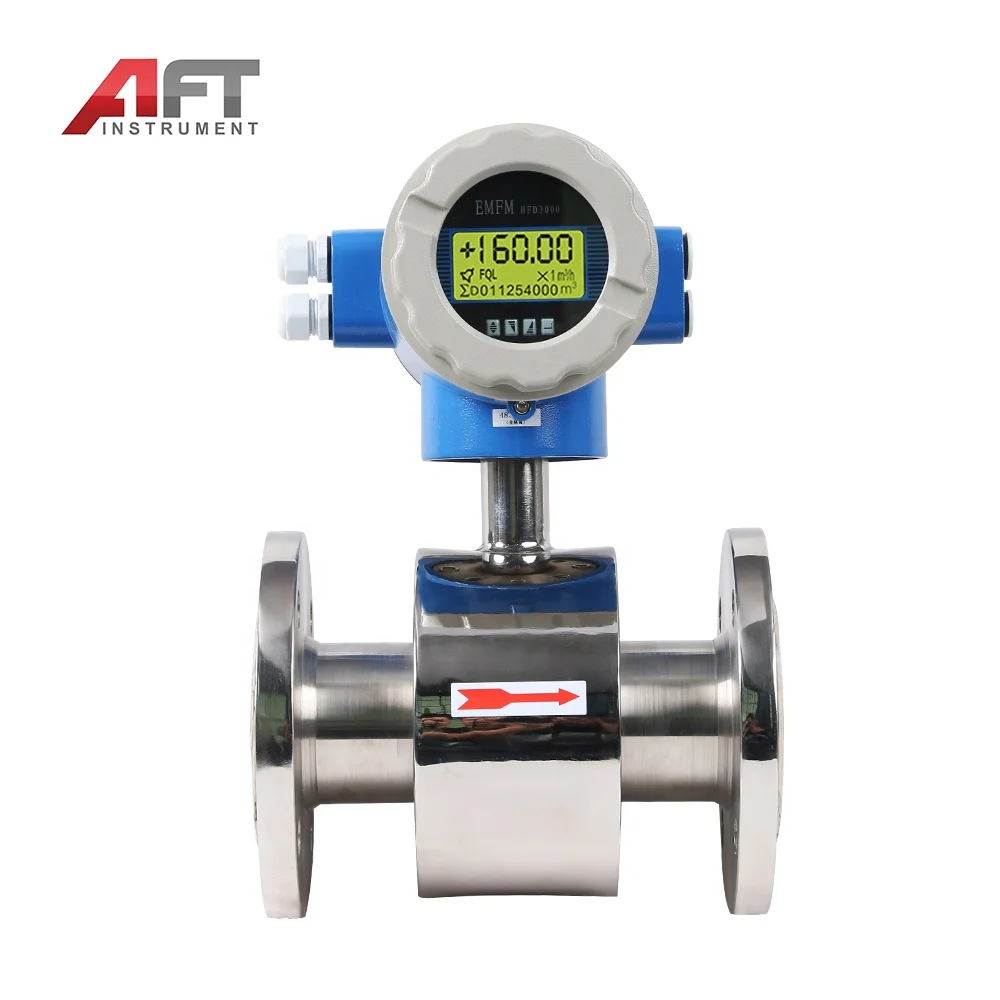

Water dn 100 stainless steel electromagnetic flow meter

AFTLD series of intelligent milk flow meter is a high performance, high reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,Papermaking, water supply and drainage, food, medicine and other industries.

Technical parameters of Water dn 100 stainless steel ce electromagnetic flow meter:

sludge flow meter sewage water electromagnetic flow meter

Main power	AC220V 50HZ / DC24V
Power consumption	<15W (And set with sensor supporting power consumption )
Display and push buttons	The big screen LCD display with back lighting can display the instantaneous flow ,total flow and percentage of flow as well as alarm display ,four thin-film touch nubs ,which is used to data set .
Accumulator	Forward total quantity ,reverse total quantity
Output signal	Analog output	Bi-direction with two ways ,Isolation 0-10mA/4-20mA
		Load resistor:0-10Ma;0-1.5KΩ;4-20Ma;0-750Ω
	Frequency output	Forward & reverse flow output with frequency range set between 1-5000Hz.The external voltage must be lower than 35V and the max output and the max output current is 50Ma when the transistor is turned on
	Alarm output	Two outputs from the collectors of photoelectric isolate transistors are for alarm signals .The external voltage must be lower than 35V and the max output current is 250Ma when the transistor is turned on.Alarm status:Activates when the measured pipes are empty ,the excitation circuits are broken or the volume of flow rate exceeds the value designed limits.
	Pulse output	For pulse output in forward and reverse flow measurement ,upper frequency of pulse output can be up to 5000 CP/S relevant value of pulse is from 0.0001 to 1.0 M3/P .The width of pulse can be set to 20ms or squired wave from automatically.The collector of transistor with photoelectric is open circuited.The external voltage must be lower than 35 V and maximum output current is 250Ma when the transistor is turned on .
Accuracy	±0.5% of the value displayed ,±0.3% or ±0.2% are selectable.
Damping time constant	Continuous variable from 0-100 s (90%)can be selected by group
Communication	RS232 ,RS485 or HART Communication are selectable ,with lighting resistance
Power failure	An anti-failure clock is designed in the flow meter which can save the power failure records for 16 times (10 years)
Protection class	IP65
Ex-proof Mark	Exd IIBT4

Water dn 100 stainless steel ce electromagnetic flow meterflowmeter dn80 sewage electromagnetic flow meter

Detail Image

raw sewage flow meter sensor.jpg

Main performances of the liner materials:

raw sewage flow meter sensor.jpg

Project Case

// AFT INSTRUMENT

INSTALLATION CASE OF Water dn 100 stainless steel ce electromagnetic flow meter

raw sewage flow meter sensor.jpg

We are the manufacturer of flow meter, specializing in the production of electromagnetic flow meter, turbine flow meter, vortex flow meter, throttling devices and other flow meter. Our flow meters have been sold to the developed countries ,such as the United States, Australia and so on and the developing countries,such as India, Malaysia, Nigeria and so on.

raw sewage flow meter sensor.jpg

Process and Packing

// AFT INSTRUMENT

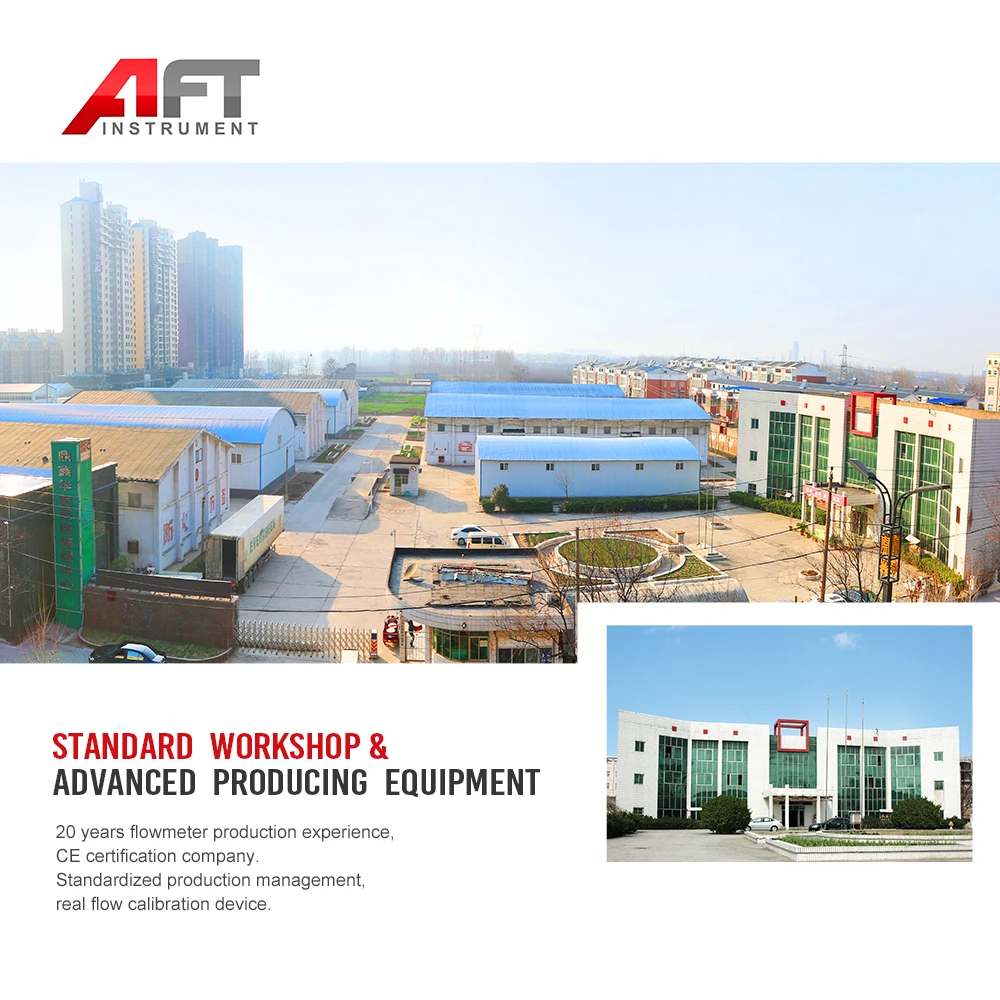

PRODUCT PROCESS OF Water dn 100 stainless steel ce electromagnetic flow meter

raw sewage flow meter sensor.jpg

Our company has strict quality control from product design, raw material procurement and processing, manufacturing and assembly, inspection and verification to every stage of product release, scientific management, strict process, advanced equipment and Professional team as a guarantee of quality products.

raw sewage flow meter sensor.jpg

Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands.

Why choose us

“Time is gold ”for you and for us, we have professional team work who can make nice quality in short time.

“With us your money in safe your business in safe ”full refund in case of bad quality or delay delivery time , we also accept payment by paypal.

We are the leader of flow meter manufacturer in china.

Alibaba Assessed Gold Supplier.

Inspected by the Inspection Institution of Bureau Veritas Certification.

100% QC inspection Before Shipping.

Exports to many countries.

raw sewage flow meter sensor.jpg

Our sales staff have been trained in professional knowledge and information, so we can provide the most professional services to our customers according to their needs;Our technical staff have conducted skills training and practiced in the workshop, with professional theoretical knowledge and rich practical experience.

Certificate

In order to ensure the quality of each product and to provide better service for customer. Our company has received a number of certifications, including CE certification, explosion-proof certification, MSES certification and some other internationally recognized certifications.

raw sewage flow meter sensor.jpg

We have participated in many exhibitions, such as Beijing Multinational Instruments Exhibition, Shanghai International Instrument Exhibition, Canton Fair and so on. At the exhibition, many customers were met and orders were placed through subsequent exchanges and interactions.

FAQ

1. Are you a manufacturer?
---We are manufacturer with 10 years experience!Welcome to visit our factory at any time.

2. How about the delivery time ?
---Around 3 working days for standard products. For customized orders, it takes about 10-15 days.

3. Do you accept OEM business?
---We do OEM .

4.Do you have ISO certificate?
--- Yes, we have ISO, also CE, and Calibrate certificate.
