50L Jacketed Glass Reactor with Chiller and Vacuum Pump
Product Description
Jacketed GG17 Glass Reactor, is a double layer reactor designed for chemeical laboratory experiment.
The principle of the jacketed glass reactor is controlling temperature of its contents by using a cooling or heating fluid which circulated through the interlayer.The agitation also can be used in jacketed vessels to improve the homogeneity of the fluid properties(such as temperature or concentration).
Kesheng Brand jacketed Glass reactor is an ideal experimental instrument for chemical engineering pilot in chemical plants, biopharmaceuticals, and new material synthesis etc.

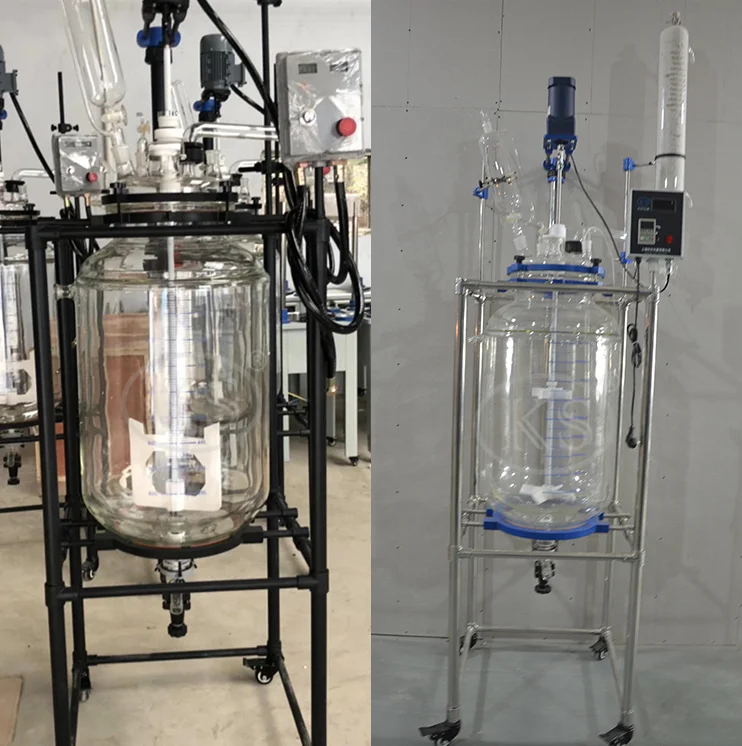

The left picture show the Jacketed double layer glass reactor with insulation and viewing window;

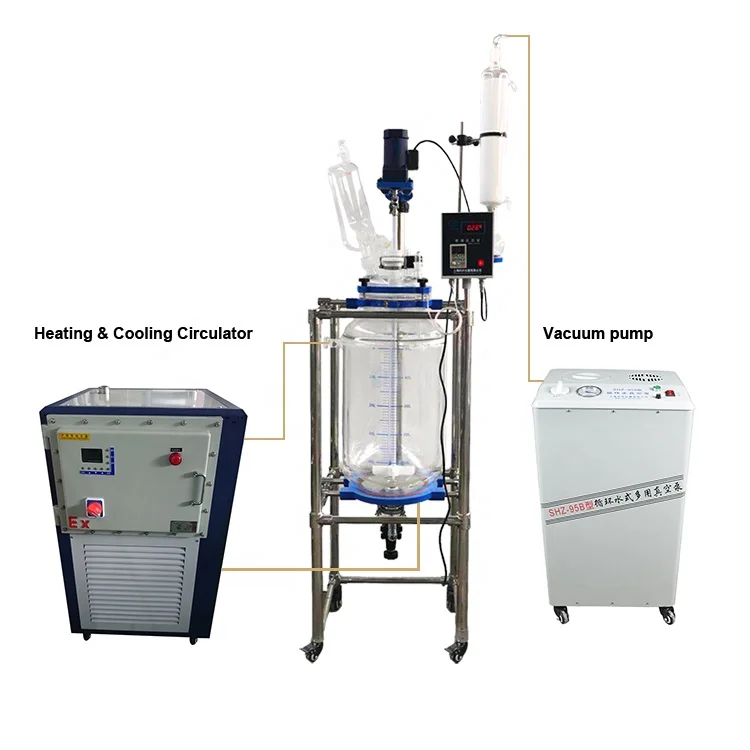

The right picture show the jacketed double layer glass reactor and it's corollary equipment heater and cooler circulator.
50L jacketed glass reactor with chiller ,the structure simplely introduction.
Product Feacutres
Addvantages:
1. PTFE sealing,no leakage;
2. High quality GG-17 glass with nice corrosion resistance;
3. Mixing speed and heating temperature digital display;
4. Vertical condenser realize both distilation and reflux;
5. Convenient bottom discharge valve;
6. Muti-model,Mutil-volume optional;
7. Explosion-proof controller and motor for optional. glass reactor 200l.
Technical Data
Below is main technical parameter of Kesheng Chemical Jacketed glass reactor.
Product name | High borosilicate GG17 Glass Jacketed Double Layer Reactor |
Model | S212-50L
|
Glass material | GG17 high borosilicate glass |
Reaction Flask Capacity | 50L
|
Jacket Volume | 16L
|
Cover necks number | 6 |
Stirring Power | 120W
|
Stirring Speed | 0-600 rpm |
Stirring Shaft Diameter | 17mm |
Vacuum pressure | 0.098Mpa |
Discharge Valve | PTFE bottom discharge valve (piece) |
Power Supply | 220V/50Hz or customized |
Optional | Ex-proof motor & controller / PTFE painted frame /Glass parts customized/ PTFE filter or Glass filter / lifting function. |
Attention here:
1.Glass reaction vessle can be customized from 1L to 200L .
2.We can add PTFE or Glass filter for the jacketed glass reactor.
3.We also can manufacture double glass vessel with lifting structure.
Product Details
Below is introduce of Jacketed double wall layer glass reactor details. lab glass reactor 30L
| High quality A/C motor Temperature & mixing speed both digital display |
Above picture show the 120W A/C motor and digital display temperature & stirring speed controller.
We also provide explosion-proof optional high borosilicate double glass reactor.
| Quick opening cover,easy to cleaning |
Total 5 +1 necks on reaction vessel cover, include big solid feeding port, liquid feeding port,Dropping funnel,condenser connection port, temperature proble tube.
The reaction vessel cover is fixed by flange,which convenient to clean and easy to cleaning.
| PTFE stirring agitator & sealing ,no corrosion ,no leakage. |
The agitator inside is diameter 17mm SS304 ,outside is PTFE which have good corrosion resistance.
All the parts contact with reaction material are all glass and PTFE, to make sure there is no corrosion.
| High quality GG-17 Glass material,SS304 frame. |
The reaction vessel is GG-17 glass,frame is made of SS304. capacity from 1L to 200L all available.
| PTFE discharge valve & multi-choice agitator |
Convenient PTFE discharge valve can drain out both liquid material and soild material.
Agitator can be made of different shape,like anchor type, frame type,double deck type and leaf blad type.
| Optionl choice:stainless steel or PTFE or Glass filter |
We can add stainless steel filter ,PTFE filter or Glass fitler to separate solid and liquid materials.
Lab glass reactor, Jacketed layer glass reactor with filter function.
Related Products
Related products for double wall jacketed glass reactor:
Above show the electric heating and cooling circulator and vacuum pump support Jacketed galss reactor.
Packaging & Shipping
Double layer chemical mxing glass reactors package and delivery details as below:
Packaging:
All the glass parts will be wrapped with foame box and then be packaged careful with Non-fumigated plywood box.
Shipping:
We have professional shipping forwarder can provide multiple delivery solution.
By FedEx,DHL,UPS,TNT or EMS etc international express:Door to door ,the express will assist customer make customs clearance.
By sea or air to the port:Customer need to find agent to make the customs clearance.
Other special transportation line include customs clearance.
