1.Inroduction

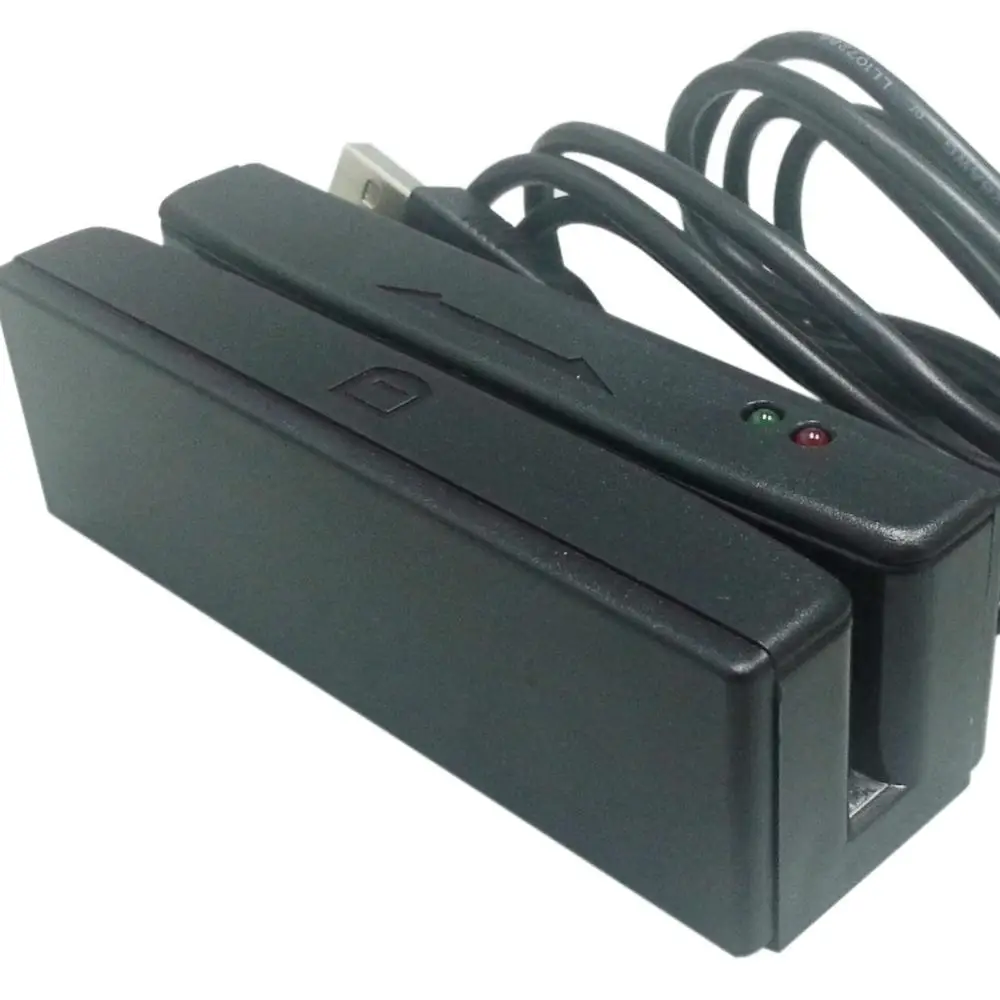

This card reader is a programmable magnetic card reader, specialized for magnetic card read and transmit information. This product USES the F2F decoding magnetic card, magnetic card decode functions and data support for two-way charge, according to different user requirements, can be read magnetic card 1, 2, 3 track information, fully meet ANSL/ISO

technical standards, simulation with a USB HID, keyboard, USB OTG or RS_232 serial port (customizable) output. Support the JPOS & OPOS interface.



2. Features

 Interface: USB OTG, RS232 (optional)

Capacitive: JPOS & OPOS

Convenient: boot self-checking, USB output without external power supply,

     simple operation, plug and play

Read card:manual,three tracks , double direction

Instructions function: built-in buzzer, with two LED lamp

     (green LED light indicator card read success)

Output function: programmable choose USB HID, keyboard simulation output,

customizable USB OTG or RS_232 serial output

RS_232 output can select baud rate, take the electricity, from the mouth of a

keyboard without external power supply

Safe & reliable: support 3 DES, DUKPT encryption

System: Windows XP, Windows visa, Windows, Linux, android, ios 5, and so on

Recognition Certificate: CE, ROHS, FCC



3. Technical Specifiation

Mode	MSR100U,MSR100D
Reference Standards	ISO 7811,AMMVA,CADMV and other format
Swipe speed	3 ~ 60 inches per second
Interface	USB2.0,really Plug and Play,can customize USB OTG or RS-2322
Magnetic head	double magnetic head
Operating Temperature	-20℃~60℃
Storage Temperature	-20℃~60℃
Relative Humidity	90% non- condensing
Operating Life	approx. 500,000 passes
Size &Weight	Size	100mm(L) X 34mm(W) X 30mm(H)
	Weight	85g(MSR100U),90g(MSR100D)
Color	black
Read error rate	<0.5%
Warranty	One-year
