Профессиональные Электронные измерительные приборы электрическая антенна
- Категория: Анализаторы спектра >>>
- Поставщик: MPB,Srl
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 13328.23 $* | 13994.83 $* |
| Aug-16-2025 | 13216.28 $* | 13877.99 $* |
| Jul-16-2025 | 11088.41 $* | 11642.77 $* |
| Jun-16-2025 | 12992.43 $* | 13642.77 $* |
| May-16-2025 | 11312.26 $* | 11878.89 $* |
| Apr-16-2025 | 12768.72 $* | 13406.78 $* |
| Mar-16-2025 | 12656.66 $* | 13289.8 $* |
| Feb-16-2025 | 12544.41 $* | 13171.98 $* |
| Jan-16-2025 | 12432.40 $* | 13054.94 $* |
Характеристики
Product Description
ALL IN ONE
Spetrum analyzer + Isotropic triaxial antenna

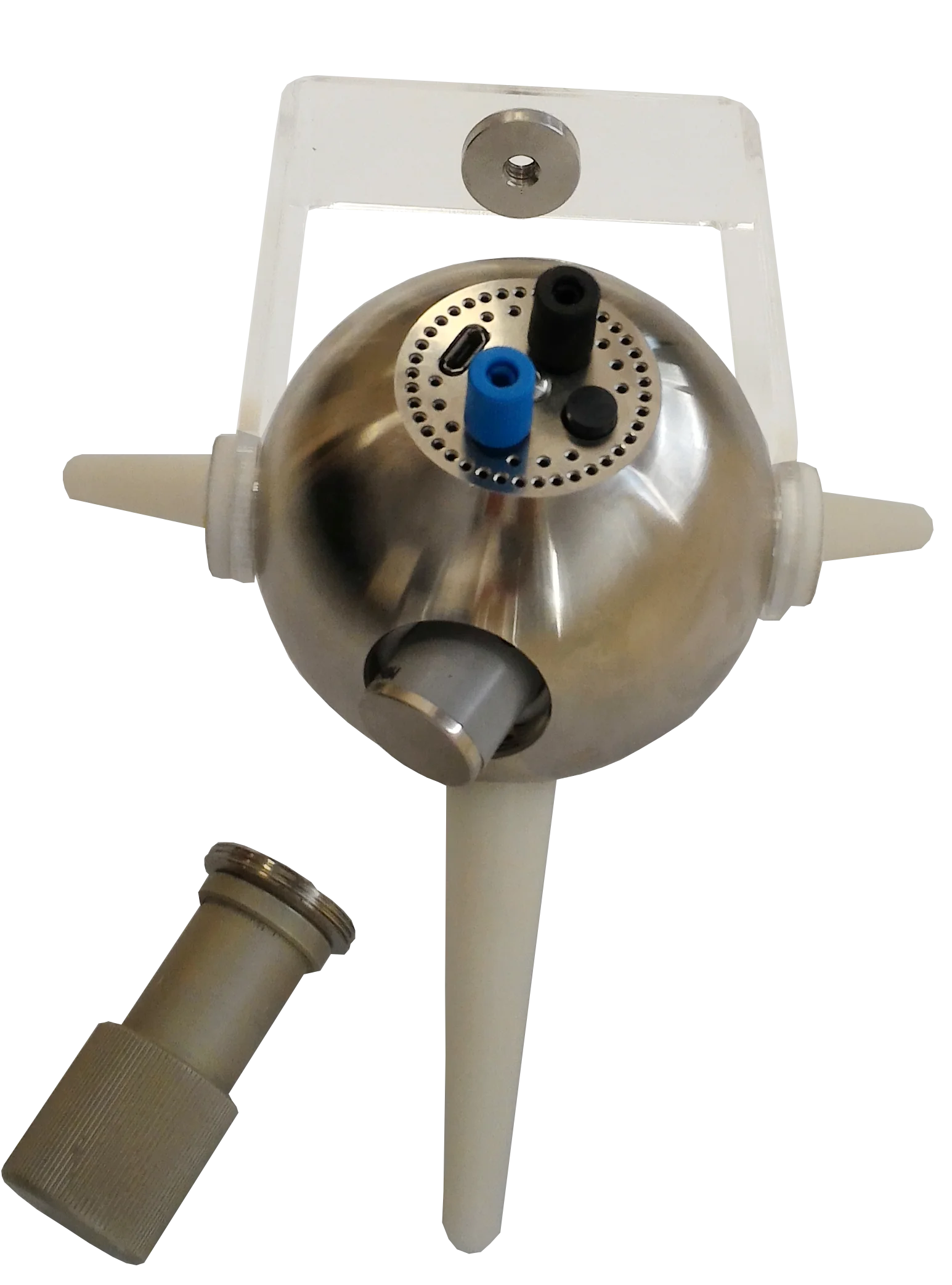

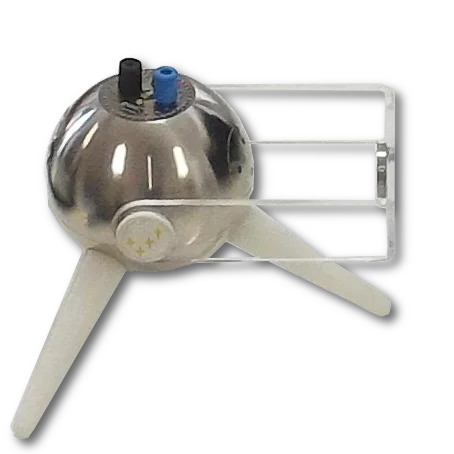

The SEP is a spherical system that allows to selectively measure the electric field in a frequency range from 100 kHz to 3.6 GHz. Its all-in-one setting (spectrum analyzer + isotropic antenna) enables faster and easy to handle measurements.
The signal is analyzed and stored directly in the PC through a safe fiber optic or wireless connection.
The signal is analyzed and stored directly in the PC through a safe fiber optic or wireless connection.

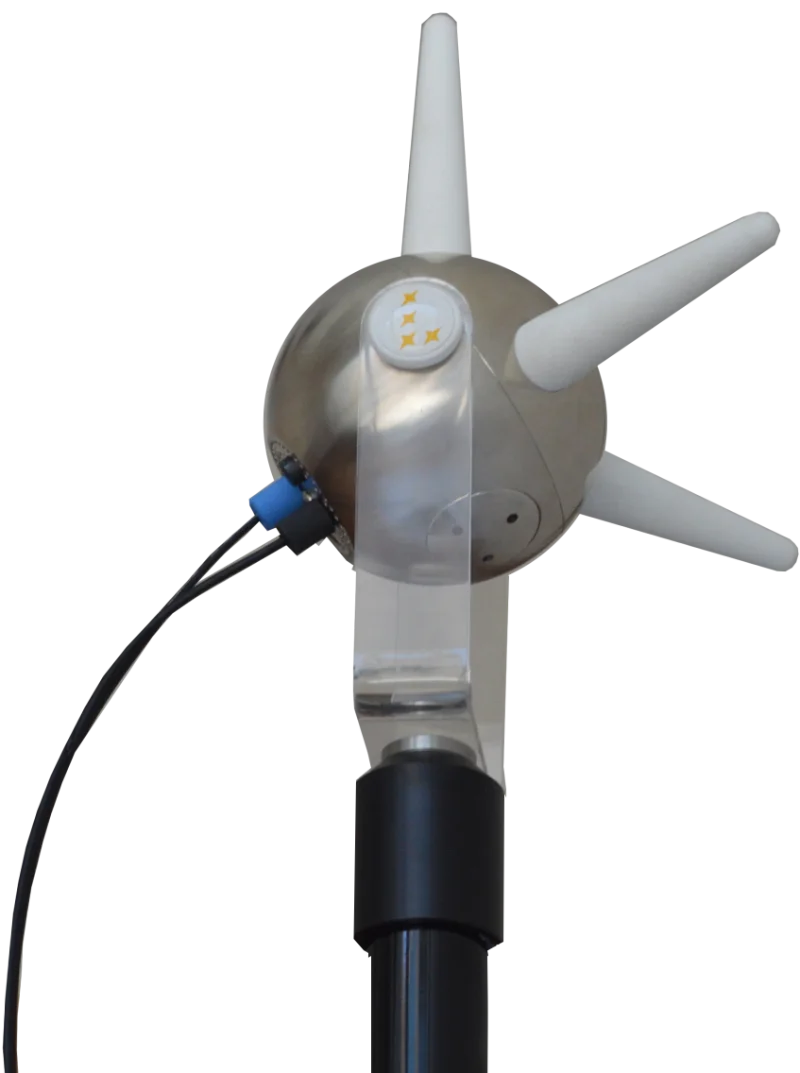

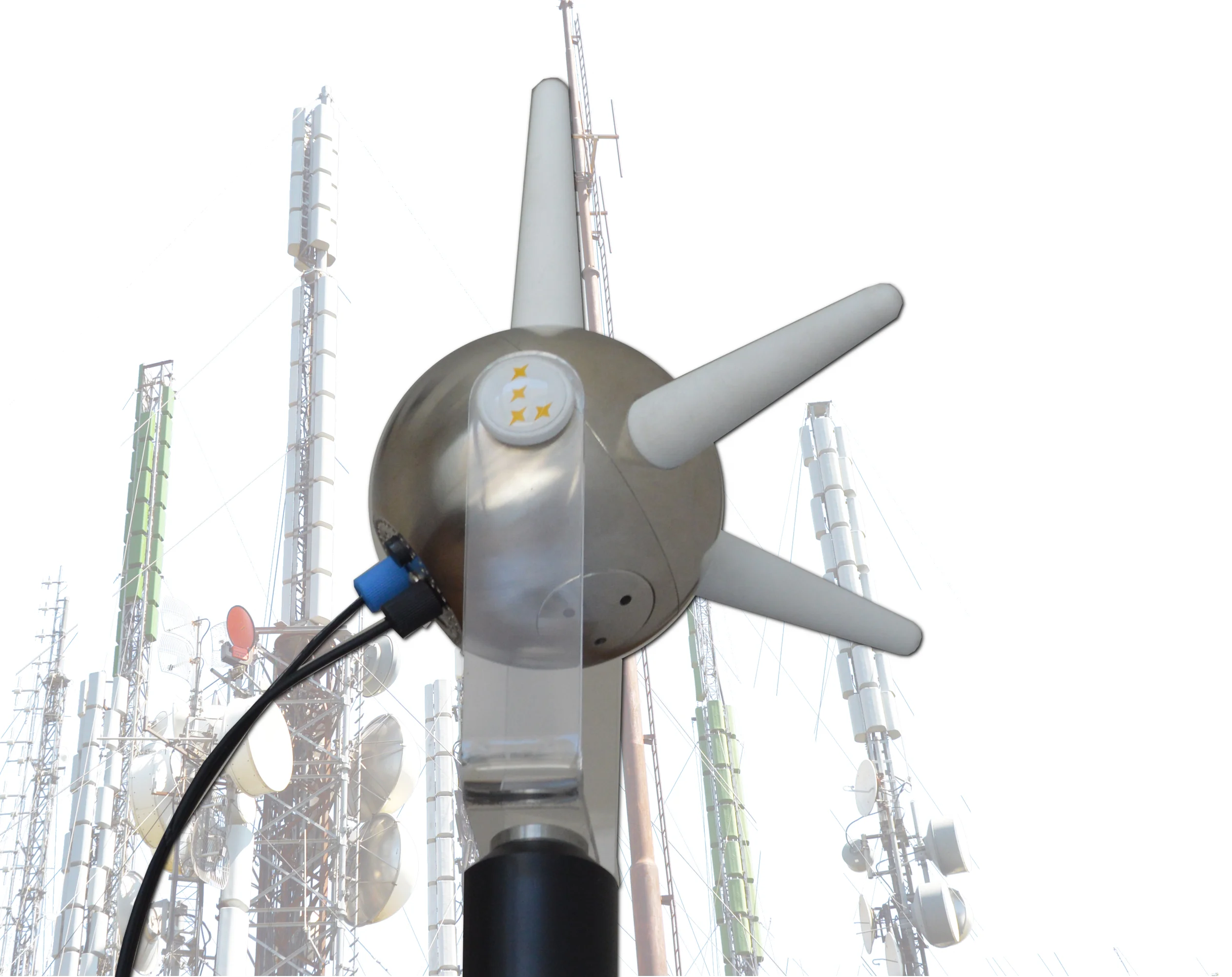

The SEP selectively monitors the electric field, allowing automatic accurate measurements, in real time and with minimum effort for the operator, thanks to its small size and weight. This antenna allows covering different applications, such as broadcasting, telecommunication and industrial sectors.
Thanks to its light weight and the possibility of using a wireless connection, the SEP can also be used for high altitude measurements with a drone.
This application is enabled through:
- Bluetooth connection with mod. SEP-WLD up to 20m
- WiFi connection with mod. SEP-WHD up to 300m
Thanks to its light weight and the possibility of using a wireless connection, the SEP can also be used for high altitude measurements with a drone.
This application is enabled through:
- Bluetooth connection with mod. SEP-WLD up to 20m
- WiFi connection with mod. SEP-WHD up to 300m

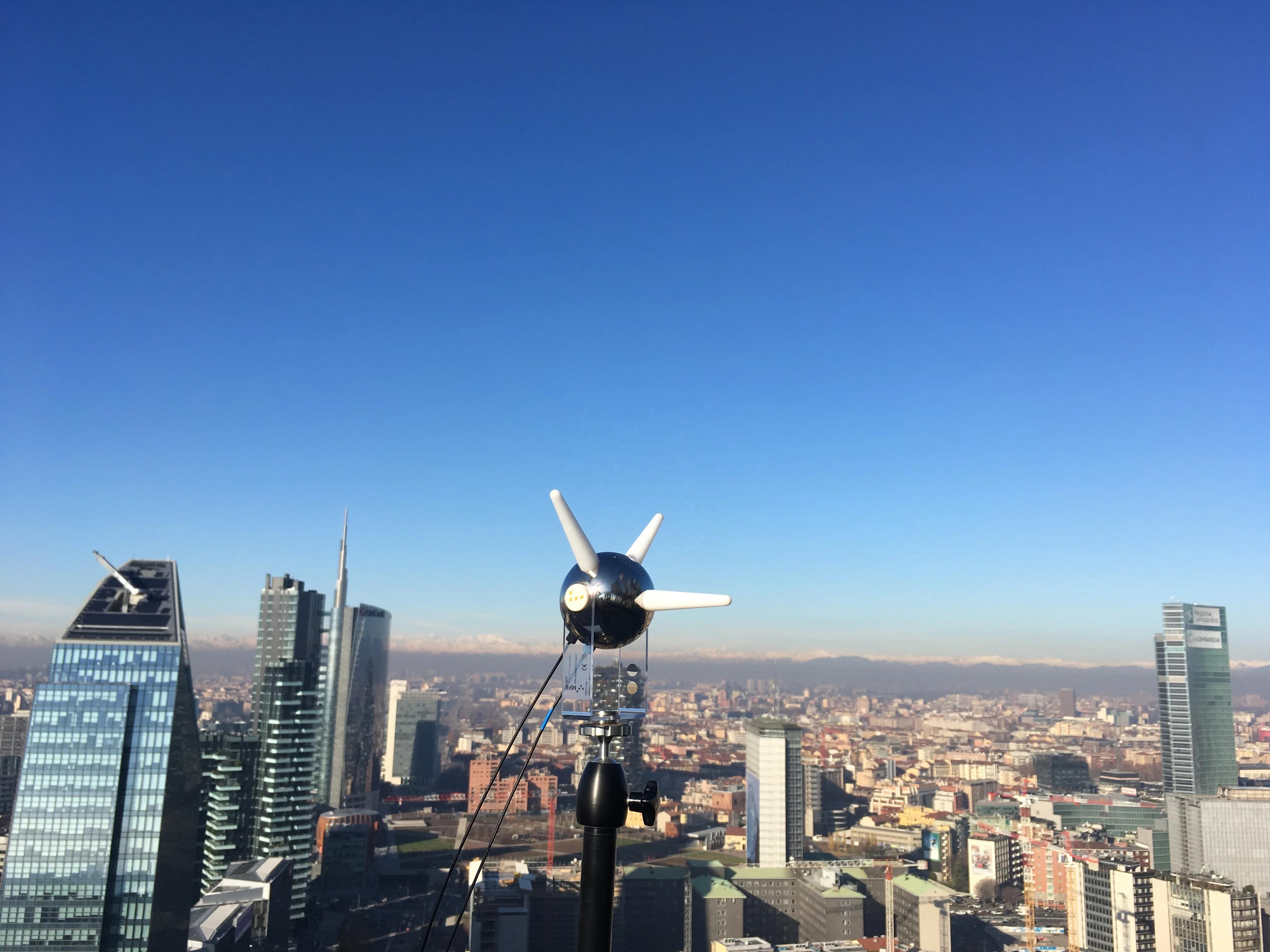

Application field
Measurement
ISSUES | TRADITIONAL SYSTEM | SEP |
USE OF THE COAXIAL FERRITE CABLE | The electrical connection between the antenna and the spectrum analyzer interferes in the frequency response of the antenna. Errors are not properly measurable.The problem cannot be totally solved but can only be reduced through the use of ferrites | There is no coaxial ferrite, because both the antenna and the spectrum analyzer are inside the same sphere |
ISOTROPY ERROR | Between the three dipoles and the “N” connector there is more than one cable (RF cable and switching cable/power cable). This worsens the antenna isotropy | The three dipoles are directly connected to the receiver. This choice was intended to minimize the isotropy error |
POWER SUPPLY | Very short battery life of the spectrum analyzer. In several cases the batteries cannot be replaceable by the operator. Their substitution implies a system shutdown | Batteries rechargeable and replaceable by the operator without having to turn off the system |
CALIBRATION | Three elements to be calibrated: antenna, ferrite cable and analyzer | Only the SEP to be calibrated |
DATA RECORD | It is possible to save data or screenshots | It is possible to save data or screenshots. It is also possible to record the measurement sessions and to post process the stored signals |
Software
The SEP software allows measurements in real time, offers the possibility to apply filters like the channel power, to display the signal on each axis, to set markers, to adapt the multiple graphic settings for each measurement requirement, to save the chosen configuration. All the functionalities can be applied also on previously stored tracks, in order to perform a signal post processing.
Standard UMTS measurement on X, Y, Z and isotropic
RMS measurement on X, Y, Z and isotropic on bluetooth transmission
UMTS Channel Power RMS measurement on X, Y, Z and isotropic
DVBT and FM broadcast RMS measurement on X, Y, Z and isotropic
Calibration
In order to guarantee a quality and efficient product, several tests have been carried out for the SEP.
Our technical staff has developed, through the years, an important know-how in the field and works every day to improve products and skills.
Our technical staff has developed, through the years, an important know-how in the field and works every day to improve products and skills.
MPB laboratories are also equipped with an anechoic chamber, a TEM cell and two G-TEM cells, in order to test the products under optimal conditions and to provide them with the calibration certificate.
MPB engineers and technicians offer assistance and hold training courses to illustrate the functioning of the products.

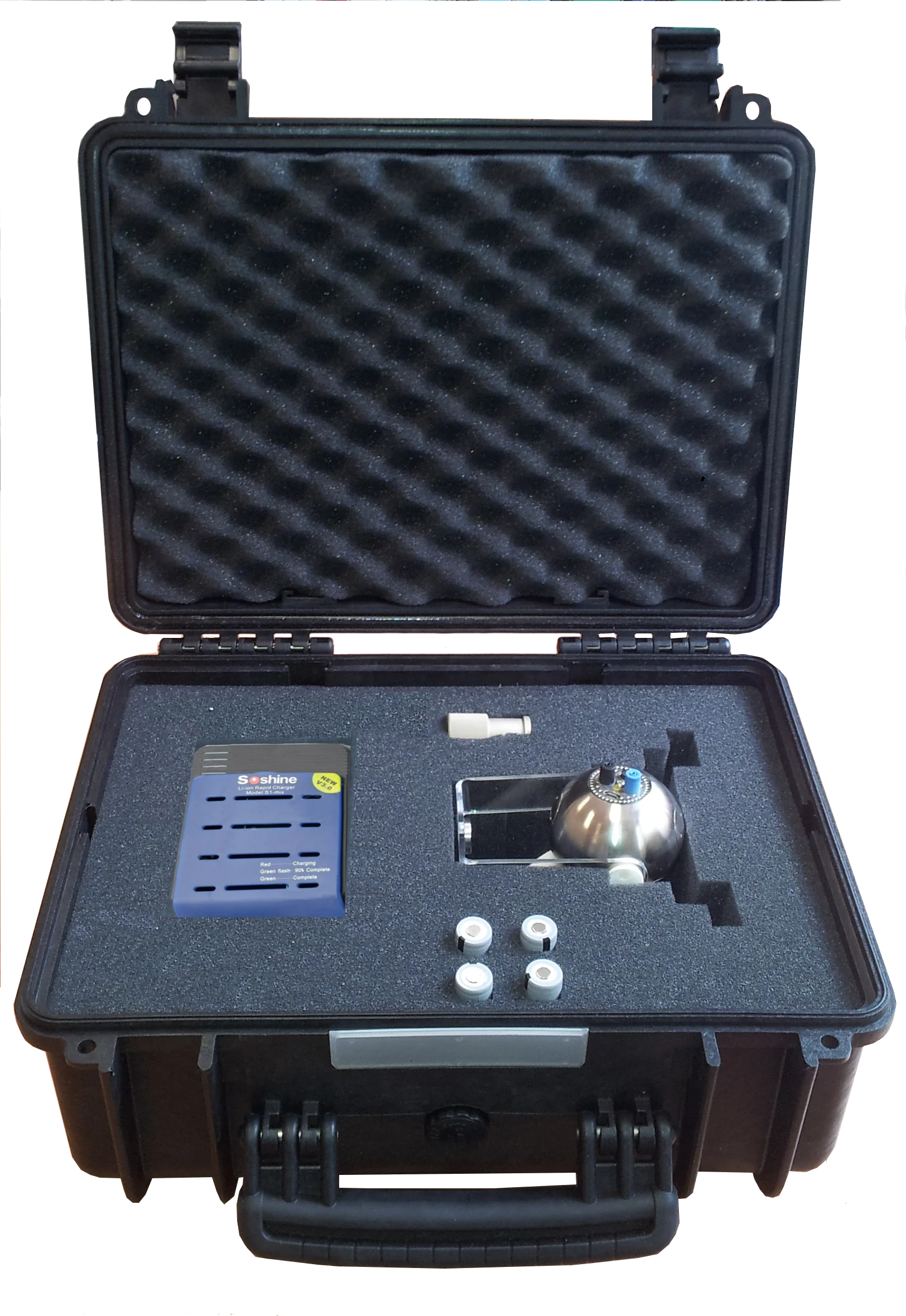

Standard configuration and Options
Plexiglass support | ||||||||
Fiber optic (10 m) | ||||||||
USB with PC utility software | ||||||||
Operating manual | ||||||||
USB cable | ||||||||
USB optical converter | ||||||||
Rigid case | ||||||||
4 rechargeable batteries | ||||||||
Cap remover | ||||||||
Chargers | ||||||||
Calibration certificate | ||||||||
OPTION Rugged tablet PC Mod ALGIZ 10X | ||||||||
OPTION Non-magnetic and non-reflective tripod Mod NMR-01 | ||||||||
OPTION Fiber optic connection Mod FO-50 | ||||||||
OPTION Bluetooth link connection Mod SEP-WLD | ||||||||
OPTION WiFi link connection Mod SEP-WHD | ||||||||
Tecnichal Specification
Company introduction
MPB provides solutions for EMF / EMC / RF testing applications, through R&D, design, production, sale and rental of high
technology electronic devices, training courses and consulting. In the field since 1998, MPB has acquired a know-how to be spent on any type of need in the field of reference.
Our R&D department works every day to develop new ideas, continously pursuing new solutions for the telecommunications world and for signal measurements in EMC, EMI, EMF.
The MPB instrumentation is designed, manufactured and calibrated at our laboratories, equipped with ISO 14025 calibrated test equipment as well as suitable test and calibration environments such as anechoic chamber, TEM and GTEM cells, Helmoltz coils overing the range DC-40 GHz
The choice of a customer-oriented business model and ever-changing quality has helped make our company innovative and reliable over the years.
technology electronic devices, training courses and consulting. In the field since 1998, MPB has acquired a know-how to be spent on any type of need in the field of reference.
Our R&D department works every day to develop new ideas, continously pursuing new solutions for the telecommunications world and for signal measurements in EMC, EMI, EMF.
The MPB instrumentation is designed, manufactured and calibrated at our laboratories, equipped with ISO 14025 calibrated test equipment as well as suitable test and calibration environments such as anechoic chamber, TEM and GTEM cells, Helmoltz coils overing the range DC-40 GHz
The choice of a customer-oriented business model and ever-changing quality has helped make our company innovative and reliable over the years.
Our Services
Calibration standard and accredited
Calibration is the act of checking the functioning an electronic instrument to verify its features according to the manufacturer's original technical specifications. To do so we make a comparison of measures with a reference instrument defined sample. In order to do that we compare measures obtained with a sample instrument. If during the calibration phase the equipment does not show its original specifics, then it is necessary to repair it. This phase is called
calibration. The certificate is the statement that the instrument is compliant with the manufacturer's specifics.
Repair
MPB can repair a wide range of electronic equipment: Radio frequency, Microwave and testing systems EMC.
All our electronic equipment's repairs are performed with new and original spare parts. After the repair the measuring equipment is subject at least to 24 hours test cycles. The documentation available for our laboratory and the know-how gained in many years of activity, give our specialized technicians the opportunity to perform repairs also with obsolete instrumentation, where finding spare parts is very difficult.
Design
MPB has consolidated through the years his know-how in the area of electromagnetic fields, being therefore able to develop a R & D department. In order to reach the new goal, the company has invested in a lab equipment and in a highly quantified staff. Our lab is fully equipped with high quality precision instruments, such as the TEM cell, the GTEM cell and an anechoic chamber, which allows to develop and to test solutions up to 40 GHz.
calibration. The certificate is the statement that the instrument is compliant with the manufacturer's specifics.
Repair
MPB can repair a wide range of electronic equipment: Radio frequency, Microwave and testing systems EMC.
All our electronic equipment's repairs are performed with new and original spare parts. After the repair the measuring equipment is subject at least to 24 hours test cycles. The documentation available for our laboratory and the know-how gained in many years of activity, give our specialized technicians the opportunity to perform repairs also with obsolete instrumentation, where finding spare parts is very difficult.
Design
MPB has consolidated through the years his know-how in the area of electromagnetic fields, being therefore able to develop a R & D department. In order to reach the new goal, the company has invested in a lab equipment and in a highly quantified staff. Our lab is fully equipped with high quality precision instruments, such as the TEM cell, the GTEM cell and an anechoic chamber, which allows to develop and to test solutions up to 40 GHz.
