Высококачественная машина для сбора песка мытья в системе восстановления 100-220
- Категория: Sand Washer >>>
- Поставщик: Zhengzhou,Huayu,Briquette,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.21 $* | 0.7 $* |
| Aug-18-2025 | 0.58 $* | 0.5 $* |
| Jul-18-2025 | 0.5 $* | 0.91 $* |
| Jun-18-2025 | 0.47 $* | 0.44 $* |
| May-18-2025 | 0.28 $* | 0.22 $* |
| Apr-18-2025 | 0.76 $* | 0.36 $* |
| Mar-18-2025 | 0.35 $* | 0.49 $* |
| Feb-18-2025 | 0.78 $* | 0.93 $* |
| Jan-18-2025 | 0.6 $* | 0.54 $* |
Характеристики
Fine sand recovery collecting machine recycling rate sand recovery system
LZ patent sand collecting machine is designed on the basis of absorbing world advanced technology and combining with the applications of domestic sand making industrial. It is widely used for recycling 0.16-3mm fine sand.
Product Description
Specification
main technical parameter | ||||||||||||||
model | Slurry pump | cyclone(mm) | Dewatering screen | productivity (m3/h) | Weight(kg) | |||||||||
material | power(kw) | material | power(kw) | |||||||||||
250 | Cr26 | 11 | 250 | PU | 0.75*2 | 30-80 | 2050 | |||||||
300 | Cr26 | 15 | 300 | PU | 0.75*2 | 40-100 | 2200 | |||||||
350 | Cr26 | 18.5 | 350 | PU | 0.75*2 | 70-130 | 2555 | |||||||
550 | Cr26 | 11*2 | 250*2 | PU | 1.1*2 | 100-220 | 3250 | |||||||
650 | Cr26 | 15*2 | 300*2 | PU | 1.1*2 | 120-272 | 3945 | |||||||
750 | Cr26 | 18.5*2 | 350*20 | PU | 2.2*2 | 180-350 | 4900 | |||||||
900 | Cr26 | 37 | 300*2 | PU | 3*2 | 250-500 | 5650 | |||||||
Working principle

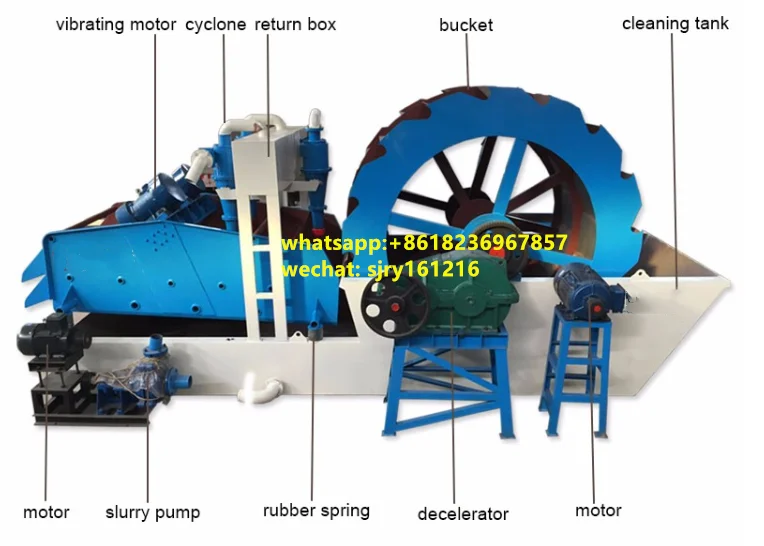

Through rubber pipes sand and water mixture is extracted from cleaning tank into slurry pump. The fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurethane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen. The waste water will flow back to the return box, through weld chute or pipes flowing to a settling pond.
Step 1: Washing
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.
Step2: Dewatering

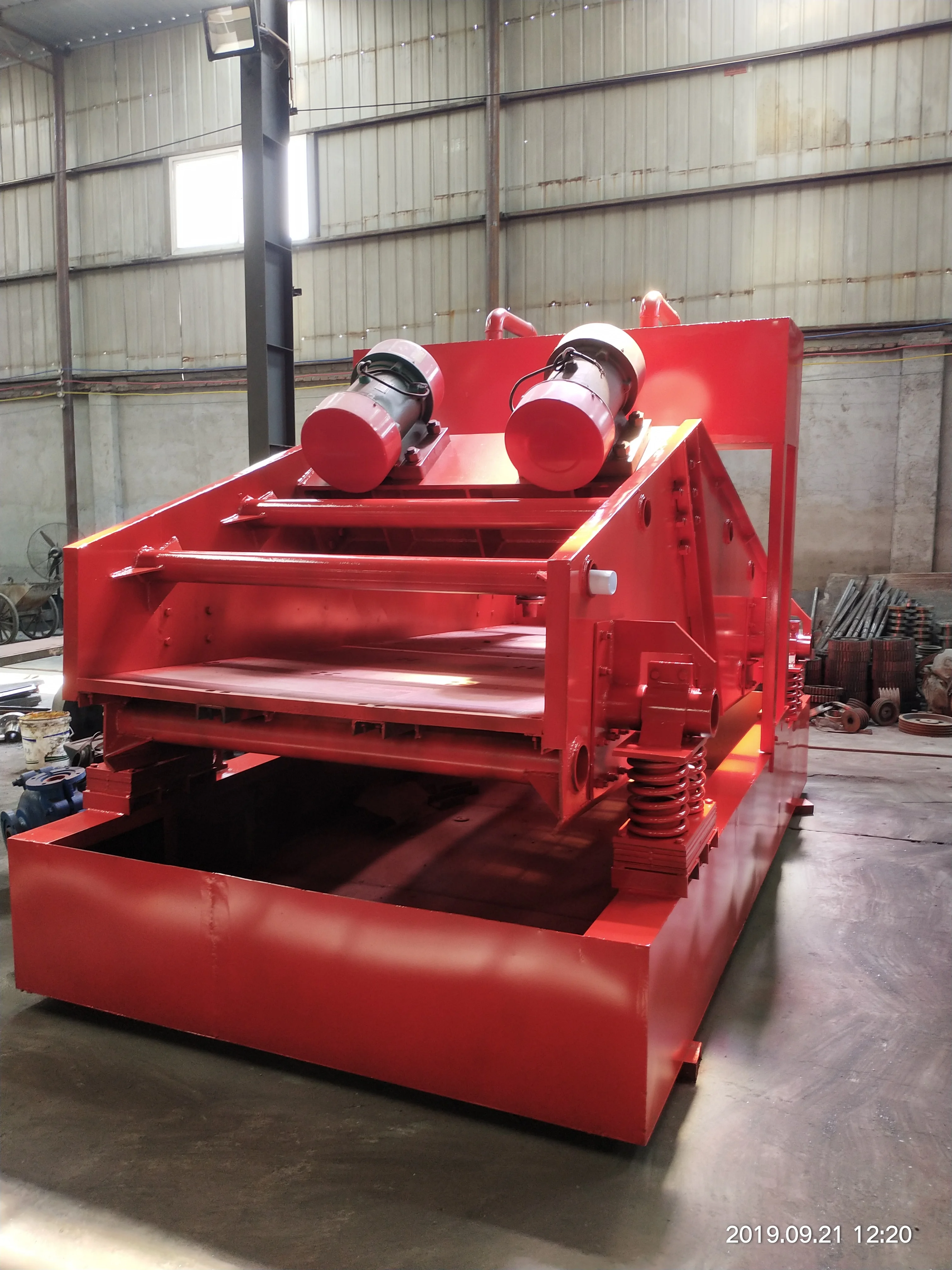

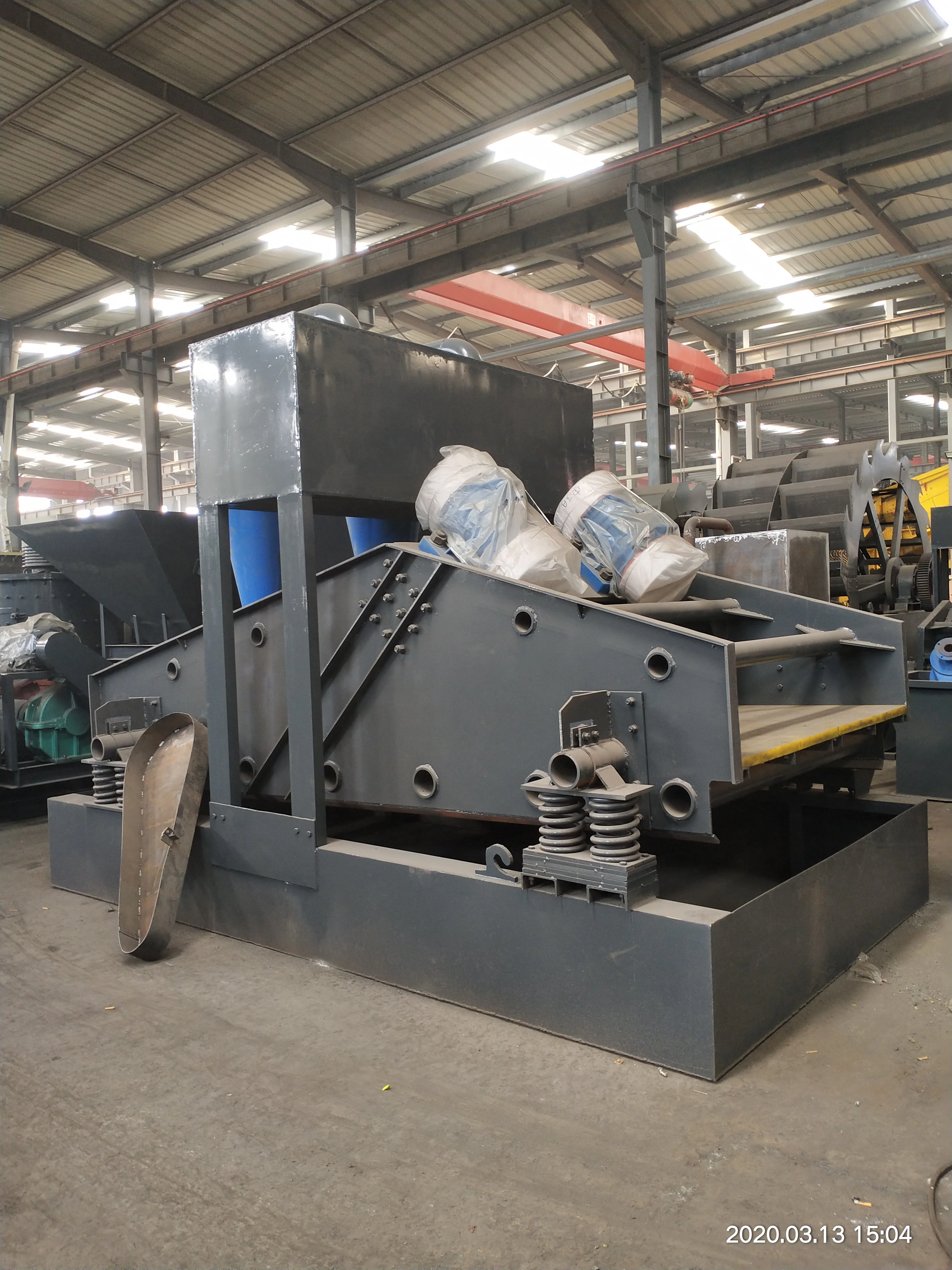

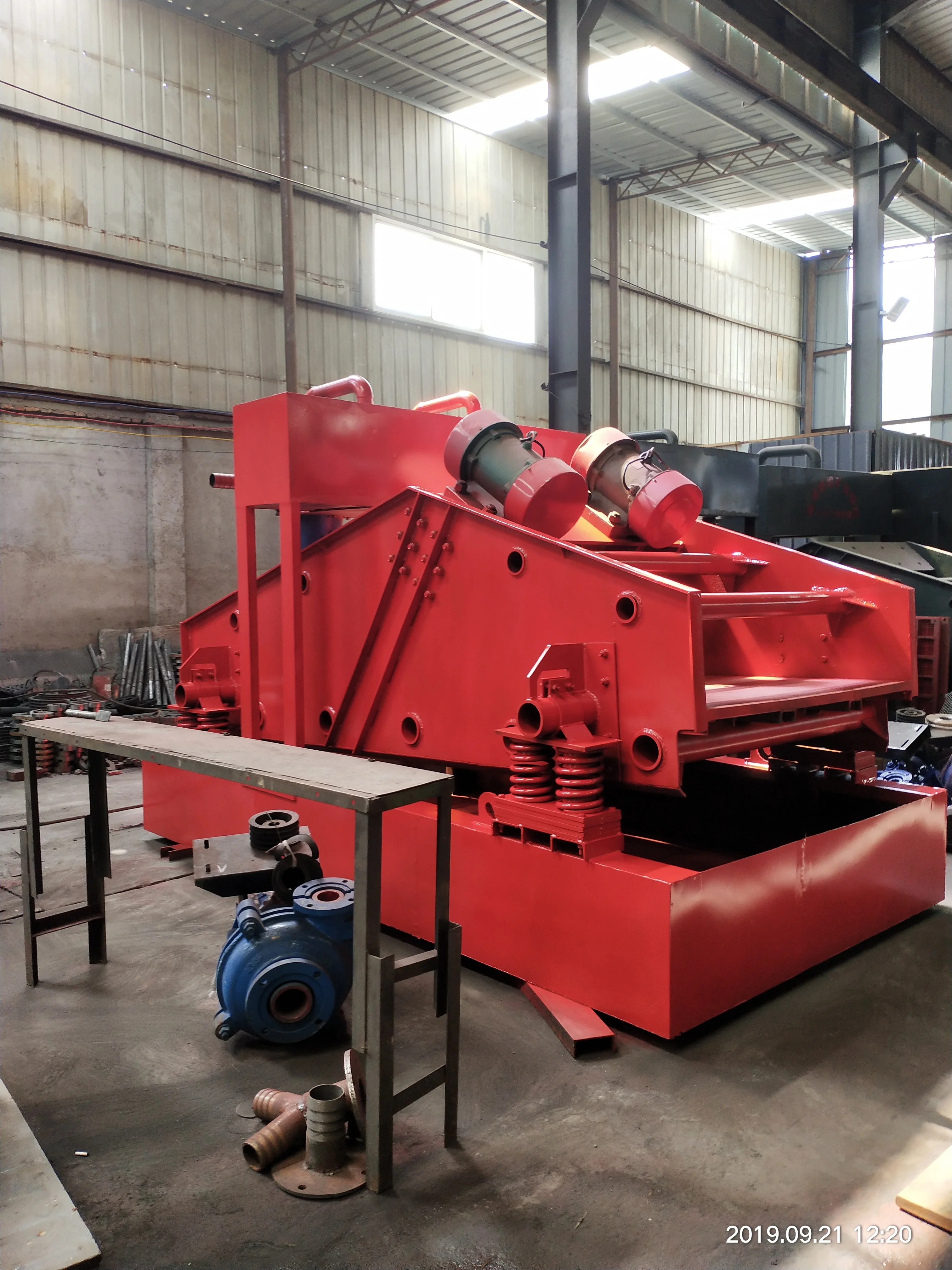

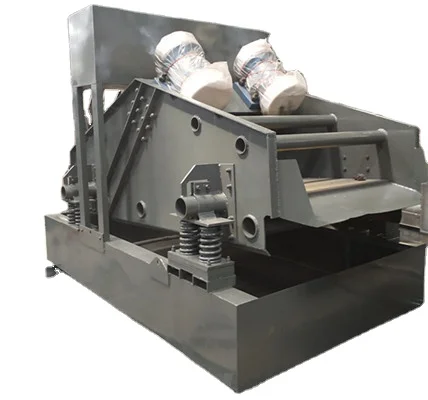

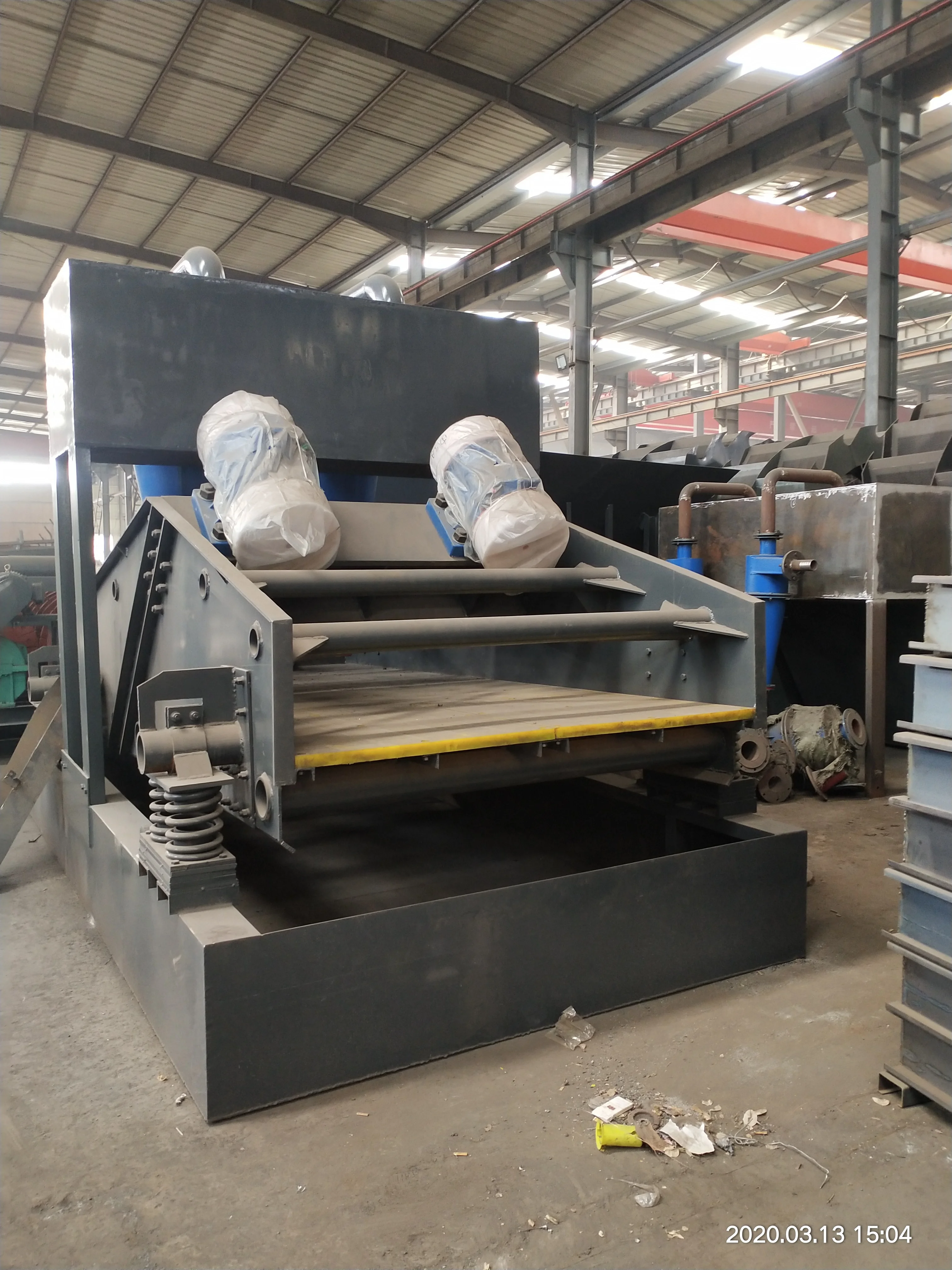

Qualified sand is shoveled to the dewatering screen directly. This dewatering screen sieve is made of PU polyurethane material, no blocking, can bear high temperature and corrosion resistance is high, service longer working hours. From this step, wet sand moisture can be highly reduced.
Step3: Fines recycling
Waste sand water is extracted by slurry pump into high pressure sediment separator, fine sand 0.16-3mm is sprayed onto polyurethane screen also for de-watering, the waste water is back to return box and flowing out.
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.
Step2: Dewatering
Qualified sand is shoveled to the dewatering screen directly. This dewatering screen sieve is made of PU polyurethane material, no blocking, can bear high temperature and corrosion resistance is high, service longer working hours. From this step, wet sand moisture can be highly reduced.
Step3: Fines recycling
Waste sand water is extracted by slurry pump into high pressure sediment separator, fine sand 0.16-3mm is sprayed onto polyurethane screen also for de-watering, the waste water is back to return box and flowing out.
Features
1. It is followed sand washing machine, screw sand washer or sand dewatering screen;
2. 0.16-3mm fine sand can be recycled;
3. Recycling rate reaches above 95%;
4. Moisture content within 12%-15%.
2. 0.16-3mm fine sand can be recycled;
3. Recycling rate reaches above 95%;
4. Moisture content within 12%-15%.
Product Application
Sand washing machine is based on sand washer and sand recycling system main tech, we make it a compact multiple function sand
washer. It is widely used for crushed sand, river sand, lake sand or sea sand washing, screening, recycling and dewatering.
Sand washing machine is based on sand washer and sand recycling system main tech, we make it a compact multiple function sand
washer. It is widely used for crushed sand, river sand, lake sand or sea sand washing, screening, recycling and dewatering.
Packing & Delivery
Packing: We can install machines in the factory first or send the installation instructions to assist you.
Delivery: We usually deliver machines by One Touch of Alibaba Company in order to guarantee the delivery time and the quality of
machines. We can also use other ways as your requirements.
Delivery: We usually deliver machines by One Touch of Alibaba Company in order to guarantee the delivery time and the quality of
machines. We can also use other ways as your requirements.
Company Profie
Our company has more than 100 experienced workers and a complete set of production line which includes assembling, pressing,
roller processing, case processing, and other workshops.
roller processing, case processing, and other workshops.
Please trust us. We have the best factory price and we have the enough ability and strength to manufacture high-quality machines
in a timely and efficient manner.
in a timely and efficient manner.
our services
Pre-Sales Service
* Inquiry and consulting support swiftly
* View our factory
* Using your mailed sample to test the machine
After-Sales Service
* Training how to install the machine and how to use the machine
* Engineers available to service machinery overseas
If you have any questions about the machine or our company, please contact us freely. We will response swiftly and do our best to
meet your demand.
* Inquiry and consulting support swiftly
* View our factory
* Using your mailed sample to test the machine
After-Sales Service
* Training how to install the machine and how to use the machine
* Engineers available to service machinery overseas
If you have any questions about the machine or our company, please contact us freely. We will response swiftly and do our best to
meet your demand.
FAQ
