VOUNG PROFESSIONAL CABINET LOCK MANUFACTURER
Product Description
50CH 12V/24V RS485 locker Storage Cabinet Security Rfid Access control system electronic cabinet locker control board
Model | VE-B-RS485-12W | VE-B-RS485-18W | VE-B-RS485-25W | VE-B-RS485-36W | VE-B-RS485-50W |
Way | 12Way | 18Way | 25Way | 36Way | 50Way |
Products descripition :

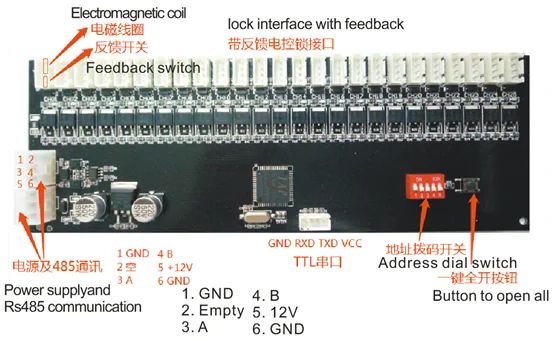

The lock control board adopts RS485 communication interface, supports a variety of electric control locks, supports lock signal
feedback, supports 12V and 24V electric control locks, and the lock feedback mode can be configured by software, with independent
PTC resettable fuses, and supports short circuit protection. , The protection current is 3A, providing configuration tool
software, users can freely change the communication protocol and lock feedback type.
Application field:
The lock control board is widely used in centralized control cabinets such as storage cabinets, letter boxes, storage cabinets,
logistics cabinets, file cabinets, lockers, vending machines, mobile phone cabinets, shoe cabinets, etc. Widely used in:
schools,community logistics, hotels, factories, bathing centers, troops, banks, supermarkets, prisons and other places.
PRODUCT PARAMETERS
Working voltage | DC9-24V | ||||||||
Standby power consumption | Less 1W | ||||||||
Working temperature | -30℃~ +80℃ | ||||||||
Communication interface | RS485, Baud rate 9600 | ||||||||
485 connect quantity | Max 32 pcs | ||||||||
Drive the lock current | Max 3A | ||||||||
Read lock status | Support | ||||||||
Open lock time | 200ms | ||||||||
Program update interface | TTL series | ||||||||
Watchdog timer | Support | ||||||||
OEM | Accept | ||||||||

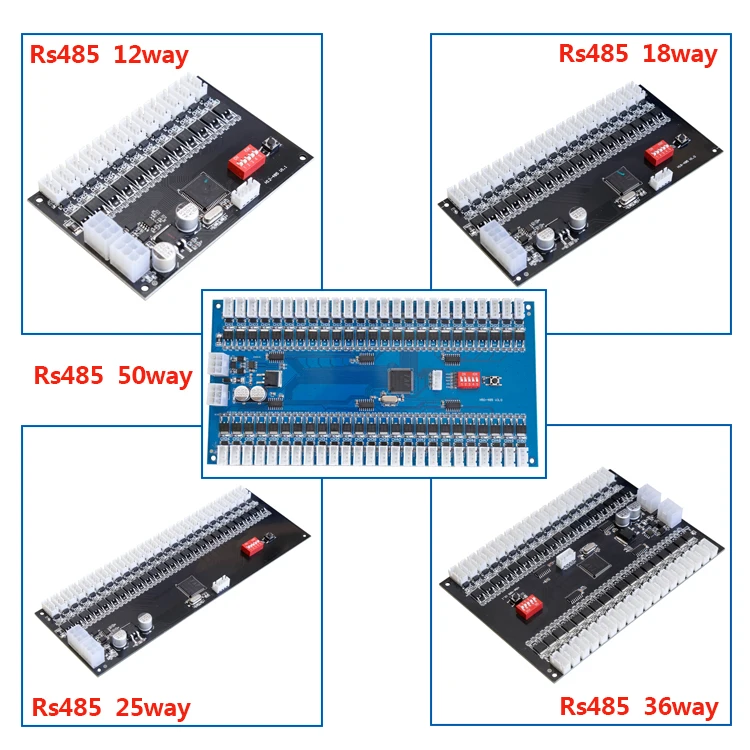

Products Show
12Way VE-B-RS485-12W
18Way VE-B-RS485-18W
25Way VE-B-RS485-25W
36Way VE-B-RS485-36W

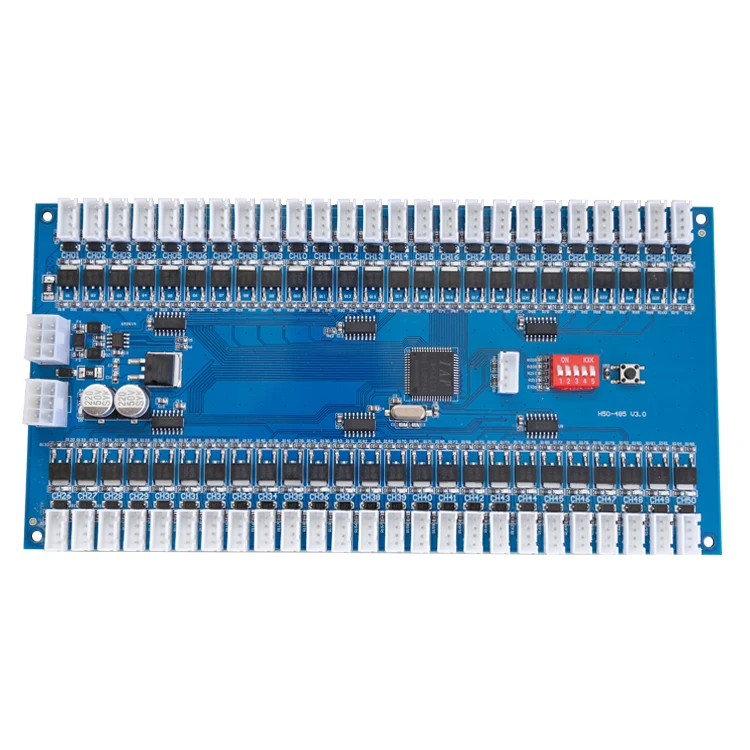

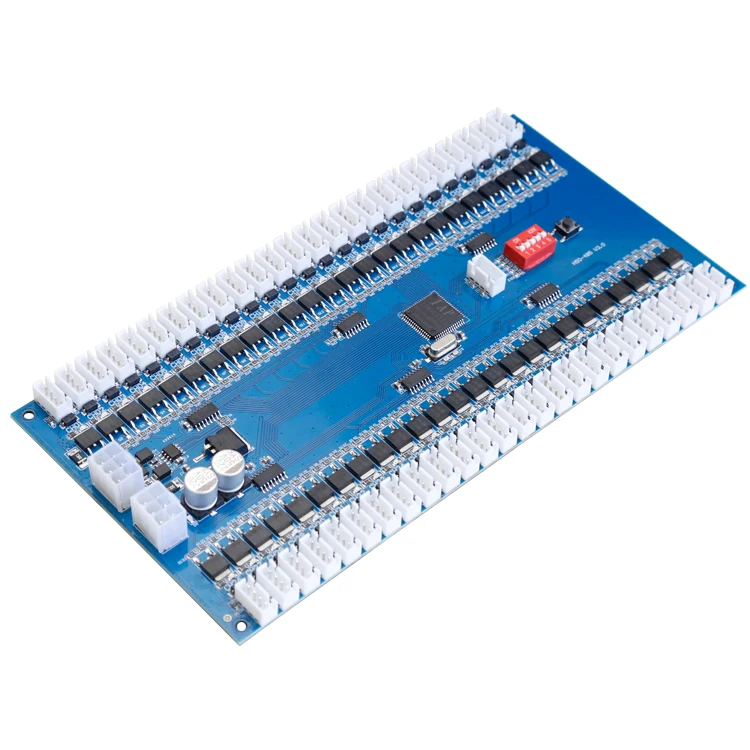

50Way VE-B-RS485-50W
Related Products
Packing & Delivery
bubble bag / standard carton
100pcs / Carton
Carton size : 46.5x32x30cm
Carton size : 46.5x32x30cm
Shipping way | Service | Time ( for reference , depend on your country) |
DHL/UPS/FEDEX/TNT | Door to door | 4-7days |
By Air | Door to airport | 7-15days |
By sea | Sea port to sea port | 20-40days |
