Горячий масляный котел для жаккардовых сосудов китайского

Горячий масляный котел для жаккардовых сосудов китайского

Категория: Boiler & Parts >>>
Поставщик: Jiangsu,Ruiyuan,Heating,Equipment,Technology,Co.,Ltd.

Цена:4 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	5355.72 $*	5623.3 $*
Aug-16-2025	5310.65 $*	5576.41 $*
Jul-16-2025	4455.26 $*	4678.89 $*
Jun-16-2025	5220.91 $*	5481.4 $*
May-16-2025	4545.44 $*	4772.10 $*
Apr-16-2025	5130.12 $*	5387.73 $*
Mar-16-2025	5085.6 $*	5339.17 $*
Feb-16-2025	5040.41 $*	5292.84 $*
Jan-16-2025	4995.94 $*	5245.22 $*

Характеристики

Products Description

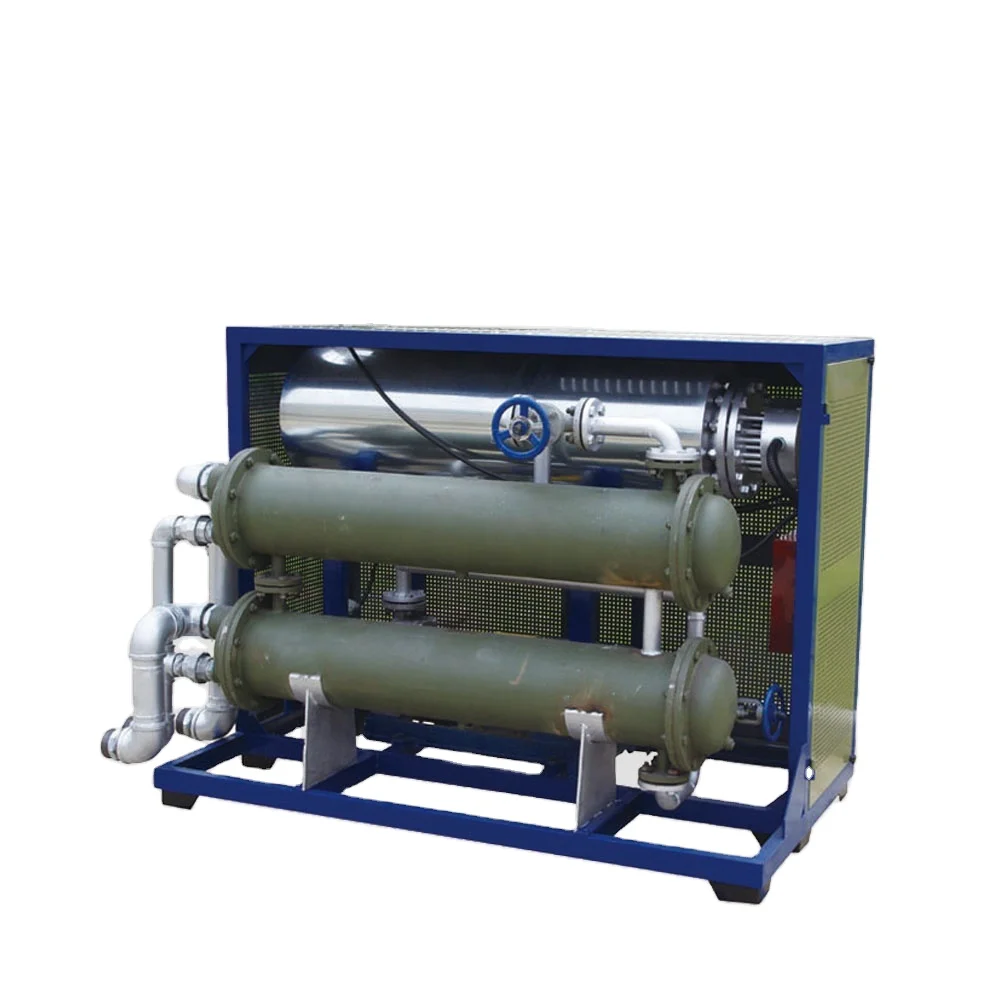

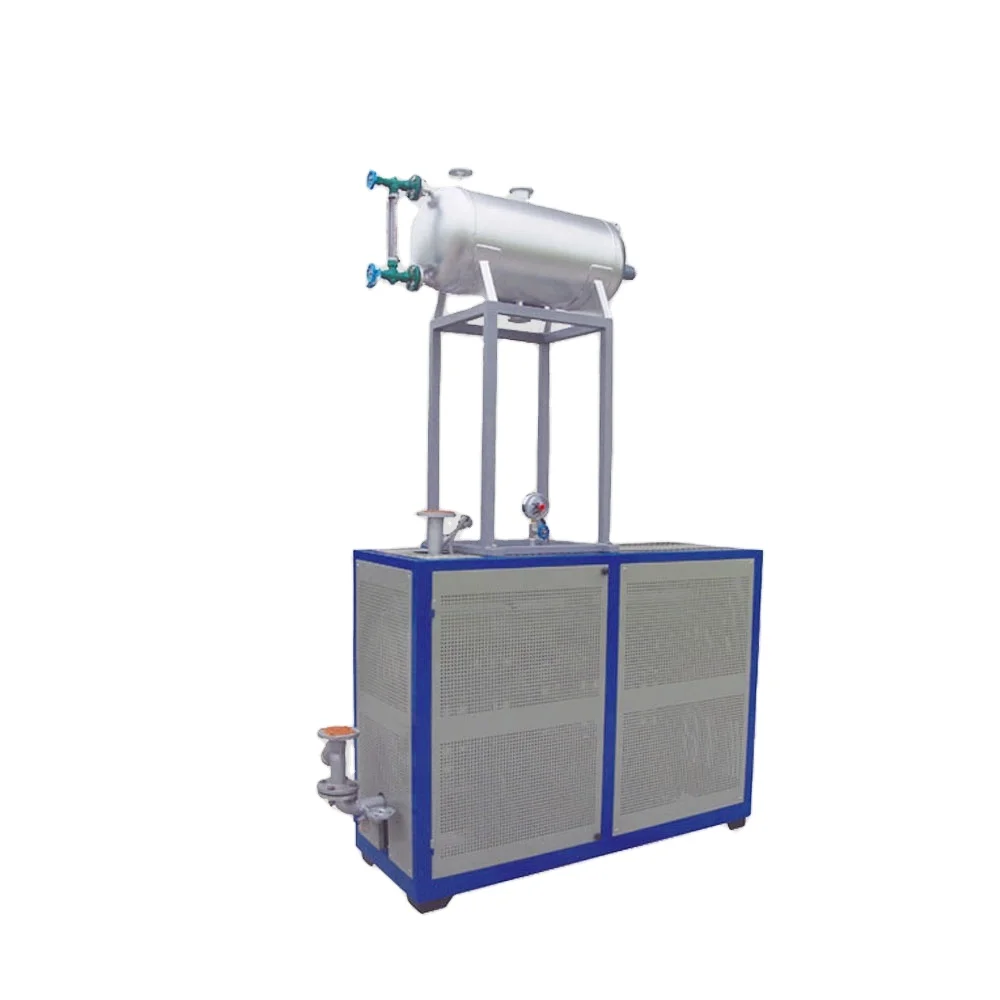

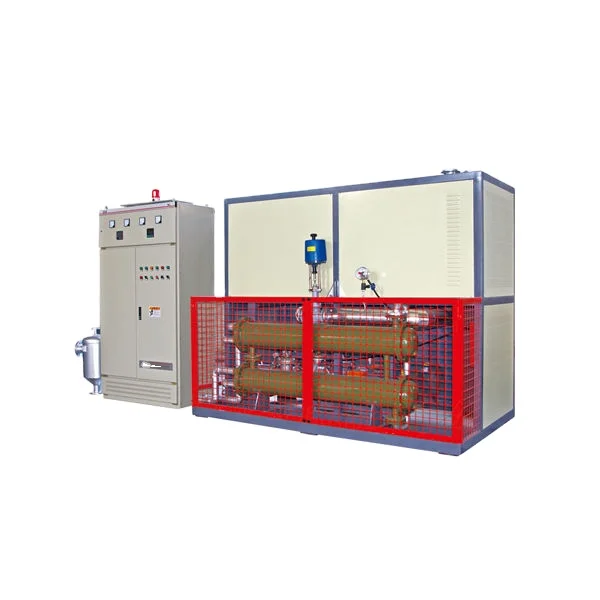

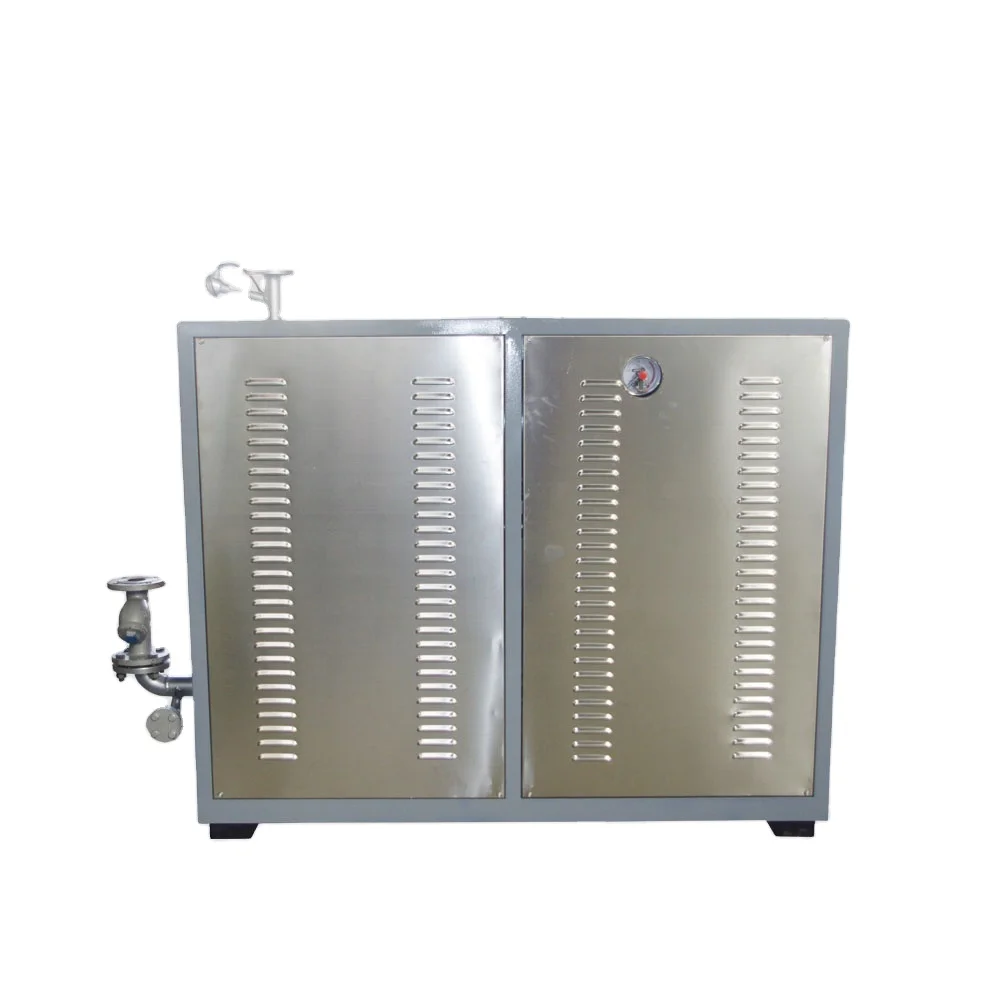

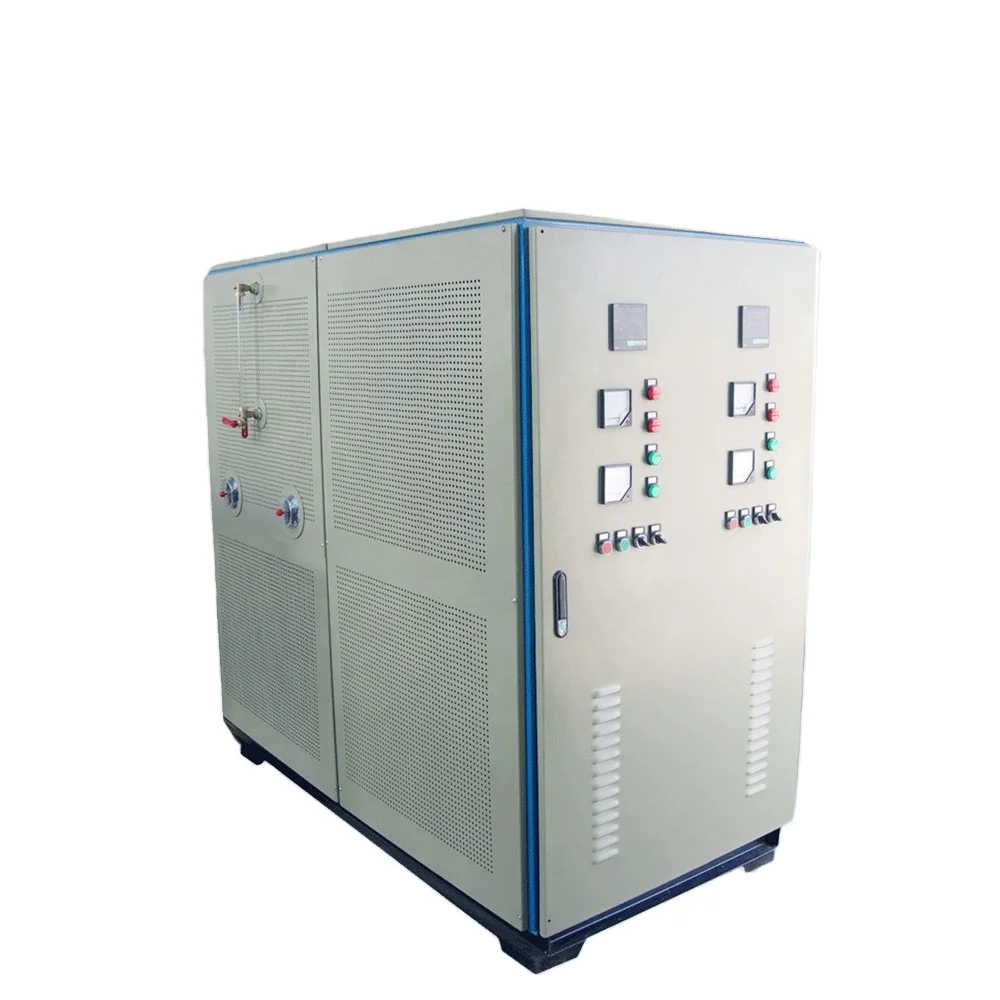

GYD serial Thermal oil heater is a kind of new-typed heating equipment with heat energy conversion. It takes the electricity as power, changes it into the heat energy through the electrical organs, takes the organic carrier (heat thermal oil) as medium, and continues to heat through the compulsive circulation of the heat Thermal oil driven by high-temperature oil pump, so as to meet the heating requirements of users. In addition, it could also satisfy the requirements of set temperature and temperature controlling accuracy. We are manufactured for capacities from 6 to 2,400 kw as well as temperatures of up to +320 °C.

1. Electric heater system

2. High thermal efficiency
3. Horizontal centrifugal pump
4. All welded construction
5. PID Temperature Controller (FUJI Electric PXR5/9)
6. Fast installation and low maintenance efforts
7. Isolation gate valves and strainer
8. SSR(Solid State Relay) control on heater circuits
9. Pressure test and Functional test of system

For non-woven fabrics, chemical industry, chemical fiber, rubber, composite, sanitary fittings and other industries.

GYD series electric thermal oil heater

parameter table

Model	Heater Power (kw)	Oil Capacity (L)	Overall Dimension	Heating-oil Pump Flow Head Power					Total Weight (KG)	Expansio Tank (L)
GYD10	10	15	11005001100	6	27	1.5	200	100
GYD18	18	23	16005001250	6	27	1.5	200	130
GYD24	24	28	19506501450	12.5	30	3	350	150
GYD36	36	48	19506501450	12.5	30	3	350	200
GYD48	48	48	19506501450	18	40	5.5	350	230
GYD60	60	52	19506501450	18	40	5.5	350	230
GYD70	70	60	21507001750	30	48	7.5	550	280
GYD90	90	68	21507001750	30	48	7.5	550	280
GYD120	120	105	22007001880	30	48	7.5	750	300
GYD150	150	195	22007001880	30	48	7.5	750	300
GYD180	180	230	22009001880	45	48	11	1200	320
GYD240	240	260	230010001950	80	38	15	1200	350
GYD300	300	293	260012002000	80	38	15	1600	350
GYD400	400	358	280012002000	80	38	15	1750	450
GYD500	500	510	280015002000	80	38	15	1850	550
GYD600	600	562	300018002150	80	38	15	1950	600
GYD700	700	638	300018002150	80	38	15	2200	650
