Digital AC Power Meter LED DC Three Phase Watt Meter

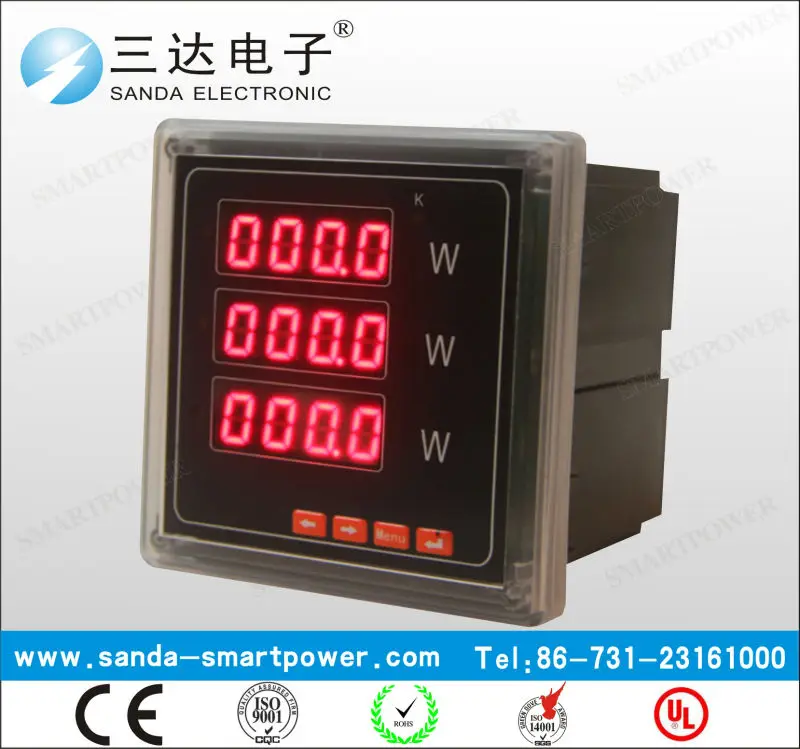

power meter frontside

• Product Detail

Digital three-phase active/reactive power meter(watt meter) is suitable for measuring and displaying three-

phase power in electric grid,automation systems.The meters has advantages of high accuracy,good stability,

resistance to vibration,etc.

• Technical Parameters



Function	Parameters
Input  measurement  display	Voltage	Rated value	AC0~500V
		Overload	Last:1.2 times,instantaneous:10 times/10 seconds
		Power consumption	<1VA
		Impedance	>500kΩ
		Accuracy	Accuracy class 0.5 by RMS measure
	Current	Rated value	AC0~5A
		Overload	Last:1.2 times,instantaneous:10 times/10 seconds
		Power consumption	<0.4VA(per phase)
		Impedance	>2mΩ
		Accuracy	Accuracy class 0.5 by RMS measure
	Power	Working range	AC/DC 86~270V
		Power consumption	≤5VA
	Environment	Work environment	-10~55°C
		Sorage environment	-20~75°C
	Security	Pressure	Input/Power>2kv,input/output>2kv,power/output>1kv
		Insulation	Input,output,power on the chassis> 50MΩ



• Frame and Install Size

Panel instruction



install size

 other size:

Frame Size                                   Install Size

96mm*96mm*90mm                 88mm*88mm/91mm*91mm

80mm*80mm*95mm                76mm*76mm

120mm*120mm*95mm            120mm*120mm/107mm*107mm

160mm*80mm*95mm              151mm*76mm



•    Menu Programming Direction





•  Menu Structure Diagram

The user can choose properly programmed parameters according to the actual situation.



1) Exit the menu settings,when there’s SAVE:press the key   to save and exit,press the  key is invalid exit.

2) After entering the programming menu,if there is no operation within 60S,it will default to give up,and automatically

return to the normal display.

3) No extension can be set to the SET

• Wiring Diagram

• Quality Gurantee

   12 months from delivery date

   Manufacturer would provide free repair or return if uses found the meters within 12 months starting from the EX-factory date, the sealing is untouched & complete, completely obey the conditions of transportation, storage, installation & the using environment limits.

• Attention & FAQs

1.  Long term state out of using, please charging once every three months, lasting at lease 4 hours.

2.  Long-term preservation should avoid the direct rays of light, between -10 °C ~ 70°C is suitable for storage.

3. If the meter display nothing, first please check power,voltage and terminal wiring.

• Product Display





• Package



If you are willing to provide technical parameters, we will customize for you.
