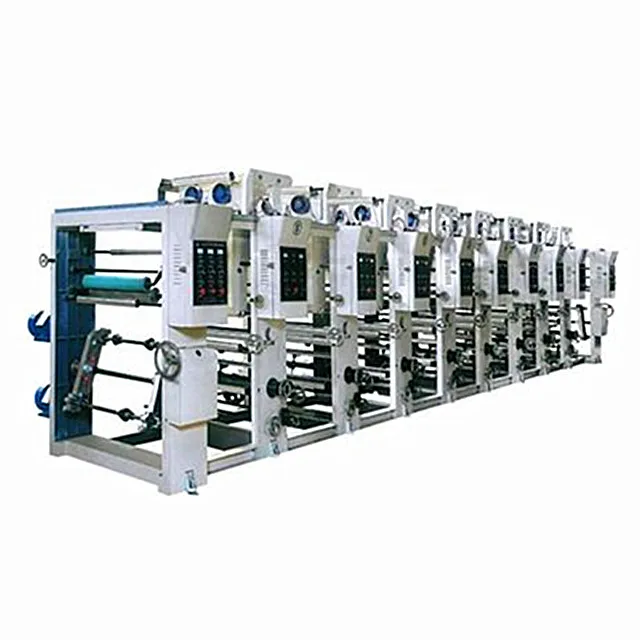

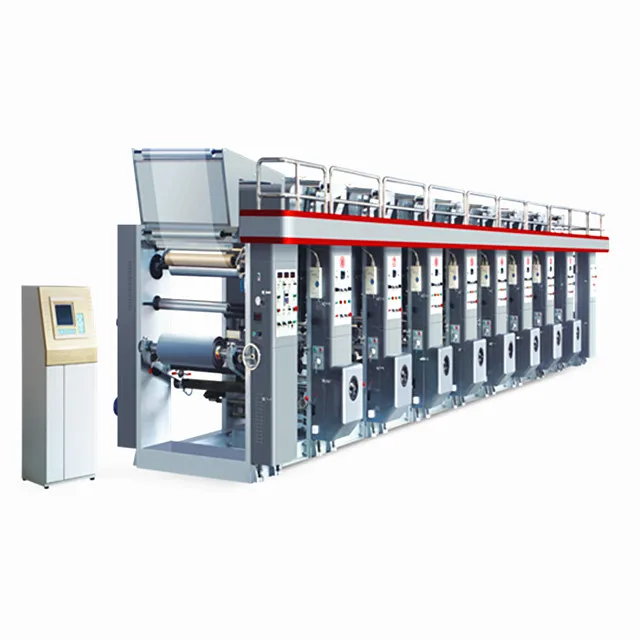

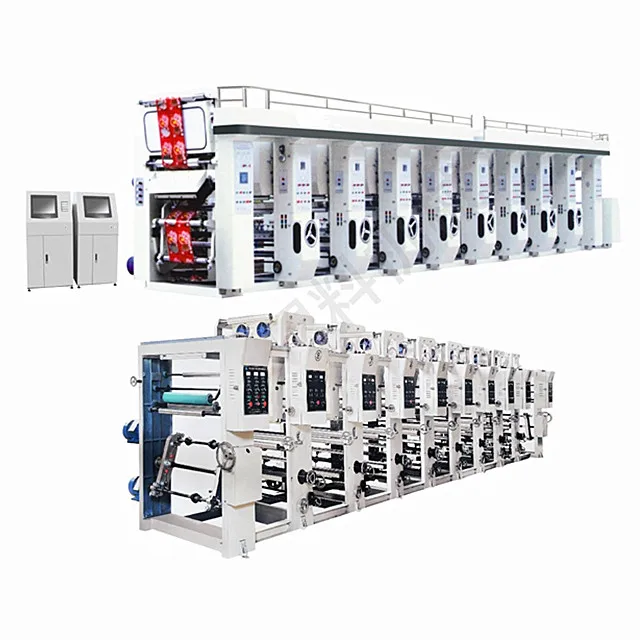

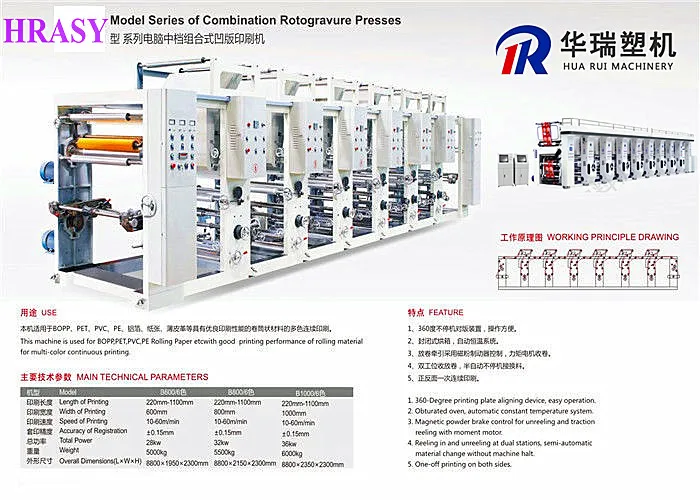

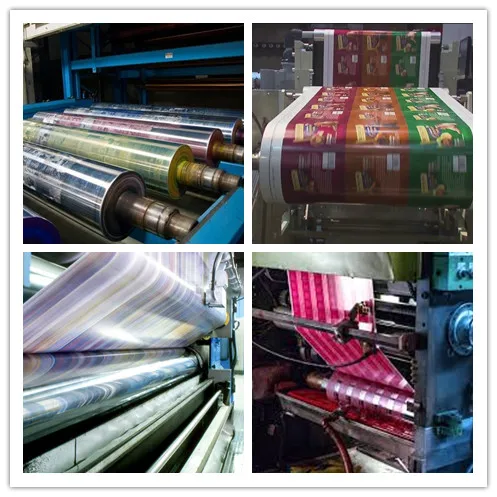

Computer Rotogravure Printing Machine

Model No. HRASY-600-1600

H.S. No. 8443170090

Plastic or Paper Computer Printer Automatic Machine





1. Main parameter:

1. Printing colors: 6 colors, 8 unit.

2. Max. width of printing material: 830mm

3. Max. Printing width: 800mm

4. Max. Mechanical speed: 60m/min.

5. Max. Printing speed: 50m/min (varies according to the different printing material

                           ink and the familiarity of the operator, etc.).

6. The Max diameter of unwind and rewind: 600mm.

7. Diameter of printing cylinder: 100mm-320mm.

8. Unwinding traction tension: Max 50N/m (Powder brake control)

9. Rewinding tension: Max 25N/m (800 model)

10. Rewinding traction tension: Max 10N/m (Torque motor control)

11. Register precision: Vertical ±0.2mm.

12. Main motor: Differential motor 5.5KW

13. Heating type: Electric heating

14. Heating power: Each color 12KW

15. Machine power: 70kw

(It’s the power when we start the machine, when it running, the power will be around 30-45kw)

16. Air supply: 1MPa dry compressed air (compressor 1 piece)

17 Overall dimension: 10600*2220*2425mm (800 model)

18 Net weight: 5T

19 Printing material available:

²      PET: 12-100μm

²      PE: 35-100μm

²      BOPP: 15-100 μm

²      CPP: 20-100 μm

²      PVC:20-100μm

Note: And other film materials with the similar printing performance listed above.











2. Unwind unit

Structure:

(1) Dual station turret, manual rotation.

(2) Adopt with magnet powder brake: 5kg

(3) Adopt with manual tension controller

(4) Horizontal adjustment of printing material manually

(5) Mechanical shaft



3. Printing unit

3.1 Printing pressure structure

(1) Manual pressing roller Φ120mm

(2) Cylinder installation: Shaft type; manual

(3) Max.length of the printing cylinder: 1120mm

(4) Distance between each unit: 800mm.



3.2            Doctor blade

(1). Manual movement,driven by transmission shaft.

(2) The horizontal direction, vertical direction and its angle can be adjusted

(3) The movement of the doctor blade: ±5mm



3.3 Ink plate

(1) Ink plate up and down in vertical direction, adjusted by handwheel.

(2) Printing cylinder directly dipped into the ink plate.

(3) The max. depth of the printing cyinder dipped into the ink: 40mm.

(4) Ink plate: made of stainless steel.



3.4 Ink recycle system

Each printing unit has one motor ink pump.



4. Drying part

Structure:

(1) Each unit has a separating drying system.

(2) Sealed oven type which saves energy.

(3) Drying method: Electric heating.

(4) Intelligent continual constant temperature controlling

(5) Blower: centrifugal blower

(6) Max oven temperature: 60°C

(7) Oven length: 1000mm



5. Cooling part

Structure:

(1) Centrifugal blower cooling device 0.25KW



6. Rewind part

Structure:

(1) Dual station turret, manual rotation.

(2) Rewind adopts torque motor .

(3) Mechanical shaft

(4) The horizontal movement of material is manual.



7. Frame

Structure:

(1)    Cast iron wallboard

(2)    Thickness of wallboard   70mm

(3)    Distance between two units: 1000mm

(4)    Guiding roller diameter: Φ56mm, Φ75mm, Φ100mm

(5)    Guiding roller length: 830mm



General type gravure press parameter

Model	HRASY-600A	HRASY-800A	HRASY-1000A
Unwind width	620mm	820mm	1020mm
Print speed	50m/min	50m/min	50m/min
Max reel diameter	600mm	600mm	600mm
Print cylinder diameter	70-390mm	70-390mm	70-390mm
Registered precision	±0.25mm	±0.25mm	±0.25mm
Heating power	3.5kw	4.5kw	5.5kw
Weight	1.5T	1.8T	2.0T
Overall size(m)	2.8*1.2*1.7	2.8*1.4*1.7	2.8*1.6*1.7

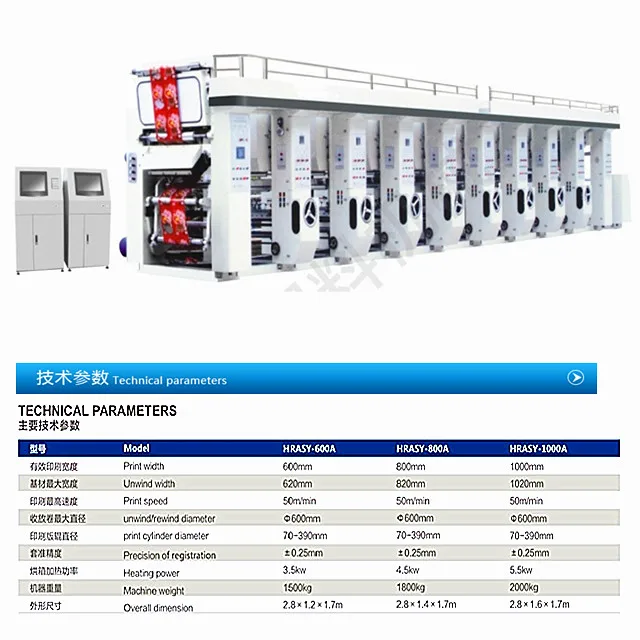

Computerized gravure press parameter

Model	HRASY-600M	HRASY-800M	HRASY-1000M
Print width	600mm	800mm	1000mm
Print speed	60-100m/min	60-100m/min	60-100m/min
Max reel diameter	600mm	600mm	600mm
Print length(mm)	200-1250	200-1250	200-1250
Registered precision	<0.15mm	<0.15mm	<0.15mm
Tension range	2-30kg	2-30kg	2-30kg
Main motor	11kw	15kw	18.5kw
Traction motor	2.2kw	2.2kw	2.2kw
Air source	0.8Mpa	0.8Mpa	0.8Mpa
Fan power	1.2kw	1.2kw	1.2kw
Cylinder diameter	120-350mm	120-350mm	120-350mm
Overall size(m)	2.8*2.0*2.5	2.8*2.2*2.5	2.8*2.4*2.5
