DP-N6M раствор опрыскиватель

DP-N6M mortar sprayer

DP-N6 series mortar sprayer is newly designed, economical and practical,durable and high efficiency for spraying cement mortar.
DP-N6 ( without MIXER, without COMPRESSOR )

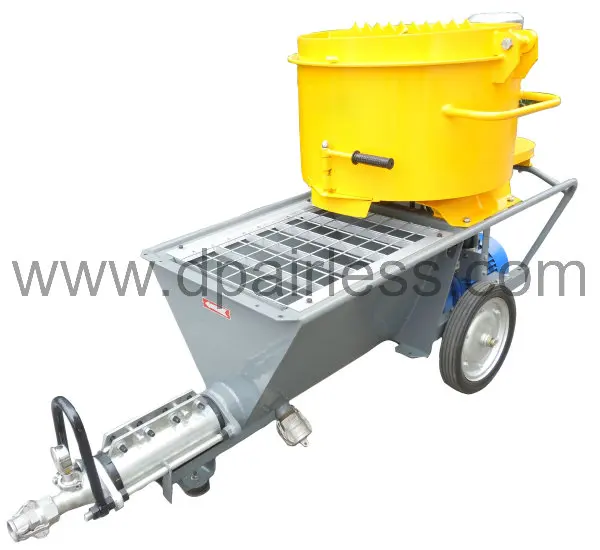

DP-N6M (with MIXER, without COMPRESSOR )
DP-N6C (without MIXER, with German COMPRESSOR )

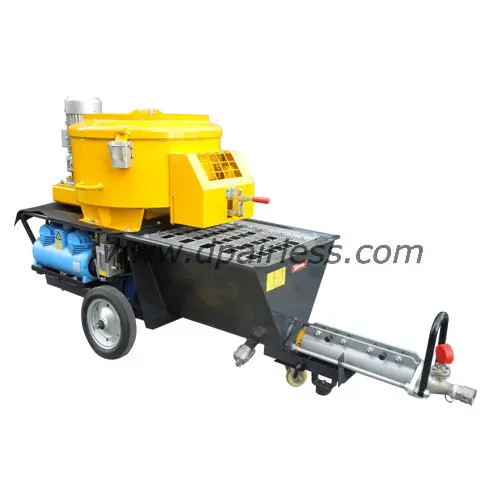

DP-N6MC (with MIXER, with German COMPRESSOR )

Applications:
Specially designed for spray cement mortar, widely applied for construction projects like
secondary grouting for the channels, cement mortar grouting for slope geotechnical
engineering, prestressing duct grouting, water curtain consolidation grouting, void
grouting for soft foundation and concrete pavement slab bottom, and interior/
exterior wall painting, etc .

Features:
1. Output volume adjustable (lower/high speed)
2. Equipped with vibration screen.
3. With remote control function.
4. With durable screw pump.
5. Control box: the core of the machine, to drive the motor, air & water pump.
6. Safety cover & quick unpack gear & material hopper: the material can be unpack
by the gear on the net cover, and be even poured into the tank.
7. Quick snap: easy to fix the material hopper and the cart.
8. 4. 5 /5.5KW motor & retarder: to drive the twister for material transportation.
9. Stirrer tank: quick and even mixing material.
10. Water inlet: lead water into the machine from outside.
11. Spinning Form Twister & Screw Pump: the material will be transport to the outlet by
the screw pump after the quick and even mixing by twister.
12. Pressure controller: to adjust the pressure of the mortar pipe to avoid the suddenness
13. Mortar pipe connector: very easy to connect with the machine.
The model of DP-N6 series Cement Mortar Sprayers as follows:

Technical Data:
Voltage/Frequency: 380V/50Hz
Motor Power: 4.5/5.5KW, variable speed (lower/high)
Pump Delivery Capacity: 50L/min ( N6M 40L/MIN)
Hopper Volume: 100L
Working Pressure: 30bar
Delivery Height:1-30m
Delivery Distance: 1-60m
Cement Mortar Size: <6mm
(N6M mixing machine capacity: 120L)
(N6M Mixing speed: 52r/min)
G.W.: 290kgs ( N6M 430KGS)
Overall Demension: 214×75×82cm (N6M 235*85*130CM)
Standard Accessories:
Φ32mm*10m mortar pipe 1pc
Φ8mm*20m vent pipe 1pc
Spray gun 1pc
Repair kit 1set
