Машина для волочения проволоки типа бака
- Категория: Wire Drawing Machines >>>
- Поставщик: Hangzhou,Candid,I/E,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.24 $* | 0.75 $* |
| Aug-18-2025 | 0.69 $* | 0.18 $* |
| Jul-18-2025 | 0.64 $* | 0.42 $* |
| Jun-18-2025 | 0.33 $* | 0.47 $* |
| May-18-2025 | 0.84 $* | 0.67 $* |
| Apr-18-2025 | 0.0 $* | 0.86 $* |
| Mar-18-2025 | 0.44 $* | 0.67 $* |
| Feb-18-2025 | 0.33 $* | 0.57 $* |
| Jan-18-2025 | 0.33 $* | 0.1 $* |
Характеристики
Product Description

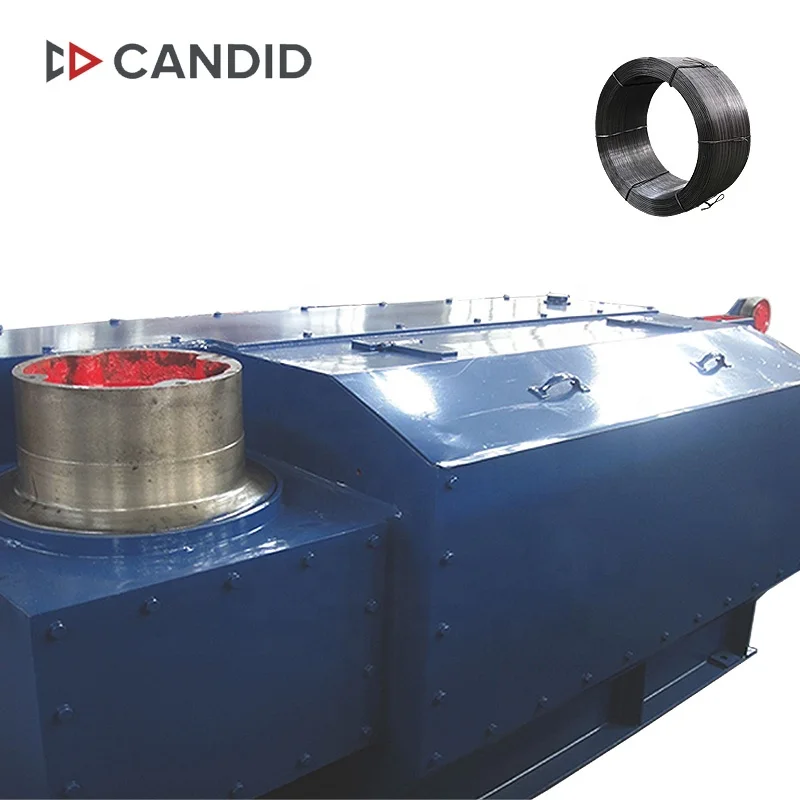

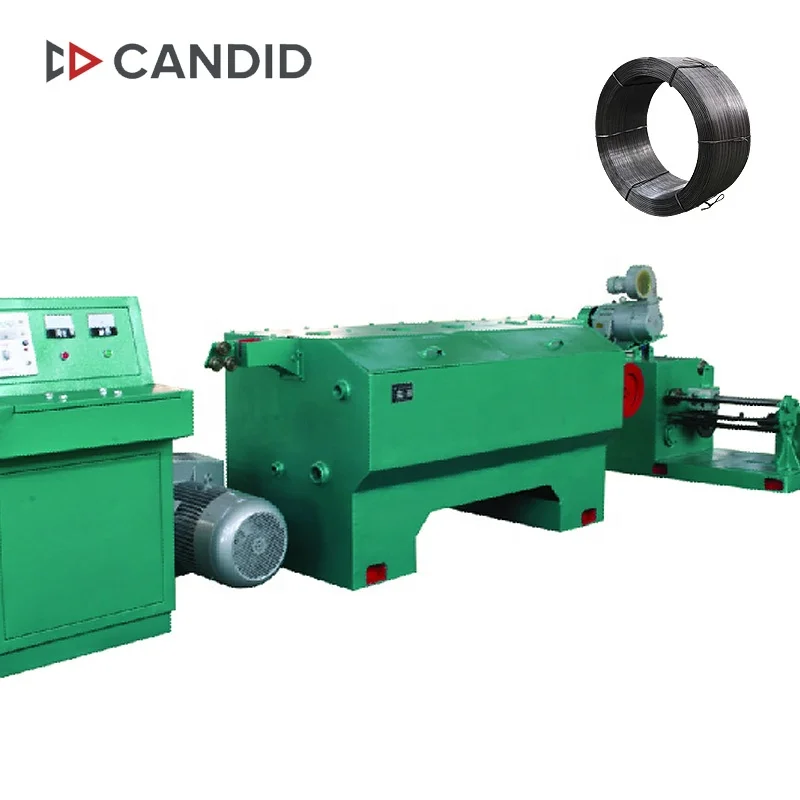

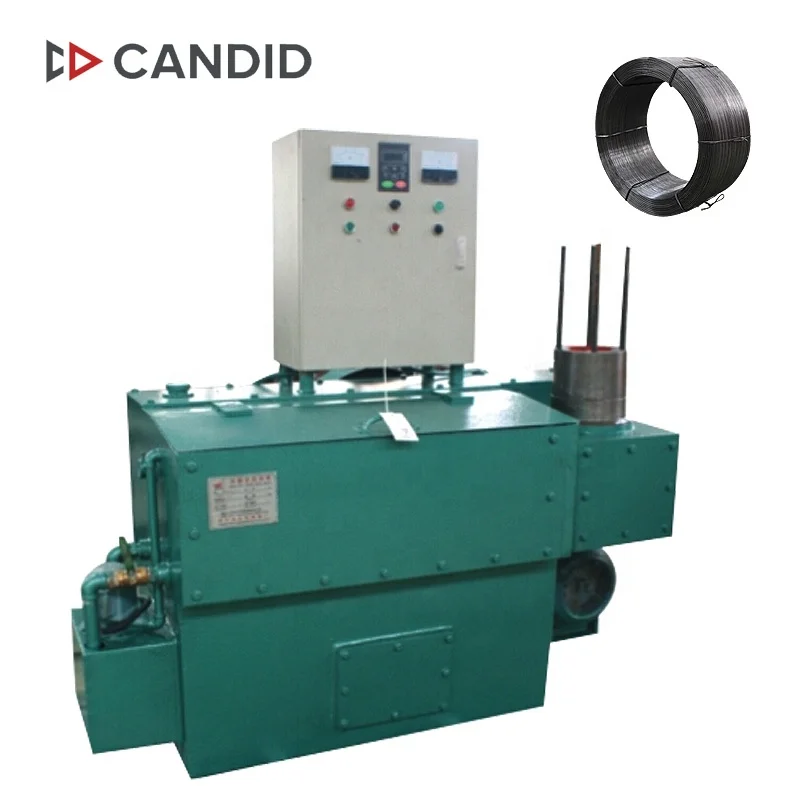

Water Tank Type Wire Drawing Machine
Main Technical Parameter
Type | LT1-12/350 Water-tank |
Dia. Of Coiling Block | φ350mm |
Wire Drawing Mould | 12pcs |
Dia. Of Inlet Wire | φ2.2mm |
Min. Dia. Of Outlet Wire | φ0.7mm |
Total Condensation | 86% |
Average Condensation | 16% |
Speed Of Drawing | 250-400m/min |
Power Of Motor | 15-18.5kw |
Dimension | 2400×1100×1100mm |
Weight | 1800kg |
Type | LT1-19/200 Water-tank |
Dia. Of Coiling Block | φ200mm |
Wire Drawing Mould | 19pcs |
Max. Dia. Of Inlet Wire | φ1.6mm |
Min. Dia. Of Outlet Wire | φ0.3mm |
Total Condensation | ~96% |
Average Condensation | ~15.5% |
Speed Of Coiling Block | 400~700m/min |
Power Of Motor | YCT250-4/22kw |
Dimension | 2310×1440×1160mm |
Weight | ~4000kg |
Type | LHT-20/280 Water-tank |
Max. Dia. Of Inlet Wire | 3.0mm |
Min. Dia Of Outlet Wire | 0.35mm |
Speed Of Drawing | 900m/min |
Wire Drawing Mould | 19pcs |
Cone Pulley | 4pcs |
Dia. Of Capstan | 16% |
Max. Size Of Spool | 250-400m/min |
Power Of Drawing Wire | 30-37.5kw |
Power Of Spooling Motor | YLJI32-25N.m/4 n=1250rpm |
Dimension | 6500×1800×1600mm |
Weight | 5000kg |
Accessory Equipment
| Name | Model | Range of Dia. |
| Discharging Machine | ||
| Pointing Machine | F-96 | 6.5-1.5mm |
| Pointing Machine | F-80 | 3.5-1.0mm |
| Butt-Welding Machine | UN-10 | 8--2mm |
| Butt-Welding Machine | UN-3 | 6.5-1.5mm |
| Butt-Welding Machine | UN-1 | 3.5-1.0mm |
| Automatic Discharging Machine | XB-600 | capacity 800kg |
| Automatic Discharging Machine | XB-360 | capacity 400kg |
| I Type Spool Reeling Machine | SG-800 | capacity 800kg |
| I Type Spool Reeling Machine | SG-630 | capacity 500kg |
| Descaling Machine | SW650 | |
| Motorless Descaling Machine | with steel brush | |
| Well Type Furnace | RJ-90-9 |
