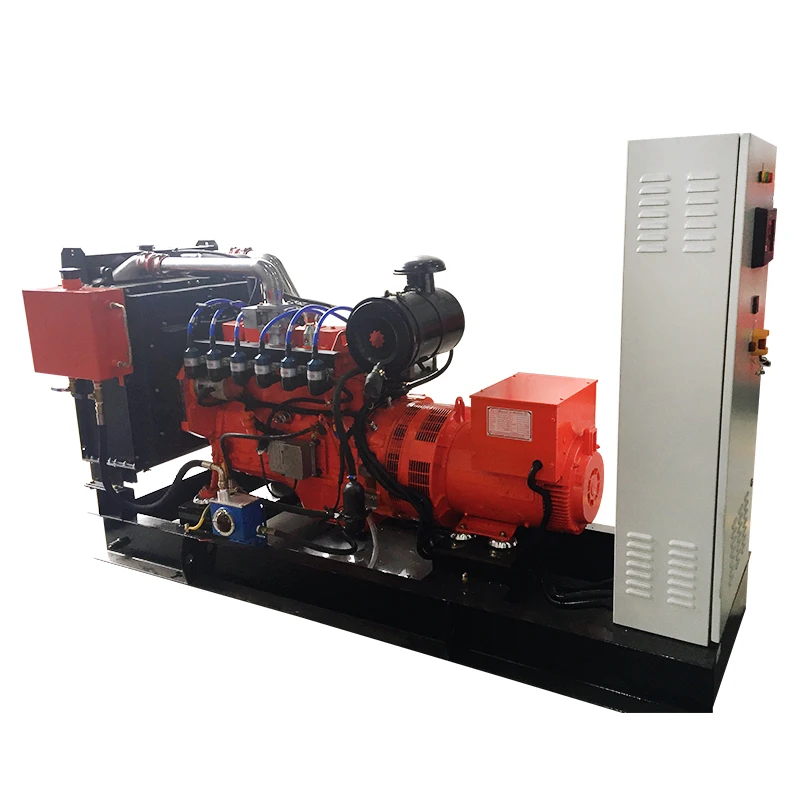

Генератор биогаза/генератор биомассы/генератор

Цена:*

Количество:

Biogas generator/ Biomass generator/Biogas genset

Genset working condition:

Acceptable working conditions:

Ambient temperature : 0°C~+40°C

(antifreeze, oil and water heater needed for below 0°C)

Relative humidity:lower 90%(20°C)

Altitude:lower than 500m

Normal working conditions:

Genset can run at rated power on the conditions:

Atmospheric Pressure: 100kPa, Ambient Temp: 20°C, Relative Humidity

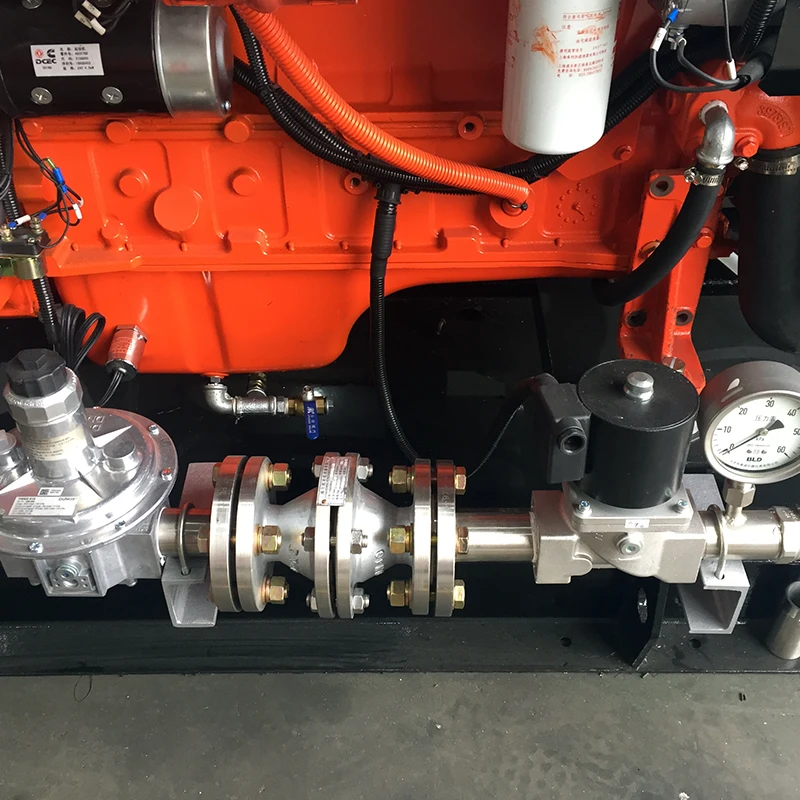

Applied gas:

Gas, natural gas, biogas, LPG

Gas genset data
Genset model	KDGH150-G
Prime power(kW/KVA)	150/188
Continuous Power(kW/KVA)	150/188
Connection Type	3 Phases 4 Lines
Power factor cosfi	0.8 lagging
Frequency (Hz)	50
Rated speed (RPM)	1500
Open type Genset Overall Dimension (mm)	3150x1100x1800
Soundproof type Genset Dimension (mm)	4600x1600x2200
Net weight without canopy(kg)	2525
Gas Engine Data
Model		HGNT14
Brand		CAMDA

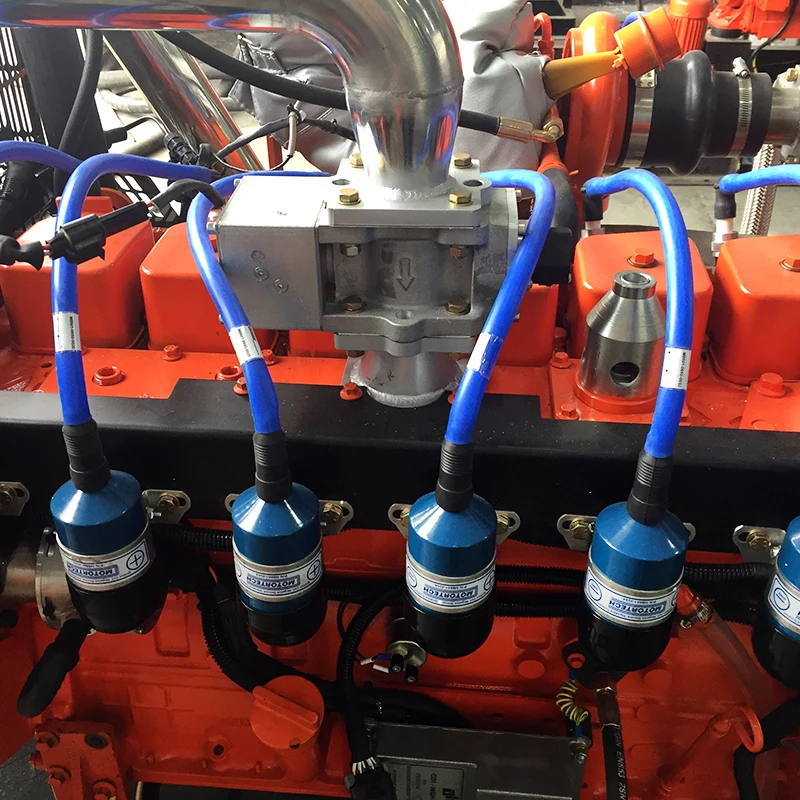

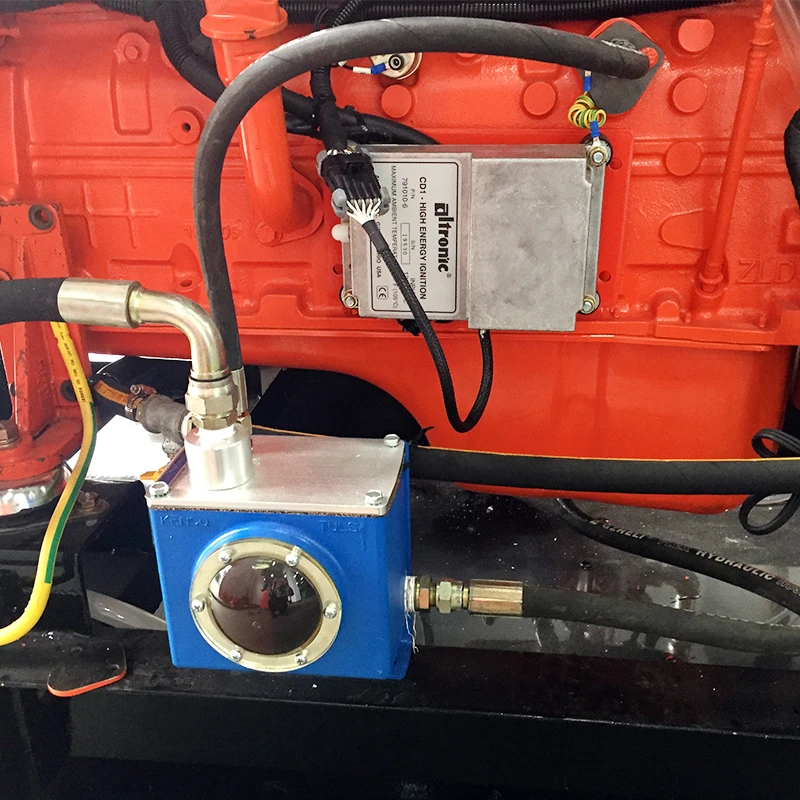

Type		4 stroke, water-cooling, wet cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning
Cylinders& Arrangement		6L
BoreXStroke(mm)		140X152
Displacement(L)		14
Compression ratio		11:1

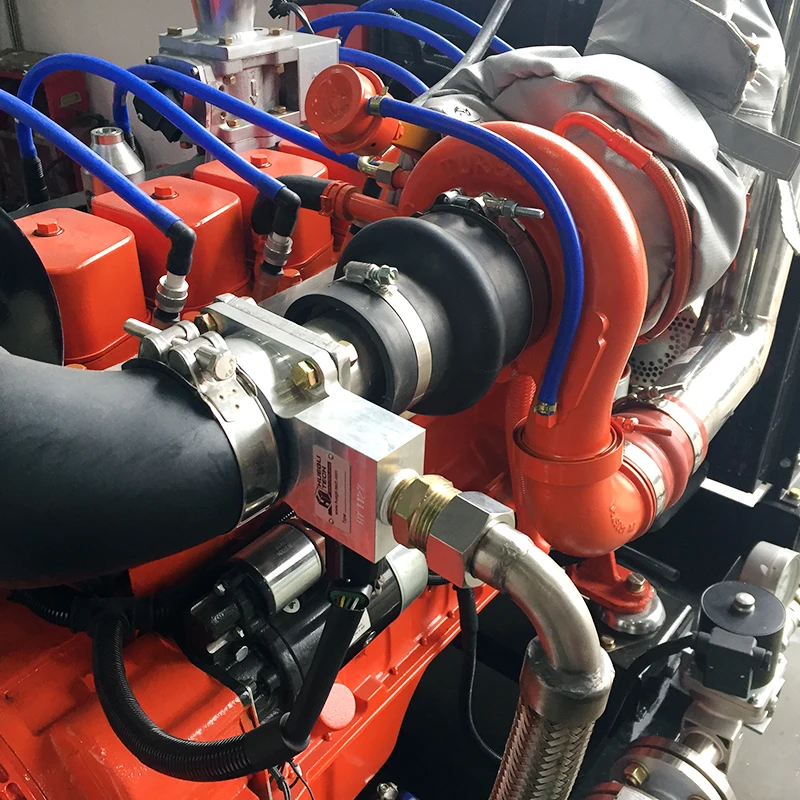

Aspiration		Intercooled and Turbocharged
Cooling Method		Radiator fan water cooling
Governor type(speed regulating type)		Electronic governing

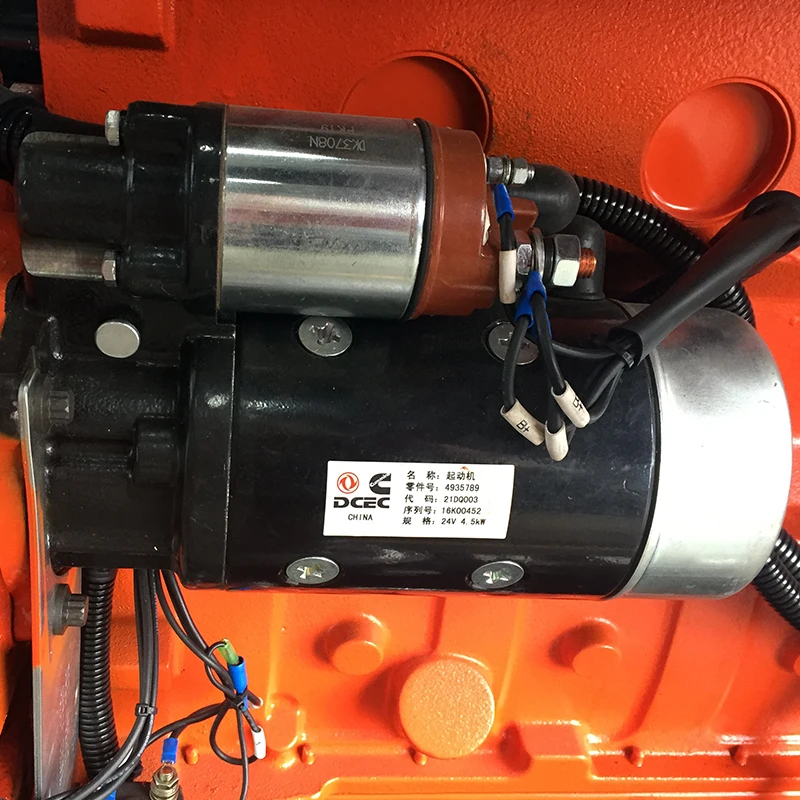

Starting method		Electric, 24 V motor
The lowest gas consumption(m3/kw.h)		0.3 for natural gas/0.6 for biogas
Idling speed(r/min)		700
Oil recommended		SAE 15W-40 CF4 or above
Oil consumption		≤1.0g/kW.h
Alternator Data
Brand			France Leroy Somer
Model			LSA46.2M5/160KW
Rated power			160kW / 3 phase
Rated Voltage (V):			380~480 (±0.5%)(AC)
Type			3 phase/4 wire, brushless, automatic voltage regulator, drip proof, protected type.
Frequency (Hz)			50
Efficiency:			93.5%
Voltage regulation			± 0.5 %(adjustable)
Insulation class:			Class H
Protection class:			IP 23
cooling method:			wind-cooling, self-heat-rejection
Voltage regulating mode			Automatic voltage regulator
Compliant with international standards:			IEC 60034-1, NEMA MG1.22, ISO 8528/3, CSA, UL 1446, UL 1004B on request, marine regulations, etc.
