Glass Processing Machinery
Горячая распродажа шлифовальный станок для стекла машина

Горячая распродажа шлифовальный станок для стекла машина

Категория: Glass Processing Machinery >>>
Поставщик: ZHENGZHOU,ALLRAISE,COMPANY,LTD.

Цена:3 099,00 $ - 3 999,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-15-2025	3936.72 $*	4015.11 $*
Jul-15-2025	3192.96 $*	3256.90 $*
Jun-15-2025	3874.55 $*	3951.52 $*
May-15-2025	3843.74 $*	3920.58 $*
Apr-15-2025	3068.56 $*	3129.19 $*
Mar-15-2025	3781.98 $*	3857.46 $*
Feb-15-2025	3750.9 $*	3825.88 $*
Jan-15-2025	3719.90 $*	3793.48 $*

Характеристики

Products Description

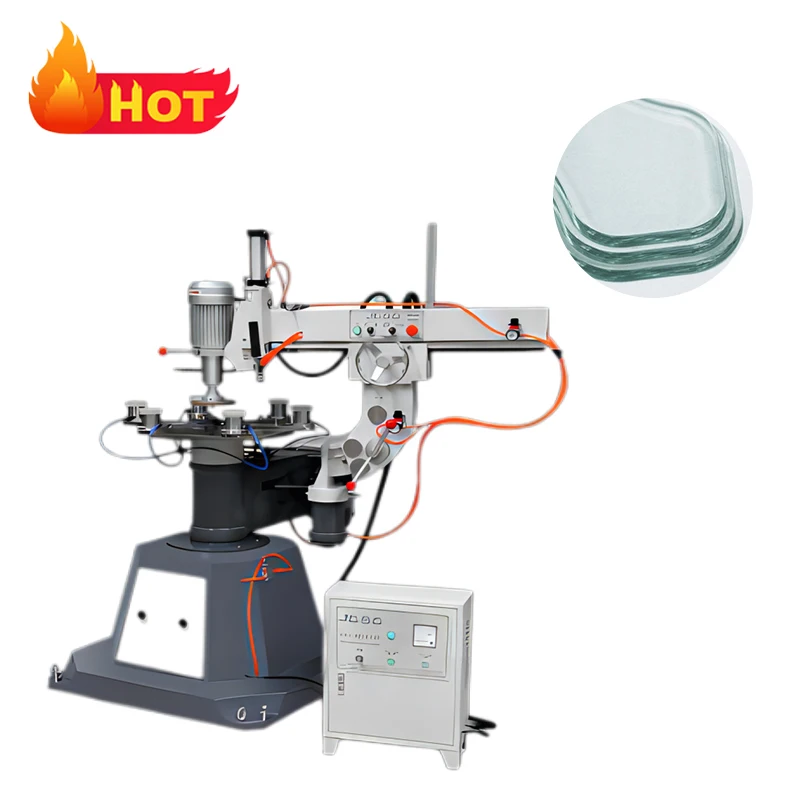

Hot Sale glass grinding machine glass polishing machine glass edging machine

This OR-JGYM1321 Hot Sale glass grinding machine is the material horizontal position, vacuum adsorption on the work table, used for the plate periphery and slope grinding equipment.

The biggest feature of the glass edging machine is that it is widely used, which can be used to grind straight edges, round edges, duck mouth, and beveled edges. It can be used to grind round edge glass, oval and shaped glass, and the inner circle can also be polished by adjusting the position of the grinding head.

In the independent suction cup on the mold, with the special-shaped machine can grind some irregular shape of the glass.

Product Parameters

Machining function	grinding and polishing integrated
Processing glass thickness	3 ~ 20mm
Rotary speed	0.5~2.5m/min
Grinding wheel diameter	150mm
Glass rotation diameter	100-2100mm
Power supply	380V/50Hz/3P
Total power	2.2Kw
Overall size	1780mm1300mm1800mm
Packaging size	1300mm1300mm1800mm
Total weight	1000kg

Product Features

Hot Sale glass grinding machine glass polishing machine glass edging machine

1. It is suitable for round, oval and shaped glass, straight edge, round edge, duck mouth, hypotenuse for grinding and polishing.

2. The glass is adsorbed on the sucker by vacuum, and the motor drives the turntable to rotate or an independent turntable on the separate drive plate to rotate. The turntable speed can be adjusted at work.

3. Semi-automatic grinding of simple shaped glass with cylinder pressure lifting assistance.

4. When grinding straight edge, round edge and duck mouth, three grinding wheels can be installed for rough grinding, fine grinding and polishing respectively.

5. When grinding the bevel, you can install the bowl wheel, tilt the grinding head back, adjust the Angle of the bevel, and process the end face.

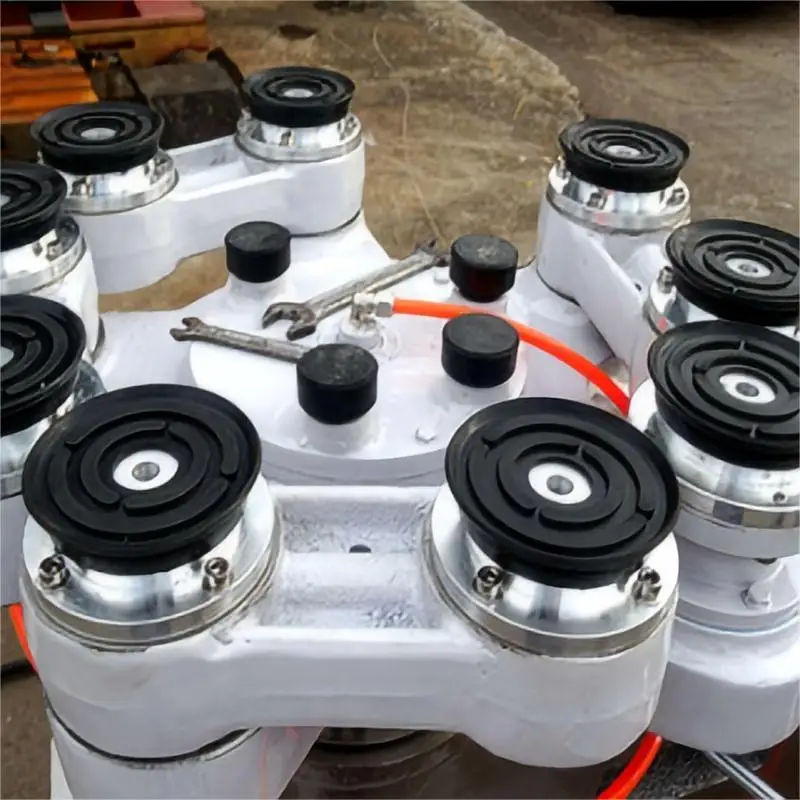

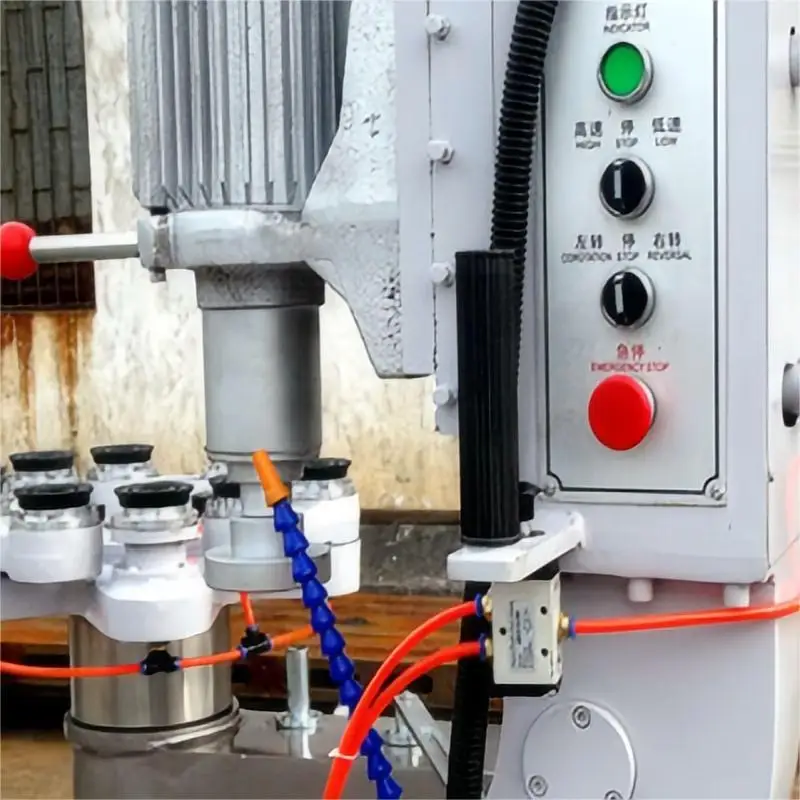

Machine Details

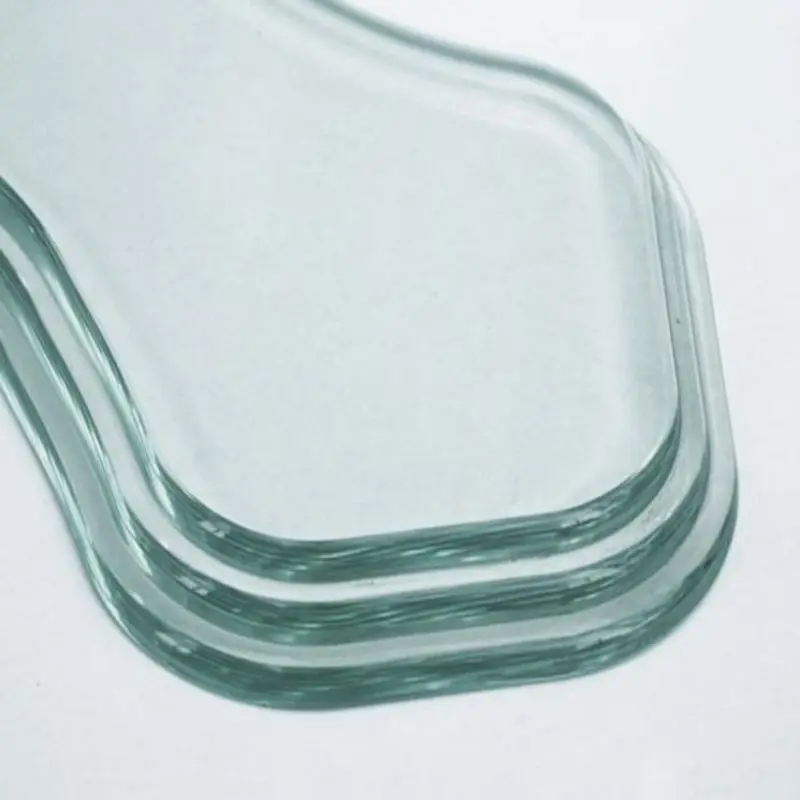

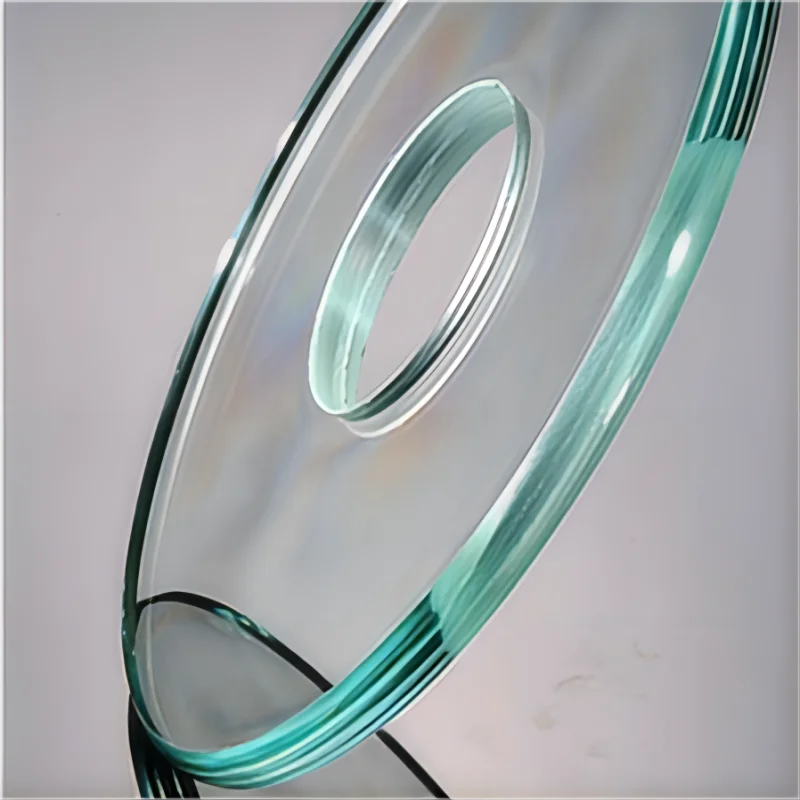

Finished Product Display

Hot Sell

Contact Person: Mr.Ansel

Tel/Whats App/Wechat: +86 19544560596

E-mail: elenachang@sinomachine.net

Package detail	Wooden Case
Delivery detail	within 10-30 working days after receiving your prepayments
Shipment detail	Express,sea,truck,airplane etc.
Payment terms	T/T, L/C, Paypal, Western union,Alibaba trade assurance etc.

FAQ

Don't worry your TT payment,we do make the shipment as T/C,B/L for yourreference!

Q: Why don't person reply to me?
A: Our person is 24hours on-line. If nobody reply you , maybe he has other businesses temporarily. So please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.

Q: Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

Q: How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get lower.
