Характеристики
Product Description
Industrial BN Boron Nitride Ceramic Nozzle
Industrial BN Boron Nitride Ceramic Nozzle Max Working Temperature,
1. In Air: 900C,2. In Inert Gas: 2200C,
3. In Vacuum: 2400C
Industrial BN Boron Nitride Ceramic Nozzle technical
Item | Data |
BN Content | 99.3% |
Density | 2.00g/cm3 |
Compressive Strength | 72kg/cm2 |
Bending Strength | 55kg/cm2 |
Volume Resistivity | >1014Ω•cm |
Dielectric Constant | 4.0 (108hz) |
Breakdown Voltage | 35Kv/mm |
Specific Conductance | 27W/m.k |
Porosity | 0.3% |

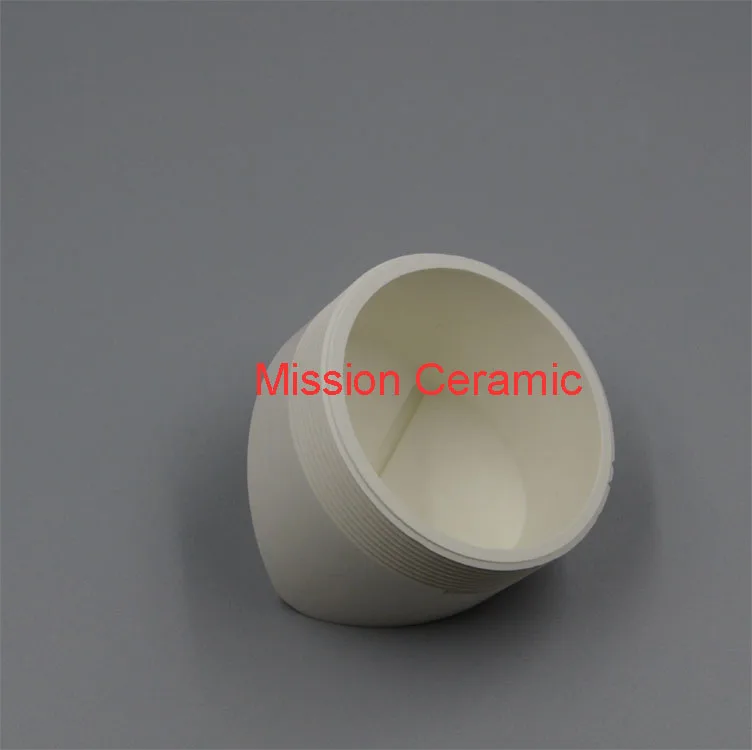

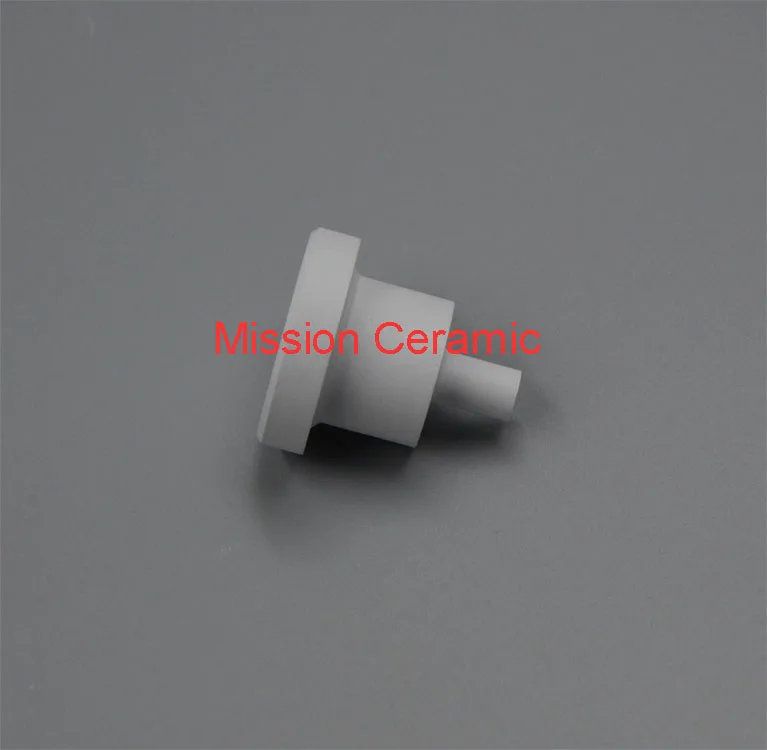

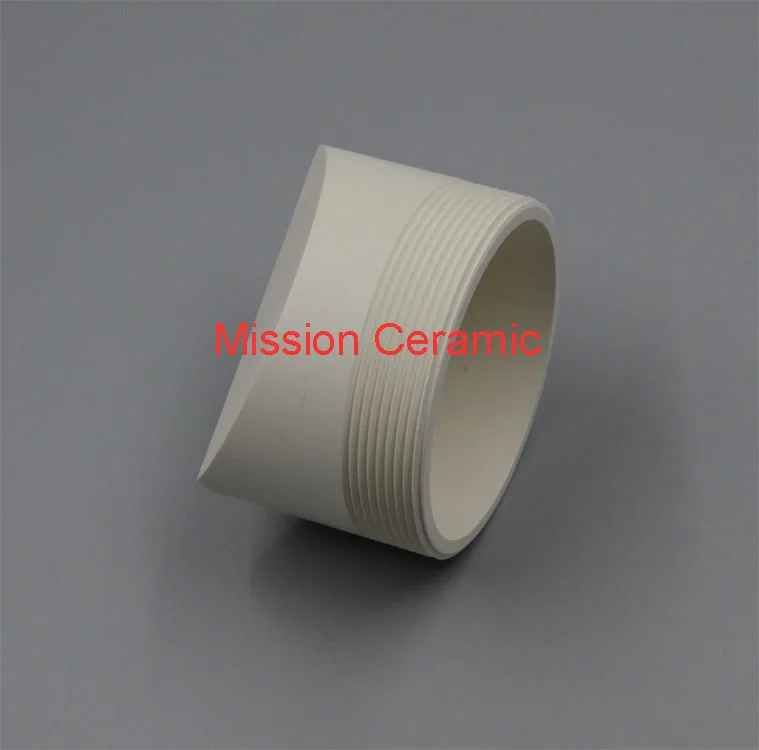

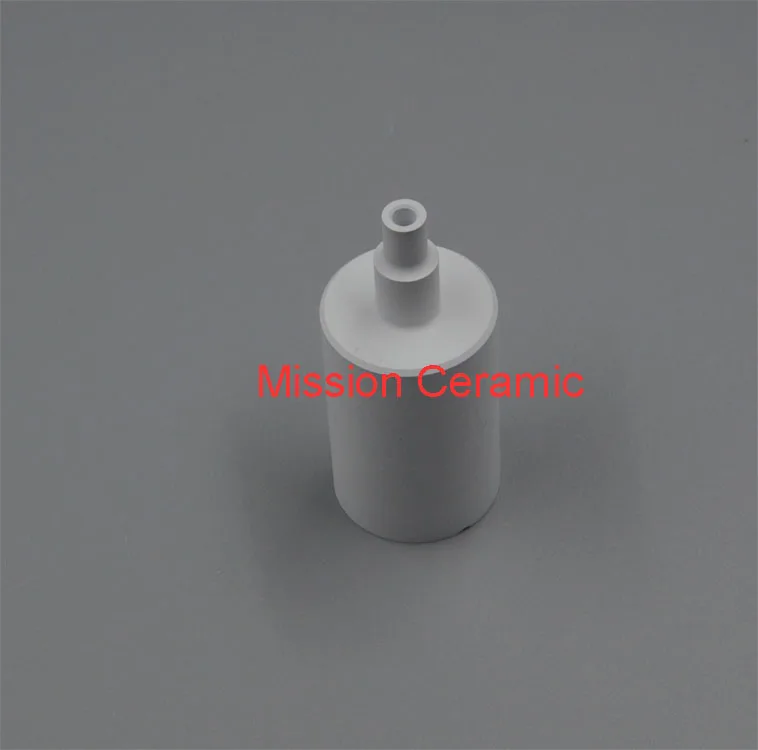

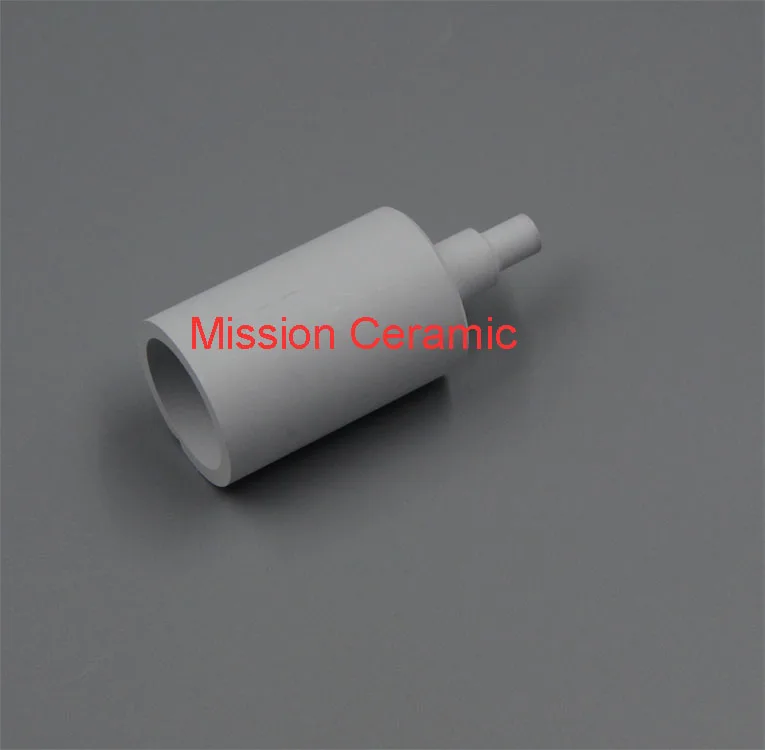

Detailed Images
1. In Air: 900C,
2. In Inert Gas: 2200C,
3. In Vacuum: 2400C.
Industrial BN Boron Nitride Ceramic Nozzle Specifications:
1.High thermal conductivity
2.Excellent thermal shock resistance
3.Low thermal expansion
4.Exceptional heat resistance
5.Good Chemical Inertness
6.High electrical resistance
Industrial BN Boron Nitride Ceramic Nozzle Advantages:
BN crystal structure there is no electrons in free,it is an insulator and have high melting point. Almost all of the molten metal were tested chemical reaction.
BN is thermostability, The operating temperature up to 2800°C in neutral or N2 .While the graphite operating temperature is far blew to the temperature of BN. The graphite will be produced carbonized under high temperature and high pressure.
The thermal conductivity of BN does not change with temperature and changes in theramal conductivity of graphite is relatively large.
The life of BN disc is far greater than the graphite crucible.
Industrial BN Boron Nitride Ceramic Nozzle Usage:
high-performance material processing environment.
Packing & Delivery
Industrial BN Boron Nitride Ceramic Nozzle package
1. Warped with bubble plastic paper.
2. Put in wood box padded with foam board.
3. Sealed the box with screws which is easy to be opened.
4. Fragile warning stick.
Shipping Method: By sea, by Air, by express way.
