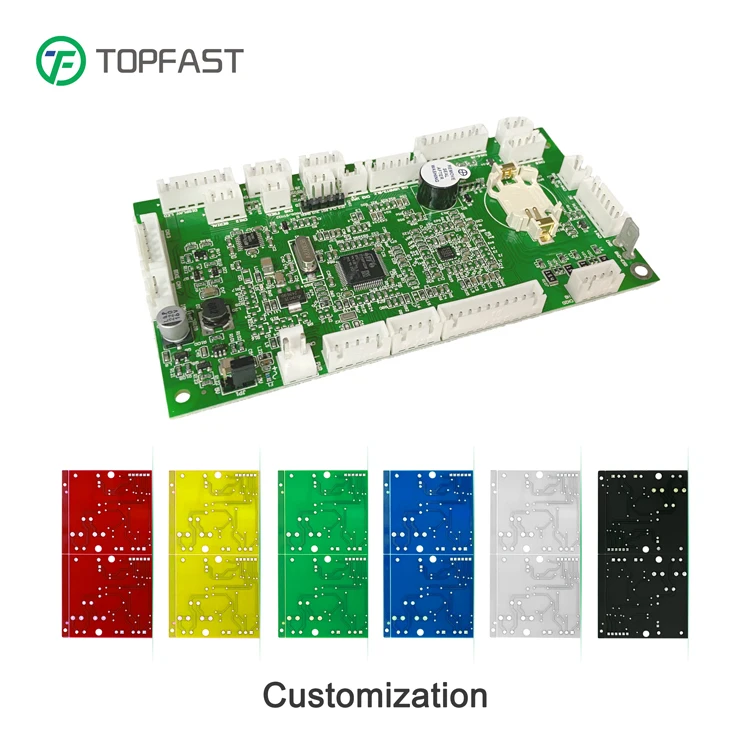

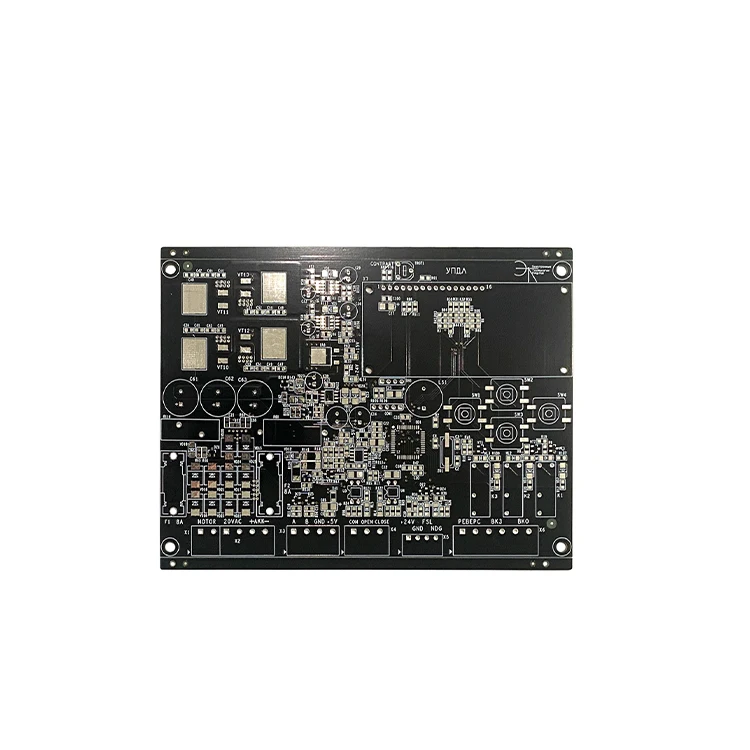

Пользовательские печатные платы Многослойные Печатные поставщик
- Категория: Multilayer PCB >>>
- Поставщик: Topfast(Guangdong),Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2.73 $* | 2.17 $* |
| Aug-15-2025 | 2.86 $* | 2.49 $* |
| Jul-15-2025 | 2.11 $* | 2.87 $* |
| Jun-15-2025 | 2.68 $* | 2.49 $* |
| May-15-2025 | 2.8 $* | 2.8 $* |
| Apr-15-2025 | 2.48 $* | 2.75 $* |
| Mar-15-2025 | 2.14 $* | 2.31 $* |
| Feb-15-2025 | 2.75 $* | 2.28 $* |
| Jan-15-2025 | 2.44 $* | 2.90 $* |
Характеристики
Product Description
PCB capability | |||||||
Item | PCB capability | PCB capability | PCB capability | ||||
Max Layer | 60L | 8L | 36L | ||||
Inner Layer Min Trace/Space | 3/3mil | 3/3mil | 3/3mil | ||||
Out Layer Min Trace/Space | 3/3mll | 3.5/4mll | 3.5/4mll | ||||
Inner Layer Max Copper | 6oz | 2oz | 6oz | ||||
Out Layer Max Copper | 6oz | 2oz | 3oz | ||||
Min Mechanical Driling | 0.15mm | 0.1mm | 0.15mm | ||||
Min Laser Drilling | 0.1mm | 0.1mm | 0.1mm | ||||
Max Aspect Ratio(Mechanical Driling) | 20:01 | 10:01 | 12:01 | ||||
Max Aspect Ratio(Laser Drilling) | 1:01 | / | 1:01 | ||||
Press Fit Hole Ttolerance | ±0.05mm | ±0.05mm | ±0.05mm | ||||
PTH Tolerance | ±0.075mm | ±0.075mm | ±0.075mm | ||||
NPTH Tolerance | ±0.05mm | ±0.05mm | ±0.05mm | ||||
Countersink Tolerance | ±0.15mm | ±0.15mm | ±0.15mm | ||||
Board Thickness | 0.4-8mm | 0.1-0.5mm | 0.4-3mm | ||||
Board Thickness Tolerance(<1.0mm) | ±0.1mm | ±0.05mm | ±0.1mm | ||||
Board Thickness Tolerance(≥1.0mm) | ±10% | / | ±10% | ||||
Min Board Size | 10*10mm | 5*10 mm | 10*10mm | ||||
Max Board Slze | 22.5*30 inch | 9*14 inch | 22.5*30 inch | ||||
Contour Tolerance | ±0.1mm | ±0.05mm | ±0.1mm | ||||
Min BGA | 7mil | 7mil | 7mil | ||||
Min SMT | 7*10mil | 7*10mll | 7*10mll | ||||
Min Solder Mask Clearance | 1.5mil | 3mil | 1.5mil | ||||
Min Solder Mask Dam | 3mil | 8mil | 3mil | ||||
Min Legend Width/Height | 4/23mil | 4/23mil | 4/23mil | ||||
Strain Fillet Width | / | 1.5±0.5mm | 1.5±0.5mm | ||||
Bow &Twist | 0.003 | / | 0.0005 | ||||
FAQ
1. What file formats do we accept for our PCB manufacturing?
* We accept file formats including Gerber, PROTEL 99SE, PROTEL DXP,CAM350, ODB+ (.TGZ), and more.
2. Is my file safe when I submit it to you for manufacturing?
* Yes, we respect the copyright ofour customers. We will not use your files to manufacture PCBs for others unless we receive your written permission. Your files will not be shared with any third parties.
3. What payment methods can we use?
* We accept payment methods such as wire transfer (T/T), Western Union, letter of credit (L/C), PayPal, Alipay, credit cards, and more.
4. How can I receive the PCBs I've ordered?
* For small packages, we will use courier services like DHL, UPS, FedEx, EMS to deliver the PCBs to your door, ensuring a
door-to-door service. You will receive the PCBs at your residence.
* For small packages, we will use courier services like DHL, UPS, FedEx, EMS to deliver the PCBs to your door, ensuring a
door-to-door service. You will receive the PCBs at your residence.
* For shipments exceeding 300kg, we may use sea or air freight to save on shipping costs. If you have your own freight forwarder, we can coordinate with them for shipment.
5. What is ourminimum order quantity?
* Our minimum order quantity is 1 piece.
6. Can we visit your company?
* Certainly, you are welcome tovisit our factory located in Guangzhou, Guangdong Province.
7. How do we ensure the quality of the PCBs?
* Our PCBs undergo 100%testing, including flying probe testing, electrical testing (E-test), and automated optical inspection (AOI).
8. Why should you buy from us instead of other suppliers?
* We bring 20 years of PCB manufacturing experience, leading the industry in technology. Our on-time delivery rate is 98%,with a quality qualification rate exceeding 95%. We respond to product quotations within 4 hour
