Характеристики

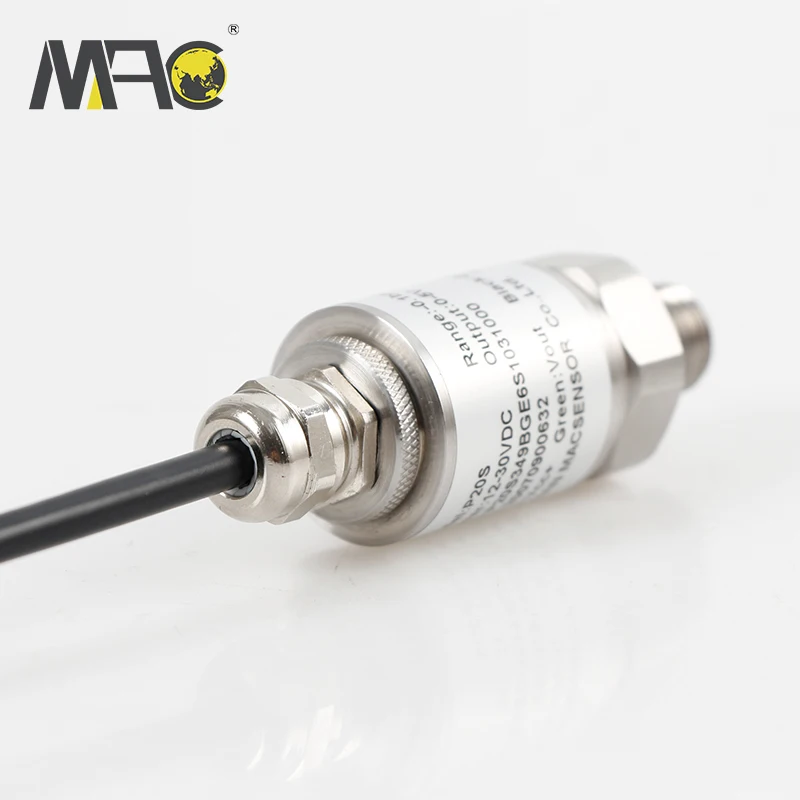

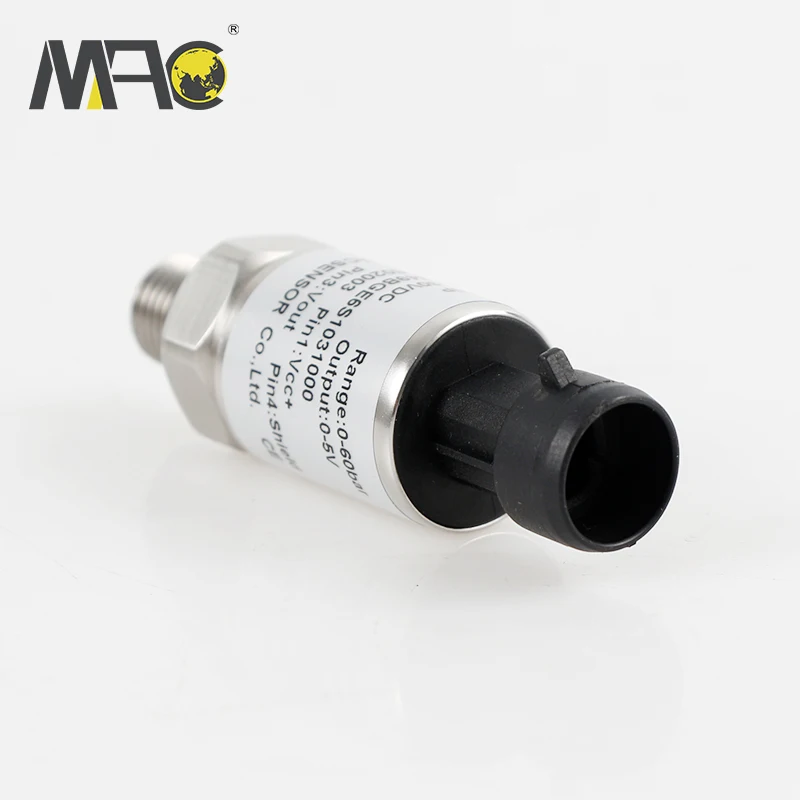

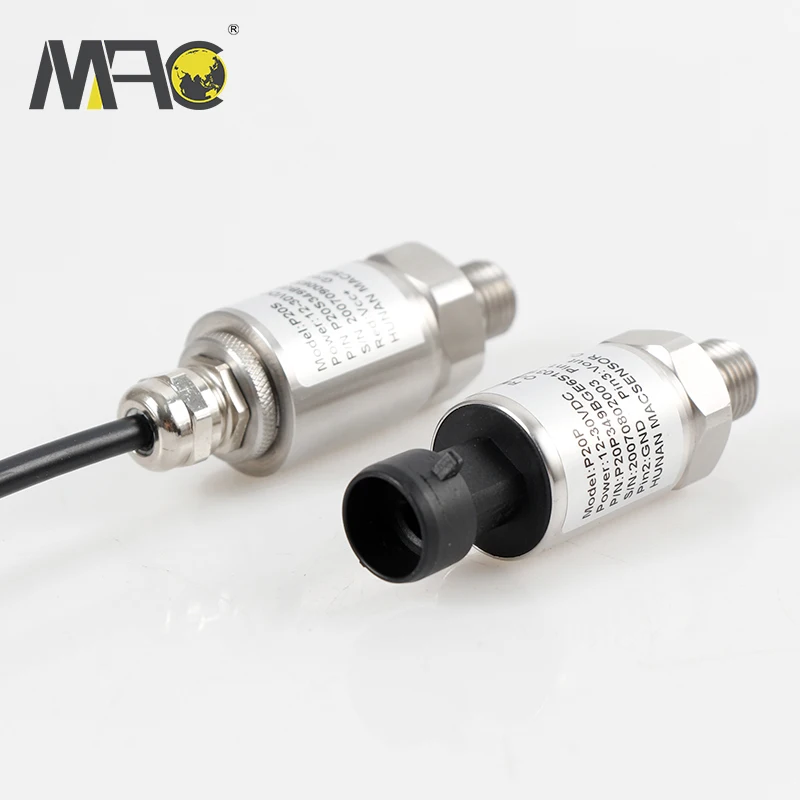

High Accuracy Pressure Transducer 4-20 Ma 0-40mpa Steam Meter Sensor
Product Description
Pressure sensors are used for control and monitoring in thousands of everyday applications. Pressure sensors can also be used to indirectly measure other variables such as fluid/gas flow, speed, water level, and altitude. Pressure sensors can alternatively be called pressure transducers, pressure transmitters, pressure senders, pressure indicators, piezometers and manometers, among other names.
| Model | P20H/S/M | ||||
| Pressure Range | -1 Bar-1 Bar; 0-0.1Bar...1000 Bar / 0-2 Psi...15000 Psi Optional | ||||
| Pressure Type | Gauge pressure; Absolute pressure; Sealed gauge pressure; Negative pressure optional. | ||||
| Electronic Wire | 2 Wires | 3 or 4 Wires | 3 Wires | 4 Wires | 4 Wires |
| Output | 4-20 mA or 4~20mA+HART | 4-20 mA or Double 4-20mA | 0~5V ,1~5V, 0-10V | RS485 | 4~20mA =+Temp(Ω) |
| Power Supply | 12~36 Vdc | 12~36 Vdc | 8~36Vdc/15-36Vdc | 10~30 Vdc | 12~36 Vdc |
| Accuracy | ≤±0.5%F.S; ≤±0.25%F.S; ≤±0.1%F.S (Customized) | ||||
| Long Stability | Standard: 0.1%F.S±0.05% . | ||||
| Working/Storage Temp | -30°C~85°C | ||||
| Temp Compensation | -10°C ~60"C(standard); -20C~60°C; -20°C~80°C (customized) | ||||
| Load Resistance | (U-10)/0.02 (Ω) | Current type: (U-10)/0.02 (Ω); Voltage type: > 100K Ω | |||
| Insulate resistance | > 100M Ω @100V dc | ||||
| Zero Temp. Drift | 0.03%FS/°C (≤100kPa) , 0.02%FS/C (>100kPa) | ||||
| Filling oil | Silicon oil (standard); Fluorocarbon oil (Oxygen Services) | ||||

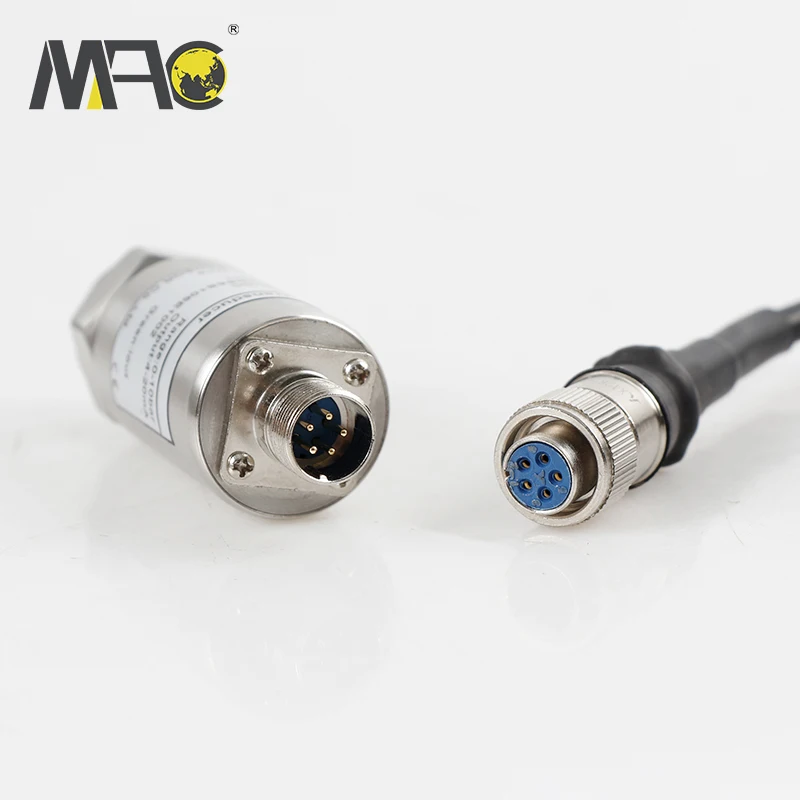

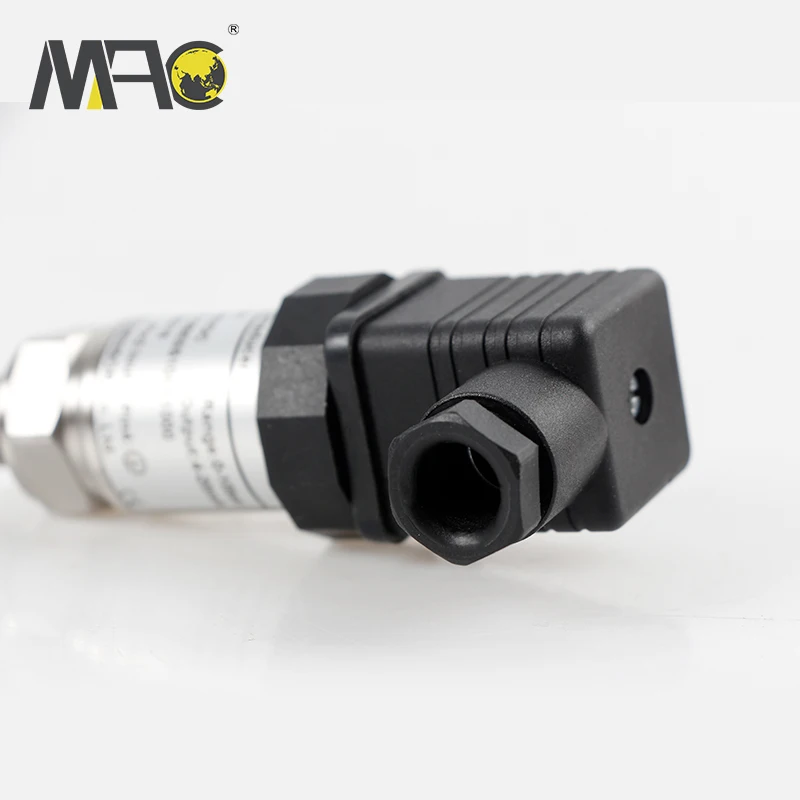

| Electronic connection | -DIN43650 Hirschmann Connector, 4-poles and IP65. -Plug: M12 (4-poles) Type IP67; -Directly Outlet Cable Type IP68 optional. | ||||
| Pressure connect port | G1/4"male, G1/2"male, 1/8"NPT male, 1/4'NPT male, 1/2"NPT male and female optional. (by customized) | ||||
| Safe Overload | 200% F.S.(standard) | ||||
| IP Rating | IP65(P20H,P20M); IP67(P20S) | ||||
| Medium compatible | Compatible with 316 Stainless Steel or 1Cr18Ni9Ti stainless steel | ||||
Quick Quotation
How to order sensors?
To recommend a suitable pressure sensor for you, please kindly confirm the following questions before ordering:
1. Measuring range?
2. Signal Output
3. What's the application?
4. Process connection?
5. Other special requirements?
The price here is just for reference. Each product will be customized based on your project demand, please send an inquiry to get the optimized product solutions and the best price. Please leave your email address so that our sales engineer can offer one-to-one service for you!
