Полностью автоматическая Строительная сетчатая панель машина цемент
- Категория: Industrial Machinery >>>
- Поставщик: Hebei,Jiake,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 69972.70 $* | 73471.92 $* |
| Aug-16-2025 | 69384.90 $* | 72853.29 $* |
| Jul-16-2025 | 58212.13 $* | 61123.51 $* |
| Jun-16-2025 | 68208.68 $* | 71618.7 $* |
| May-16-2025 | 59388.55 $* | 62357.41 $* |
| Apr-16-2025 | 67032.97 $* | 70384.95 $* |
| Mar-16-2025 | 66444.91 $* | 69766.5 $* |
| Feb-16-2025 | 65856.20 $* | 69149.74 $* |
| Jan-16-2025 | 65268.7 $* | 68531.37 $* |
Характеристики
Mesh welding machine series:
panel mesh welding machine, roll mesh welding machine, reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine, etc.

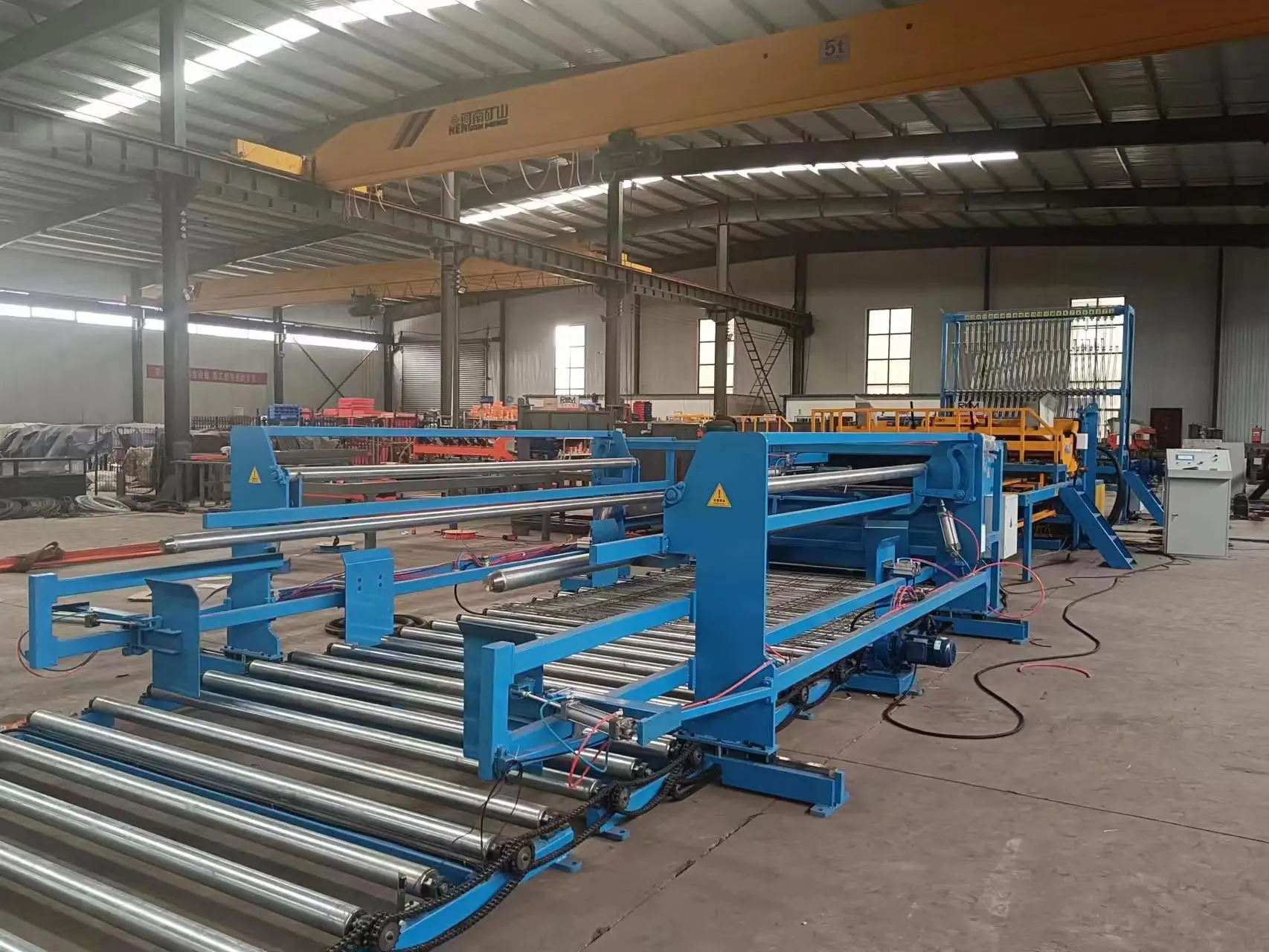

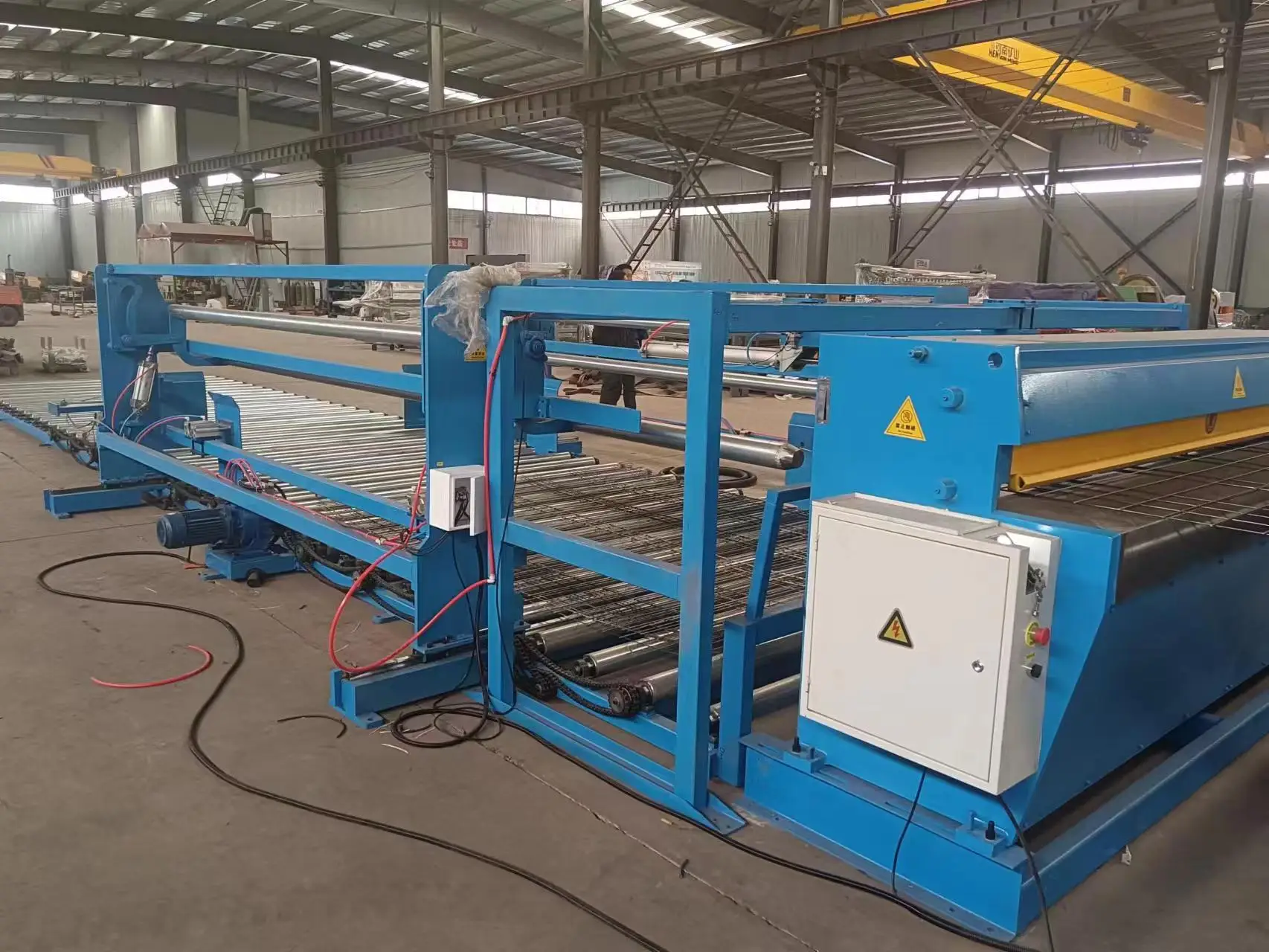

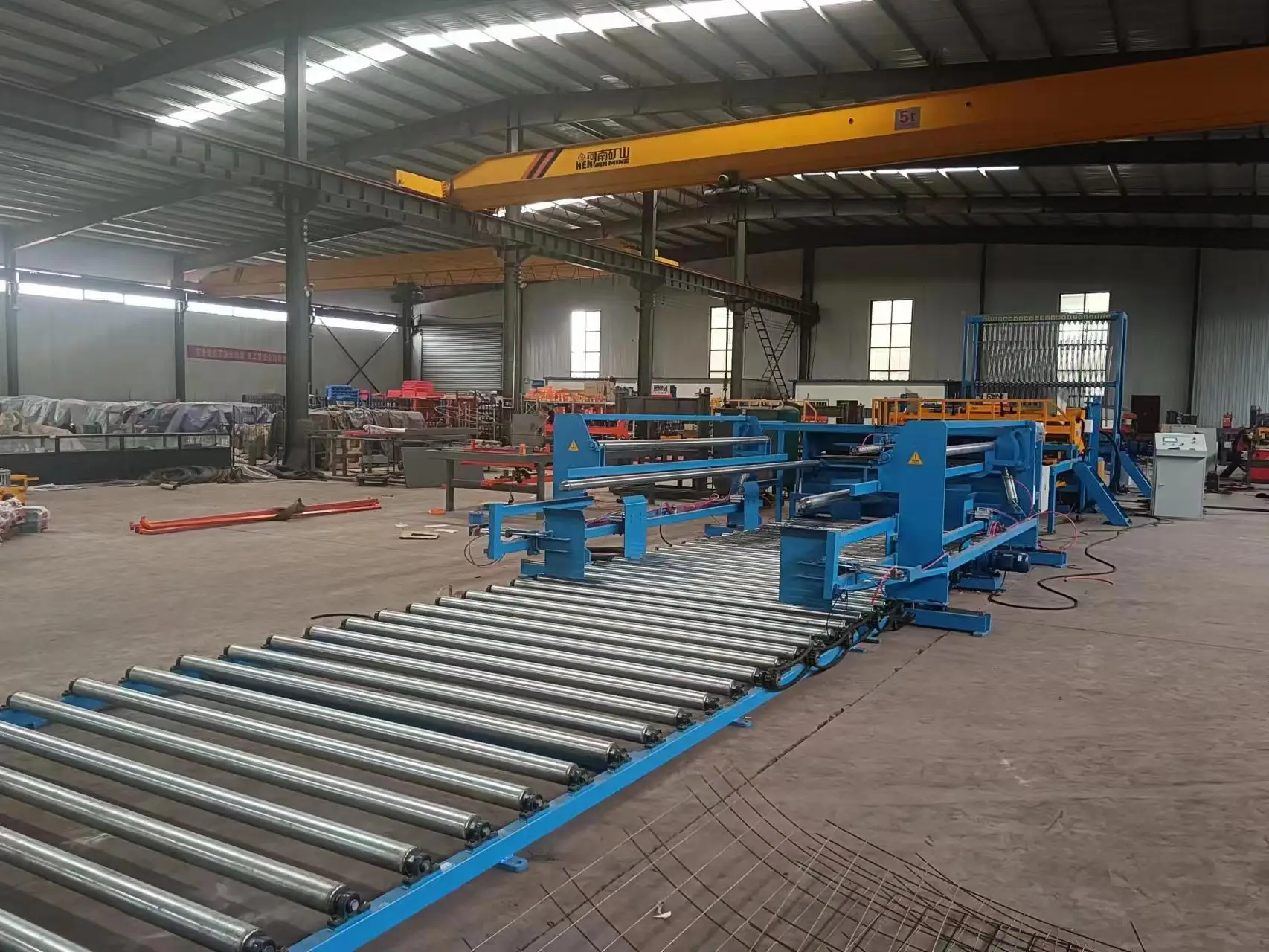

Roll mesh welding machine
Roll mesh welding machine production line, also called automatic welded mesh machine, welded wire mesh roll machine, used to make road mesh, reinforcing mesh, construction mesh, etc.
| Model | DP-FP-2500BN |
| Wire diameter | 3-6mm |
| Line wire space | 50-300mm |
| Cross wire space | Min. 50mm or Min. 25mm |
| Mesh width | Max.2.5m |
| Mesh length | Max. 100m |
| Welding speed | 50-75 times/min |
Reinforcing mesh welding machine
Reinforcing mesh welding line, also called BRC mesh welding machine, steel rebar mesh welding machine. with more than 20 years of experience in design and manufacture, our BRC mesh welding machine is featured by high capacity, easy operation, and precise control.
The pneumatic reinforcing mesh welding machine is the same type as the European machine, but with competitive prices. The production line adopts a multi-force air cylinder to control the welding, the welding speed can be up to 120 times/min.
| Model | DP-FP-2500A+ | DP-FM-3000A+ | DP-GW-2500B | DP-GW-3000B |
| Air cylinder type | SMC 80 double-acting air cylinder | SMC 90 single-acting bally air cylinder | ||
| Wire diameter | 3-8mm | 5-12mm | ||
| Longitude wire space | 100-300mm | 100-300mm | ||
| Cross wire space | Min. 50mm | Min.50mm | ||
| Mesh length | Max.12m | Max.12m | ||
| Mesh width | Max. 2500mm | Max.3000mm | Max. 2500mm | Max.3000mm |
| Welding speed | Max. 100times/min | Max. 80-100 times/min | ||

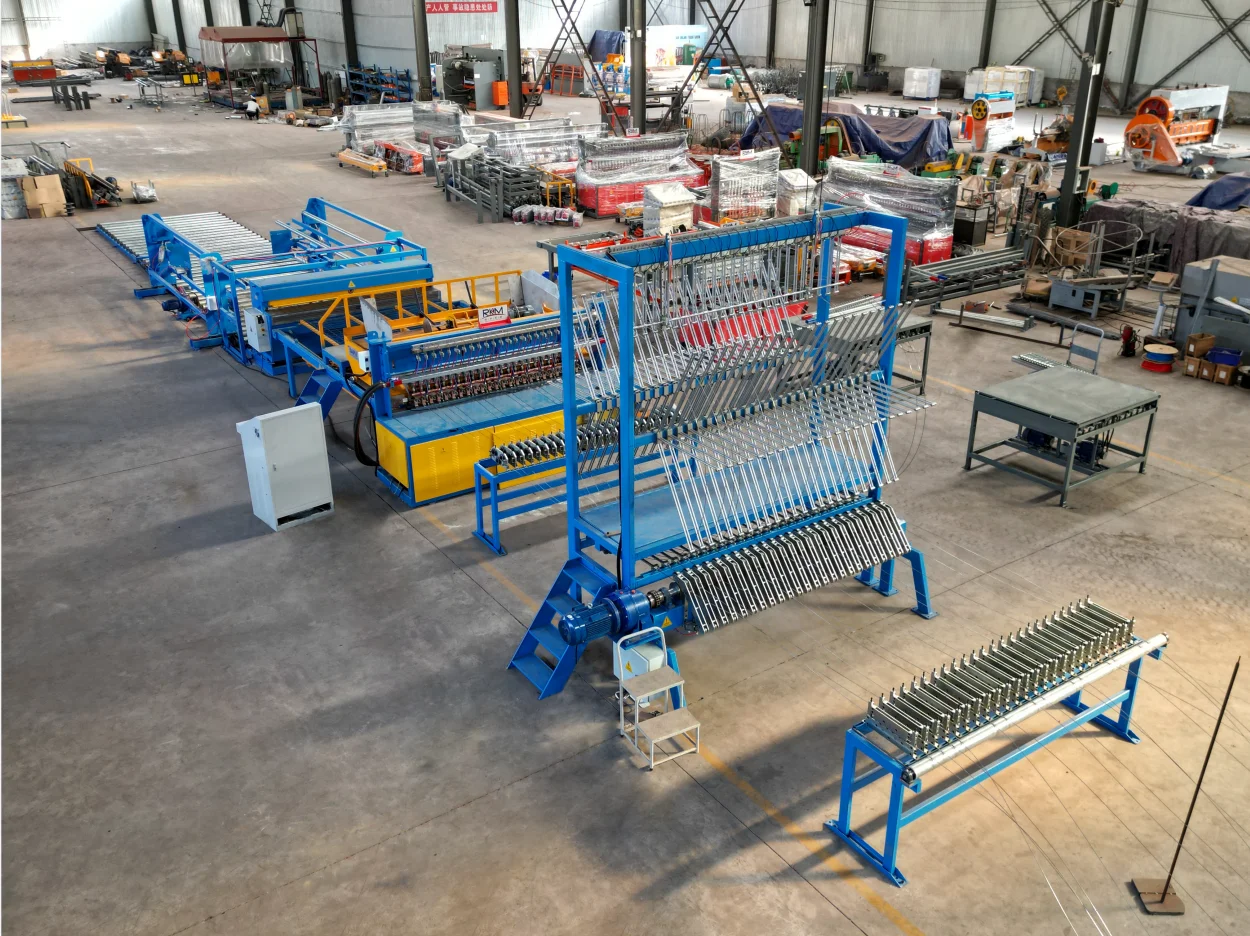

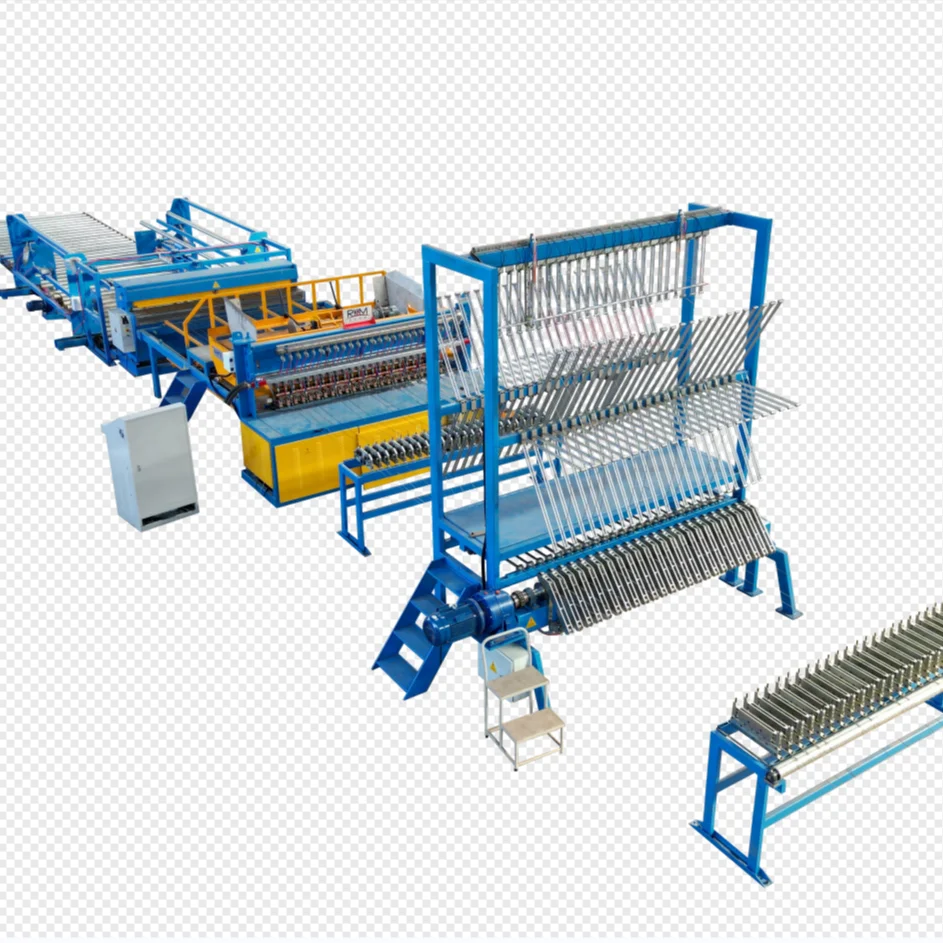

Fence mesh welding machine
3D fence panel meshes welding machine is also called a security fence panel machine, anti-climb fence welding machine, and fence sheet mesh machine.
It is used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall, etc.
| Model | DP-FP-2500A | DP-FP-3000AN | DP-FP-3200A+ |
| Wire diameter | 3-6mm | ||
| Line wire space | 50-300mm | 50-300mm | 76.2-300mm |
| Cross wire space | Min. 25mm | Min. 25mm | Min. 12.7mm |
| Mesh width | Max. 2.5m | Max. 3m | Max. 3.2m |
| Mesh length | Max. 3.2m | Max. 3m | Max. 4m |
| Welding speed | Max. 70 times/min | Max. 60 times/min | Max. 120 times/min |
| Bending way | Manual | Automatic | Manual |
Poultry cage welding machine
Chicken cage mesh welding machine, also called a poultry cage mesh welding machine, breed aquatics welding machine.
It's used to make breed aquatic mesh, poultry mesh, coop, pigeon mesh, rabbit mesh, etc.
This is our newly developed pneumatic wire mesh welding machine for 2-3.5mm and 2-4mm. Each welding torch is controlled by one air cylinder, it can work at different times.
| Model | DP-AW-1200H/E | DP-AW-1500H/E | DP-AW-1600H/E |
| Wire diameter | 2-3.5mm/2-4mm | ||
| Longitude wire space | Mostly 50-200mm(If min. 25*25mm, we can also design) | ||
| Cross wire space | Min. 25mm or smaller (PLC control) | ||
| Mesh width | Max. 1200mm | Max. 1500mm | Max. 1600mm |
| Welding speed | Max. 130 times/min | ||
Welded wire mesh machine in roll
Electric galvanized welded roll mesh machine is our new type of steel wire mesh grid machine. It's used to make construction mesh, wall mesh, animal cage, mining, etc.
The popular grid cell sizes are 1/2”, 1”, 2”, 12.5mm, 25mm, 50mm, 100mm, 150mm, etc. but also it is equipped with an inverter to control the speed and new type motor&reducer, with a good working performance.
| Model | DP-DNW-2 | DP-DNW-3 | DP-DNW-4 |
| Wire diameter | 0.65-2mm | 1-2.8mm | 1-3.5mm |
| Line wire space | 12.5mm, 25mm, 50mm | 25,50,75,100,125,150mm | 25mm-150mm |
| Cross wire space | 12.5mm, 25mm, 50mm | 12.5, 25, 50, 75, 100, 125mm | 25mm-150mm |
| Mesh width | 1.2m,1.5m,1.8m,2m | 1.5m,1.8m,2m,2.5m | 1.2m,1.5m,1.8m,2m |
| Welding speed | Max. 120-180times/min | Max. 60-100times/min | Max. 60-100times/min |
| Main motor | 2.2/4/5.5kw | 5.5/7.5kw | 5.5/7.5kw |
Main Electric Components
Main Electric Components adopt famous brand in the world.
 | (Japan) PLC (Taiwan) touch screen (France) low-voltage apparatus (Switzerland Sweden) switch (France) air switch (Japan) power supply (Taiwan) inverter (South Korea) encoder (Japan) servo drive |
Machine Certification
1. We provide test reports of the automatic wire mesh welding machine, more running videos, and detailed pictures.
2. Exclusive welding technology patent.
3. Have a variety of international certifications to help you import, such as CE.
4. Alibaba's strength factory certification.
About Us
Hebei Jiake Welding Equipment Co., Ltd. It’s the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.
To learn more about Hebei Jiake Wire Mesh Machinery, please click here.
Contact Us
We are known as one of the most professional and reliable Wire Mesh Welding Production Line manufacturers and suppliers in China.
If you are looking for a Wire Mesh Welding Machine, please feel free to buy the quality automatic machine with a competitive price from our factory. Excellent service is available in 24 hours.
