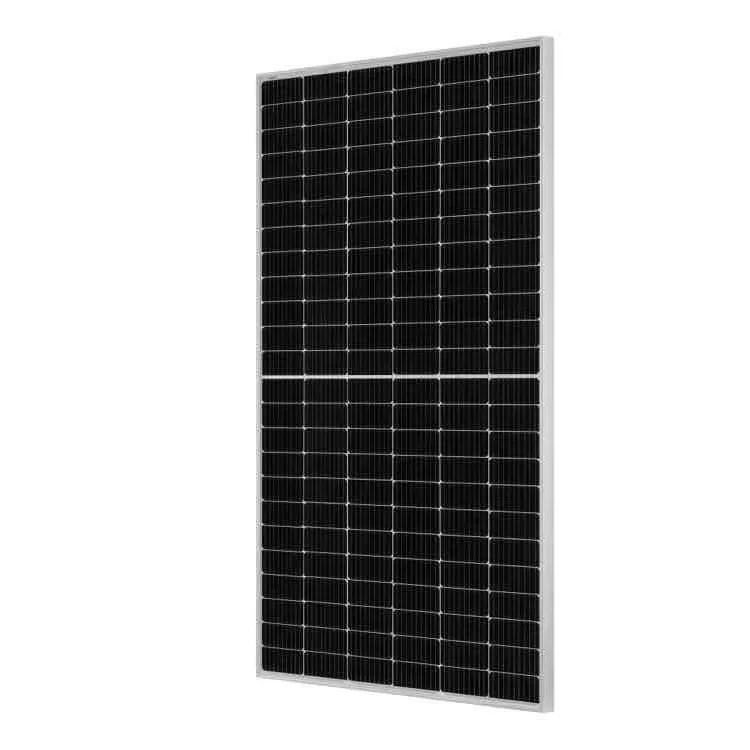

Risen Jinko Trina mono best solar panels N type 440W 450W 540W 575W 600W 650W PV solar panels for solar water pump
Product Description
WHAT IS HALF-CELL SOLAR PANEL?
Half-cell modules have solar cells that are cut in half, which improves the module’s performance and durability. Traditional 60-
and 72-cell panels will have 120 and 144 half-cut cells, respectively. When solar cells are halved, their current is also halved,
so resistive losses are lowered and the cells can produce more power. Smaller cells experience reduced mechanical
stresses, so there is a decreased opportunity for cracking. Half-cell modules have higher output ratings and are more reliable
than traditional panels.
Specification
KEY SALIENT FEATURES
*Global,Tier 1 bankable brand,with independently certified state-of-the-art automated manufacturing
*Industry leading lowest thermal co-efficient of power
*Industry leading 12 years product warranty
*Excellent low irradiance performance
*Excellent PID resistance
*Positive tight power tolerance
*Dual stage 100% EL Inspection warranting defect-free product
*Module Imp binning radically reduces string mismatch losses
*Warranted reliability and stringent quality assurances well beyond certified requirements
Certified to withstand severe environmental conditions
*Anti-reflective & anti-soiling surface minimise power loss from dirt and dust
*Severe salt mist,ammonia & blown sand resistance, for seaside, farm and desert environments
*Excellent mechanical load 2400Pa &snow load 5400Pa resistance
Electrical Parameters of Mono PERC solar panel: | ||||||||||
Maximum Power at STC (Pmax) | 435W | 440W | 445W | 450W | 455W | |||||
Optimum Operating Voltage (Vmp) | 41.05V | 41.13V | 41.25V | 41.3V | 41.4V | |||||
Optimum Operating Current (Imp) | 10.6A | 10.7A | 10.8A | 10.9A | 11.0A | |||||
Open Circuit Voltage (Voc) | 49.4V | 49.5V | 49.6V | 49.7V | 49.8V | |||||
Short Circuit Current (Isc) | 11.2A | 11.3A | 11.4A | 11.5A | 11.6A | |||||
Module Efficiency(%) | 19.7 | 19.9 | 20.1 | 20.4 | 20.6 | |||||
Operating Module Temperature | -40 °C to +85 °C | |||||||||
Maximum System Voltage | 1500V DC (IEC) | |||||||||
Maximum Series Fuse Rating | 20 A | |||||||||
Power Tolerance | 0/+5 W | |||||||||
Temperature Coefficient of Pmax | -0.37%/℃ | |||||||||
Temperature Coefficient of Voc | -0.29%/℃ | |||||||||
Temperature Coefficient of Isc | 0.05%/℃ | |||||||||
Company Profile
TOPSKY ENERGY specializes in solar industry for providing solar cells,solar poly panels, solar mono panels and solar application products and Solar PV system solutions with experience over 10 years.
TOPSKY has set up two sole-funded companies in SHENZHEN ,two operating companies in HONGKONG and one Jointed Venture in JIANGSU province successively since 2005.TOPSKY is able to provide customers with annual capacity of 300MW solar cells,400MW solar panels and 60,000 sets of solar power systems.
Main products are as follows:
*125mm 2BB mono solar cell, back-contact sunpower solar cells, 156.75/157mm poly solar cell, 158.75mm/166mm/182mm/210mm monocrystallline solar cells.
*3W-600W standard monocrystalline and polycrystalline silicon solar panel, Mono PERC half-cell solar panels, Bifacial dual glass panel solar, HJT BIFI dual glass panels.
*Solar PET/Epoxy resin/Glass panels, small mini solar panels are offered OEM and ODM service as per customers’ request.
*Exclusive channel to get solar cells and solar panels from top quality brand at more competitive price,they are Risen solar,Trina solar, Longi, Jinko solar, Csun solar, SUN POWER ,URE,MOTECH,QCELLS, SUNTECH, LONGI,BYD, GCL,etc.
TOPSKY always pursues the philosophy of people -oriented and energy-saving as well as cost effectiveness to create long term value for customers.
Project Case

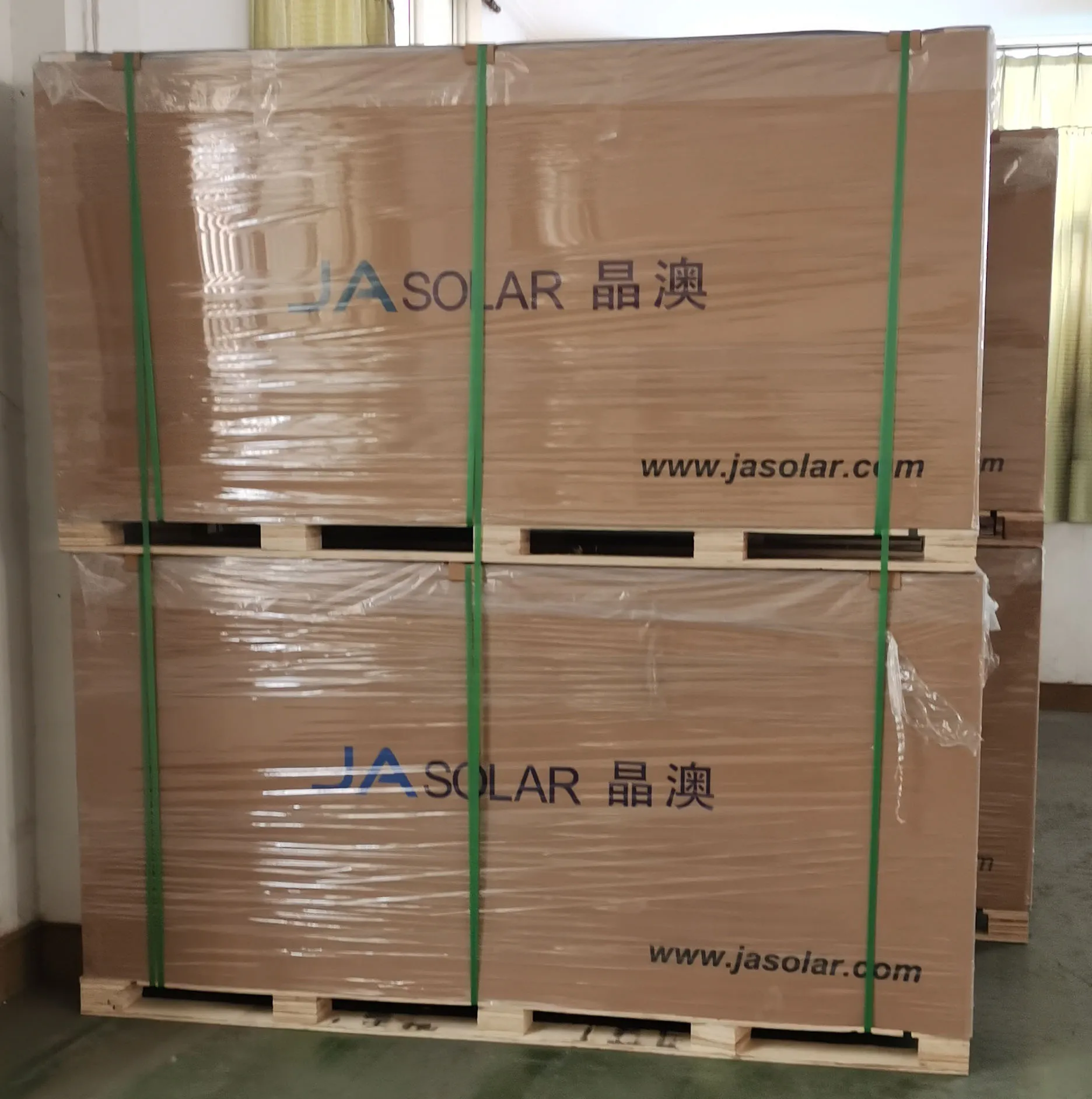

Packing & Delivery
FAQ
Q: What kind of certification of solar cell panel do you have?
A: Power from 3W to 550w panel solar with TUV,IEC61215/IEC61730,CEC,CE,UL,ETL,PID,ISO.MCS,etc.
Q: What is the warranty of solar panels?
A: 10 years warranty on material and workmanship, 25 years power warranty (90% power output in 10 years,80% in 25 years)
Q: Can you quote me the best price of solar cells solar panel?
A: We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.
Q: Can I just order some samples of small quantity?
A: Sample order in small quantity is acceptable.
A: Power from 3W to 550w panel solar with TUV,IEC61215/IEC61730,CEC,CE,UL,ETL,PID,ISO.MCS,etc.
Q: What is the warranty of solar panels?
A: 10 years warranty on material and workmanship, 25 years power warranty (90% power output in 10 years,80% in 25 years)
Q: Can you quote me the best price of solar cells solar panel?
A: We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.
Q: Can I just order some samples of small quantity?
A: Sample order in small quantity is acceptable.
