- Категория: Bulldozers >>>
- Поставщик: Shandong,Hengjianhang,Construction,Machinery,Co.,Ltd.Shandong,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 89250.7 $* | 93713.23 $* |
| Aug-16-2025 | 88500.23 $* | 92925.93 $* |
| Jul-16-2025 | 74250.68 $* | 77963.87 $* |
| Jun-16-2025 | 87000.62 $* | 91350.13 $* |
| May-16-2025 | 75750.88 $* | 79538.18 $* |
| Apr-16-2025 | 85500.26 $* | 89775.38 $* |
| Mar-16-2025 | 84750.34 $* | 88988.73 $* |
| Feb-16-2025 | 84000.22 $* | 88200.1 $* |
| Jan-16-2025 | 83250.40 $* | 87413.29 $* |
Характеристики
Company Profile
About Company
As a large-scale producer for excavator and bulldozer, we have a comprehensive brand and a wide range of models, which can provide
you with the most favorable price.
you with the most favorable price.
I look forward to answering your questions about new or used cars.
Click "Query" to get in touch with us!
Click "Query" to get in touch with us!
Products Description

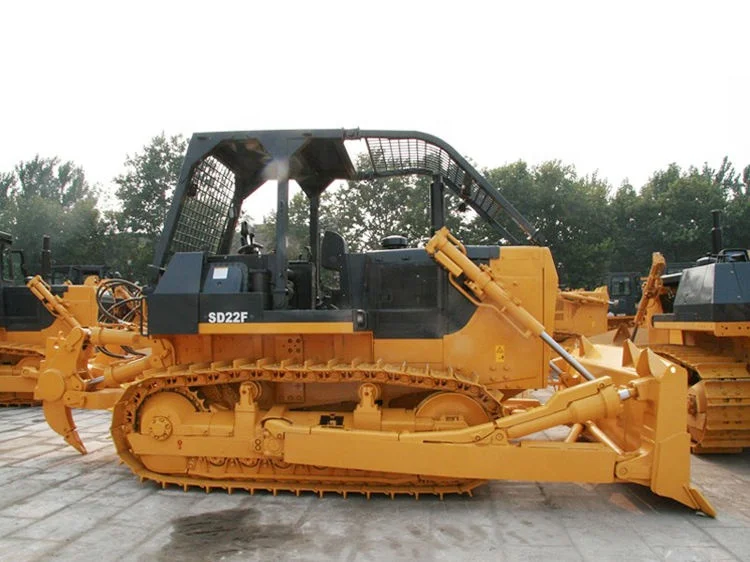

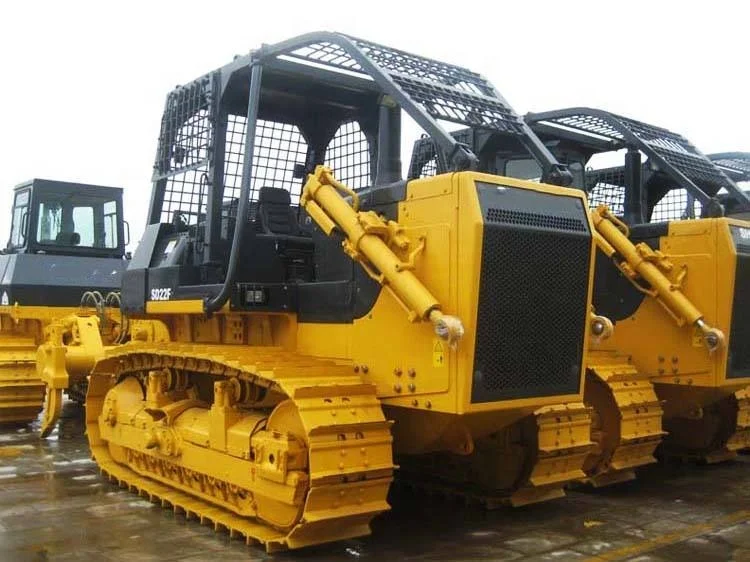

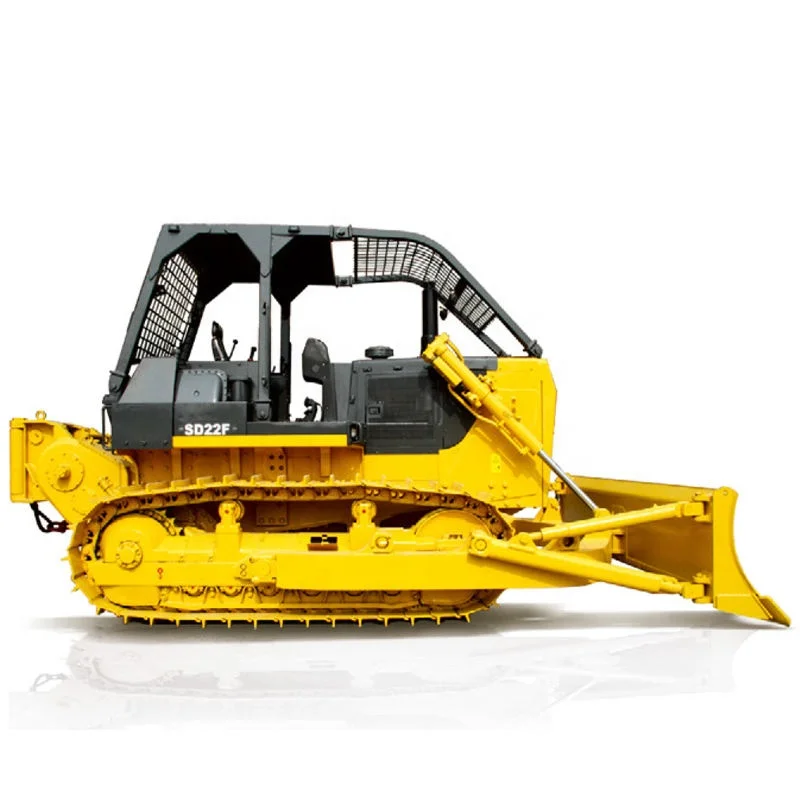

SD22F Forest logging bulldozers, developed according to the needs of the forest working environment, and equipped with a special logging anti-roll cab.

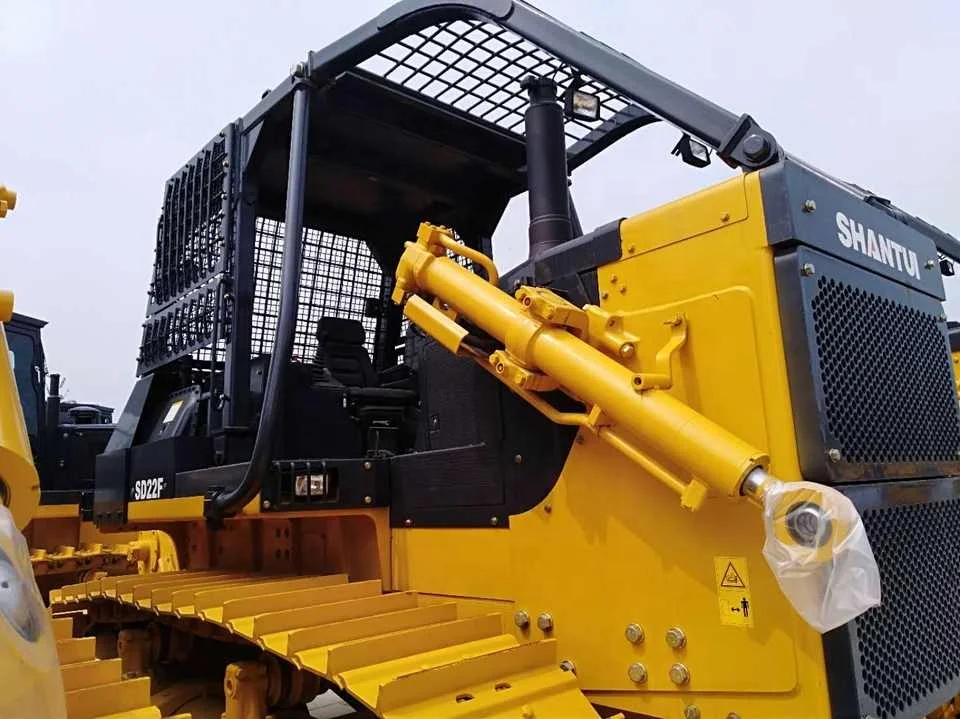

Special logging anti-roll driving shed, cab, can be configured with a wide (610mm) crawler and mechanical winch, with good passing performance and self-rescue performance, suitable for rainforest and forest farm logging, material collection and drag transportation operations.

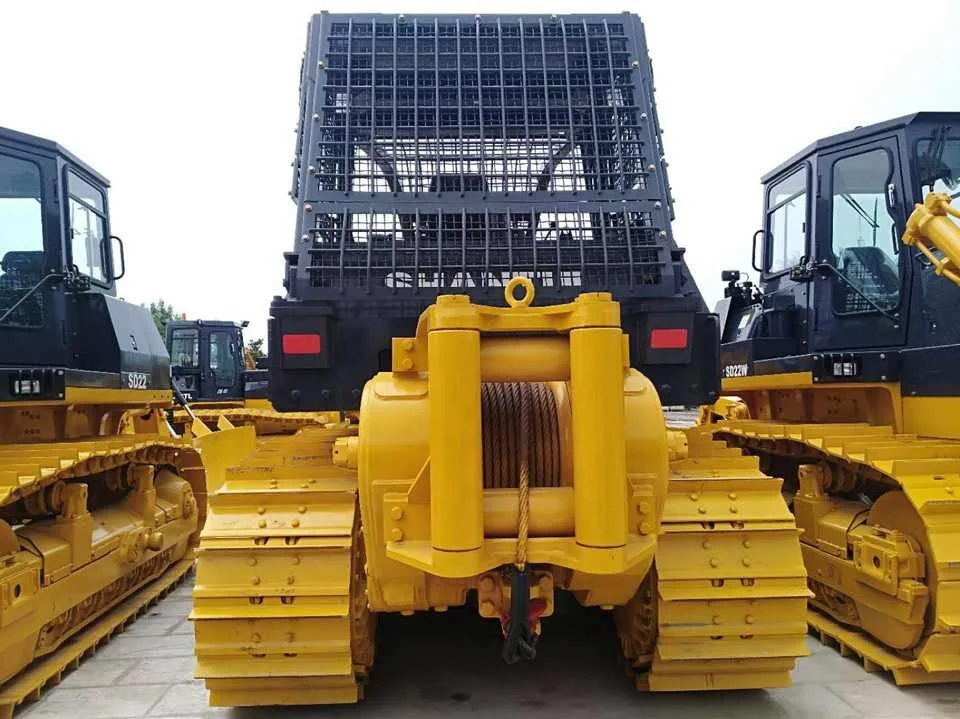

The standard logging shovel can strongly clear all kinds of thorns obstacles on the logging road, winch is used for dragging trees and bulldozers in forest operation, winch self-rescue function can provide guarantee for the safety of the operator.
Exhibition
Product Paramenters
Type section | SD22F |
Long, X, width, X height (mm) (excluding soil) | 5495X3725 X3580 |
Weight used (excluding loosening) (kg) | 24700 |
Power / rated turn quantity (kw/rpm） | 175/1800 |
Ground length and ground specific pressure (MPa) | 2730 |
0.077 | |
Climbing performance of (°) | 30 |
Number of track boards (on each side) | 38 |
Crawle plate width (mm) | 610 |
Crawler center distance (mm) | 2000 |
Chain rail pitch (mm) | 216 |
Number of carriers (each side) | 2 |
Number of heavy wheel bearings (each side) | 6 |
Shovel knife type | Straight, angle, U, and half-U |
Shovel length x high (mm) | Straight: 3,725 X 1317 |
Corner: 4365X1057 | |
U:3800X 1345 | |
Half-U: 3,725 X 1376 | |
Shovel blade capacity (m³) | Straight 6.4 angle 4.7 U7.5 half U7.0 |
Shoade lift height (mm) | 1210 |
Shovel depth (mm) | 540 |
Relaxed soil type | Single teeth; three teeth |
Depth (mm) | Single tooth: 695. Three teeth: 666 |
Looiser lifting height (mm) | Single tooth: 515. Three teeth: 555 |
F1:0~3.6 | |
F2:0~6.5 | |
F3:0~11.2 | |
Backgear speed (km/h) | R1:0~4.3 |
R2:0~7.7 | |
R3:0~13.2 |
