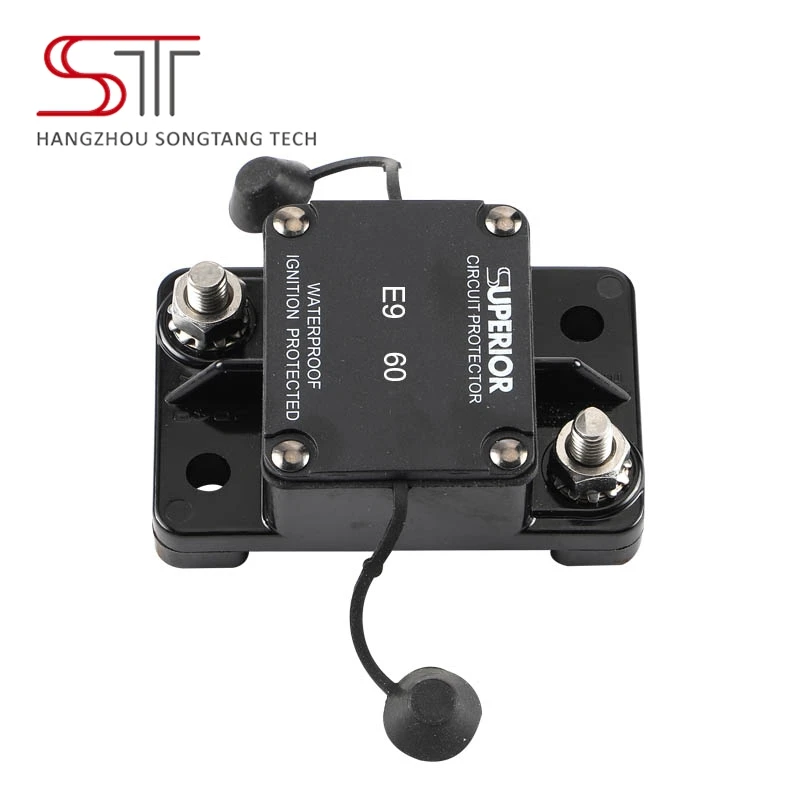

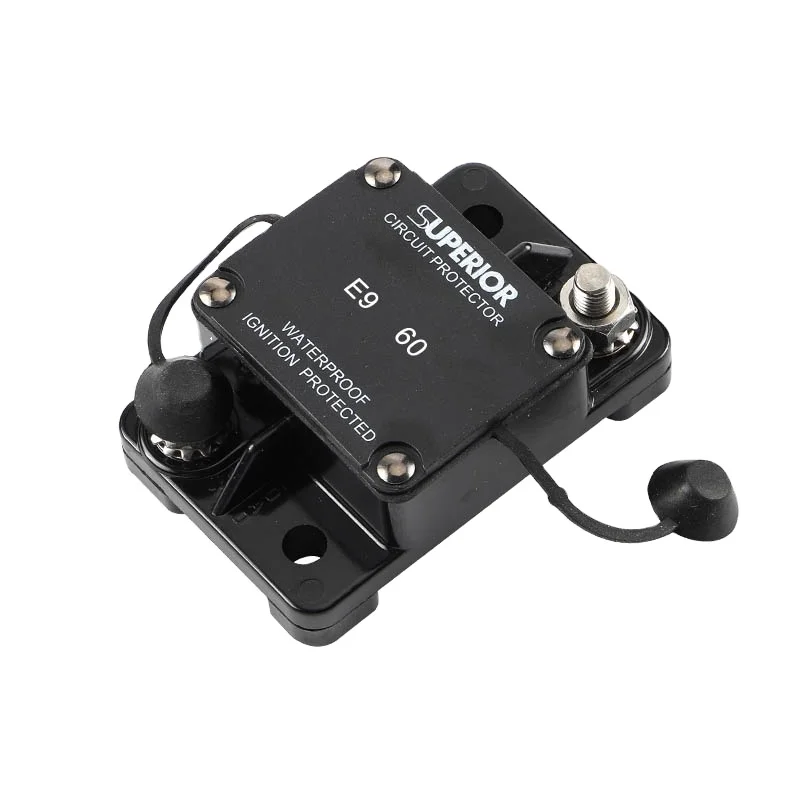

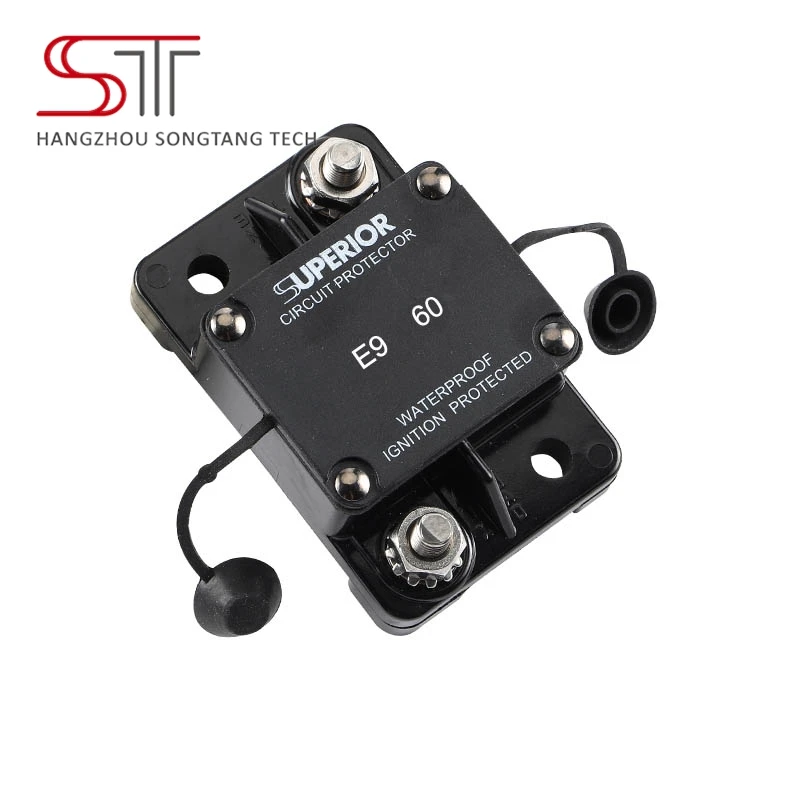

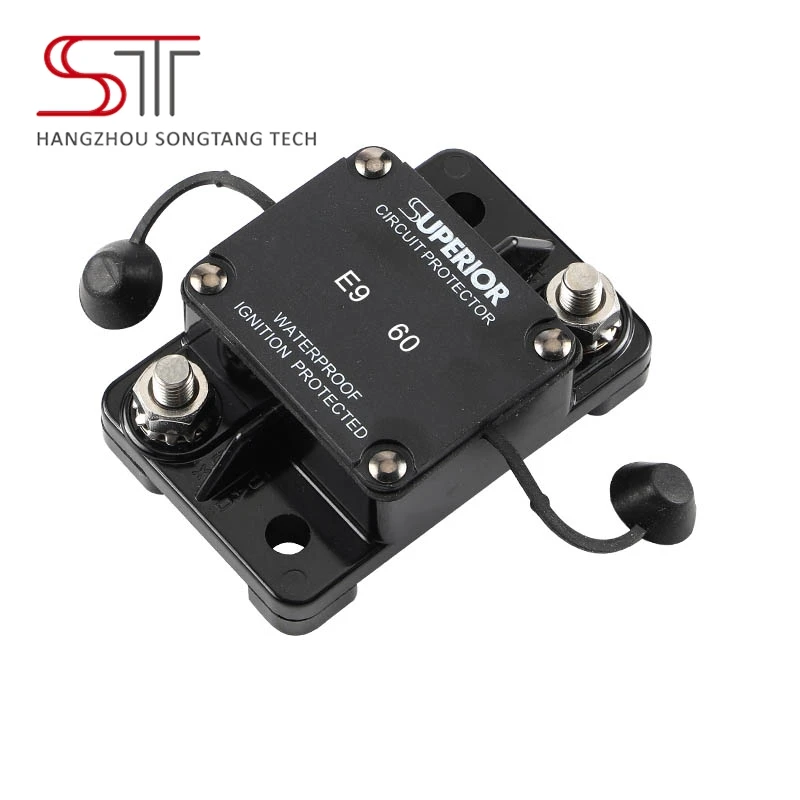

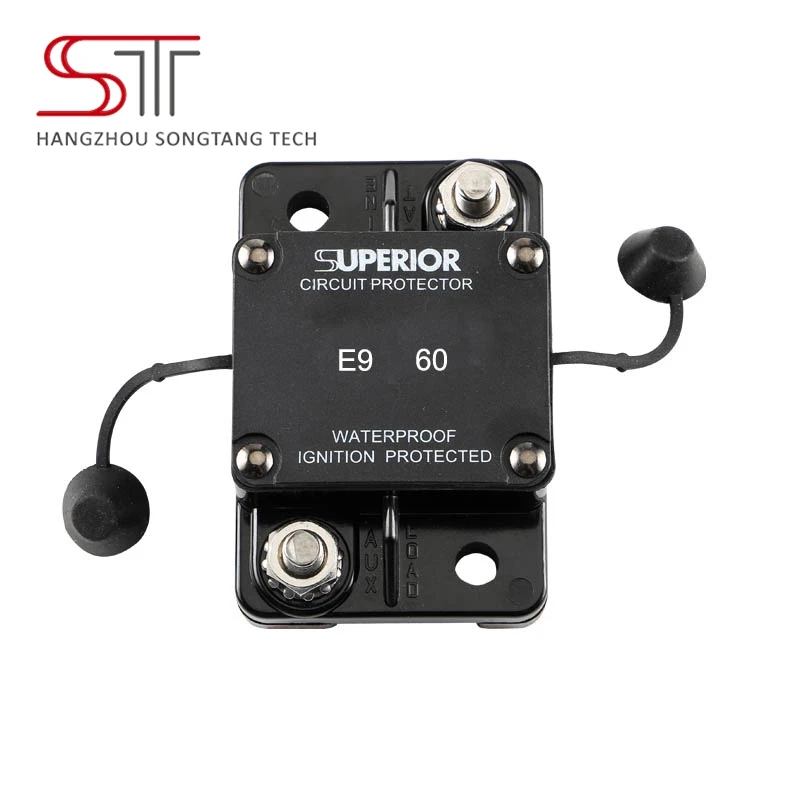

Биметаллический автоматический выключатель E97 60 Amp dc
- Категория: Circuit Breakers >>>
- Поставщик: Hangzhou,Songtang,Tech.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 9.89 $* | 9.40 $* |
| Jul-19-2025 | 7.12 $* | 7.83 $* |
| Jun-19-2025 | 9.8 $* | 9.38 $* |
| May-19-2025 | 9.11 $* | 9.69 $* |
| Apr-19-2025 | 7.89 $* | 7.69 $* |
| Mar-19-2025 | 9.34 $* | 9.74 $* |
| Feb-19-2025 | 8.44 $* | 8.56 $* |
| Jan-19-2025 | 8.45 $* | 8.47 $* |
Характеристики
Product Description
| Part Number | E97-060A-99-SP |
| Description | Hi-Amp Circuit Breaker 1/4" Stainless Steel Studs, Surface Mount Typically used in auxiliary and accessory circuits in truck, bus', RVs and marine applications. Others include battery charger and DC audio system. |
| Family | Thermal Circuit Breakers |
| Category | E9 |
| Series | E97 |
| Voltage | 48vdc |
| Rated Current | 60A |
| Mounting | Surface Mount |
| Reset Type | T1, Auto Reset |
| Operating Temperature | -32ºC (-25ºF) to 82ºC (180ºF) |
| Interrupt Capacity | 3,000A @ 30Vdc * Consult Factory |
| Dimension | Length: 2.913" Width: 1.900" Height: 1.091" Unit: inch |
| Weight | 88 g |
| RoHS | Y |
| Standard Pack | 100 |
| Regulatory Sepcification | Interrupt Capacity: SAE J1625; SAE J553, ABYC-E11 Ignition Protected: SAE J1171 Endurance: SAE J1625; SAE J553 Dust and Waterproof: IP67 Shock, Vibration, Corrosion, Humidity: Mil-STD-202 |
| HS Code | 85362000 |
| Termination | 1/4" Stainless Steel Studs |
| Storage Temperature | -34ºC (-30ºF) to 149ºC (300ºF) |
Select a low amp or high amp thermal circuit breaker for your commercial
applications, transportation equipment, marine, medical, and other power
supplies:
1.Circuit breaker can do is protect the circuit from a high current short circuit.
2.Through its thermal trip it can protect the circuit from overload conditions.
A circuit breaker will trip if too large a draw or current flow occurs across a
thermal shunt inside.
3.Easy for mounting.
4.Trip-off time is customizing and adjustable according to customers' demands.
5.The design allows the thermal circuit breaker to be extremely cost-effective while
remaining durable and reliable.
