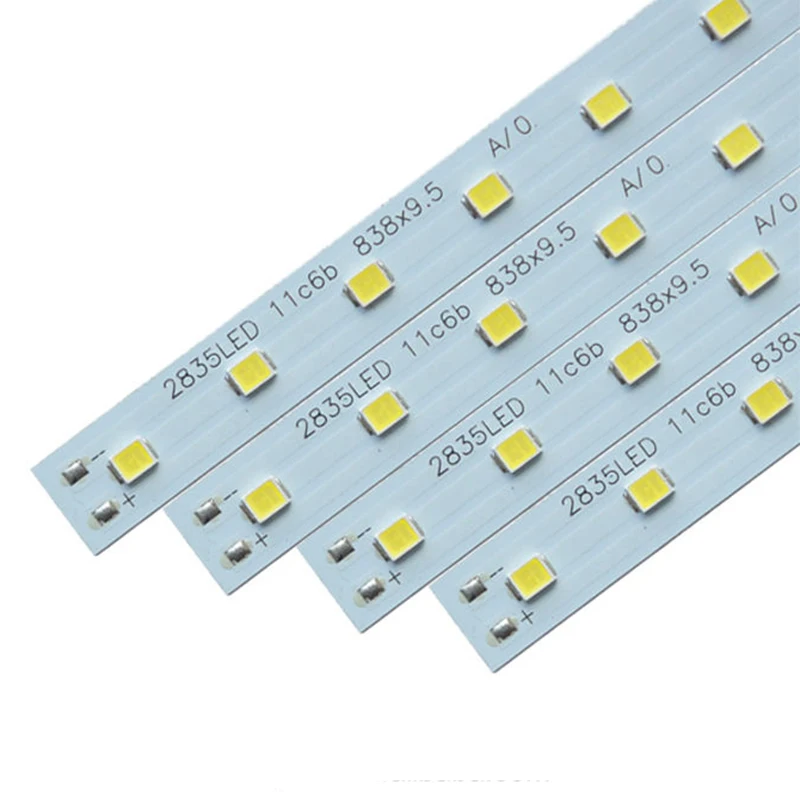

Алюминиевая Светодиодная
- Категория: Rigid PCB >>>
- Поставщик: Chenkai,Circuit,Holding,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.1 $* | 0.93 $* |
| Aug-16-2025 | 0.9 $* | 0.50 $* |
| Jul-16-2025 | 0.73 $* | 0.43 $* |
| Jun-16-2025 | 0.26 $* | 0.60 $* |
| May-16-2025 | 0.87 $* | 0.3 $* |
| Apr-16-2025 | 0.23 $* | 0.59 $* |
| Mar-16-2025 | 0.12 $* | 0.98 $* |
| Feb-16-2025 | 0.32 $* | 0.92 $* |
| Jan-16-2025 | 0.48 $* | 0.36 $* |
Характеристики

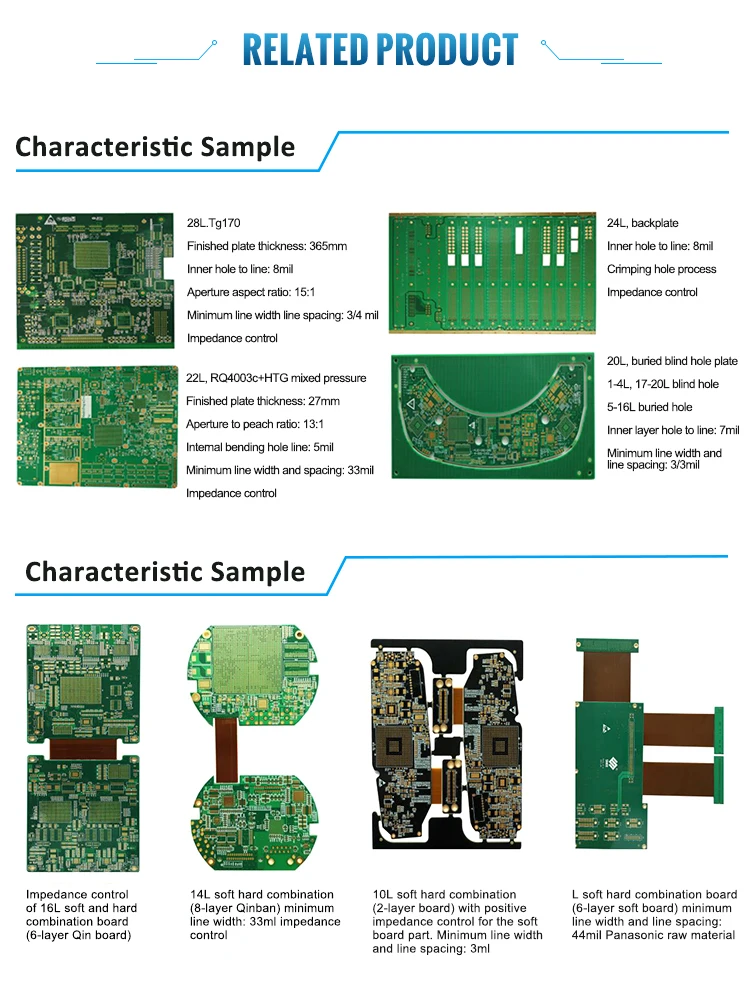

Recommend Products
Product Description
Shenzhen factory process capability | ||
Sheet type | Ordinary FR4, high TgFR4, high CTI FR4, halogen-free FR4, copper-based, aluminum-based, PTFE, PI | |
Maximum delivery size | 1200×572 mm | |
Min. finished plate thickness | L≤2L:0.1mm;4L:0.3mm | |
Maximum finished plate thickness | 10.0 mm | |
Blind buried holes (not crossed) | 0.1 mm | |
Maximum hole diameter aspect ratio | 15:1 | |
Minimum mechanical drilling hole diameter | 0.15 mm | |
Through-hole tolerance/crimp hole tolerance/non-crimp hole tolerance | +/-0.0762mm/+/-0.05mm/+/-0.05mm | |
Maximum number of layers | 32 | |
Maximum copper thickness of inner and outer finish | 12 OZ | |
Minimum Drilling Tolerance | +/-2mil | |
Minimum interlayer tolerance | +/-3mil | |
Min. line width/line spacing | 2.5/2.5mil | |
Minimum BGA diameter | 8mil | |
Surface treatment process | Leaded/lead-free tin spraying, gold sinking | |
Electro-gold, gold finger, sunken silver/tin, OSP, sunken nickel palladium gold, carbon oil, blue glue, paste gold glue, etc. | ||
Shenzhen factory process capability | ||
Sheet type | Ordinary FR4, high TgFR4, high CTI FR4, halogen-free FR4, copper-based, aluminum-based, PTFE | |
Maximum size is good | 540×620 mm | |
Min. finished plate thickness | 0.20 mm | |
Maximum finished plate thickness | 8.0 mm | |
Blind buried holes (not crossed) | 0.2 mm | |
Maximum hole diameter aspect ratio | 12:1 | |
Minimum mechanical drilling hole diameter | 0.20 mm | |
Through-hole tolerance/crimp hole tolerance/non-crimp hole tolerance | +/-0.0762mm & +/-0.05mm & +/-0.05mm | |
Maximum number of layers | 16 | |
Maximum copper thickness of inner and outer finish | 6 OZ | |
Minimum Drilling Tolerance | +/-2mil | |
Minimum interlayer tolerance | +/-3mil | |
Min. line width/line spacing | 3/3mil | |
Minimum BGA diameter | 10mil | |
Surface treatment process | Leaded/lead-free tin spraying, gold sinking | |
Electro-gold, gold finger, sunken silver/tin, OSP, sunken nickel palladium gold, carbon oil, blue glue, paste gold glue, etc. | ||

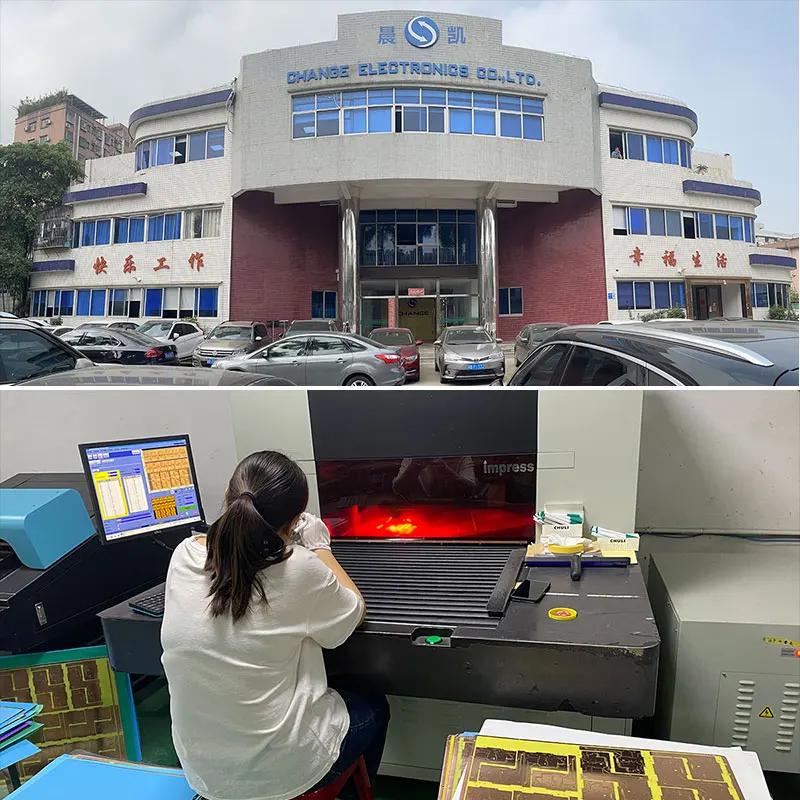

About Us
Why Choose Us
Certifications
Customization Process
Shipping & Payment
FAQ
Q1: What is needed for PCB/PCBA quotation?
CHENKAI: We need to know the Quantity inquiry, BOM, PCB Gerber, PCB specification requirement, pick and place file, Test plan (if you need). Then we will check and quote to you within 24hours, we would like to offer you the best price as we can.
Q2. Could we sign the NDA before sending the files?
CHENKAI: Sure, we would like to sign the NDA (Non Disclosure Agreement) with our clients and keep the production files confidential.
Q3: What’s your minimum of quantity(MOQ) ?
CHENKAI: Our PCBA MOQ is 1pcs, we could support you from the design sample verification to the mass production run. We are professional and willing to help you get all the manufacturing process fast and easily.We are able to handle small as well as large volume production with flexibility.
Q4. What is the production lead time for the PCBA order?
CHENKAI: Our PCBA production lead time is 1~2wks for sample order (1~20pcs); 3~4wks for the trial production run (100~1000pcs), 4~5wks for the mass production run (>1000pcs). We also could offer you the expedited service if you need it urgently.
Q5: What other service do you have?
CHENKAI:We mainly focus on PCB+Assembly+Components sourcing service.Additionally, we can also provide programming, testing, cables,enclosure assembly service.
Q6:Can we inspect quality during production?
CHENKAI: Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process and check in house.
