200T 500T 1000Ton Grain Storage Silo 3000 Ton Silo Grain storage Prices Uganda

Product Description

As the name implies, grain warehouse is a warehouse for storing grain. The selection of grain silo should be conducive to food security storage, be advanced to a certain extent, be conducive to the realization of mechanization,and be suitable for the implementation of advanced grain storage technology.

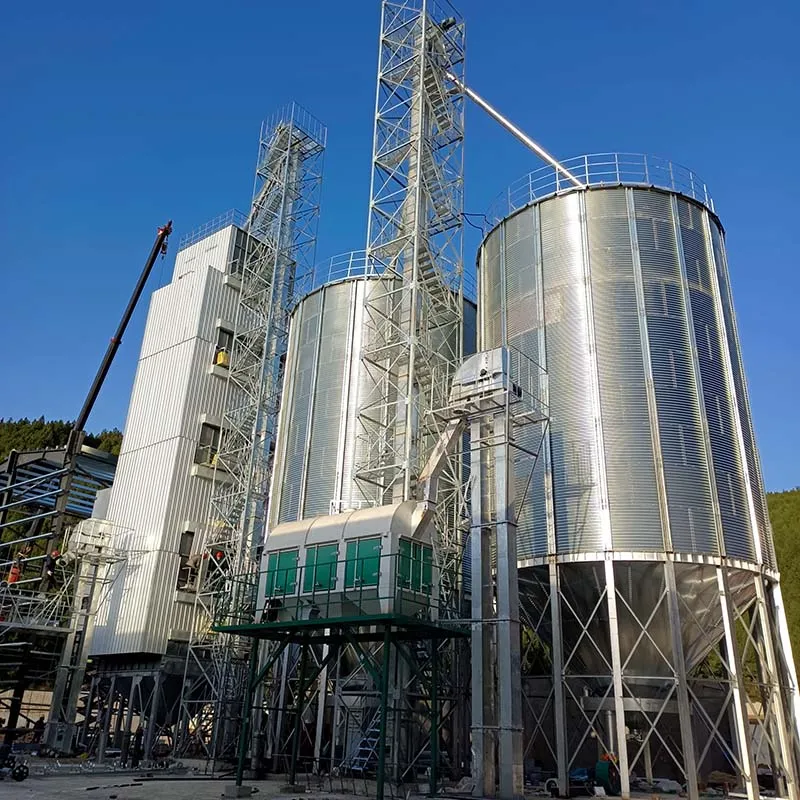

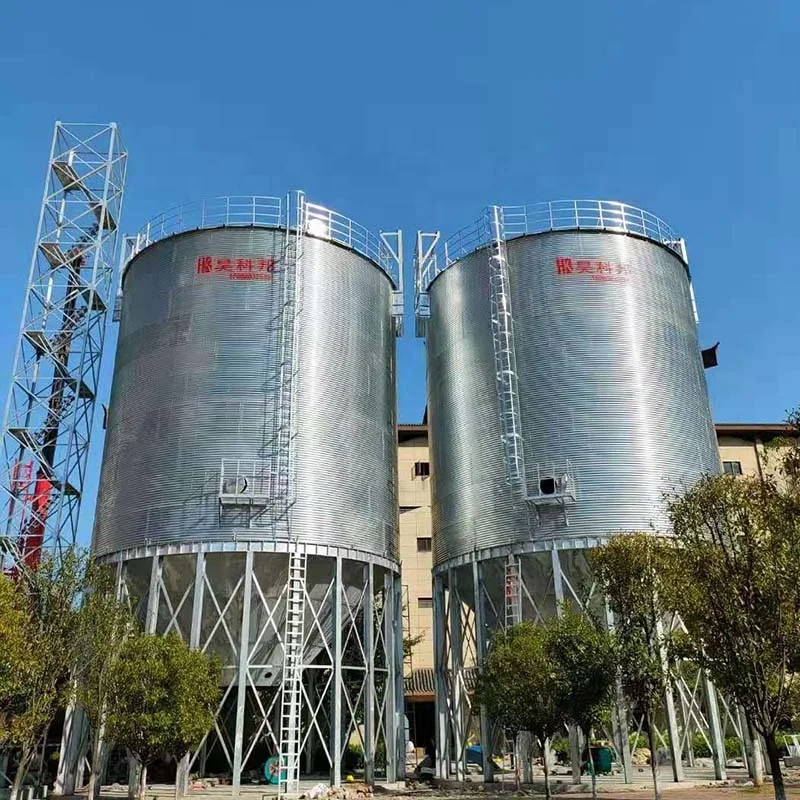

Hopper bottom steel silos store materials out of the silos with good self-cleaning effect and no residue. The warehouse is suitable for seed, flour, aquaculture, chemical and other industries with moderate reserves and frequent silos. The hopper bottom steel silo support structure of the cone-bottom steel plate warehouse is strong and the cone-bottom strength is high.

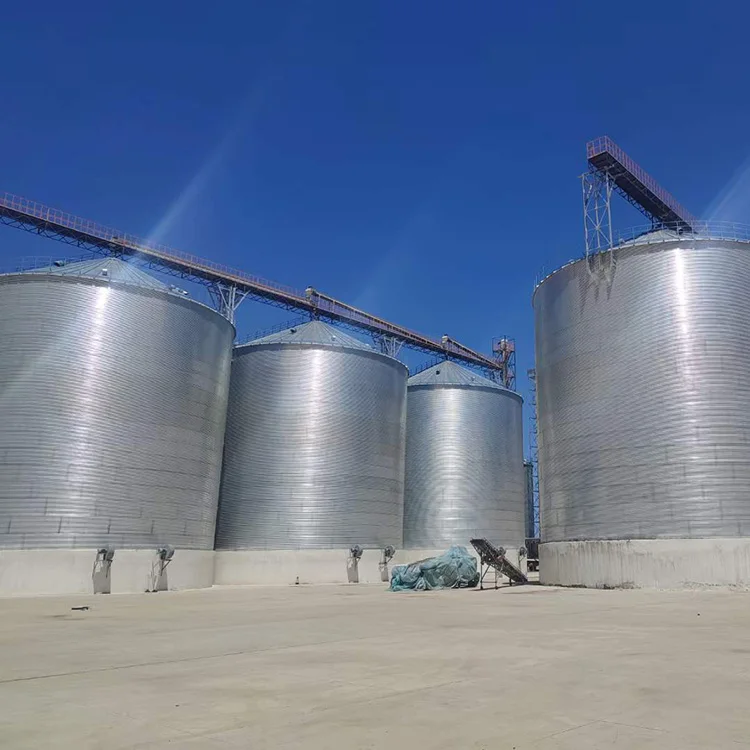

Flat-bottom steel silos are widely used, and are generally used for large-diameter, large-capacity silos. This form is easy to construct and low in cost. The discharge method can adopt fluidized discharge warehouse, multi-hole discharge warehouse, flat-bottomed warehouse sweeper, manual clearing, and also can use the cement cone bottom method to realize self-flow out warehouse. This type of steel silo is mostly used for oil processing, storage, such as oil, feed, flour, starch, brewing, ports, and grain depots.

Scientifically speaking, the silo capacity should be measured with volume (m3). Even in the same silo, the storage tons will be different for different grains with different densities. The following table is calculated based on a grain density of 0.75kg/m3, and surely HKB customizes silo systems unique for you.

Most Popular Hopper Bottom Steel Silo Technical Specifications
Capacity	50Ton	100Ton	150Ton	200Ton	300Ton	500Ton	1000Ton	1500Ton
Model	TCZK 03605	TCZK 04507	TCZK 05507	TCZK 06406	TCZK 07307	TCZK 07313	TCZK 11010	TCZK 12811
Diameter(m)	3.667	4.584	5.500	6.417	7.334	7.334	11.000	12.834
Total Height(m)	9.56	12.53	13.25	12.85	14.70	21.42	20.95	23.51
Volume(m³) Density:0.75ton/m³	69	150	222	273	415	699	1346	2039



Most Popular Flat Bottom Steel Silo Technical Specifications
Capacity	1000Ton	1500Ton	2000Ton	2500Ton	3000Ton	5000Ton	8000Ton	10000Ton
Model	TCK 10014	TCK 11915	TCK 13715	TCK 15514	TCK 15518	TCK 18321	TCK 24718	TCK 25621
Diameter(m)	10.084	11.918	13.750	15.584	15.584	18.334	24.751	25.668
Total Height(m)	18.69	20.34	20.87	20.30	24.78	28.60	26.99	30.60
Volume(m³) Density: 0.75ton/m³	1335	2009	2701	2467	4145	6693	10879	13484

The above data is for reference only. For more information, please contact us.



Deatails

	The roof beam is made of C-shaped steel, the upper part is connected with the tio ring of the silo, the lower part is connected with the pillar of the silo,and the beam is horizontally connected by angle steel to form the framework of the silo top.
The coaming of the silo is made of 275g/m2 galvanized steel plate. The coaming is gradually thicjened from top to bottom according to the stress of each layer.



Accessory Equipment

Starting from the initial project analysis, to develop your custom grain silo system plan and to the final turnkey completion of the project, HKB’s engineers will stand together with you to get the best matching profitable solution.
Henan Haokebang Machinery Equipment Co., Ltd. specializes in the production of 100-10,000 ton hopper bottom and flat bottom corrugated galvanized steel silos. According to various factors such as site, weather, and geology, we provide professional silo design, equipped with elevators, unloading pits, pre-cleaner, conveyors, sweeping auger and other accessories to meet the diverse needs of customers.



Related Products

Grain Steel Silo	Tower Grain Dryer	Batch Type Grain Dryer	Rotary Dryer



Why Choose us

Advanced Production Equipment
Standing on our strong integral solution design power, HKB’s s rich manufacturing expertise guarantees the best workmanship of the whole silo system. The bolt steel plate production line is imported assuring bolt plates high precision and max sealing bolt connection. The introduction of advanced laser cutting machines, intelligent CNC robots, and silo hoarding forming machines ensures that the steel plate is cut accurately and efficiently, the incisions are flat and beautiful, and the silo has high strength, good seismic performance, and long service life.

Rest Assured Packaging & Transportation
From design engineering, manufacturing and processing, assembly and commissioning, and quality control to delivery and after-sales service, Haokebang has a strictly controlled quality management system, ensures that equipment arrives at its destinations safely and efficiently, and provides important support for customers' work.

Experienced Installation Team
HKB’s own installation engineers team plays a respectable role in the successful high-performance whole silo system. Our motivated team has rich installation experience for various types of silos, work under a strict and standardized installation management system, and thorough installation cross-checking rules, and promises one-time project acceptance.

Rich export experience
The company has independent export rights, and its products are sold to South Korea, Belgium, Indonesia, the Philippines, Thailand, Tanzania, Kenya, Nigeria, Cyprus, Peru and many other countries and regions.

One Stop Sevice
As a professional manufacturer of grain processing machines. From grain cleaning, and drying to storage, HKB creates a one-stop service for you!

Professional sales team

The company has a professional foreign trade sales team, proficient in products, answering your doubts at any time, and providing you with professional storage solutions.

Worry-free After-sale Service
- HKB provides advanced grain safety storage technology to assure your grain 100% quality stability.
- The quality guarantee is one year after installation and commissioning or 18 months after leaving China Port. Maturity is the first.
- 7 days x 24 hours service, within 24 hours reply/solve any technical issues upon request.
- Routinely telephone track to remove all might be problems or issues guaranteeing the whole system's long-lasting safety and reliability.
- HKB will consider all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan, documentation, etc. So our respected Users feel so relaxed and easy to get the silo system well.



Henan Hao Kebang Machinery Equipment Co., Ltd. was founded in 2008, covers an area of 32,000 square meters, has 8,000 square meters of standardized heavy industrial production room, specializing in the production of grain dryers, tumble dryers, granaries, and clear grain sieves of various specifications. Various grain machinery and equipment. The company has a variety of large and medium-sized sophisticated equipment, senior management and engineering and technical personnel, and a professional foreign trade team to answer your questions online.
In the spirit of "religious, precise, rigorous, and harmonious", the company's service tenet of "serving customers, being responsible for customers, and satisfying customers" has been rated as the top sales in the industry for many years. Products are widely sold to various countries and regions at home and abroad.



A number of strength certification
The company has a modern enterprise management mechanism, first-class manufacturing equipment, perfect testing methods, high-quality scientific research personnel, high-quality agricultural machinery products, and serves customers with a high degree of professionalism. Over the years, it has been awarded honorary titles such as "Advanced Quality Management Enterprise" and "Contract-honoring and Credible Enterprise". At the same time hold ISO, CE and other certificates.
