Топ бег ужин низкая высота над головой двойная балка Электрическая цепная таль Канатный подъемный мостовой кран 5 тонн
- Категория: Lifting, Pulling & Positioning >>>
- Поставщик: Toptech,Machinery,Wuxi,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 7021.48 $* | 7372.87 $* |
| Aug-19-2025 | 6962.97 $* | 7310.64 $* |
| Jul-19-2025 | 5841.75 $* | 6133.82 $* |
| Jun-19-2025 | 6844.56 $* | 7186.75 $* |
| May-19-2025 | 5959.52 $* | 6257.26 $* |
| Apr-19-2025 | 6726.79 $* | 7062.67 $* |
| Mar-19-2025 | 6667.15 $* | 7000.12 $* |
| Feb-19-2025 | 6608.30 $* | 6938.3 $* |
| Jan-19-2025 | 6549.6 $* | 6876.39 $* |
Характеристики
Products Description

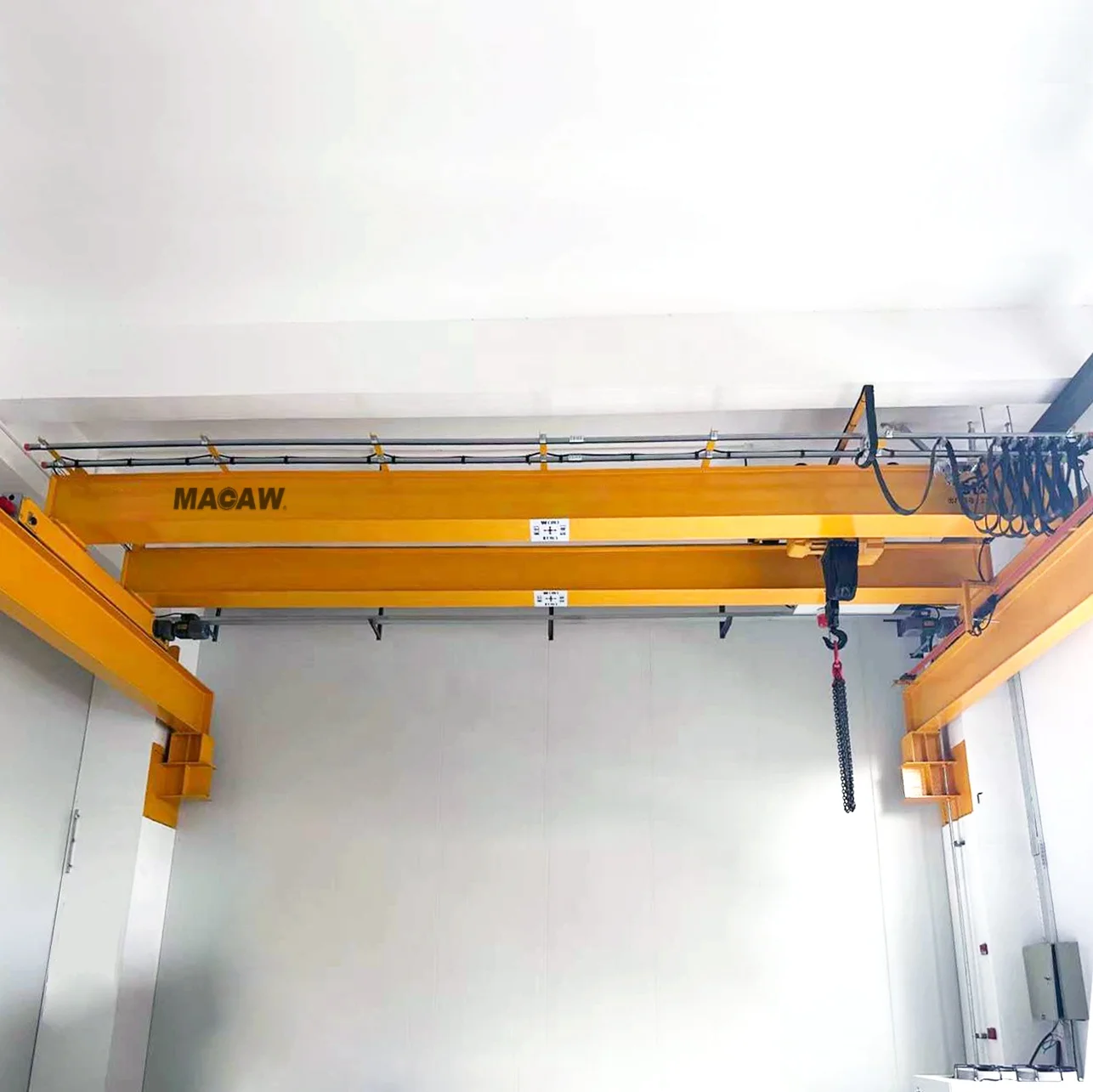

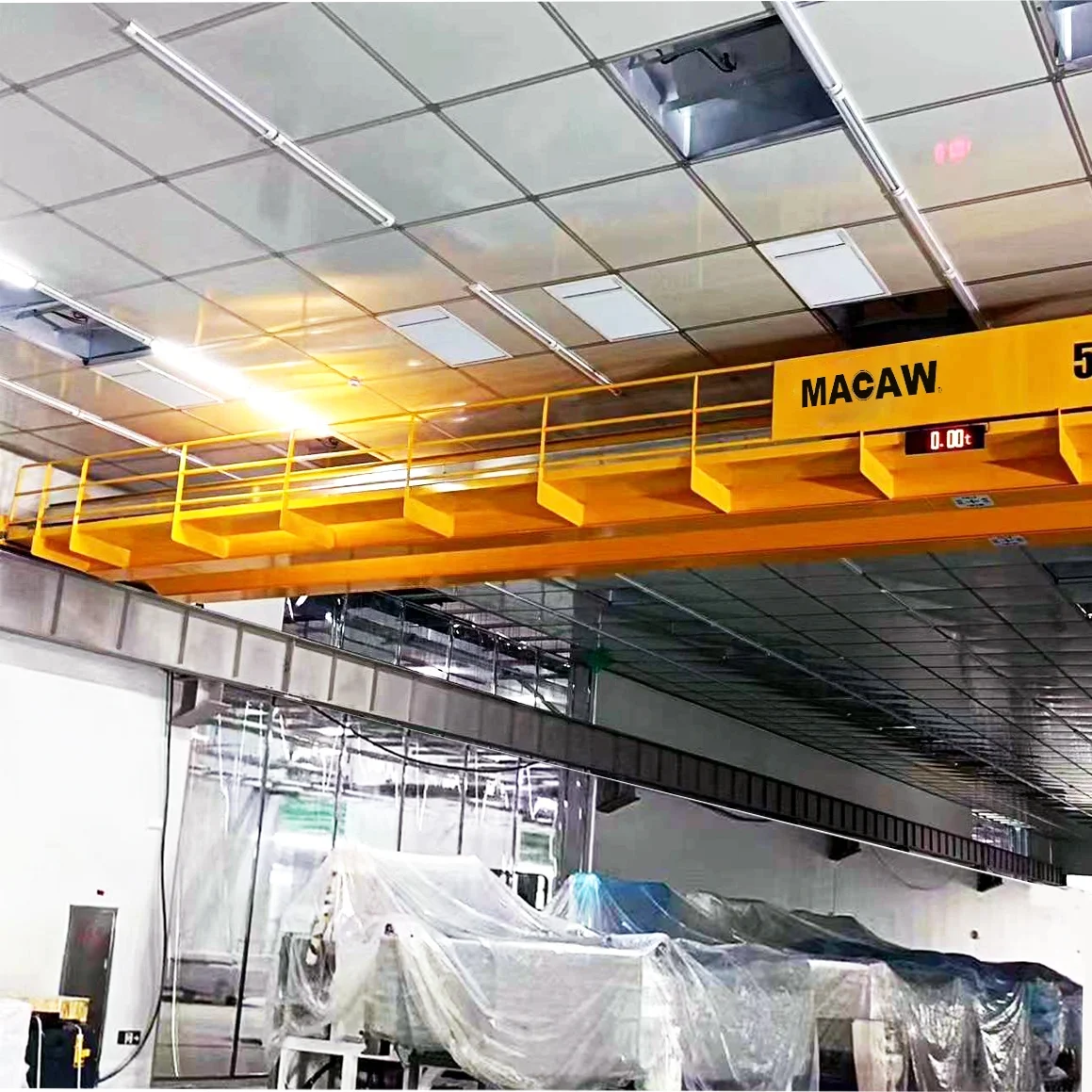

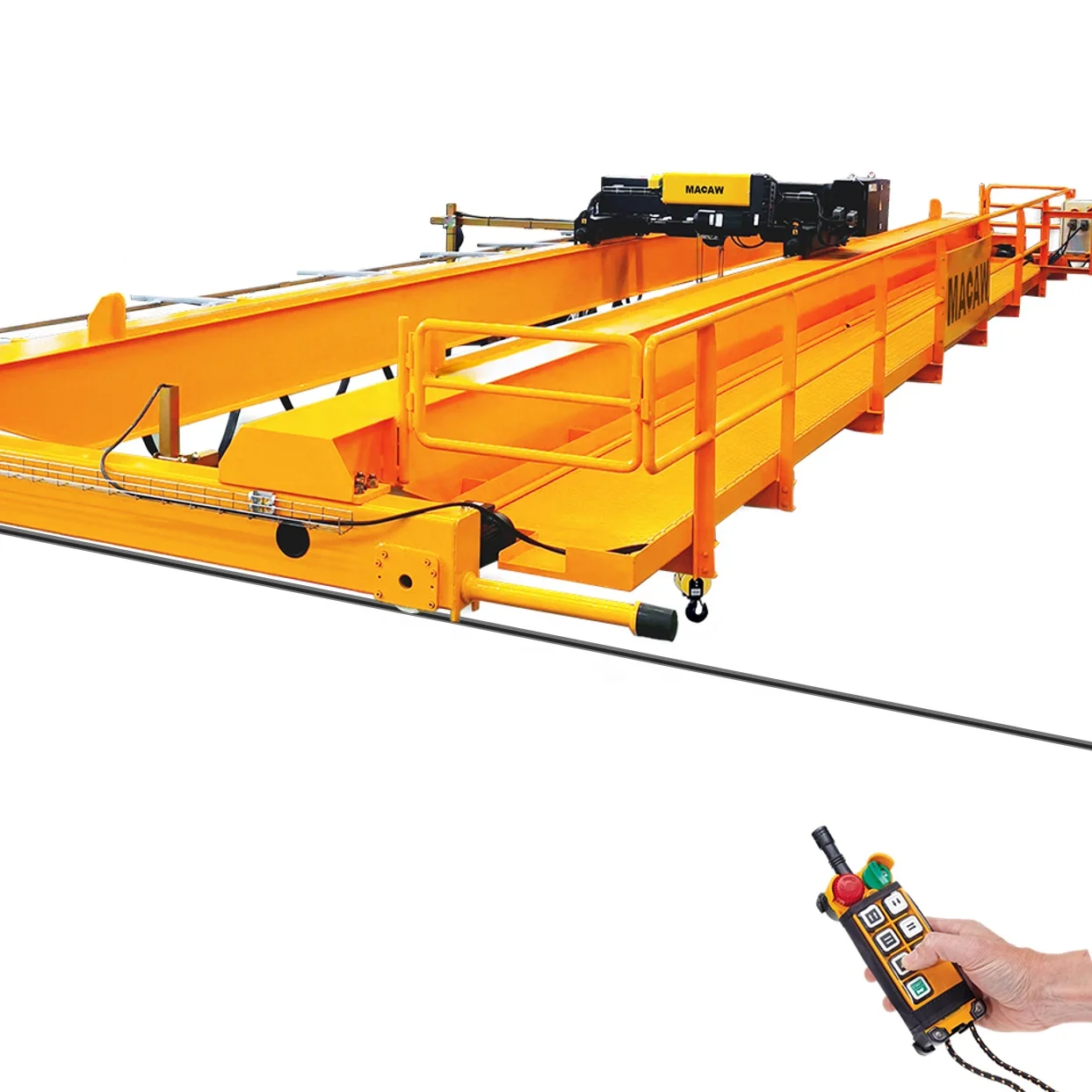

Double Girder overhead travelling crane
MACAW Overhead Cranes
feature maximum rigidity for a minimum dead weight. The cost-effective design of our single-girder crane can be specifically selected to your building and keeps the load on the crane runway to a minimum.
This approach provides you with a cost-effective solution.
The MACAW single-girder overhead crane also includes a hoist (Electric chain hoist or wire rope hoist) unit with high handling speeds .
* Outstanding crane geometry resulting in exceptional travel characteristics
* Greater overall efficiency
* cranes -girder made of computer-optimized box sections
* End carriages of torsionally rigid, welded box-section design
* Increased lifting and cross-travel speeds, leading to enhanced load handling
* Low-sway load motions thanks to infinitely variable cross-travel speeds
* Greater overall efficiency
* cranes -girder made of computer-optimized box sections
* End carriages of torsionally rigid, welded box-section design
* Increased lifting and cross-travel speeds, leading to enhanced load handling
* Low-sway load motions thanks to infinitely variable cross-travel speeds
Festoon system

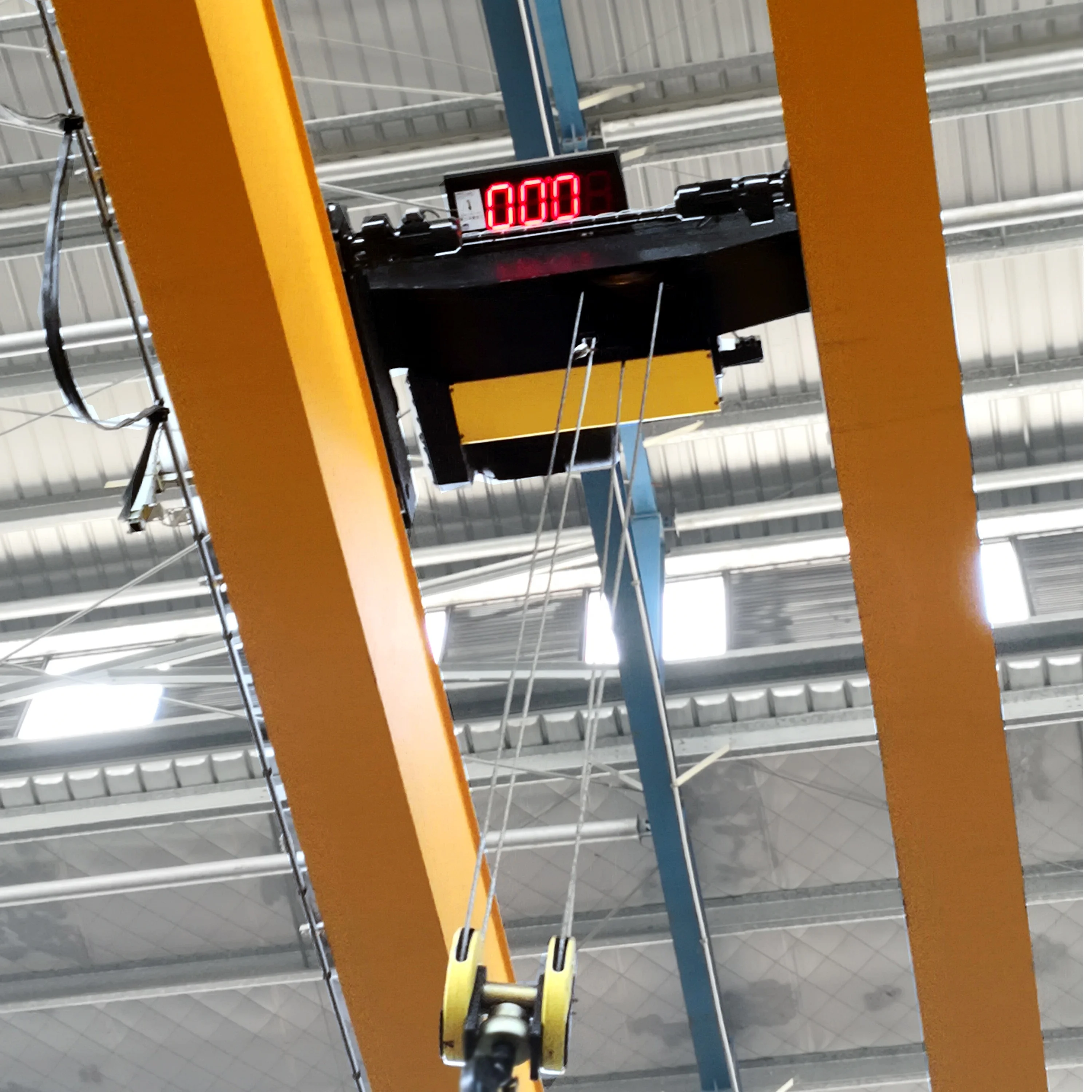

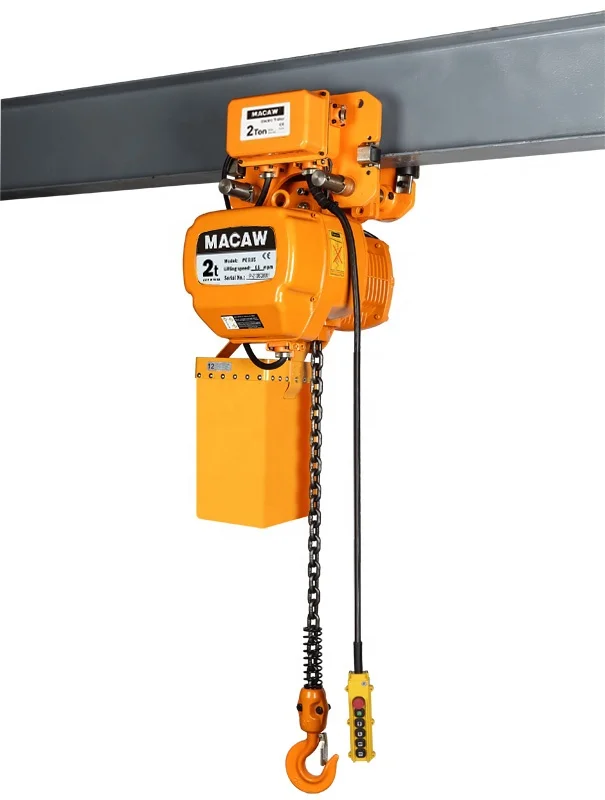

Electric Hoist

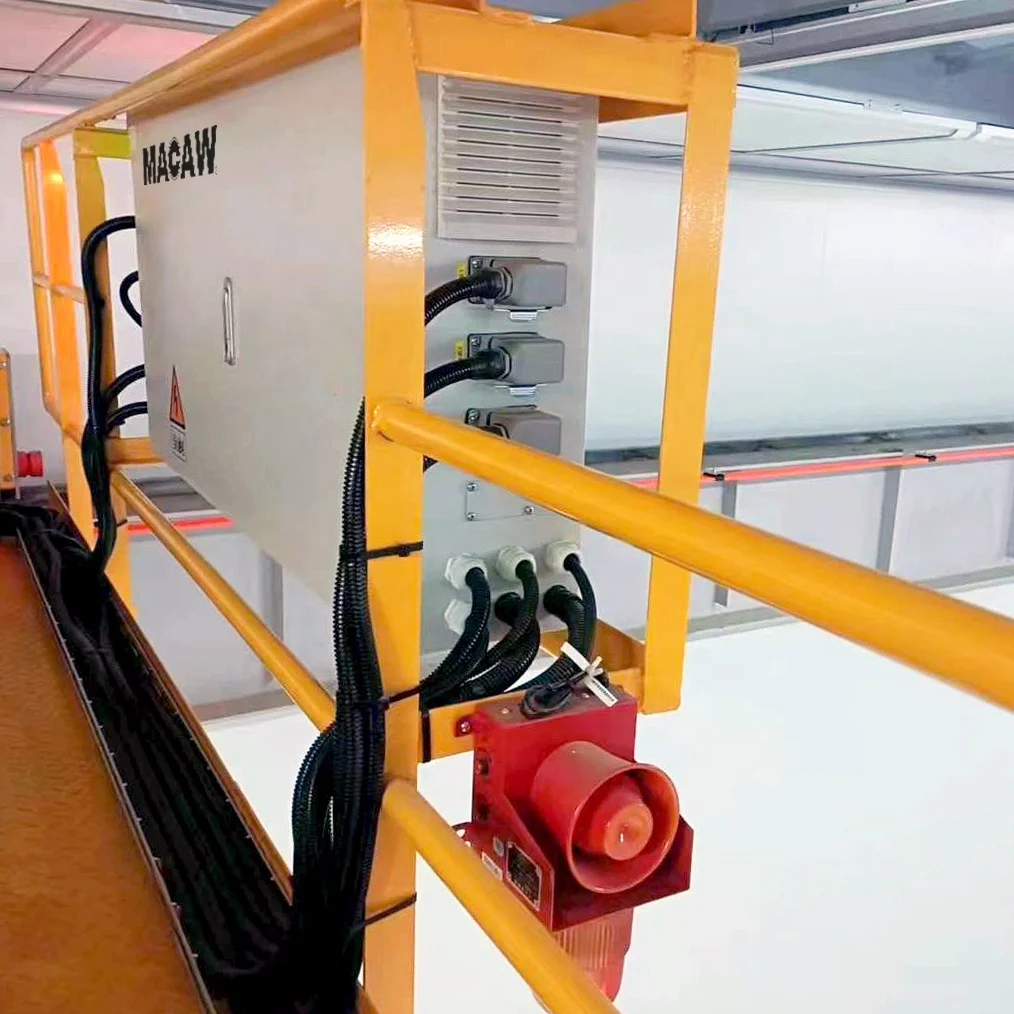

Crane Control Panel
Crane Remote Control
End carriages with driven motor
Crane Limit Switch
Technical Paremeter
Basic Data | ||||||||||||||||||
Crane Span (m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | 34.5 | |||||||||
Crane Weight (t) | 3.96 | 5.18 | 6.82 | 8.92 | 10.75 | 13.19 | 15.75 | 18.93 | 23.32 | |||||||||
Trolley Weight (t) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | |||||||||
Max.Wheel Load (KN) | 35.9 | 42.7 | 47.6 | 52.7 | 56.7 | 63.1 | 69.2 | 76.9 | 87.8 | |||||||||
Min.Wheel Load (KN) | 6.6 | 9.8 | 12.7 | 17.6 | 22.1 | 27.5 | 33.7 | 41.4 | 51.7 | |||||||||
Crane Wheel Quantity (pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||||||||
Recommend Crane Rail | P22 | P22 | P22 | P22 | P22 | P22 | P22 | P30 | P30 | |||||||||
Operation Speed (m/min) | ||||||||||||||||||
Lifting Speed | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | ||||||||||
Trolley Speed | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | ||||||||||
Bridge Speed | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | ||||||||||
Driven Motor Power (KW) | ||||||||||||||||||
Lifting Motor | 6.1/1 | |||||||||||||||||
Trolley Motor | 0.31*2 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | ||||||||||
Bridge Motor | 0.64*2 | 0.64*2 | 0.96*2 | 0.96*2 | 1.2*2 | 1.2*2 | 1.2*2 | 1.2*2 | 1.2*2 | |||||||||
Crane Power | 8.00 | 8.00 | 8.64 | 8.64 | 9.12 | 9.12 | 9.12 | 9.12 | 9.12 | |||||||||
Main Dimension (mm) | ||||||||||||||||||
Top of Rail Height (mm) b | 9000 ( or specified by clients) | |||||||||||||||||
Top Clearance (mm) h | ≥200 （GB/T 14405-2011） | |||||||||||||||||
Hook to crane Top (mm) c | 680 | 680 | 680 | 680 | 680 | 680 | 680 | 680 | 680 | |||||||||
Rail to crane Top (mm) a | 1000 | 1000 | 1200 | 1200 | 1300 | 1300 | 1450 | 1450 | 1450 | |||||||||
Lifting height (mm) h | 9000 | 9319 | 9324 | 9345 | 9353 | 9377 | 9497 | 9525 | 9547 | |||||||||
Ceiling to floor height (mm) c | 10200 | 10200 | 10400 | 10400 | 10050 | 10500 | 10650 | 10650 | 10650 | |||||||||
Girder Bottom Height (mm) f | 8216 | 8295 | 8300 | 8321 | 8329 | 8353 | 8473 | 8428 | 8446 | |||||||||
Hook Approach L.(mm) h1 | 590 | 590 | 590 | 590 | 590 | 590 | 590 | 590 | 590 | |||||||||
Hook Approach R.(mm) h2 | 590 | 590 | 590 | 590 | 590 | 590 | 590 | 590 | 590 | |||||||||
Rail Center to left wall (mm) dL | 208 | 230 | 230 | 230 | 232 | 246 | 246 | 248 | 248 | |||||||||
Rail Center to right wall (mm) dR | 208 | 230 | 230 | 230 | 232 | 246 | 246 | 248 | 248 | |||||||||
Bridge Wheel Base (mm) W | 2700 | 2700 | 2700 | 3100 | 3800 | 3800 | 4500 | 5000 | 5500 | |||||||||
Trolley Rail Guage (mm) Lx | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |||||||||
Buffer Height (mm) H2 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||||||||
Crane Width (mm) B | 3150 | 3150 | 3150 | 3550 | 4250 | 4310 | 5010 | 5510 | 6010 | |||||||||
Guiding (contact) Force (KN) S | 13.3 | 14.7 | 16.1 | 17.5 | 18.9 | 20.3 | 21.7 | 23.1 | 24.5 | |||||||||
Buffer Force (KN) Bf | 33 | 37 | 40 | 45 | 48 | 37 | 40 | 45 | 48 | |||||||||
Note:
Cranes have many kinds of specifications to choose,the data in this table base on 9M top of rail.
This is for user and designing institue reference only when selecting cranes type. More detailed data and technical solution,please contact with us.
This is for user and designing institue reference only when selecting cranes type. More detailed data and technical solution,please contact with us.
Trade Shows
Packaging & Delivery
Electric overhead crane girder part
Electric hoist part
Factory Information
Wire Rope Hoist Workshop
Crane Girder Workshop
Recommend Products
FAQ
Q. What's the information should I provide when inquiry on Electric crane and electric hoist?
More parameters, more better.
Lift capacity ?
span ?
lift height ?
power sourceor other specials you give us will be more appreciated ?
span ?
lift height ?
power sourceor other specials you give us will be more appreciated ?
Plesee provide us the rquest lifting capacity, lifting height, span, power supply, building dimesnsion etc.
And if you can give us your design drawing, that will be very helpful.
Q.Which kind crane can you provide?
With products of single girder & double girder overhead cranes, gantry cranes, general overhead cranes, Eurosystem light cranes, jib cranes, explosion-proof cranes and etc, We are able to provide you with complete competitive solutions for material handling based on your demands.
With products of single girder & double girder overhead cranes, gantry cranes, general overhead cranes, Eurosystem light cranes, jib cranes, explosion-proof cranes and etc, We are able to provide you with complete competitive solutions for material handling based on your demands.
Q. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit
yourcountry.
Q:The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
Q. Do you provide spare parts?
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit
yourcountry.
Q:The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
Q. Do you provide spare parts?
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
