Product Description

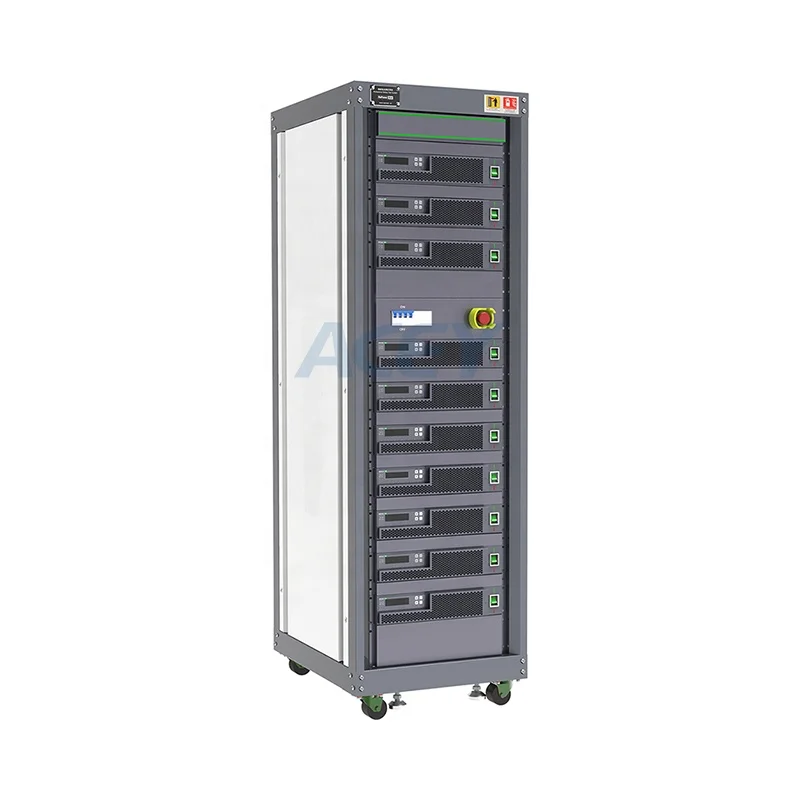

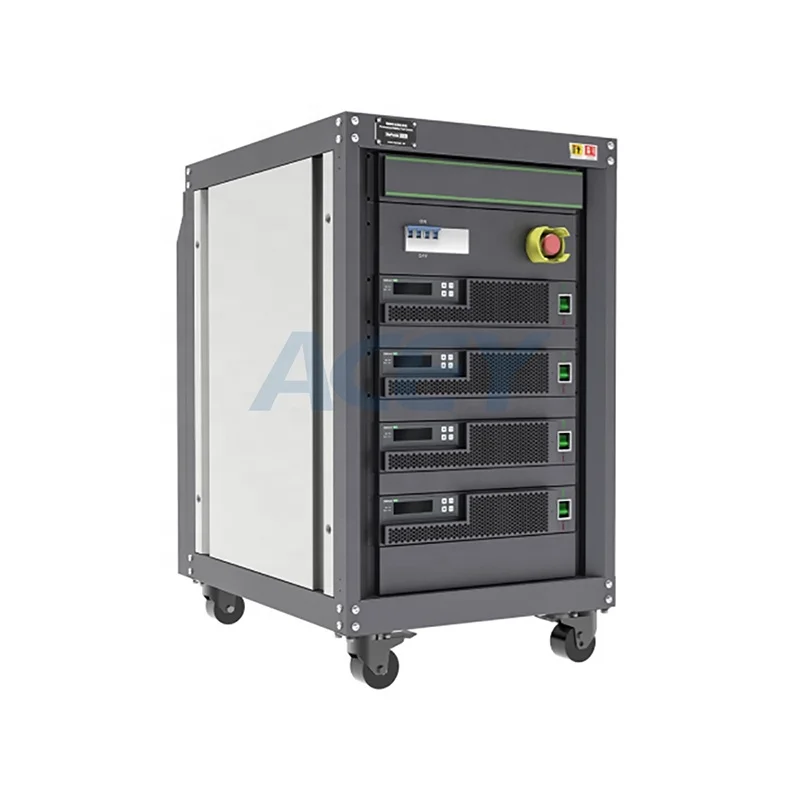

100V 100A Regenerative Battery Pack Test System Battery Charge Discharge Test Equipment
Application and Function
100V 100A Battery Charge Discharge Test Equipment is mainly used for circle life testing and quality control of li-ion battery, lead-acid battery, Ni-Cd battery, NiMH battery and so on in production line or in lab.
Support battery circle life testing, capacity testing, charging characteristic testing, discharging characteristic testing, charge retention capability testing, charge and discharge efficiency testing, over charge or over discharge rate affordability testing.
Equipment configuration list
| No. | Category | Product name | Product model | Quantity | Remarks |
| 1 | Test equipment | Charge and discharge test equipment | ACEY-HRCDS-100V100A | 4CHS | |
| 2 | Cabinet | Charging and discharging equipment cabinet | / | 1PCS | Default without power input line |
| 3 | Computer | Computer | Dell computer I5-10500 processor / 16G memory / 256G solid state + 1T hard disk / 3 network port | 1PCS | Optional, including mouse, keyboard and 19 inch AOC displayer |
| 4 | Accessories | Charge discharge test line | / | 4PCS | Each channel has a set of test lines with a length of 3.5meters.(including fixture) |
| 5 | Accessories | BMS power supply | 12V/24V | 2 | Optional, 2 channels for each power supply |
| 6 | Accessories | Switch | TP-LINK TL-SF1008VE | 1PCS | |
| 7 | Accessories | Communication accessories | Communication line / Crystal head, etc. | Several | For communication |
| 8 | Accessories | USB Flash Drive | 16G | 1PCS | Contains Test software etc. |
| 9 | Accessories | File | / | 1PCS | Test report, packing list, etc |
Working Environment and Technical Parameters
- Power supply of the whole cabinet: AC 380V±10%, frequency: 50HZ±5%.
- Maximum input power of the whole cabinet: 44.4 kW (4CHS)
- Working temperature: 0℃~ 45℃.
- Humidity: less than ≤ 85%R.H (non-condensing).
- No severe shake, no corrosive gases, no flammable or explosive gases around.
- Resolution: AD 16 bit.
| No. | Item | ACEY-HRCDS-100V100A | ||
| 1 | Main channels | 1CH/ module | ||
| 2 | Output power | The maximum power of channel operation is 10kW; timeless | ||
| 3 | Output power stability | ±0.1%FS | ||
| 4 | Power quality at input side | Power factor | >99%(full load) | |
| Total harmonic distortion rate | ≤5%(full load) | |||
| 5 | Energy consumption parameters | Standard sine wave feedback energy, high efficiency (optimal efficiency 90%%) | ||
| 6 | Main channel working mode | Charge: CC, CV, CCCV, no voltage or current impact when CC transfer to CV | ||
| Discharge: CD, CP, CR | ||||
| Still | ||||
| Working condition test; Pulse test. | ||||
