Fluke сети DSX2-8000 2 ГГц DSX
- Категория: Signal Generators >>>
- Поставщик: Shenzhen,HOBOY,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 19049.54 $* | 19430.59 $* |
| Jul-15-2025 | 15449.34 $* | 15758.69 $* |
| Jun-15-2025 | 18749.81 $* | 19124.20 $* |
| May-15-2025 | 18599.26 $* | 18971.98 $* |
| Apr-15-2025 | 14849.33 $* | 15146.66 $* |
| Mar-15-2025 | 18299.32 $* | 18665.66 $* |
| Feb-15-2025 | 18149.34 $* | 18512.86 $* |
| Jan-15-2025 | 17999.79 $* | 18359.60 $* |
Характеристики
Product Description
The DSX-8000 INT CableAnalyzer accelerates every step of the copper certification process. This is the non-wireless version and is available for countries where the WiFi adapter is not certified or for customers who do not wish to receive the WiFi adapter.

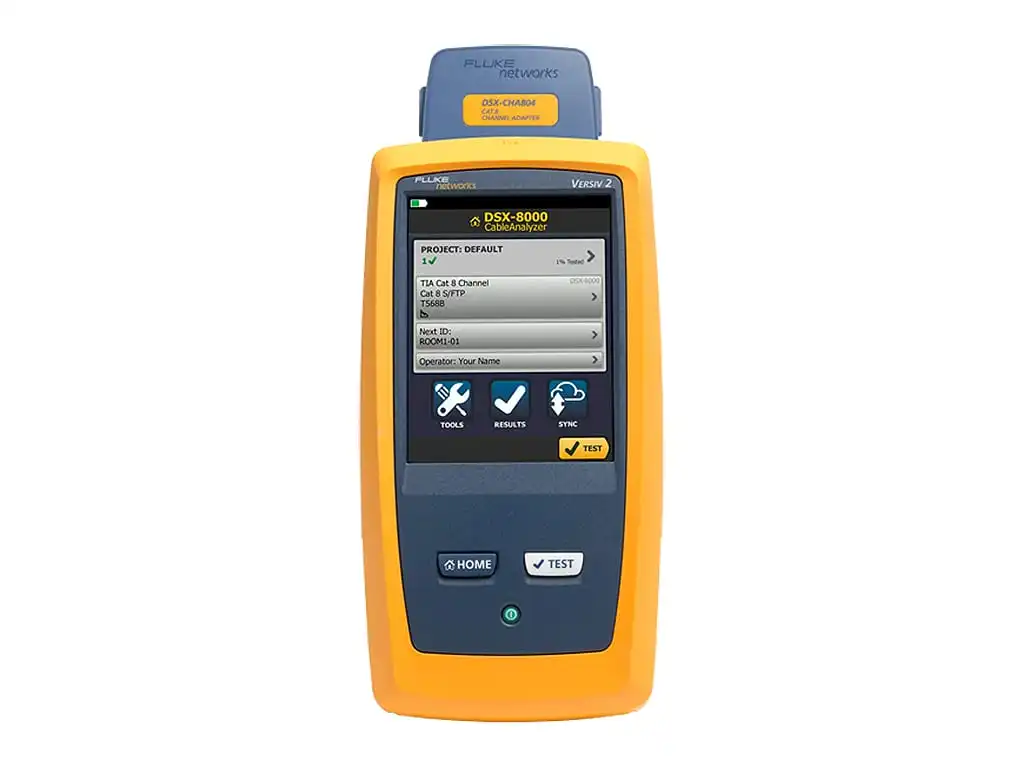

Fluke Networks DSX2-8000 Versiv 2 CableAnalyzer with Integrated Wi-Fi
* Fluke Networks DSX2-8000 Versiv 2 CableAnalyzer with Integrated Wi-Fi

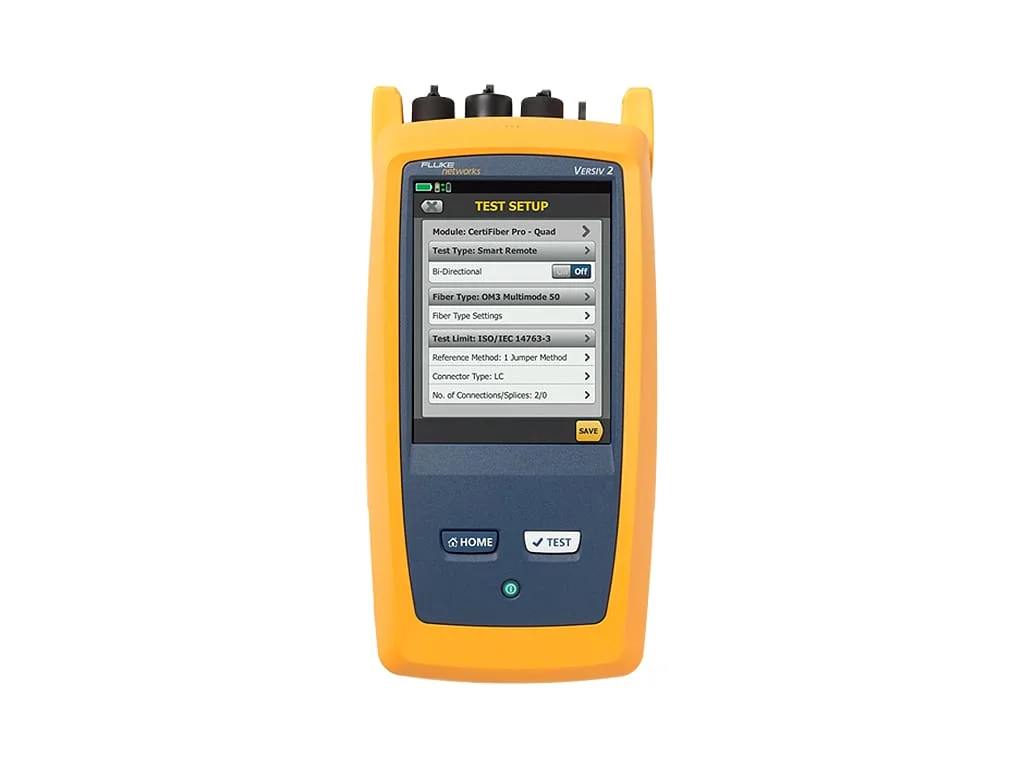

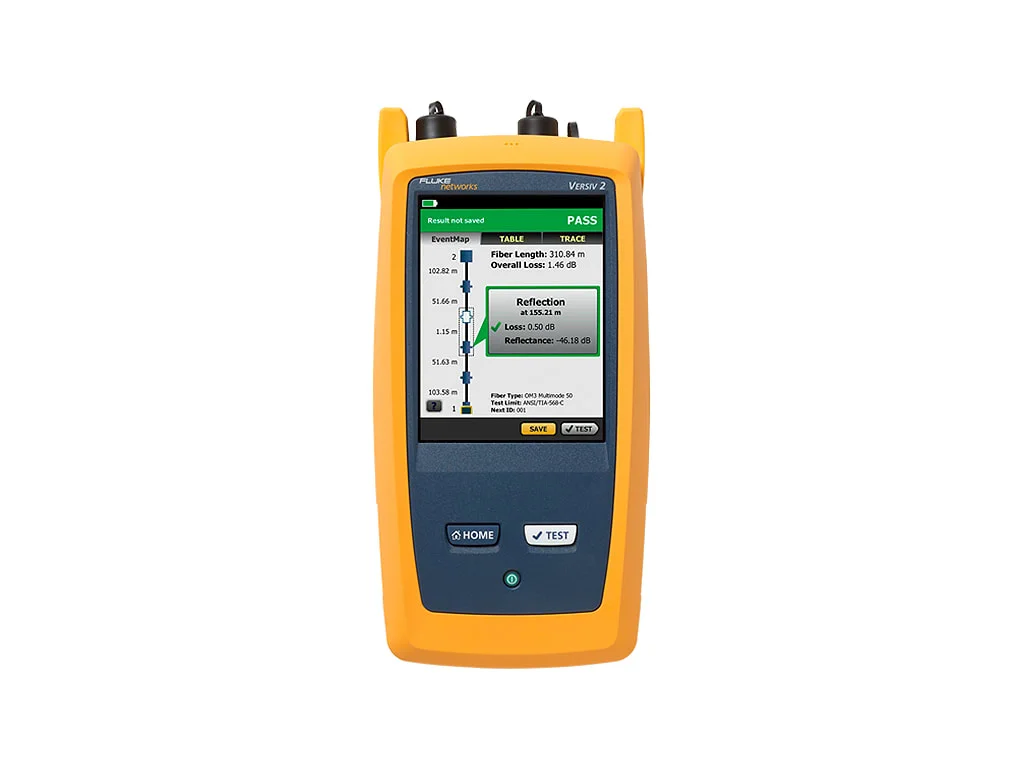

* Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
* Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards
* ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
* Taptive user interface simplifies set-up, and eliminates errors
* Analyze test results and create professional test reports using LinkWare management software
* Graphically displays the source of failures including
* Fluke Networks DSX2-8000 Versiv 2 CableAnalyzer with Integrated Wi-Fi
* Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
* Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards
* ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
* Taptive user interface simplifies set-up, and eliminates errors
* Analyze test results and create professional test reports using LinkWare management software
* Graphically displays the source of failures including
Fluke Networks DSX2 Series CableAnalyzer Copper Cable Certifiers
* Fluke Networks DSX2-8000 Versiv 2 CableAnalyzer with Integrated Wi-Fi
* LinkWare PC management software provides unmatched analysis of test results and professional test reports
* ProjX management system eases tasks from initial set-up of a job to system acceptance
* The DSX reduces the time required to fix cabling faults with dedicated diagnostics
* LinkWare PC management software provides unmatched analysis of test results and professional test reports
* ProjX management system eases tasks from initial set-up of a job to system acceptance
* The DSX reduces the time required to fix cabling faults with dedicated diagnostics
The DSX CableAnalyzer Series copper cable certifiers enables testing and certification of twisted pair cabling for up to 40
Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down – setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand.
Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down – setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand.
As part of the Versiv cabling certification product family, the DSX CableAnalyzer Series copper cable certifiers provides
accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple
testing requirements. The difference between being profitable or not is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster. It’s not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects.
accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple
testing requirements. The difference between being profitable or not is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster. It’s not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects.
What's included with the Fluke Networks DSX2-8000
* Versiv Mainframe & Remote
* 2 x DSX-8000 CableAnalyzer Modules
* Set of Cat 8/Class I Permanent Link Adapters
* Set of Cat 8/Class I Channel Adapters
* 2 x Headsets
* 2 x Hand Straps
* 2 x Shoulder Straps
* Carrying Case
* USB Interface Cable
* Versiv Open Source Software CD
* 2 x AC Chargers
* 2 x Universal Couplers
* 2 x AxTalk Terminators
* Statement of Calibration
* Getting Started Guide
* Versiv Mainframe & Remote
* 2 x DSX-8000 CableAnalyzer Modules
* Set of Cat 8/Class I Permanent Link Adapters
* Set of Cat 8/Class I Channel Adapters
* 2 x Headsets
* 2 x Hand Straps
* 2 x Shoulder Straps
* Carrying Case
* USB Interface Cable
* Versiv Open Source Software CD
* 2 x AC Chargers
* 2 x Universal Couplers
* 2 x AxTalk Terminators
* Statement of Calibration
* Getting Started Guide
Specification
Copper Certifications | ||
Category 6A / Class EA Test Time | 8 Seconds | |
Category 8 / Class I/II Test Time | 15 Seconds | |
HDTDX/HDTDR Diagnostic Test Times | ~3 Seconds | |
Internal Memory | ~5,000 Cat 8 with plots ~12,000 Cat 6A with plots | |
Level V Accuracy | 1 GHz | |
2G Accuracy | 2 GHz | |
Resistance Unbalance Measurement | Yes | |
Shield Integrity Check | Yes | |
TCL Measurement | Yes | |
ELTCTL Measurement | Yes | |
CDNEXT Measurement | Yes | |
CMRL Measurement | Yes | |
Built in Alien XTalk Module | Yes | |
Channel Adapter | 2 GHz Range | |
Permanent Link Adapter | 2 GHz Range | |
Environmental | ||
Operating Temperature | 32°F to 113°F (0°C to 45°C) | |
Storage Temperature | -22°F to 140°F (-30°C to 60°C) | |
Operating Relative Humidity (% RH Without Condensation) | 0% to 90%, 32°F to 95°F (0°C to 35°C) 0% to 70%, 95°F to 113°F (35°C to 45°C) | |
Vibration | Random, 2 g, 5 Hz-500 Hz | |
Shock | 1 m drop test with and without module and adapter | |
Safety | CSA 22.2 No. 61010, IEC 61010-1 3rd Edition | |
Operating Altitude | 13,123 ft (4,000 m) 10,500 ft (3,200 m) with AC Adapter | |
EMC | EN 61326-1 | |
General Specifications | ||
Autotest Time | Full 2-way Autotest of Cat 5e or 6/Class D or E: 7 seconds Full 2-way Autotest of Cat 6A/Class EA: 8 seconds Full 2-way Autotest of Cat 8: 16 seconds | |
Support Test Parameters | Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F) | |
Input Protection | Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage | |
Display | 5.7 in LCD display with a projected capacitance touchscreen | |
Case | High impact plastic with show absorbing overmold | |
Dimensions | Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm) | |
Weight | Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg) | |
Main Unit and Remote | Lithium ion battery pack, 7.2 V | |
Typical Battery Life | 8 hours | |
Charge time | Tester off: 4 hours to charge from 10 % capacity to 90 % capacity | |
Languages Supported | English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Traditional Chinese, Czech, Polish, Swedish, Hungarian | |
Calibration | Service center calibration period is 1 year | |
