Cheap Supply 4-20mA Intput 24V Output Multifunction Process Calibrator Signal Generator
Product Description

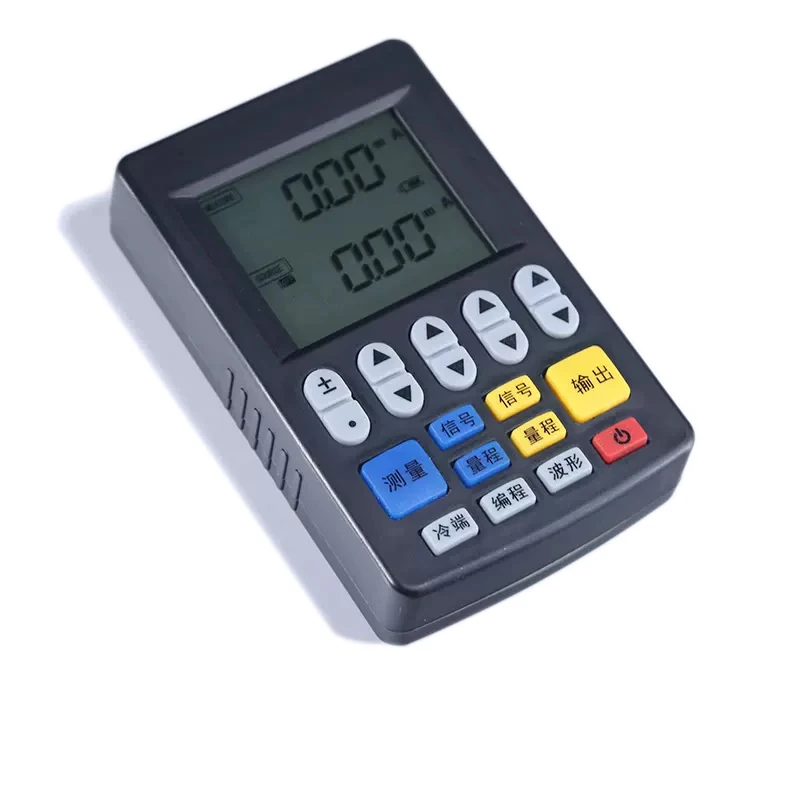

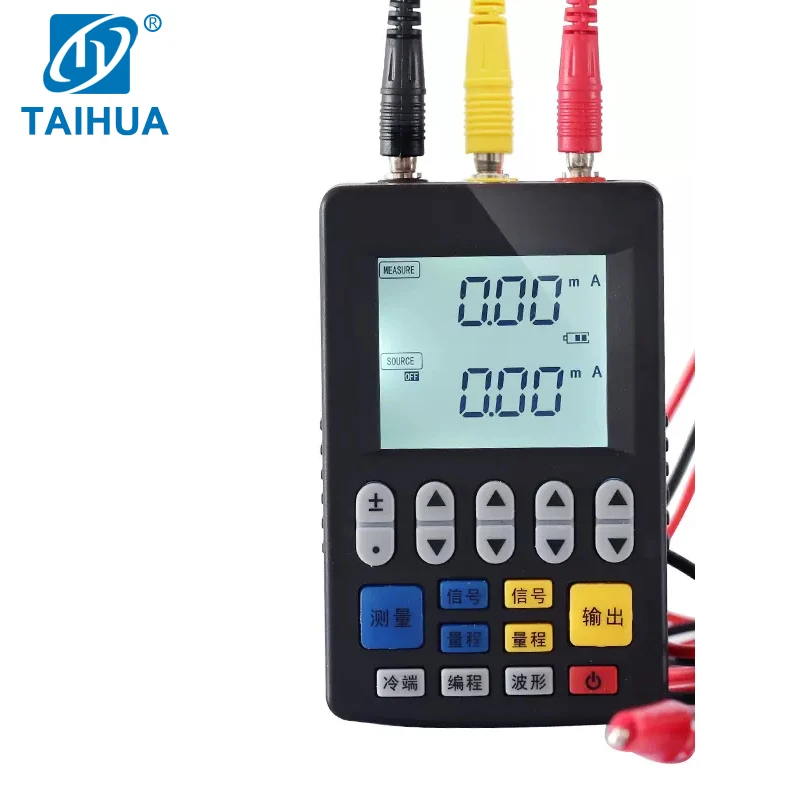

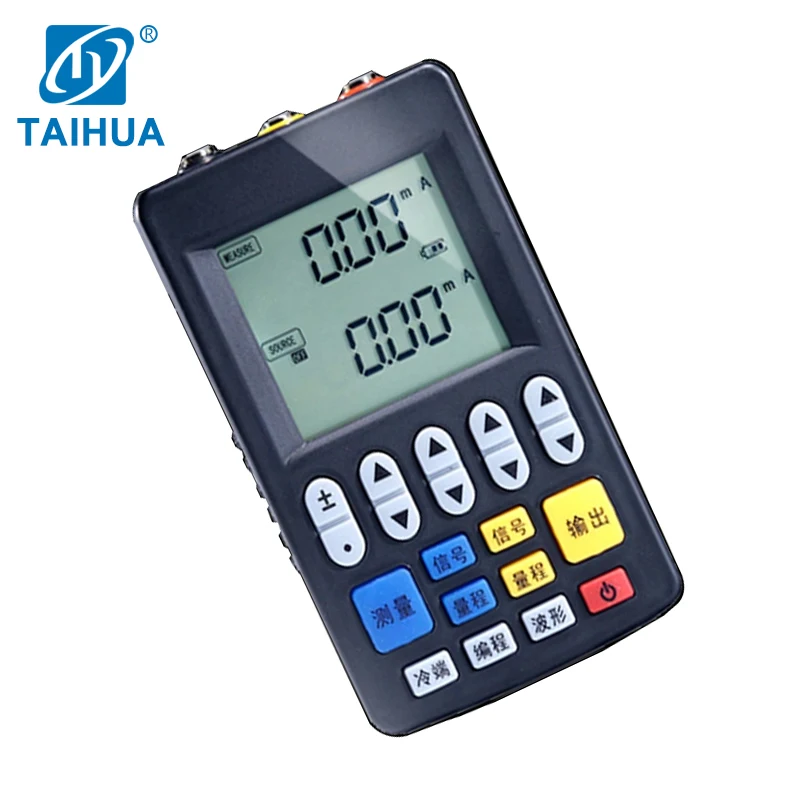

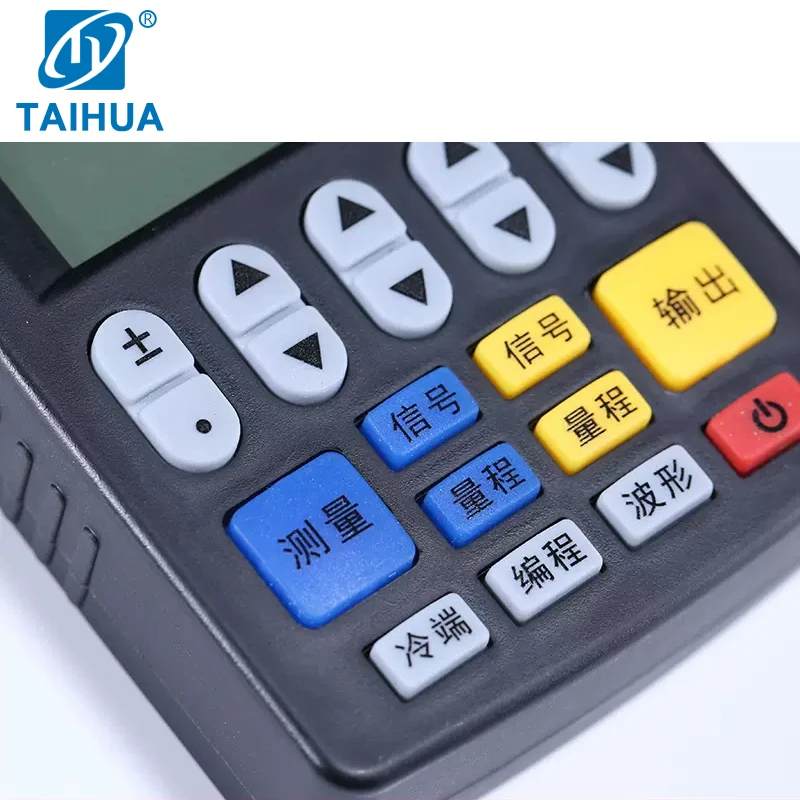

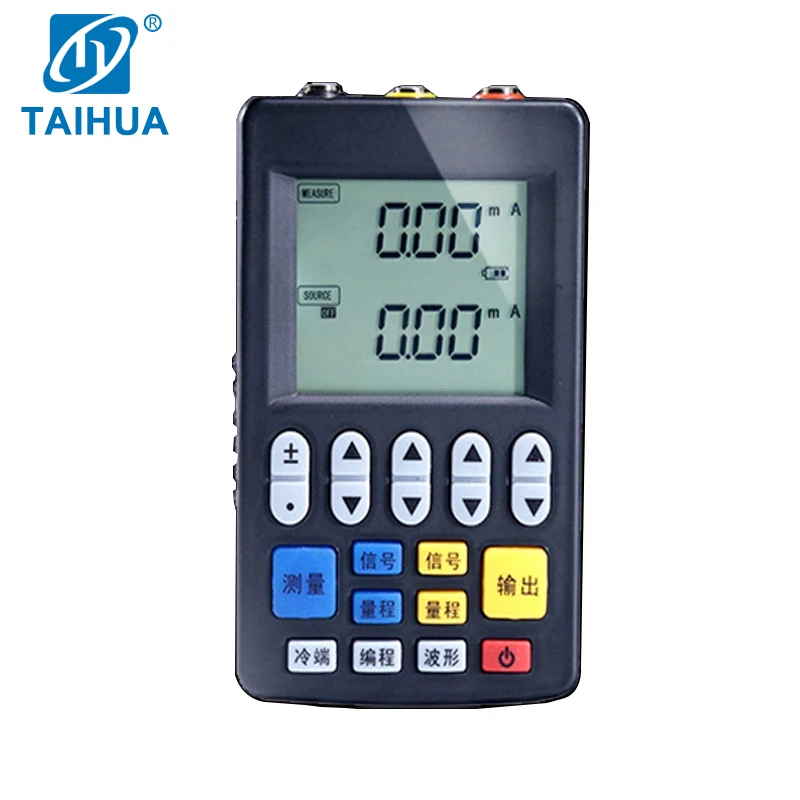

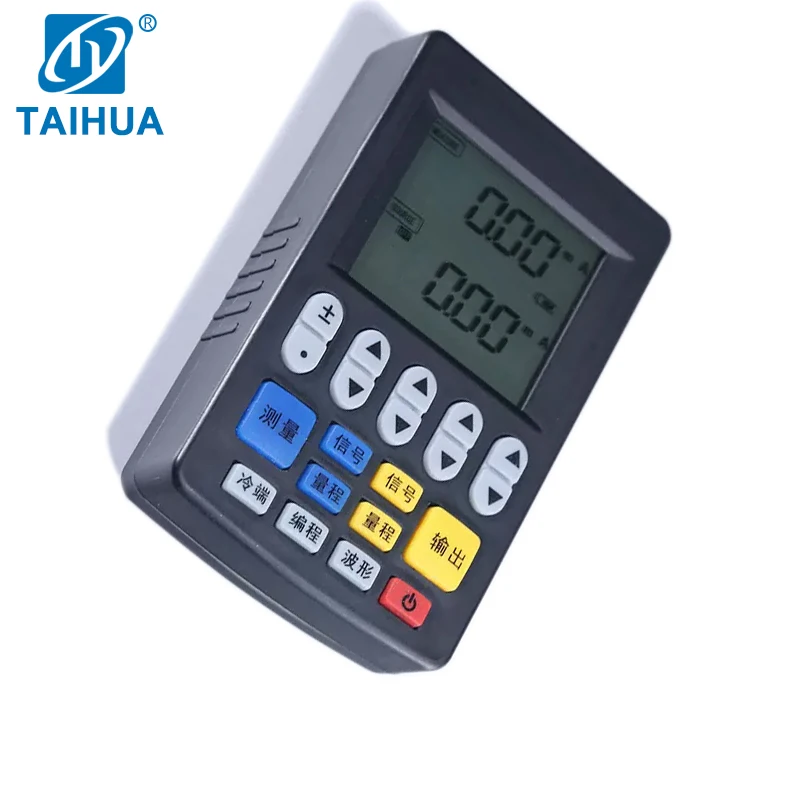

This signal generator has various signal measurement and output functions, including voltage, current, thermocouple, and thermal resistance. It adopts a high-definition LCD screen and functional silicone buttons, and has programmable output function. Widely used for debugging PLC and process instruments, electric valves, etc. in laboratories and industrial sites.
Mainly Function:
Voltage signal measurement:0-30V、0-24mA、0-100mV measurement
Voltage signal output:0-16V/0-24mV/0-100mV measurement
Current signal: active and passive 0-25mA, 4-20mA output and measurement
Thermocouple: K, E、J、T、R、B、S、N output and measurement
Thermal resistance: PT100 output and measurement
Resistance: Resistance (20-400 Ω) output and measurement
Voltage signal measurement:0-30V、0-24mA、0-100mV measurement
Voltage signal output:0-16V/0-24mV/0-100mV measurement
Current signal: active and passive 0-25mA, 4-20mA output and measurement
Thermocouple: K, E、J、T、R、B、S、N output and measurement
Thermal resistance: PT100 output and measurement
Resistance: Resistance (20-400 Ω) output and measurement
Specification
Basic Parameter | ||||||||
Voltage signal:0-16v,0-25mV,1-100mV Current signal:Active&passive 0-25mA,4-20mV Thermocouple:K,E,J,T,R,B,S,N Thermal resistance:PT100 Resistance:Resistance signal | ||||||||
Working Temperature | Temperature：-10~55℃ Humidity：20-80%RH | |||||||
Storage Temperature | 0-20~70℃ | |||||||
Overall Dimensions | 115*70*26mm | |||||||
Weight | 300g | |||||||
Power supply | 3.7V lithium battery or external 5V/1A adapter | |||||||
Power consumption | 300mA,7-10 h battery usage when full load | |||||||
Reverse connection and overcurrent protection | 30V | |||||||
TECHNICAL INDEX | Warranty | 3 years | ||||||||
Item | Signal Type | Range | Accuracy | Resolution Ratio | Notes | |||||
20mV | 0.00-24.00mV | ±0.1% | 0.01mV | |||||||
100mV | 0.0-100.0mV | ±0.1% | 0.1mV | TAIHUA | ||||||
V | Out:0.00-16.00V | ±0.1% | 0.01V | Out:Max current 30mA Measurement:input impedance100Ω | ||||||
Measurement:0.00-30.00V | ±0.1% | 0.01V | LCD | |||||||
DC Current | mA | 0.00-24mA | ±0.1% | 0.01mA | Out:Max load 750Ω Measurement:input impedance 100Ω | |||||
4-20mA | 4/8/12/16/20mA | ±0.1% | 0.01mA | 3.7V Battery | ||||||
Passive Current | mA | 0.00-24.00mA | ±0.1% | 0.01mA | Output:external source 16-30V | |||||
Power distribution output | 24v LOOP | 24v/16v | ±10% | 0.1v | Driving current 24mA | |||||
K | -270~1372℃ | ±1% | 1℃ | |||||||
E | -270~1000℃ | ±1% | 1℃ | Measure | ||||||
J | -210~1200℃ | ±1% | 1℃ | High-quality | ||||||
T | -270~400℃ | ±1% | 1℃ | Standard Package | ||||||
R | -50~1768℃ | ±1% | 1℃ | |||||||
B | 0~1768℃ | ±1% | 1℃ | |||||||
S | -50~1768℃ | ±1% | 1℃ | |||||||
N | -270~1300℃ | ±1% | 1℃ | |||||||
Thermal reistance | Pt100 | -200~850℃ | ±0.5% | 1℃ | Excitation current:0.1-2mA | |||||
Resistance | Ω | 20-400Ω | ±0.5% | 0.1Ω | Excitation current:0.1-2mA | |||||
