SGTEA-2500W промышленный верхний установленный Кондиционер панели для
- Категория: Air Conditioners >>>
- Поставщик: Shanghai,Saigu,Refrigeration,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 774.22 $* | 813.83 $* |
| Aug-16-2025 | 767.68 $* | 805.69 $* |
| Jul-16-2025 | 644.95 $* | 676.79 $* |
| Jun-16-2025 | 754.50 $* | 792.89 $* |
| May-16-2025 | 657.57 $* | 690.45 $* |
| Apr-16-2025 | 741.85 $* | 778.75 $* |
| Mar-16-2025 | 735.7 $* | 772.25 $* |
| Feb-16-2025 | 728.85 $* | 764.32 $* |
| Jan-16-2025 | 722.24 $* | 758.19 $* |
Характеристики

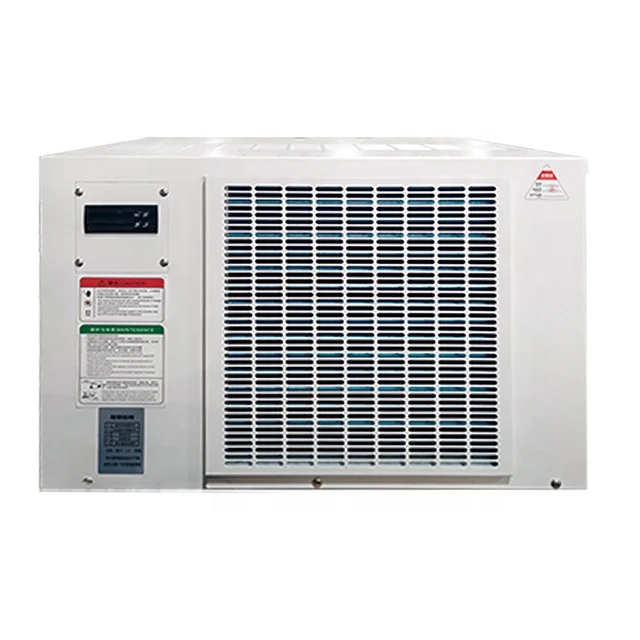

2500W top mounted Cabinet Air Conditioner for CNC Lathe Machine
Product Description
This series product can be used in high ambient temperature environment, even reach in 55℃。With the advanced sign idea in this unit, there are double filter in the air inlet of fan,which can improve the resistance to dust and oil pollution ability. So,It is well suited to steel mills and the textile industry.
Specification
Model | SGTEA-2500 | |||
Voltage .V Hz | 1P 220,50 | |||
Dimension (mm) | W | 458 | ||
H | 400 | |||
D | 597 | |||
Cooling capacity | 2500W | |||
Running current | 5A | |||
Power | 1082W | |||
Refrigerant type | R134a | |||
Noise | 65dB | |||
Protection level | Inner loop | IP54 | ||
outside loop | IP34 | |||
Allowable cabinet temperature setting range | 25℃～38℃(Factory setting 30℃) | |||
Permissible use of ambient temperature range | -5℃～55℃ | |||
Power connection | Triangle power plug (lead length 2m) | |||
Weight | 45Kg | |||
Color | RAL 7035(light gray） | |||
Circulating air volume | Inner loop | 470m3/h | ||
outside loop | 1780m3/h | |||
Temperature control method | Digital display temperature controller | |||
Test condition: dry bulb temperature inside the panel: 35°C, wet bulb temperature: 26°C, dry bulb outside the cabinet: 35°C | ||||
Production Procedure
Paste Thermal insulation cotton
Assembly
Welding
Make the refrigeration system vacummn
Automatic add refrigerant
Connect the wire
Testing
Packing
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Shipping Method
The products will be shipped via EMS, FedEx, DHL, TNT，Special-line, Container, etc.
Company Profile
Shanghai Saigu Refrigeration Technology Co., Ltd is mainly engaged in industrial cooling equipment research , development and sales.
After several years development, we have cabinet air conditioner, heat exchanges and industrial water chiller, precision oil cooler, automotive air conditioning, other series of high-standard products。We have successfully resolved the heating problem in the Machining Process for a number of large and Medium - sized Enterprises.
The products are widely used in CNC ，laser cutting, advertising, woodworking, machining, textile processing, communications , automation control systems and other industries fields．Our products were widely exported many foreign countries .
We believe that through our continuous efforts and the pursuit ,the large and medium-sized enterprises will certainly be able to achieve mutual benefit and win-win!
Welcome to our factory for a visit and negotiation.
After several years development, we have cabinet air conditioner, heat exchanges and industrial water chiller, precision oil cooler, automotive air conditioning, other series of high-standard products。We have successfully resolved the heating problem in the Machining Process for a number of large and Medium - sized Enterprises.
The products are widely used in CNC ，laser cutting, advertising, woodworking, machining, textile processing, communications , automation control systems and other industries fields．Our products were widely exported many foreign countries .
We believe that through our continuous efforts and the pursuit ,the large and medium-sized enterprises will certainly be able to achieve mutual benefit and win-win!
Welcome to our factory for a visit and negotiation.
Our Advantages
FAQ
Q:How to Determine Correct Model of Cabinet cooler？
A:Key Point---Calculating Heat Load for your Enclosure
To determine the correct model for your application, it is first necessary to determine the total heat load to which the control panel is subjected. This total heat load is the combination of two factors — heat dissipated within the enclosure and heat transfer from outside into the enclosure.
Steps of Calculating Btu/hr.:
1. First, determine the approximate watts of heat generated within the enclosure. Watts x 3.41 = Btu/hr.
2. Then, calculate outside heat transfer as follows:
a. Determine the area in square feet exposed to the air, ignoring the top of the cabinet.
b. Determine the temperature differential between maximum surrounding temperature and desired internal temperature. Then, using the Temperature Conversion Table (below), determine the Btu/hr./ft.2 for that differential. Multiplying the cabinet surface area times Btu/hr./ft.2 provides external heat transfer in Btu/hr.
A:Key Point---Calculating Heat Load for your Enclosure
To determine the correct model for your application, it is first necessary to determine the total heat load to which the control panel is subjected. This total heat load is the combination of two factors — heat dissipated within the enclosure and heat transfer from outside into the enclosure.
Steps of Calculating Btu/hr.:
1. First, determine the approximate watts of heat generated within the enclosure. Watts x 3.41 = Btu/hr.
2. Then, calculate outside heat transfer as follows:
a. Determine the area in square feet exposed to the air, ignoring the top of the cabinet.
b. Determine the temperature differential between maximum surrounding temperature and desired internal temperature. Then, using the Temperature Conversion Table (below), determine the Btu/hr./ft.2 for that differential. Multiplying the cabinet surface area times Btu/hr./ft.2 provides external heat transfer in Btu/hr.
Our service
Pre-Sales Service * Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-Sales Service
* Training how to instal and maintain the machine.
*Provide remote instruction by video or recording
* Engineers available to service machinery overseas.
* Sample testing support.
* Visit our Factory.
After-Sales Service
* Training how to instal and maintain the machine.
*Provide remote instruction by video or recording
* Engineers available to service machinery overseas.
