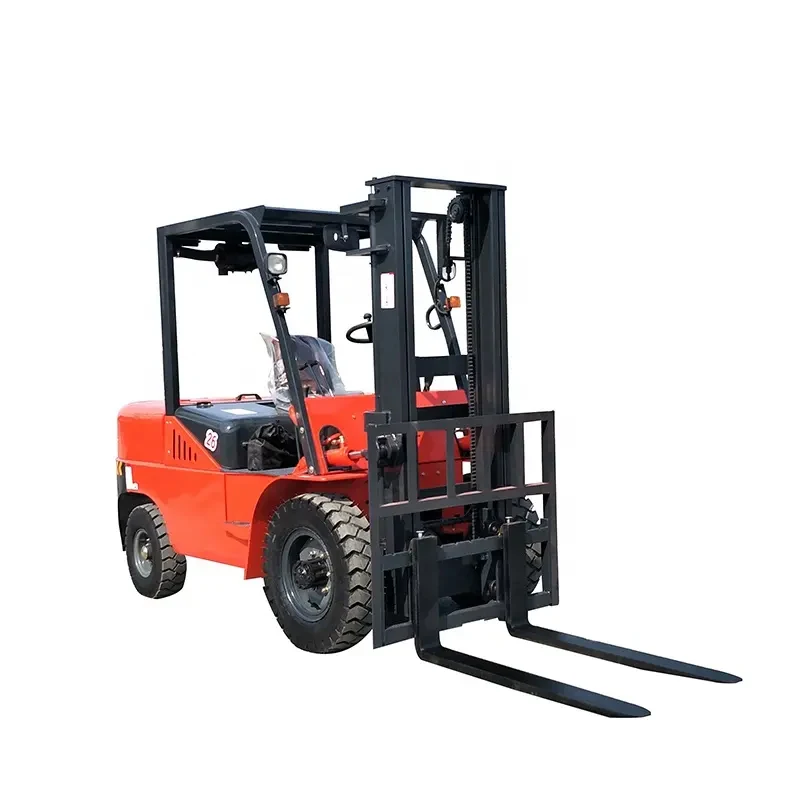

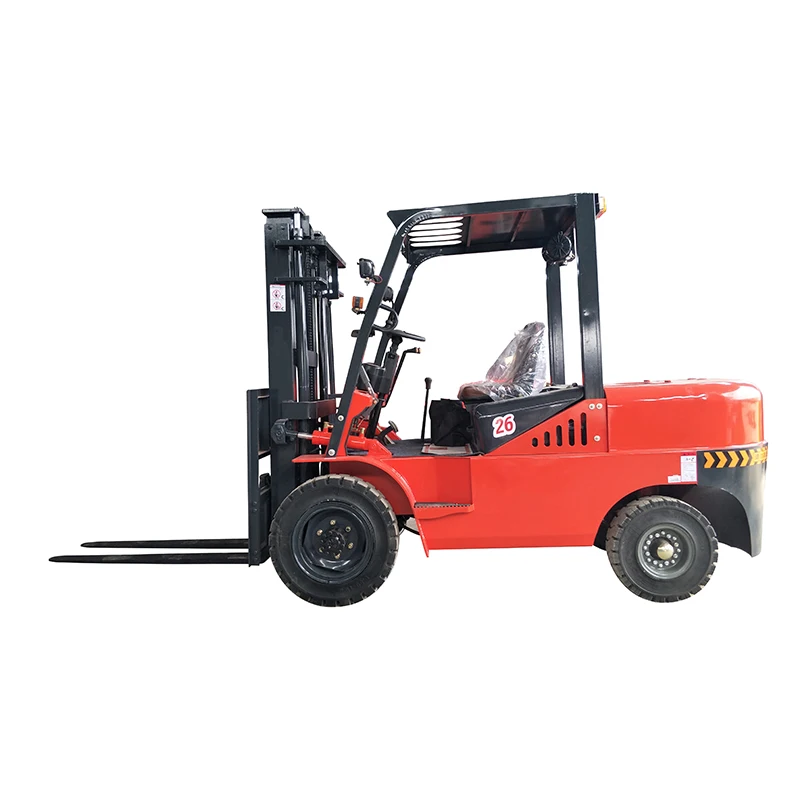

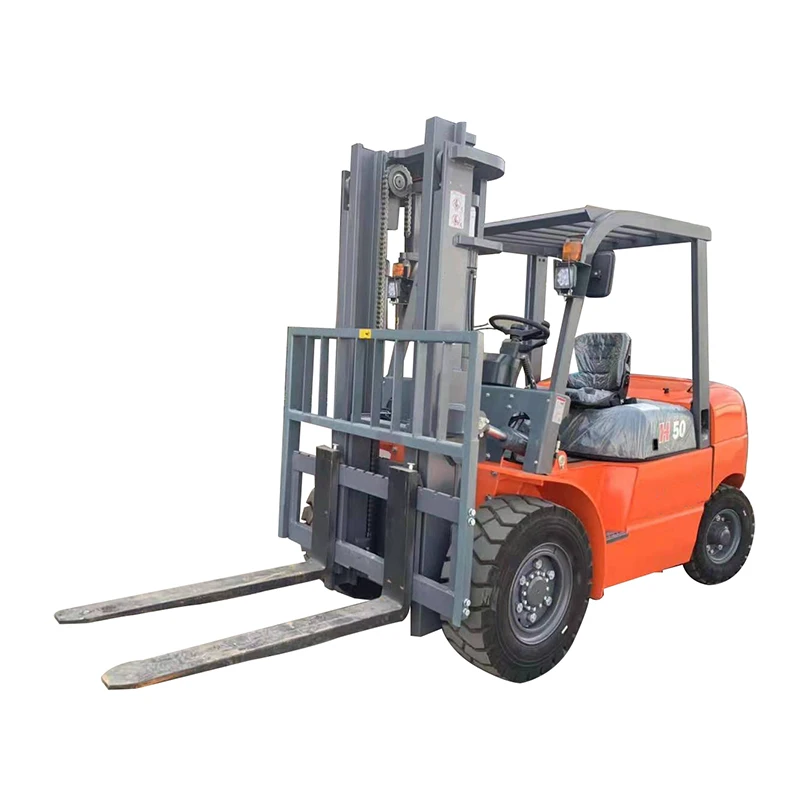

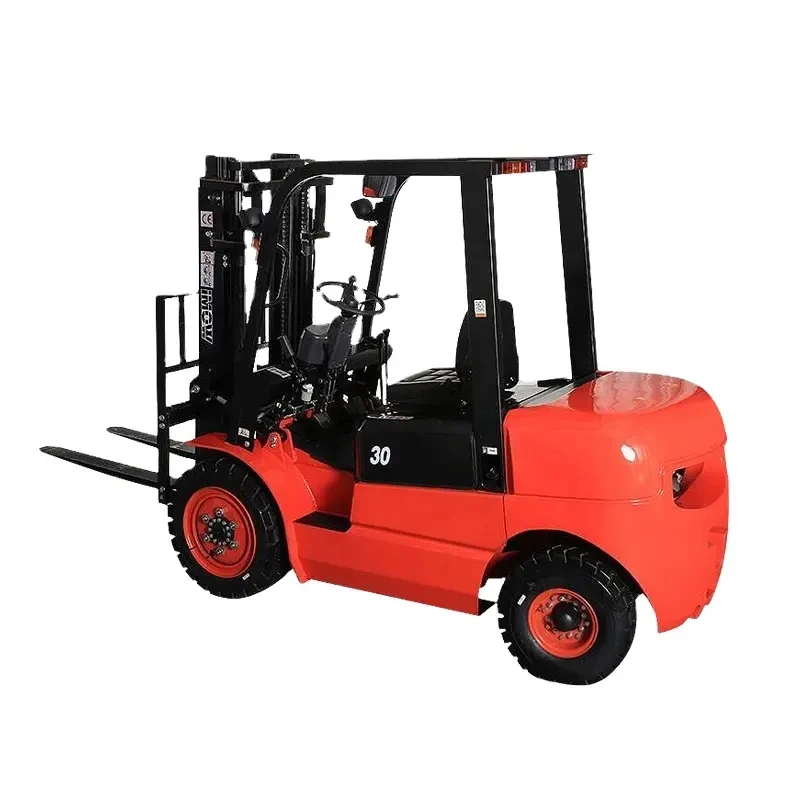

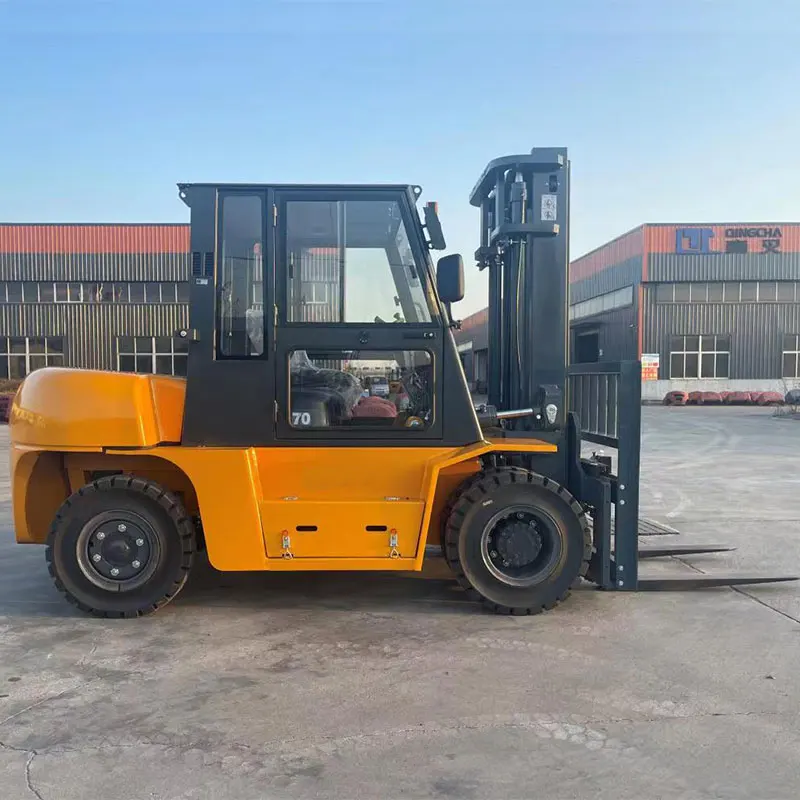

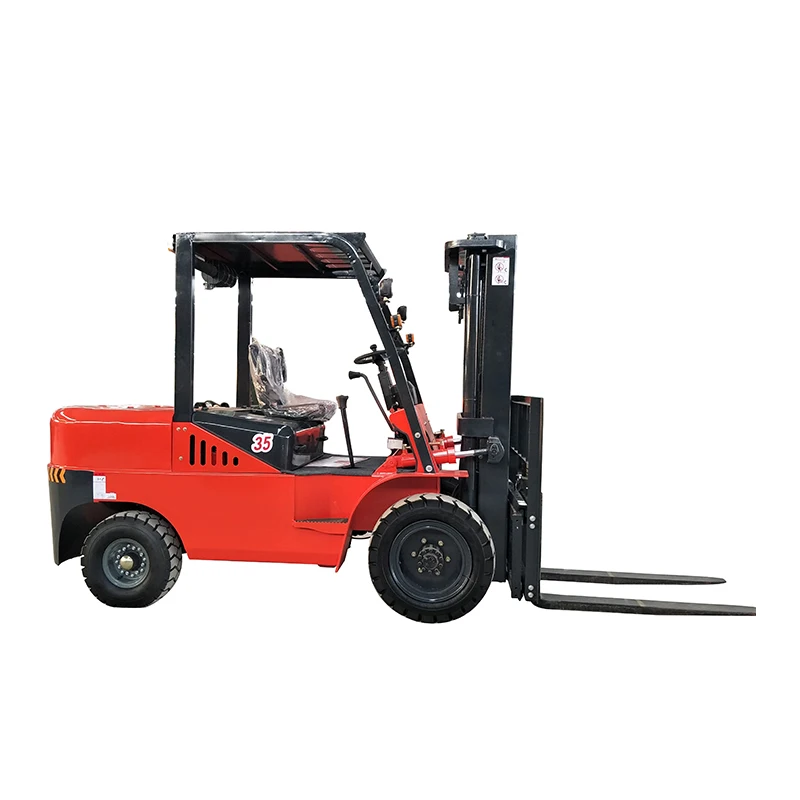

5 тонн 4x4 Дизельный вилочный погрузчик дизельный 12-

Описание и отзывы

Трекер стоимости

Характеристики

Forklift Clamp Attachments Diesel Forklift Diesel Forklift 2.5 Ton

Product Name			Forklift Clamp Attachments Diesel Forklift 10 Ton Cheap Forklift Hydraulic Forklift Diesel Forklift Truck
Manufacture				Chengli
Model				CPCD60T8	CPCD70T8	CPCD50T8	CPCD60T8	CPCD70T8
Power type				Diesel
Rated capacity			Kg	6000	7000	5000	6000	7000
Load center			mm	600
Lift height			mm	3000
Free lift height			mm	130
Fork size		L×W×T	mm	1220×150×60	1220×150×65	1220×150×55	1220×150×60	1220×150×65
Mast tilt range		F/R	deg	June 12
Rear overhang			mm	810	810	700	770	810
Overall dimensions	Length to face of fork		mm	3590	3590	3480	3590	3590
	Overall width		mm	1995
	Mast lowered height		mm	2510
Turning radius(outsude)			mm	3480	3480	3330	3480	3480
Minimum rectangular aisle width.			mm	4218	4218	4068	4218	4218
Speed	Travel (No load)		Km/h	26
	Lifting (Full load)		mm/sec	500/340	500/330	500/380	500/340	500/330
Max.Drawbar Pull (Full load)			N	22200	24400	21000	22200	24400
Max.Gradeability (Full load)			%	20
Tyres		Front	mm	8.25-15-14PR
		Rear	mm	8.25-15-14PR
Wheelbase			mm	2250
Ground clearance	Mast (No/Full load)			200/160
	Frame (No/Full load)			240/200
Self weight			Kg	8650	9050	8000	8650	9050
Weight Distribution	Full load	Front		12452	13642	10660	12452	13642
		Rear		2198	2028	2340	2198	2028
	No load	Front		3028	3168	2800	3028	3168
		Rear		5622	5882	5200	5622	5882
Battery	Voltage/Capacity		V/AH	24/80
Engine	Modal			S6S-T		QSF3-8
	Manufacture			Mitsubishi		Cummins
	Rated output/r.p.m		kw	63.9/2300		86/2200
	Rated torque/r.p.m		N.m	285/1700		470/1320
	No.of cylinder			6		4
	Bore×Stroke		mm	94*120		102x115
	Displacement		cc	4996		3757
	Fuel tank capacity		L	140		140

1. What about your delivery time?
Usually, if the quantity is less than 20 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible.
2, Q: What is about your warranty?
A: 12 months . If during the warranty, we will send to you for free by courier.
3.Can provide customized products?
Yes, we can provide customized products according to your requirement.
4. Which is the port of yours?
We ship the goods from Shanghai, Ningbo, Qingdao ports, can be arranged according to customer requirements
5.What can I get from cooperating with Chengli?
a. Unique products, with customized service.
b. Timely production and delivery, time is money.
c. Market protection service, long term business strategy.
