Автоматическая стальная проволока Армирующая Сетка
- Категория: Welding Equipment >>>
- Поставщик: Hebei,Jiake,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 70210.5 $* | 73721.2 $* |
| Aug-15-2025 | 69620.61 $* | 73101.44 $* |
| Jul-15-2025 | 58410.72 $* | 61331.48 $* |
| Jun-15-2025 | 68440.55 $* | 71862.61 $* |
| May-15-2025 | 59590.73 $* | 62570.63 $* |
| Apr-15-2025 | 67260.42 $* | 70623.68 $* |
| Mar-15-2025 | 66670.30 $* | 70004.98 $* |
| Feb-15-2025 | 66080.27 $* | 69384.25 $* |
| Jan-15-2025 | 65490.72 $* | 68765.93 $* |
Характеристики

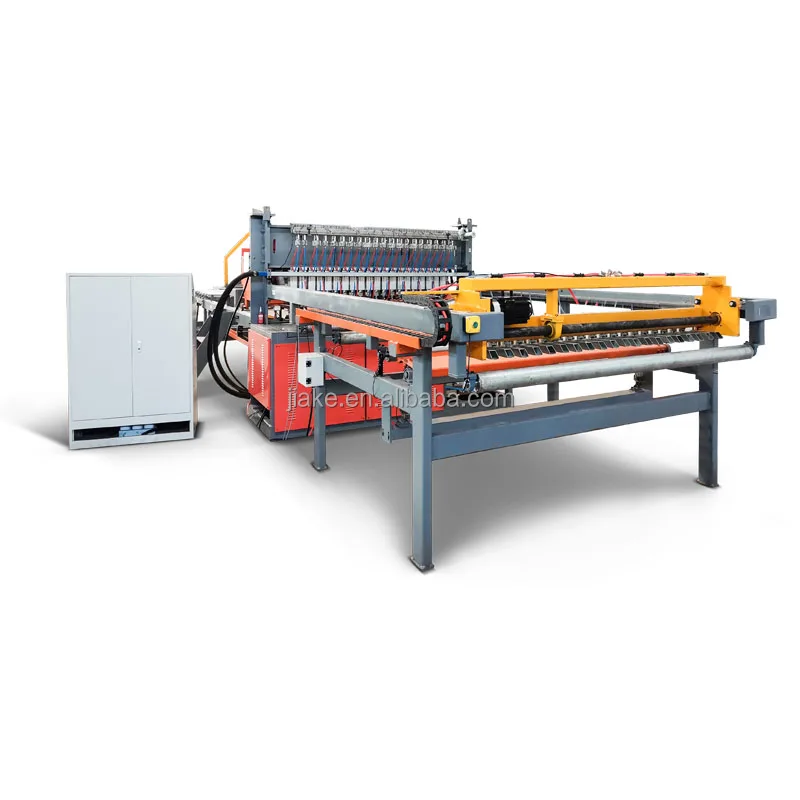

5-12mm automatic steel bar reinforcing mesh welding machine
Product Overviews
Product Overviews

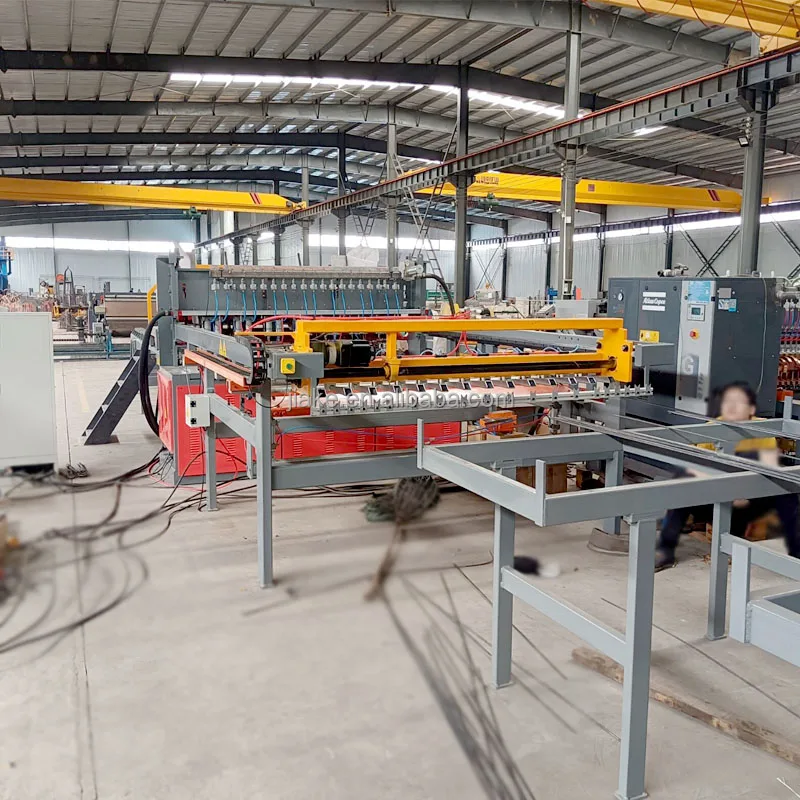

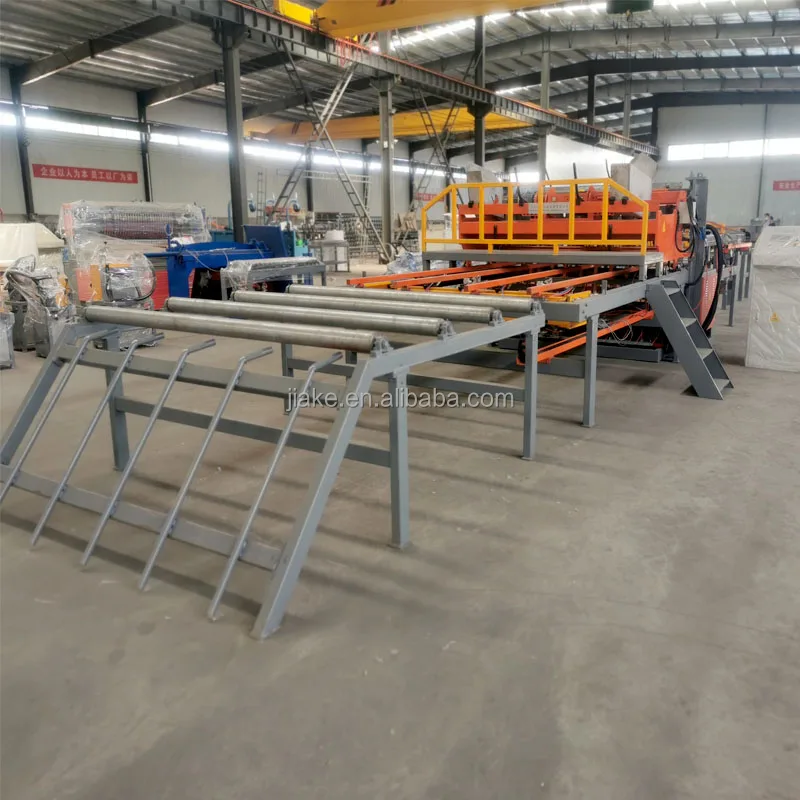

Reinforcing mesh welding line, also called BRC mesh welding machine, Construction mesh welding machine.
The reinforcement mesh welding machine is used to make steel rebar mesh, road mesh, building construction mesh, etc. With more-than-20years experience in design and manufacture, our BRC mesh welding machine is featured by high capacity, easy operation, and precise control.
Technical Parameter
Technical Parameter
| Model | DP-GW-2500A+ |
| Wire diameter | 5-12mm |
| Welding width | Max. 2500mm |
| Longitude wire space | 100-300mm |
| Crosswire space | Min. 50mm |
| Mesh length | Max. 6/12m |
| Wire feeding way | Pre-straightened & pre-cut |
| Welding speed | 80-100times/min |
| Welding electrodes | 24pcs |
| Welding transformers | 150kva*12pcs |
| Machine size | 20*3.5*2.5m |
| Weight | 7T |
- NOTE: Our engineer can design a special specification machine according to your wire diameter, mesh hole size, and mesh width.
Product Details
Product Details

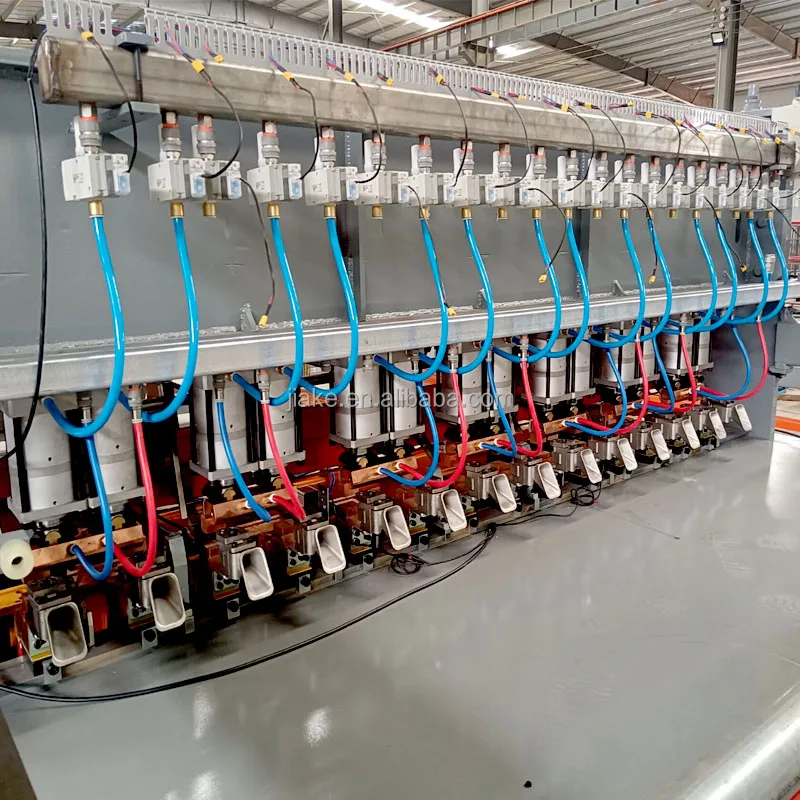

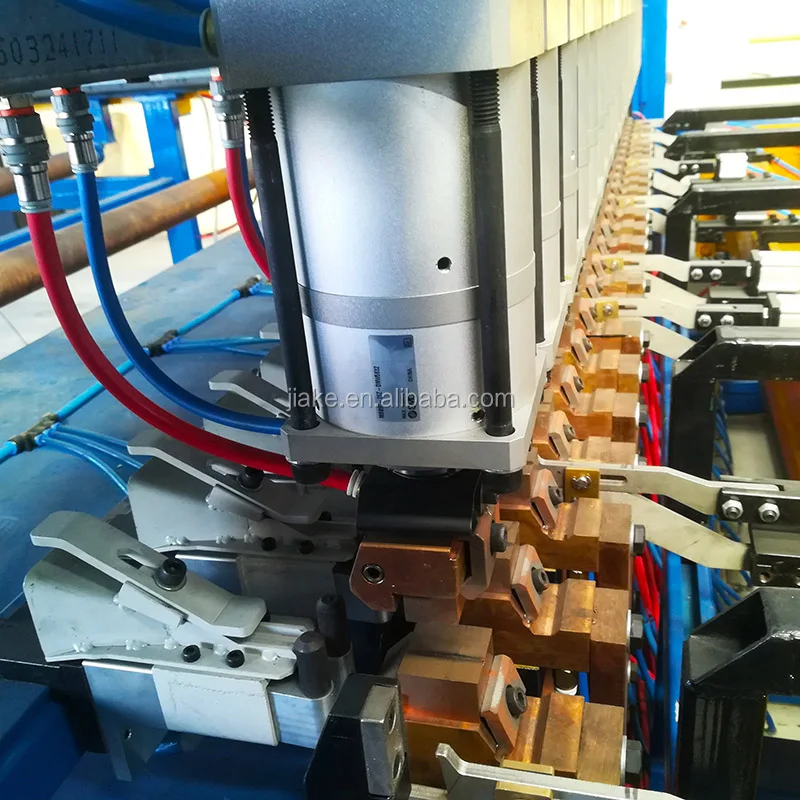

1. Special pneumatic electrode Pneumatic electrodes for welding speed Max. 100 times/min, and adjustable welding pressure for the flat welded panel. | 2. Automatic wire feeding car Line wire feeding car for Pre-straighten and pre-cut wires, working faster, and saving labor jobs. |

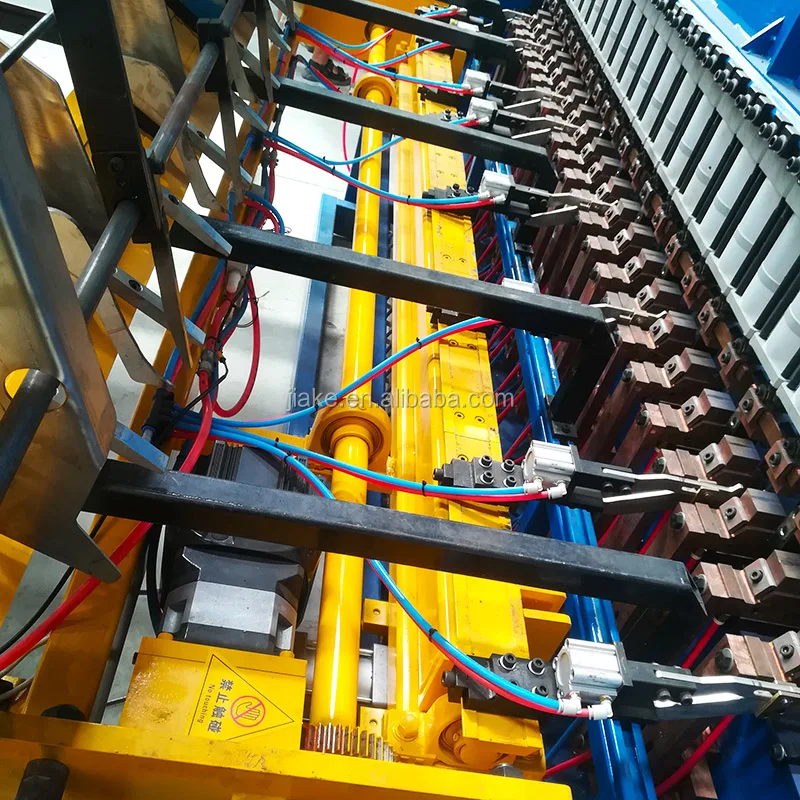

3. Automatic pushing hopper Cross-wire pushing hopper with European technology, working faster and continuously. | 4. Automatic pulling mesh Servo motor for mesh pulling working with Taiwan Gear rack, cross wire space more precise. |
5. Welding transformer cooling Cast water-cooling welding transformer, efficient cooling method, welding current can be adjusted by PLC. | 6. The electrical system The electrical system from the international famous brand for precise control and smooth working. |
Auxiliary Equipment
Auxiliary Equipment
Wire straightening and cutting machine is to make pre-straighten and pre-cut cross wire use. So, the finished welded panel can be very flat and meet market demand.
Technical Parameters
| Model | GT4-12 | GT6-14 |
| Type | Mechanical type | CNC type |
| Wire diameter | 4-12mm round bar, 4-10 ribbed wire | 6-14 (ribbed wire12mm)/ (round bar14mm) |
| Cutting length | 500mm-12000mm | 500-12000mm |
| Speed | 45m/min | 52m/min |
| Straight motor | 11kw | 15kw |
| Cut motor | 4kw | 4kw |
| Cut error | +/-2mm | +/-1mm |
| Machine size | 2.3*0.8*1.1m | 2.1*0.8*1.1m |
| Weight | 1000kg | 1200kg |
Finished Product
Finished Product
About Us
About Us
Hebei Jiake Welding Equipment Co., Ltd. It’s the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.
After-sales Service
Related Machines
FAQ
Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology to develop the department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience with exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
