A-BF и UNI-T UTG932E UTG962E функция произвольной формы сигнала генератора двухканальный 200 MS/s 14bits частотомер
- Категория: Signal Generators >>>
- Поставщик: Dongguan,Bufan,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.21 $* | 0.4 $* |
| Aug-15-2025 | 0.84 $* | 0.89 $* |
| Jul-15-2025 | 0.95 $* | 0.90 $* |
| Jun-15-2025 | 0.45 $* | 0.68 $* |
| May-15-2025 | 0.12 $* | 0.77 $* |
| Apr-15-2025 | 0.85 $* | 0.31 $* |
| Mar-15-2025 | 0.85 $* | 0.38 $* |
| Feb-15-2025 | 0.93 $* | 0.25 $* |
| Jan-15-2025 | 0.51 $* | 0.7 $* |
Характеристики
Product Description

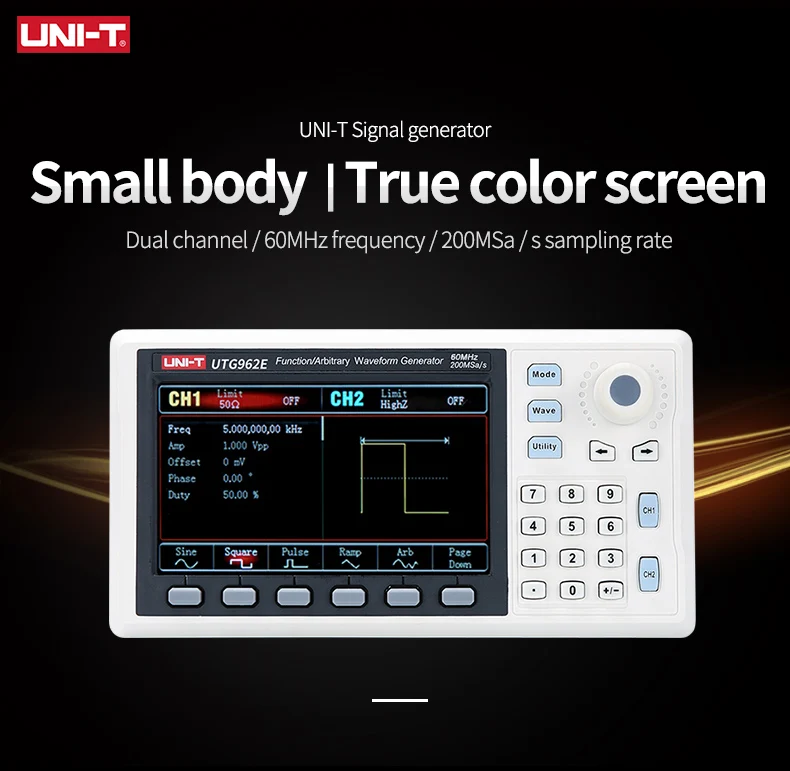

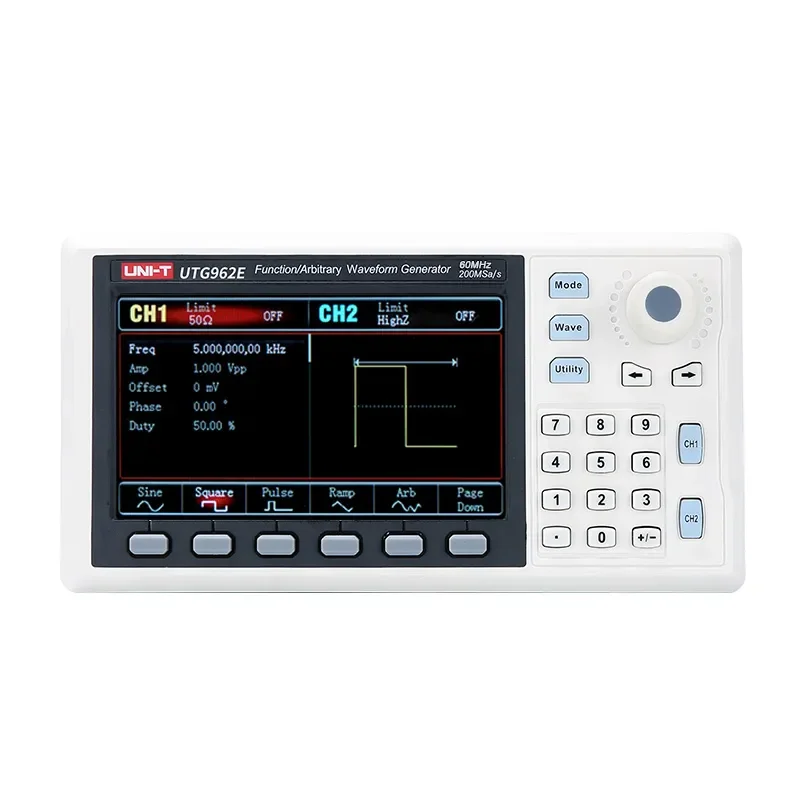

A-BF & UNI-T UTG932E UTG962E Function Arbitrary Waveform Generator Signal Source Dual Channel 200MS/s 14bits Frequency Meter 60Mhz
UTG900E Series Waveform Generators
The UTG900E series function arbitrary waveform generator uses direct digital synthesis technology to produce accurate and stable waveform output, with a resolution as low as 1μHz. It is an economical, high-performance, and versatile function arbitrary waveform generator. It can generate accurate, stable, pure, low-distortion output signals, convenient operation, superior technical indicators and humanized graphic display. It is a multi-purpose device that meets the needs of learning and testing and improves work efficiency.
Main Features
Output Waveforms: Sine,square, pulse, ramp, noise, DC ,arbitrary
Output frequency range:1uHz-30MHz/60MHz
High accuracy, broad band 6 bit frequency ,counter,range:100mHz-100MHz
Two equivalent-performance channels

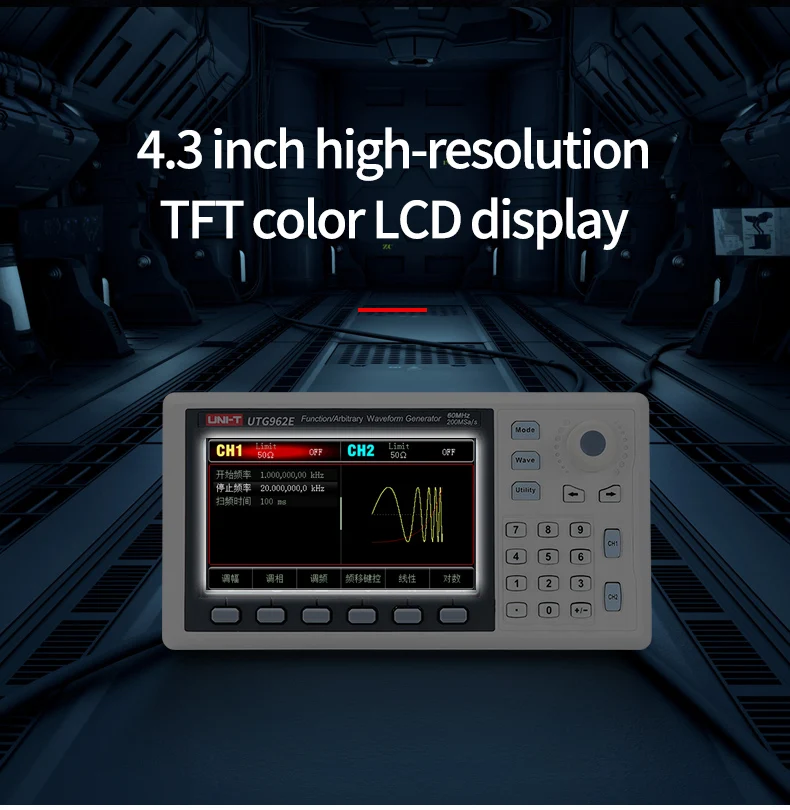

4.3 inches TFT LCD
Multi-language menu ,easy to operation
The UTG900E series function arbitrary waveform generator uses direct digital synthesis technology to produce accurate and stable waveform output, with a resolution as low as 1μHz. It is an economical, high-performance, and versatile function arbitrary waveform generator. It can generate accurate, stable, pure, low-distortion output signals, convenient operation, superior technical indicators and humanized graphic display. It is a multi-purpose device that meets the needs of learning and testing and improves work efficiency.
Main Features
Output Waveforms: Sine,square, pulse, ramp, noise, DC ,arbitrary
Output frequency range:1uHz-30MHz/60MHz
High accuracy, broad band 6 bit frequency ,counter,range:100mHz-100MHz
Two equivalent-performance channels
4.3 inches TFT LCD
Multi-language menu ,easy to operation
Specifications | ||||
Model | UTG932E | UTG962E | ||
Channel | 2 | |||
Max frequency | 30MHz | 60MHz | ||
Sampling rate | 200MS/s | |||
Vertical resolution | 14 bits | |||
Waveforms | Sine, square, pulse, ramp, noise, DC, arbitrary | |||
Sweep modes | Logarithmic, linear | |||
Frequency Characteristics | ||||
Sine | 1μHz~30MHz | 1μHz~60MHz | ||
Square | 1μHz~15MHz | 1μHz~20MHz | ||
Ramp | 1μHz~400kHz | 1μHz~400kHz | ||
Pulse | 1μHz~15MHz | 1μHz~20MHz | ||
Arbitrary | 1μHz~10MHz | 1μHz~10MHz | ||
Resolution | 1μHz | |||
Accuracy | Within 90 days ± 50ppm | |||
Within 1 year ± 100ppm | ||||
18℃~28℃ | ||||
Output Characteristics | ||||
Impedance | 50Ω/High Z | |||
Amplitude range | 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z) | |||
DC offset range (AC+DC) | ±5V (50Ω); ±10V (high Z) | |||
Amplitude resolution | 1mV | |||
General Characterisitics | ||||
Power | 100~240VAC, 50Hz/60Hz | |||
Display | 4.3”TFT LCD (480×272) | |||
Product color | White and grey | |||
Product net weight | 0.33kg | |||
Product size | 172mm x 90mm x 68mm | |||
Standard accessories | USB interface cable, power cord, BNC cable with alligator clips | |||
Standard individual packing | Carton box | |||
Packing&Shipping
We work with logistics and freight forwarders in many countries to ensure the safety and speed of the package, if you are not sure whether your country can be reached, click contact to contact us!
Related Products
FAQ
1. Q: Why choose us?
A: We have been in this industry for many years, and strive for perfection of goods and sincere service to customers; Our purpose: promise a word, service excellence; Our goal: build a first-class team, create first-class performance. Low MOQ and On-time delivery.
2. Q: Are your products genuine?
A: Yes, we are the official store of A-BF on Alibaba International platform, and cooperate with UNI-T official to guarantee the authenticity of all products
3. Q: Do you have this product in stock? When is the delivery time?
A: We can usually finish production and ship within 7 days. The time varies according to the quantity of the order.
