Product Description

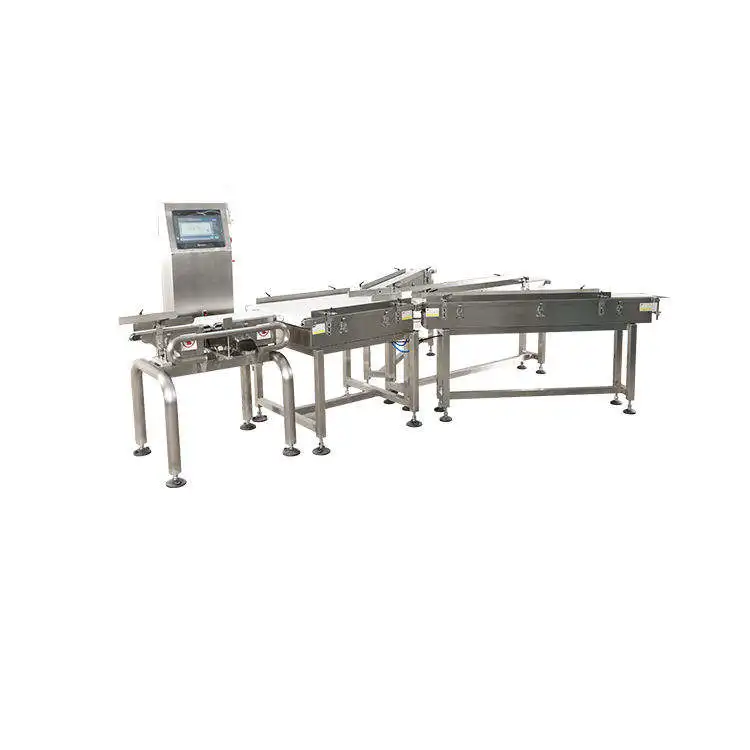

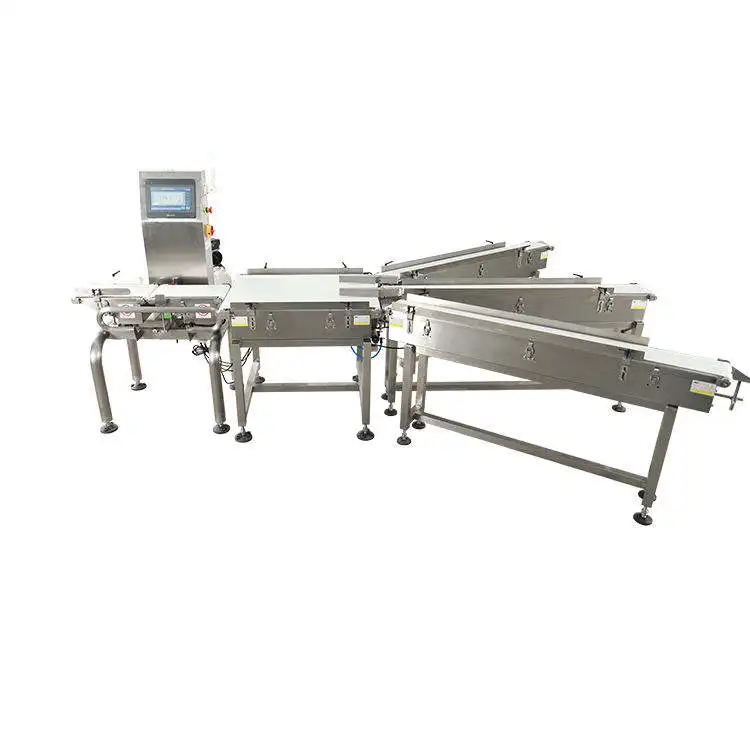

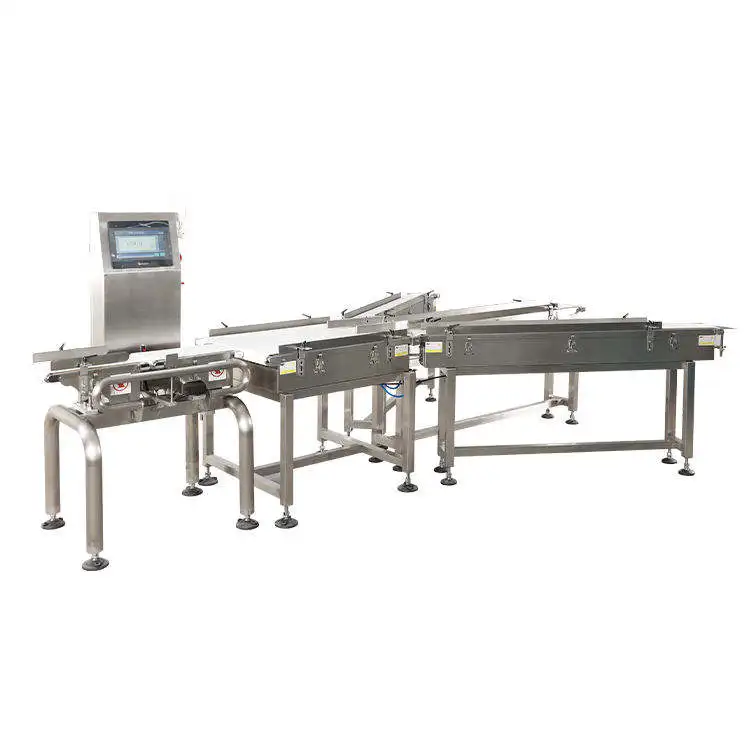

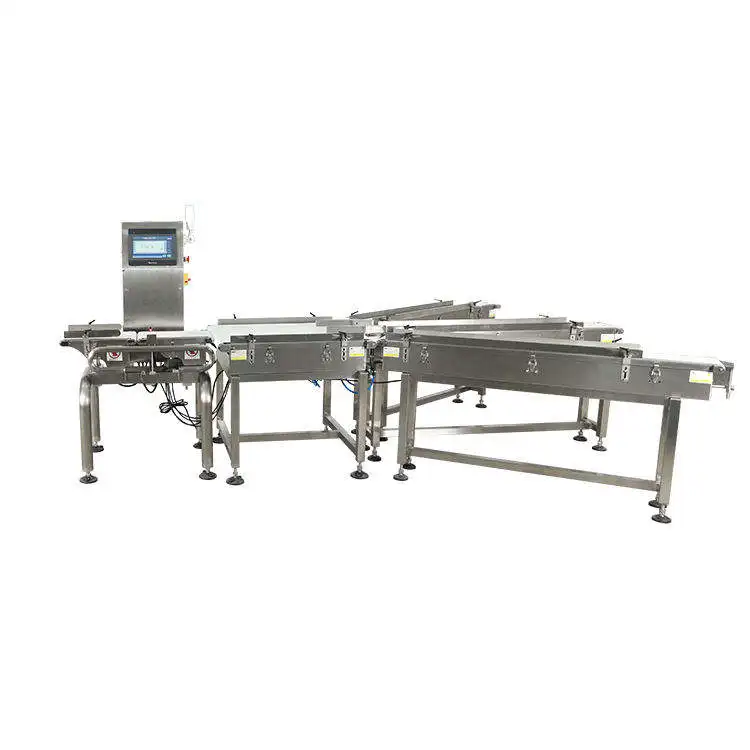

 NG-709-3 Automatic Conveyor Belt Checkweigher And Weight Sorting Machine Combined System




Summary:


It is suitable to check weight of various products, over or less weight will be rejected out, qualify bags will be passed to next equipment. hospital weighing scales for tablet.






Speficiations:
































































Touch Screen


10.1 inch color TFT touch display


Weighing range


1~1000g


Minimum scale


0.07g


Sorting accuracy


± 0.1g~±1g


Weighing section size


L 400mm * W 200mm


Belt height from ground


680mm~800mm(Customized Height)


Conveyor belt speed


20m / min fixed speed or 15-30m / min adjustable speed (speed can be customized)


Sorting Method


3 outputs Sorting


Material. Surface


304 stainless steel surface polishing


Language


Chinese / English (more languages can be customized)


Input voltage / power


Single Phase AC220V


Machine Weight


230Kg


Machine Size


L3100mm*W 1305mm *H 1335mm


Features:





Features:


1. EASY.
Large LCD touch screen display, Chinese and English interface, Language  customized.





2. PRECISON.
High-precision sensor with high detection accuracy and fast detection speed.





3. REAL TIME.
The graph shows the statistical distribution of the sorting results and grasps the sorting dynamics in real time.





4. MEMORY.
100 kinds of product sorting parameters can be preset, and different products can be quickly switched.





5. AUTO-LEARN.
High-speed and high-precision digital filtering algorithm, data filtering  parameters, automatic learning.





6. INTELLIGENT.
Dynamic zero tracking, including zero tracking when the equipment is  continuously running, can automatically correct the weight value.





7. RELIABILITY.
Variable frequency motor drive, effectively improve the stability of equipment  operation.





8. DATA.
Preset data transmission interface, can set or export product sorting parameters via USB.





9.ACCURACY.
The photoelectric check weighing trigger method is adopted to effectively improve the accuracy of the equipment.





10. REMOVE.
Multiple removal methods are optional, which can remove overweight or underweight products.







 8-6.jpgCHECK WEIGHER CATALOG.jpg


Tell us your actual applications, we will make the machine and function as per your needs ! Contact us now to talk more !
