Электронный номер комнаты с системой DND для отелей
US $12.00-$15.00
Умный светодиодный дверной знак с
- Категория: Door Plates >>>
- Поставщик: Shenzhen,GTD,IOT,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 12.49 $* | 13.43 $* |
| Aug-15-2025 | 12.5 $* | 13.6 $* |
| Jul-15-2025 | 10.69 $* | 11.80 $* |
| Jun-15-2025 | 12.84 $* | 13.41 $* |
| May-15-2025 | 10.7 $* | 11.48 $* |
| Apr-15-2025 | 11.72 $* | 12.27 $* |
| Mar-15-2025 | 11.44 $* | 12.15 $* |
| Feb-15-2025 | 11.48 $* | 12.72 $* |
| Jan-15-2025 | 11.21 $* | 12.98 $* |
Характеристики

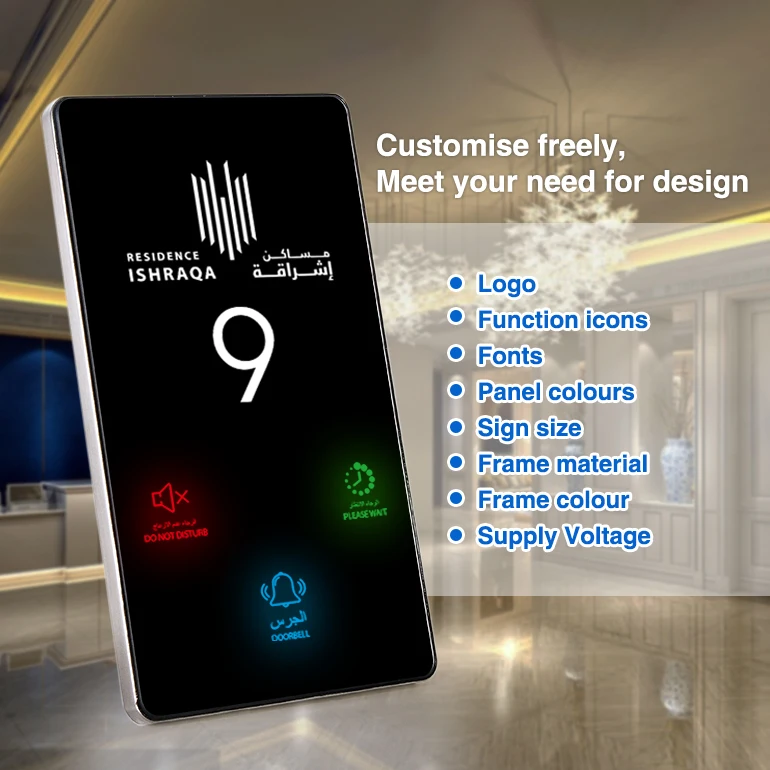

Product Introduction
G12 doorplate is our self-developed product, integrating room number, doorbell, room service and other functions in one. It adopts tempered glass panel and zinc alloy frame, high quality and easy to clean. Modern intelligent hotel door sign is practical, not only can bring guests better privacy information protection, timely feedback room information, but also can provide guests with quality service and improve the level of hotel management.GTD company is a professional supplier of intelligent products and systems for hotel rooms, and has long been committed to designing and development of such new products, and constantly improve the function of the door plate to meet the customer's personalised and customised needs.
Scope Of Application
The G12 hotel intelligent room service system is mainly used in intelligent engineering projects for hotels, guesthouses, homestays, villas, clubs, apartments, and other guest rooms.

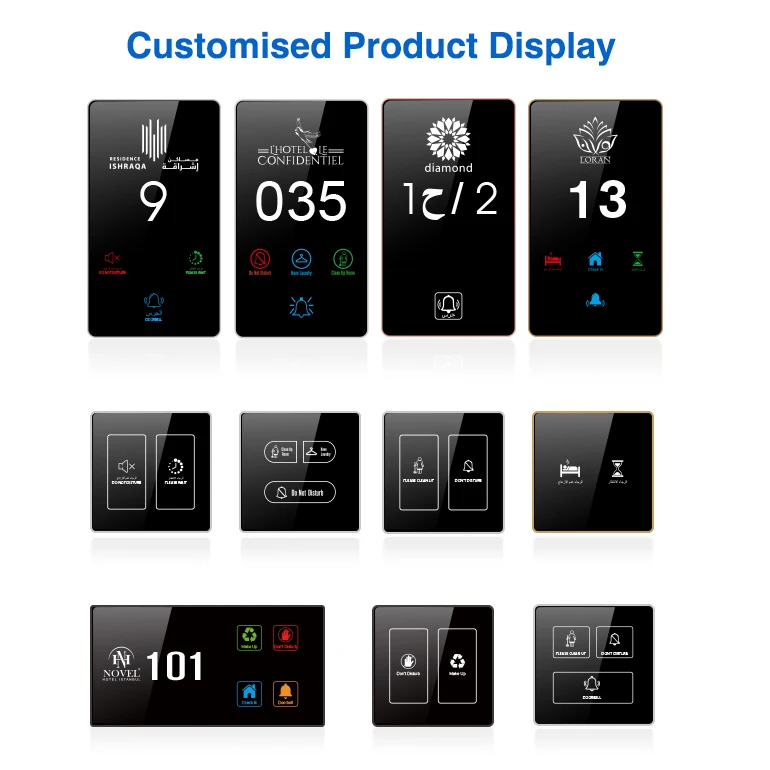

Hotel Door Sign Customization Information
1. Customized hotel name (logo): Personalized hotel logo, highlighting the hotel grade.
2. Doorplate functional content customization: Functional button content: do not disturb/clean/laundry/wait/check-in/ring (optional). And the font, language, icon content and LED light color of the button content can be customized.
3.Door sign size can be customized:172mm*86mm/130mm*230mm/86mm*86mm
4. Personalized Appearance: We offer different panel and frame colors, different materials, shapes and sizes of the frame for you to choose from to meet your hotel style. Of course, we can also customize according to your special needs.
5. Power supply voltage customization: Working voltage: 220V/12V/Dry Contact/RS485. There are 4 ways for you to choose. And 9V/24V/other voltage can also be customized according to the actual project needs.
6. One-stop procurement: We also provide accessories for room number plates, such as indoor door control panel, doorbell and other products required by smart hotel, such as the same appearance series of touch switches for light control/ temperature control/ curtain control, power take-off switches, sockets and so on.
2. Doorplate functional content customization: Functional button content: do not disturb/clean/laundry/wait/check-in/ring (optional). And the font, language, icon content and LED light color of the button content can be customized.
3.Door sign size can be customized:172mm*86mm/130mm*230mm/86mm*86mm
4. Personalized Appearance: We offer different panel and frame colors, different materials, shapes and sizes of the frame for you to choose from to meet your hotel style. Of course, we can also customize according to your special needs.
5. Power supply voltage customization: Working voltage: 220V/12V/Dry Contact/RS485. There are 4 ways for you to choose. And 9V/24V/other voltage can also be customized according to the actual project needs.
6. One-stop procurement: We also provide accessories for room number plates, such as indoor door control panel, doorbell and other products required by smart hotel, such as the same appearance series of touch switches for light control/ temperature control/ curtain control, power take-off switches, sockets and so on.
Note: The frame also can be done in plastic, with better price, in different colors, kindly exactly discuss with us when you order.
Personalized Hotel Door Sign Frame Customization
Our standard frame material for G12 door signs is zinc alloy, and the color is usually black/silver/rose gold/imitation gold (other colors can be customized in bulk). You can personalize the plastic border with different colors. GTD has been focusing on OEM, so you can rest assured that your design plan will be handed over to us and we will turn your ideas of door sign design into practical products.
High Quality Material: No deformation, easy to clean. High-grade, long service life.
High Quality Material: No deformation, easy to clean. High-grade, long service life.
Capacitive Touch-Sensitive Technology
The G12 doorplate says goodbye to the traditional mechanical button doorbell, adopts the international popular high sensitivity capacitive touch sensor technology, with non-common touch feeling. It enhances the hotel brand and guest experience, in line with the international hotel trend.
LED Light Color Can Be Customized
Standard Colors: logo and room number are white, "Do not disturb" red, "Make up room" green," check in/laundry/wait/ring" blue.
Custom Colors: Bulk custom made. We can provide you with samples designed according to your ideas, so that you can check our production quality and choose us with more confidence.
Custom Colors: Bulk custom made. We can provide you with samples designed according to your ideas, so that you can check our production quality and choose us with more confidence.
High Quality Toughened Glass Material
Thickness of 4mm toughened glass panel to ensure that the product maintenance and cleaning simple and safe to use at the same time is not easy to fade and be scratched, more will not occur bending deformation; high sensitivity touch-sensitive technology, there is virtually no mechanical loss, and greatly extend the service life of the product.
LED Backlight Display
Different LED backlit displays are used to identify the different functions. The standard version is as follows:
1. If not connected to the power switch, and the door sign is powered independently, the white LED of the logo+room number will light up when powered on, and the white LED of the logo+room number will not light up when not powered on.
2. If connected to the power switch, when the guest inserts the card to take power, the check-in icon LED backlight lights up in blue, indicating that the room has been occupied. When the guest unplug the card about 10 seconds after the delayed power off, check-in icon backlight off, indicating that no one in the room.
3. When someone visits outside the door and presses the doorbell key, the blue LED of the bell press icon flashes and the indoor bell rings.
4. When the guest does not want to be disturbed, press the Do Not Disturb key on the indoor control panel (default white LED), the outdoor door sign Do Not Disturb icon red LED lights up, at this time, even if someone outside the door presses the doorbell, the indoor bell will not ring.
5. When the guest presses Clean Up key on the indoor control panel, the green LED backlight of the outdoor door sign Clean Up icon lights up, indicating that the room needs to be cleaned. At this time cleaning staff press the doorbell, the indoor bell will ring.
6. Red Do Not Disturb and green Clean Up, mutually exclusive, one on, the other automatically extinguished .
Note: When the Check In content is changed to Laundry or Wait, the operation effect is the same as 5. (Laundry or Wait, also mutually exclusive with Do Not Disturb)
Special Customization: The font and icon content of the hotel door sign function keys and their corresponding LED backlight colors can be customized according to customers' special needs.
2. If connected to the power switch, when the guest inserts the card to take power, the check-in icon LED backlight lights up in blue, indicating that the room has been occupied. When the guest unplug the card about 10 seconds after the delayed power off, check-in icon backlight off, indicating that no one in the room.
3. When someone visits outside the door and presses the doorbell key, the blue LED of the bell press icon flashes and the indoor bell rings.
4. When the guest does not want to be disturbed, press the Do Not Disturb key on the indoor control panel (default white LED), the outdoor door sign Do Not Disturb icon red LED lights up, at this time, even if someone outside the door presses the doorbell, the indoor bell will not ring.
5. When the guest presses Clean Up key on the indoor control panel, the green LED backlight of the outdoor door sign Clean Up icon lights up, indicating that the room needs to be cleaned. At this time cleaning staff press the doorbell, the indoor bell will ring.
6. Red Do Not Disturb and green Clean Up, mutually exclusive, one on, the other automatically extinguished .
Note: When the Check In content is changed to Laundry or Wait, the operation effect is the same as 5. (Laundry or Wait, also mutually exclusive with Do Not Disturb)
Special Customization: The font and icon content of the hotel door sign function keys and their corresponding LED backlight colors can be customized according to customers' special needs.

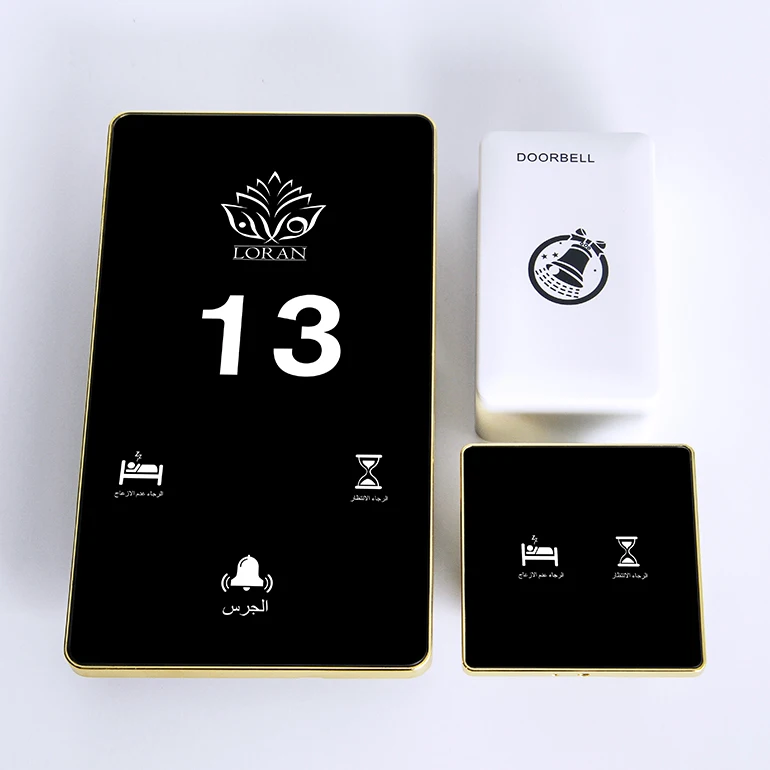

Designed To Follow The Functional Design Of The Doorplate
The standard size of the indoor control panel of the hotel door plate is 86mm*86mm, and the panel function content is designed according to the function design of the door plate, and the frame material and color of our standard indoor control panel are consistent with the door plate, which will be more beautiful and standardized. If you have your own personalized design for the customizable border area, you can also put forward your own design ideas with us in time. We design products according to your needs. At the same time, you can also choose other styles in our store according to your needs. controller products.

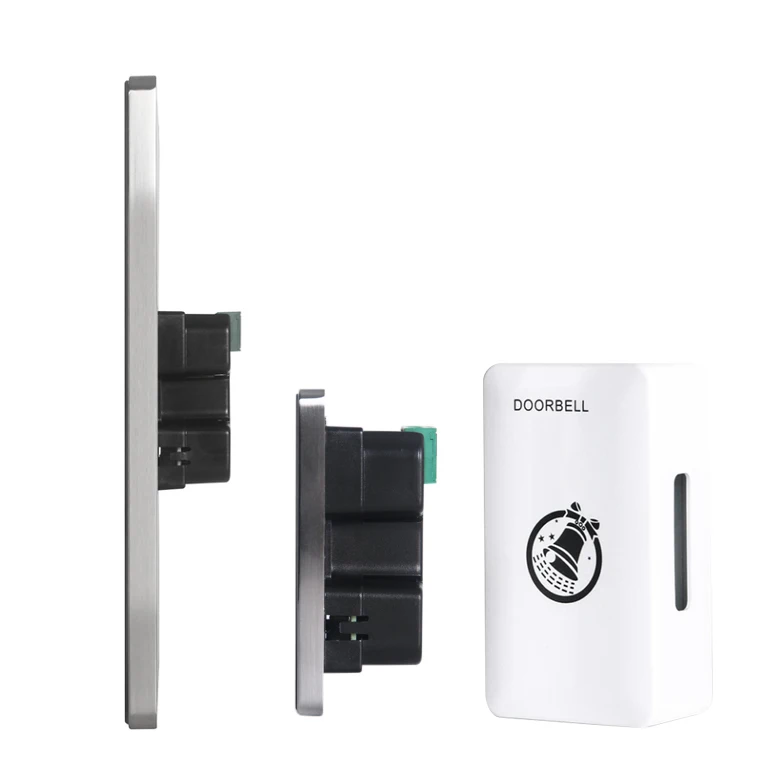

3 Types Of Doorbells
15D Electronic Bell：Black tempered glass frame./Blue LED indicator./ Size: 86*86MM
G1-Big Size:Mechanical Dingdong Bell./White plastic./Size: 160*110MM
G1-Small Size: Mechanical Dingdong Bell./White plastic.
Product Paramenters
Product size | 230*130 |
Procut Service life | 100,000 times |
Self-consumed power | ≤1W |
Working humidity | 0~95% |
Working temperature | -15℃~60℃ |
Working voltage | 24V/220V/Dry Contact（Can be customized) |
WELCOME OEM CUSTOMIZATION
OEM Customization
Welcome to ask OEM customization,we have a dedicated design and R&D team, as well as a professional production line, you can trust us, and let us know your needs. GTD will provide you with professional design, R&D and production services until you are satisfied with the final product.

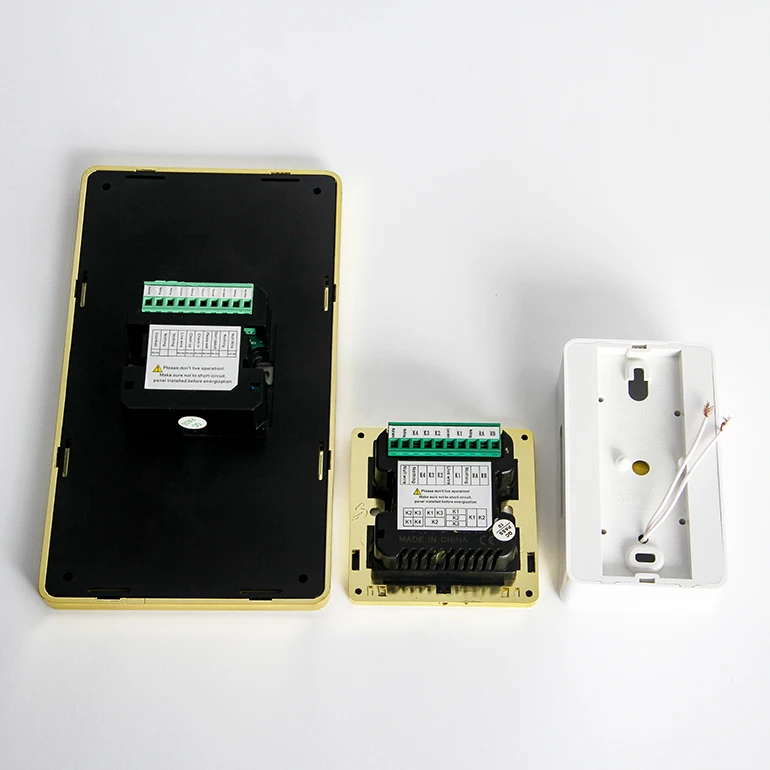

Door Plate Wiring Method
This doorplate wiring can be operated according to the label on the back of the product wiring port, which is a very common wiring method.
Note: Different voltage technology versions, wiring methods are slightly different, the specific order, according to the panel content version will be provided separately.
Note: Different voltage technology versions, wiring methods are slightly different, the specific order, according to the panel content version will be provided separately.
Company Profile
Product Certification Documents(Parts)
