Автоматическая Алмазная резка и полировальная машина для скамейки мини-коническая акриловая

Автоматическая Алмазная резка и полировальная машина для скамейки мини-коническая акриловая

Категория: Power Tools >>>
Поставщик: Jinan,Finework,CNC,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.13 $*	0.27 $*
Aug-19-2025	0.80 $*	0.19 $*
Jul-19-2025	0.99 $*	0.38 $*
Jun-19-2025	0.20 $*	0.5 $*
May-19-2025	0.33 $*	0.43 $*
Apr-19-2025	0.88 $*	0.18 $*
Mar-19-2025	0.96 $*	0.21 $*
Feb-19-2025	0.33 $*	0.71 $*
Jan-19-2025	0.99 $*	0.24 $*

Характеристики

Technical Parameters

Type	FW-1300	FW-1600	FW-2500	FW-3000
Max.cutting length	1300mm(Unlimited extension)	1600mm(Unlimited extension)	2500mm(Unlimited extension)	3000mm(Unlimited extension)
Max. cutting width	110mm	110mm	110mm	110mm
Max. cutting thickness
Min. cutting thickness
Cutting depth	0-1mm(depending)	0-1mm(depending)	0-1mm(depending)	0-1mm(depending)
Cutting angle	0-60°	0-60°	0-60°	0-60°
Spindle speed	0-12000r/min	0-12000r/min	0-12000r/min	0-12000r/min
Table size	1950mmx350mm	2250mmx350mm	3350mmx350mm	3550mmx350mm
Power supply	three-phase 380V	three-phase 380V	three-phase 380V	three-phase 380V
Spindle	spindle notor 1.5Kw	spindle notor 1.5Kw	spindle notor 1.5Kw	spindle notor 1.5Kw
Feed adiustment methods	Manual	Manual	Manual	Manual
Angle adjusting methods	Manual	Manual	Manual	Manual
Main Structure	Granite	Granite	Granite	Granite
Weight	1550Kg	1650Kg	2200Kg	2500Kg
size (mm)	2000x1150x1600	23500x1150x1600	3400x1150x1600	4250x1150x1600

Product Description

Top sale FW-1600 organic plexiglass acrylic edge diamond polishing machine with good price for sale

The machine is mainly used to polish acrylic,plexiglass, organic glass, PMMA, PETG, PE etc. It applies PCD and monocrystal cutting
tools to process material finely and get mirror finish cutting surface. After polished, the products are high transparent,
non-discoloring, especially perfect as light guide plate.
main specifications :
1.Model:FW-1600
2.working length:1350mm length for processing ,infinite width.
3.Focus on 0-60 degree surface polishing
4.max polishing thickness:100mm
5.voltage: 380v/220v option
6.machine size:2350x1150x1600mm
7.Workpiece length unlimited extension, which can meet long workpiece polishing

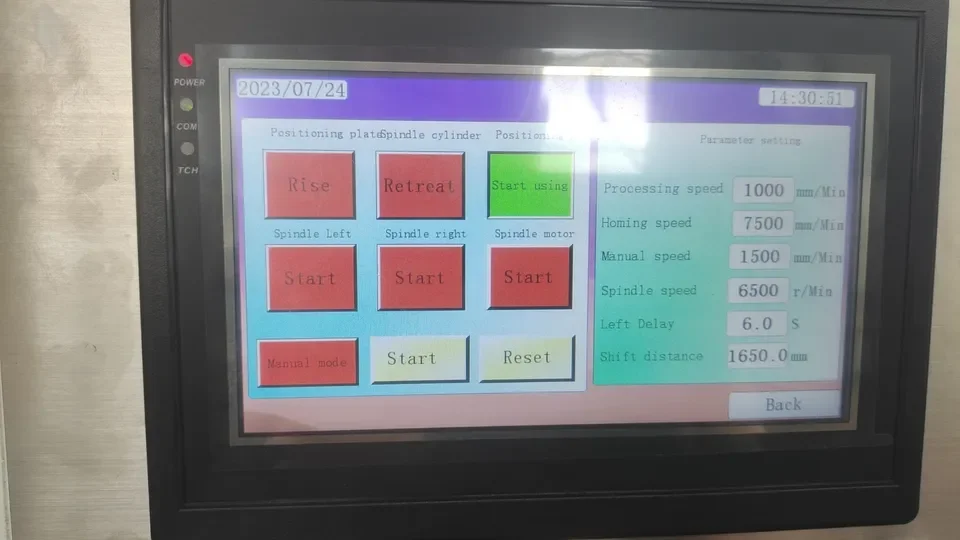

8. Touch screen operation panel, simple and convenient.
9. The spindle feed and the cutting Angle adjustment adopts servo driver.
10. The digital adjustment, high precision.
11. The machine PC control, stable performance.
