YS-A68 RK3568 Android11/Linux 4 + 32G материнская плата для развития HD 4K BT WIFI
- Категория: Motherboards >>>
- Поставщик: Shenzhen,Yisheng,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 75.45 $* | 77.28 $* |
| Jul-17-2025 | 61.15 $* | 62.20 $* |
| Jun-17-2025 | 74.49 $* | 75.33 $* |
| May-17-2025 | 73.54 $* | 74.99 $* |
| Apr-17-2025 | 58.79 $* | 59.65 $* |
| Mar-17-2025 | 72.73 $* | 73.69 $* |
| Feb-17-2025 | 71.0 $* | 72.71 $* |
| Jan-17-2025 | 71.29 $* | 72.74 $* |
Характеристики
Company Profile
Shenzhen Yisheng Technology Co., Ltd. was founded in 2015, has a registered capital of 66 million and more than 170 employees. Focusing on smart commercial display, AI, edge computing, industrial control and other industrial applications, and provides customers with full stack solutions and product services from motherboard to software platforms.
Established for 8 years,serving 1000 + customers, the products exported to over 100 countries, including the USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India, etc.
Our products have passed the national 3C certification, trademarks, patent certificates are complete.
Established for 8 years,serving 1000 + customers, the products exported to over 100 countries, including the USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India, etc.
Our products have passed the national 3C certification, trademarks, patent certificates are complete.
Industry Applications
Product Description

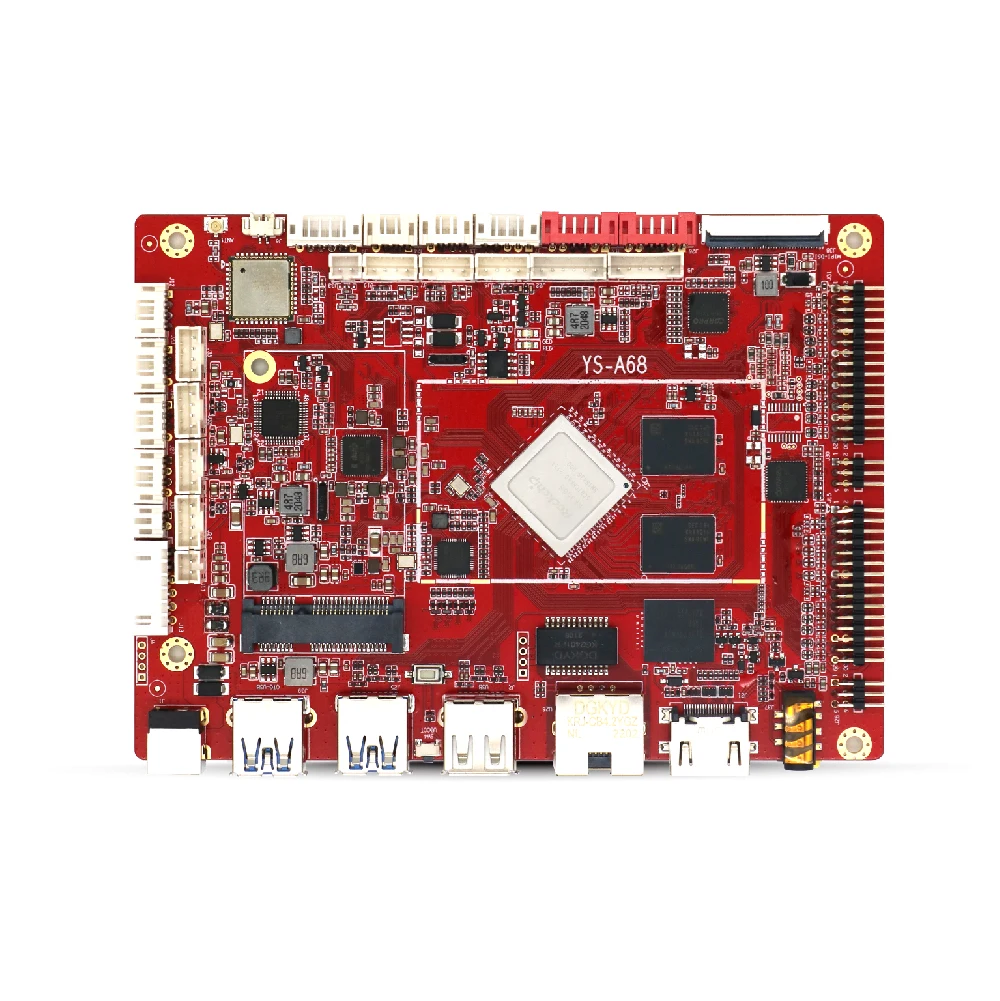

YS-A68 intelligent commercail display motherboard
Using Rockchip RK3568 chip, with rich control and external interfaces, supporting Android 11/linux system, and supporting 4K high-definition drive the screen., it is an efficient, safe, and reliable product.

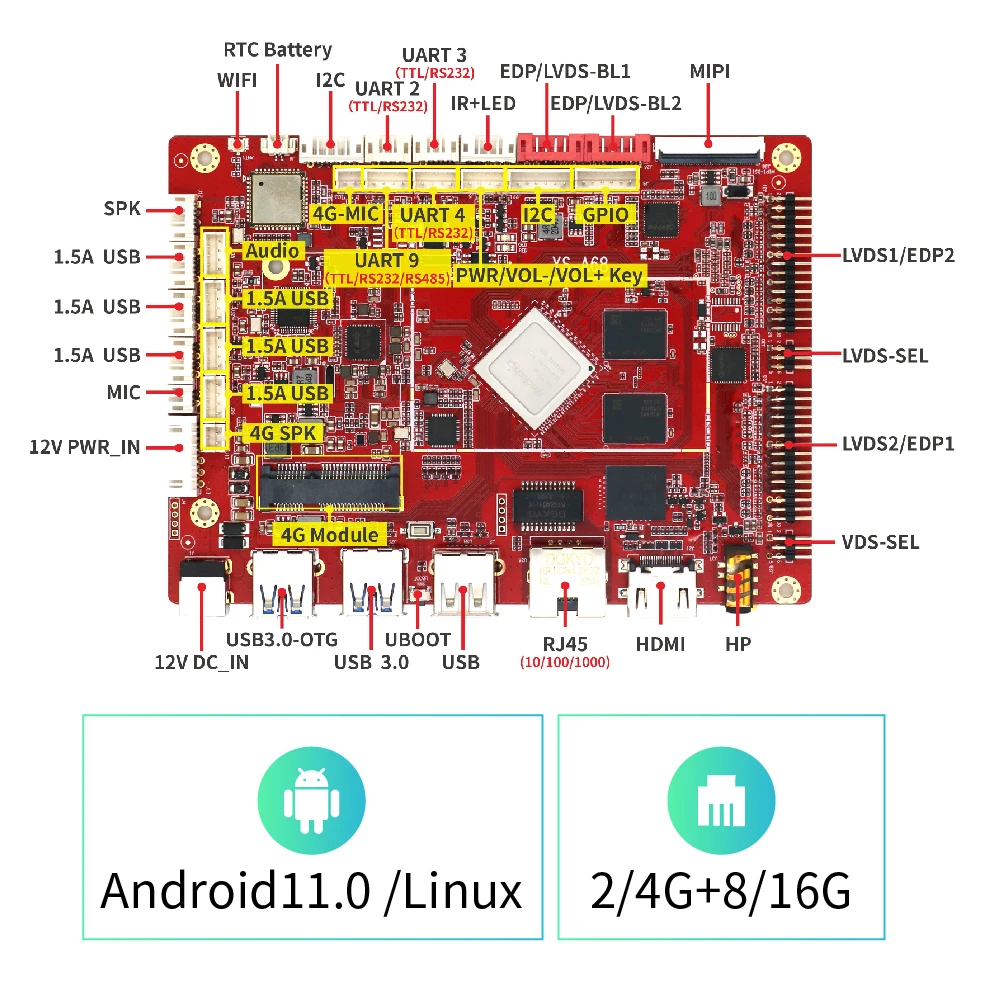

High Expandability

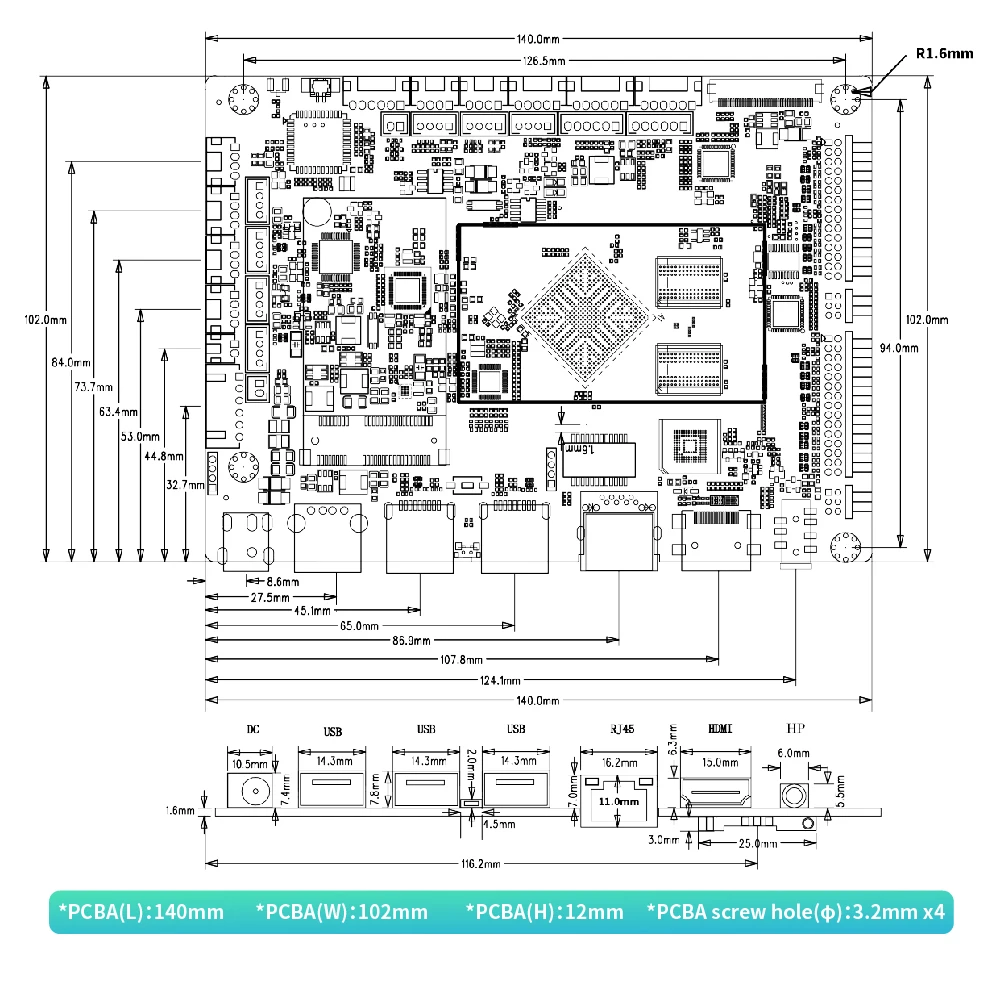

Product Parameters
SOC | RockChip RK3568 |
CPU | Quad-Core Cortex-A55 Max CPU frequency: 2.0GHz |
GPU | ARM Mali-G52-2EEEmbedded 3D GPU OpenGL ES 1.1/2.0/ 3.2 GPU OpenCL up to 2.0 Vulkan 1.1 Special 2D hardware engine |
NPU | Support 1TOPS Supports INT8/NT16 hybrid operation |
OS | Android: Android 11.0 Linux: Ubuntu Desktop、Debian11 |
Video CODEC | Video Decoder 4K@60fDs H264 AVC/MVC/H265 HEVC/MVC, VP9 1080P@60fps MPEG-41-21-1/VC-1, VP8 Video Encoder 1080P@60fps H264/AVC BP/MP/HP, H265/HEVC MP |
ROM | 2GB/4GB (Up to 8GB) 32bit LPDDR4 |
Storage | 8/16GB (Up to 256GB) EMMC |
Display Output | 1*HDMI2.0（Up to 4K@60HZ） 2*LVDS or 2*EDP or 1*LVDS+1*EDP（Up to 1920x1080） 1*MIPI_DSI-40PIN-FPC（Up to 1200x1920） |
Audio | 1*SPK（L&R audio-out，Up to 2*8Ω/5W speaker） 1*HP（OMTP） 1*MIC 1*4G MIC 1*4G SPK（Single Track） |
Network | Ethernet：Support 10/100/1000M GMAC WIFI：Support 2.4GHz Band,System:IEE Std.802.11b/g/n Bluetooth：4.2(Up to 5.2) 4G：Support Mini_PCIE Module |
USB | 1*Type-A USB3.0 (OTG or HOST) 1*Type-A USB3.0 HOST 1*Type-A USB2.0 HOST 6*USB2.0 HOST(4Pin*2.0mm Wafer) |
UART | 4*TTL(1*TTL/RS232/RS485,3* TTL/RS232) |
Other | 2*I2C 4*GPIO 1*IR+LED 3*Key（1*PWR_Key,2*Vol_Key） |
Support system customization
The operating system is Android 11.0, Linux: Ubuntu Desktop, Debian11 system，which provides APl reference codes
and supports the development of upper-level application APP for customers
and supports the development of upper-level application APP for customers
FACTORY
Customization
Certifications
Exhibition
FAQ
Q:Are you trading company or manufacturer ?
A: We are factory.
A: We are factory.
O:How longis your delivery time?
A: Generally it is 3-10 days if the goods are in stock, or it is 15-30 days if the goods are not in stock
it is according to quantity.
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, but need to pay the cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance, Payment>=1000USD,30% T/T in advance ,balance before
shippment.
shippment.
Q:lfyou have another question, pls feel free to contact us as below
Email:xiongxing@yishengtc.com
Wechat:18923411776
Wechat:18923411776
