AOHUA светодиодные силовые полоски для мужчин и женщин штепсельная вилка гнездо электрический провод водонепроницаемый кабель m14
- Категория: Connectors & Terminals >>>
- Поставщик: Shenzhen,Aohua,Electric,Corporation,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.93 $* | 0.45 $* |
| Aug-19-2025 | 0.51 $* | 0.13 $* |
| Jul-19-2025 | 0.87 $* | 0.92 $* |
| Jun-19-2025 | 0.79 $* | 0.90 $* |
| May-19-2025 | 0.5 $* | 0.78 $* |
| Apr-19-2025 | 0.6 $* | 0.1 $* |
| Mar-19-2025 | 0.49 $* | 0.78 $* |
| Feb-19-2025 | 0.85 $* | 0.96 $* |
| Jan-19-2025 | 0.1 $* | 0.19 $* |
Характеристики
Product Description

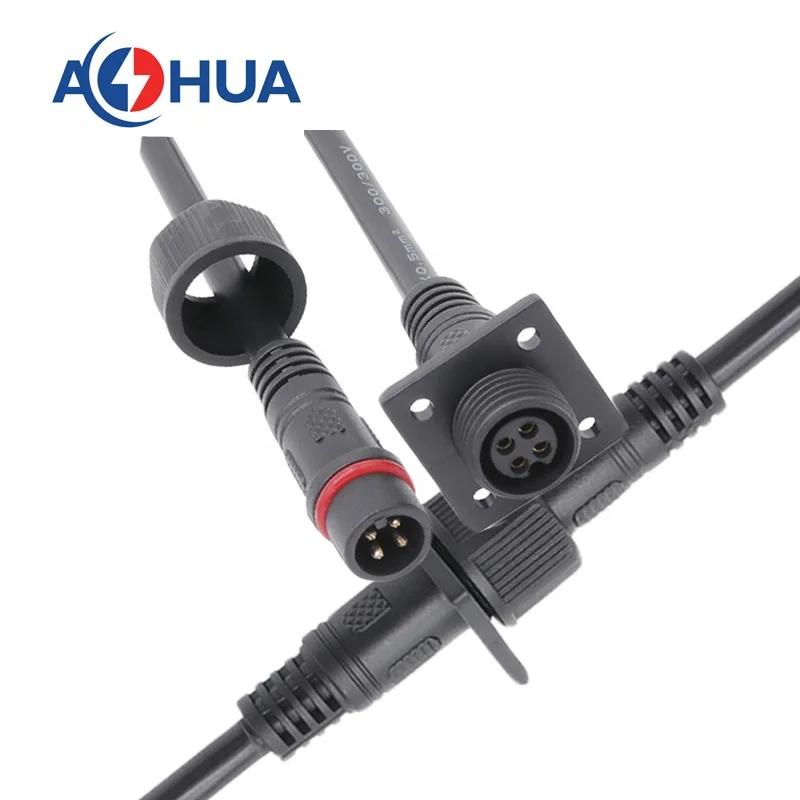

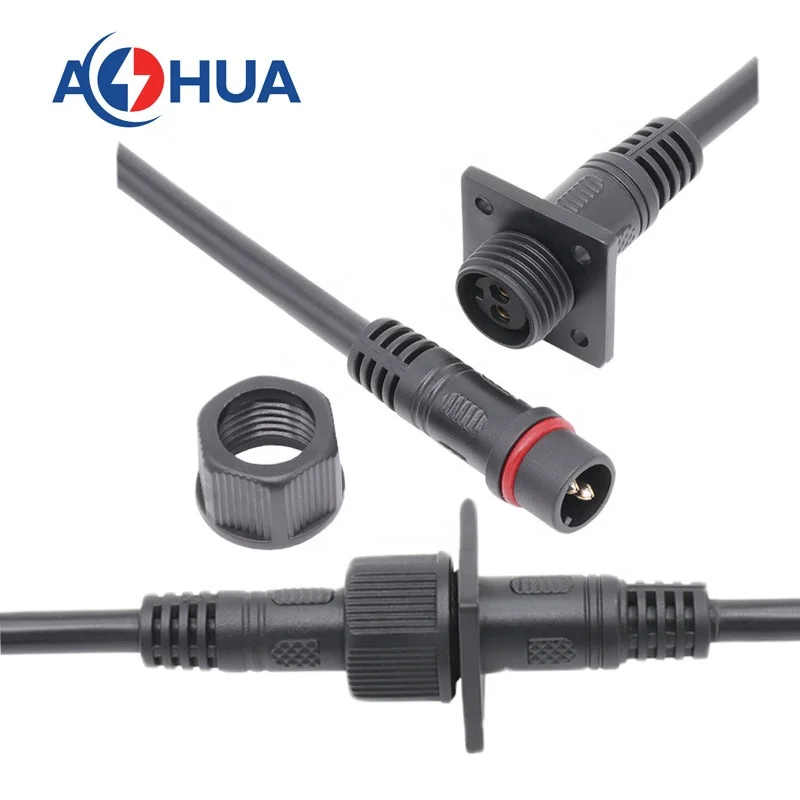

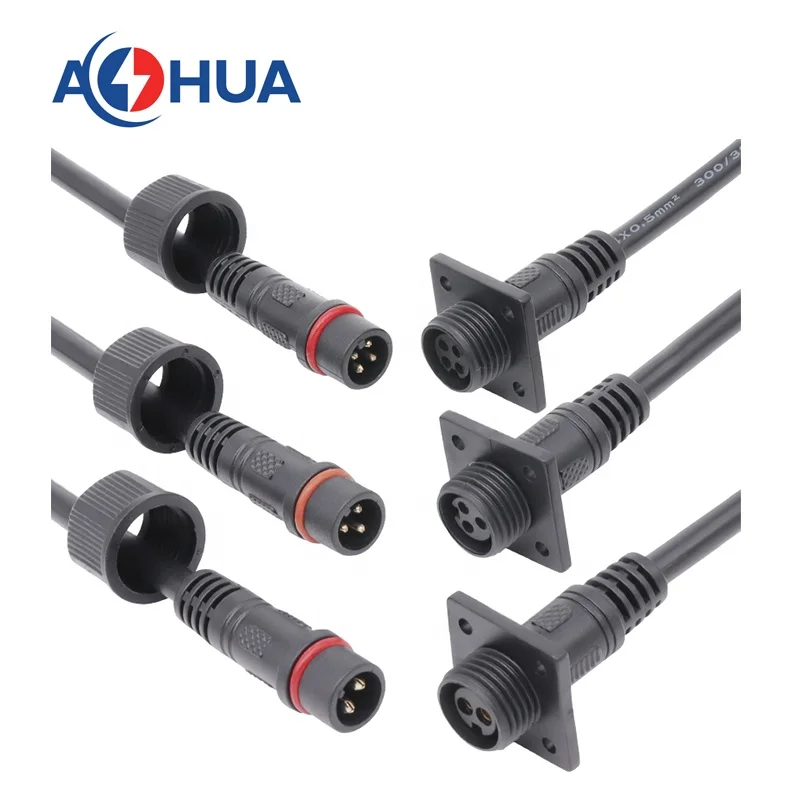

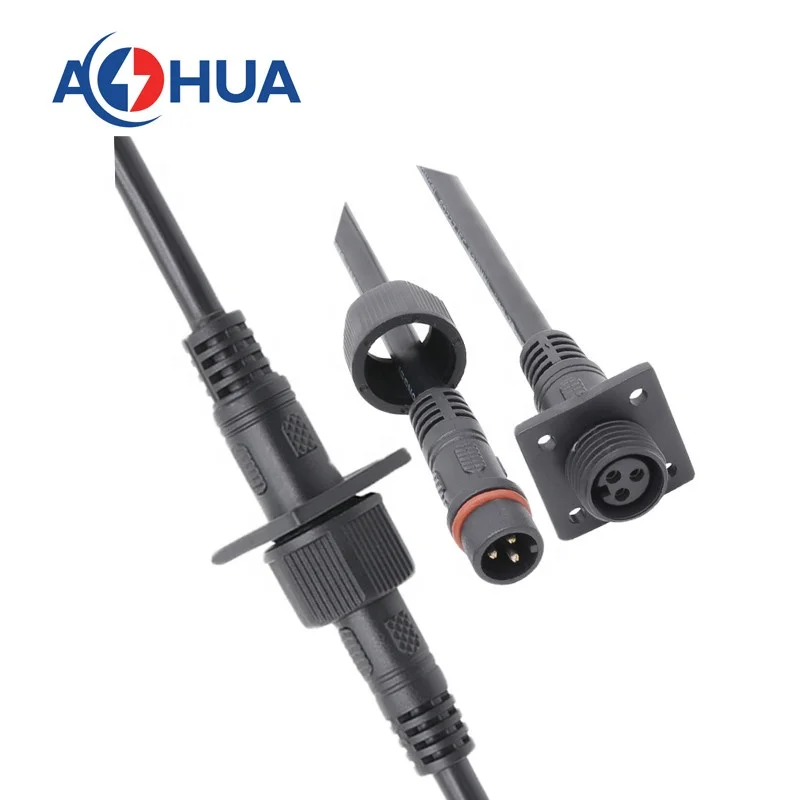

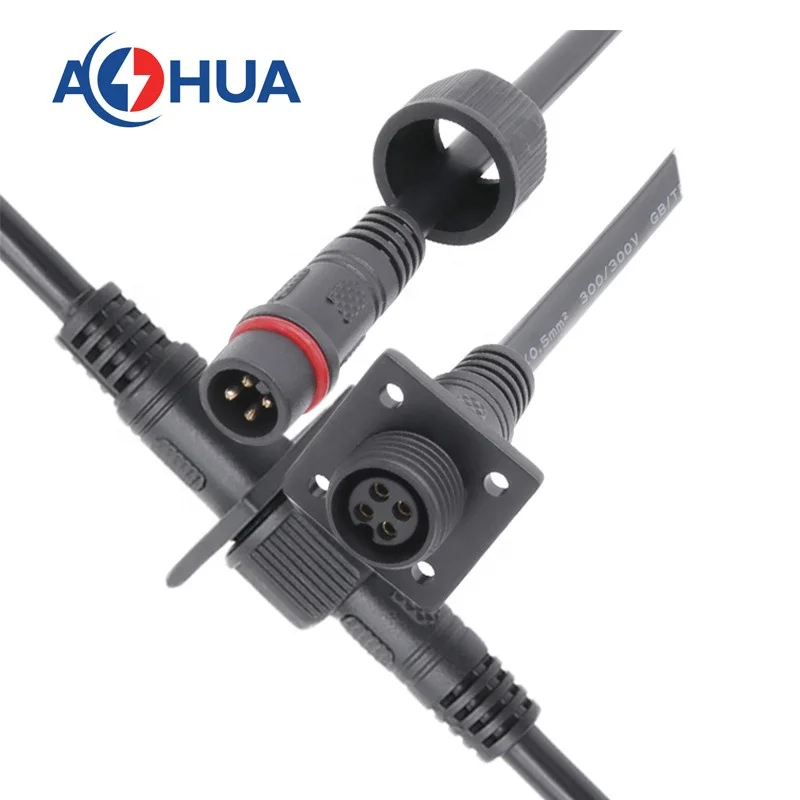

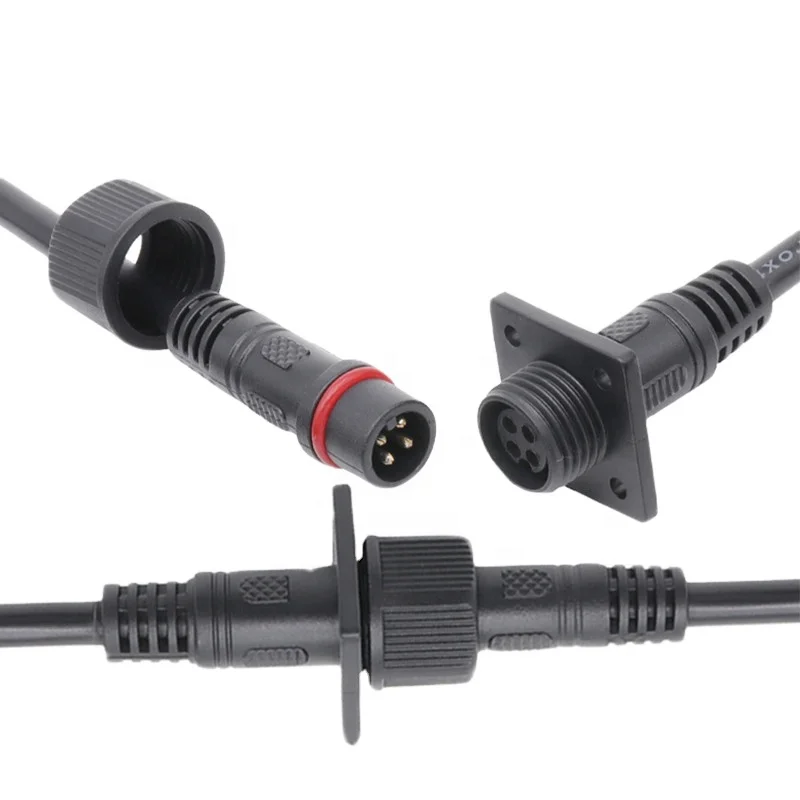

AOHUA PVC Panel Connector
PVC panel ip65 waterproof connector is a PVC material connector with IP65 waterproof level and a panel. First, the panel connector is made of PVC material with stamped terminals. Second, this is the plug with the panel, that is, the connector goes through the through-hole, and the hex nut is behind the panel to hold the connector in place. Third, the panel plug is a
male/female connector suitable for pluggable, with a dust cap on one end connector to protect dust or rain when needed. In short, this PVC panel waterproof connector, low cost, simple and easy process, is a very competitive product in the market.
male/female connector suitable for pluggable, with a dust cap on one end connector to protect dust or rain when needed. In short, this PVC panel waterproof connector, low cost, simple and easy process, is a very competitive product in the market.
M14 PVC Panel Connector
Contacts | 2 | 3 | 4 | ||
Voltage | 250V | 250V | 110V | ||
Current | 6A | 5A | 4A | ||
Wire Size | ≤1.0mm² | ≤0.75mm² | ≤0.5mm² | ||
Cable OD | 4.0mm-6.8mm | ||||
Mechanical Life | 500 mating cycles | ||||
Operating Rating | -20℃~+80℃ | ||||
Waterproof Level | IP65 | ||||
For the M14 PVC panel connector, there are some normal wire sizes for choosing from:
2*0.75mm², 2*18AWG, 2*20AWG
3*0.5mm², 3*20AWG, 3*22AWG ,
4*0.5mm², 4*20AWG, 4*22AWG
1. Current rating, such as: 4A...
2. Pins, such as : 2pin, 3pin...
3. Wire size, such as: 2*20AWG...
4. Each cable length, such as: 300mm...
2. Pins, such as : 2pin, 3pin...
3. Wire size, such as: 2*20AWG...
4. Each cable length, such as: 300mm...
Remarks:
1. Cable requirements: CCC/VDE/UL/RoHS and other certification cables can be used according to customer requirements;
2. Research and design unconventional joint products according to customer requirements;
3. Without any explanation, production shall be carried out according to the enterprise standard requirements of our company;
4. special cable requirements, can be provided by the customer, by our company to process the injection molding on the waterproof joint.
2. Research and design unconventional joint products according to customer requirements;
3. Without any explanation, production shall be carried out according to the enterprise standard requirements of our company;
4. special cable requirements, can be provided by the customer, by our company to process the injection molding on the waterproof joint.
