Моноблочный тепловой насос кондиционер домашний источник воздуха R32 Подогрев воды для водонагревателей
- Категория: Water Heaters >>>
- Поставщик: Baoding,Yuexin,Heating,And,Cooling,Equipment,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 2336.63 $* | 2383.64 $* |
| Jul-15-2025 | 1894.19 $* | 1932.54 $* |
| Jun-15-2025 | 2299.29 $* | 2345.75 $* |
| May-15-2025 | 2280.2 $* | 2326.39 $* |
| Apr-15-2025 | 1821.39 $* | 1857.19 $* |
| Mar-15-2025 | 2244.81 $* | 2289.21 $* |
| Feb-15-2025 | 2225.77 $* | 2270.52 $* |
| Jan-15-2025 | 2207.89 $* | 2251.53 $* |
Характеристики
Product Description

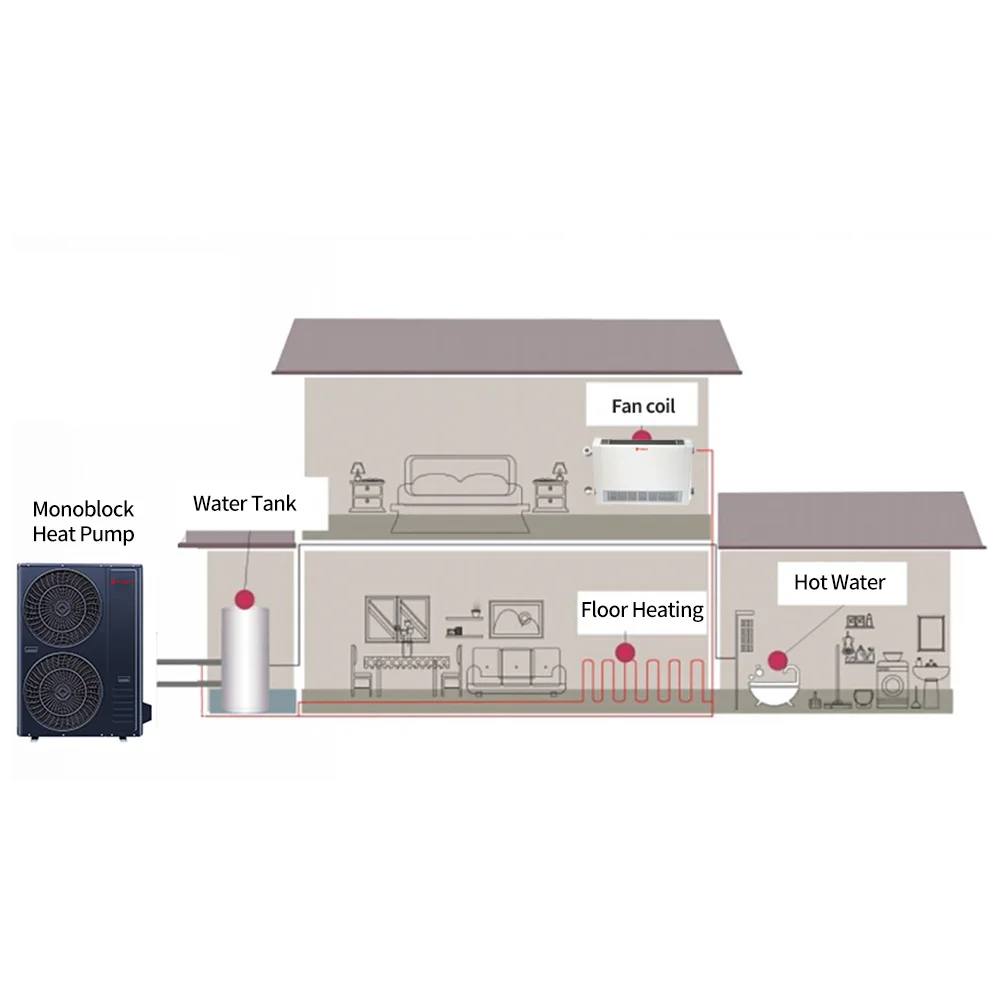

Features Of Monobloc Heat Pump
a.Monoblock design, easy to install,flexible and convenient.
b.Fashion design, compact structure,multiple sound insulation protection,low running noise.
c.Meet the cold area heating in winter,summer refrigeration and yearround domestic hot water demand.
b.Fashion design, compact structure,multiple sound insulation protection,low running noise.
c.Meet the cold area heating in winter,summer refrigeration and yearround domestic hot water demand.
Features Of Split Heat Pump
a.Split design, to meet the cold areas in winter (under 0 ℃)heating,summer refrigeration and domestic hot water demand all year round.
b.The indoor and outdoor units are connected by copper pipe, which is fashionable in design,,compact in structure， multiple sound insulation protection and low noise in operation.
c.Simple,flexible and convenient installation,indoorunit can be installed in the kitchen, bathroom or basement. Making sure to reduce energyloss can also prevent water pipes from freezing in the cold winter and
basking in the sun inthe hot summer.
basking in the sun inthe hot summer.

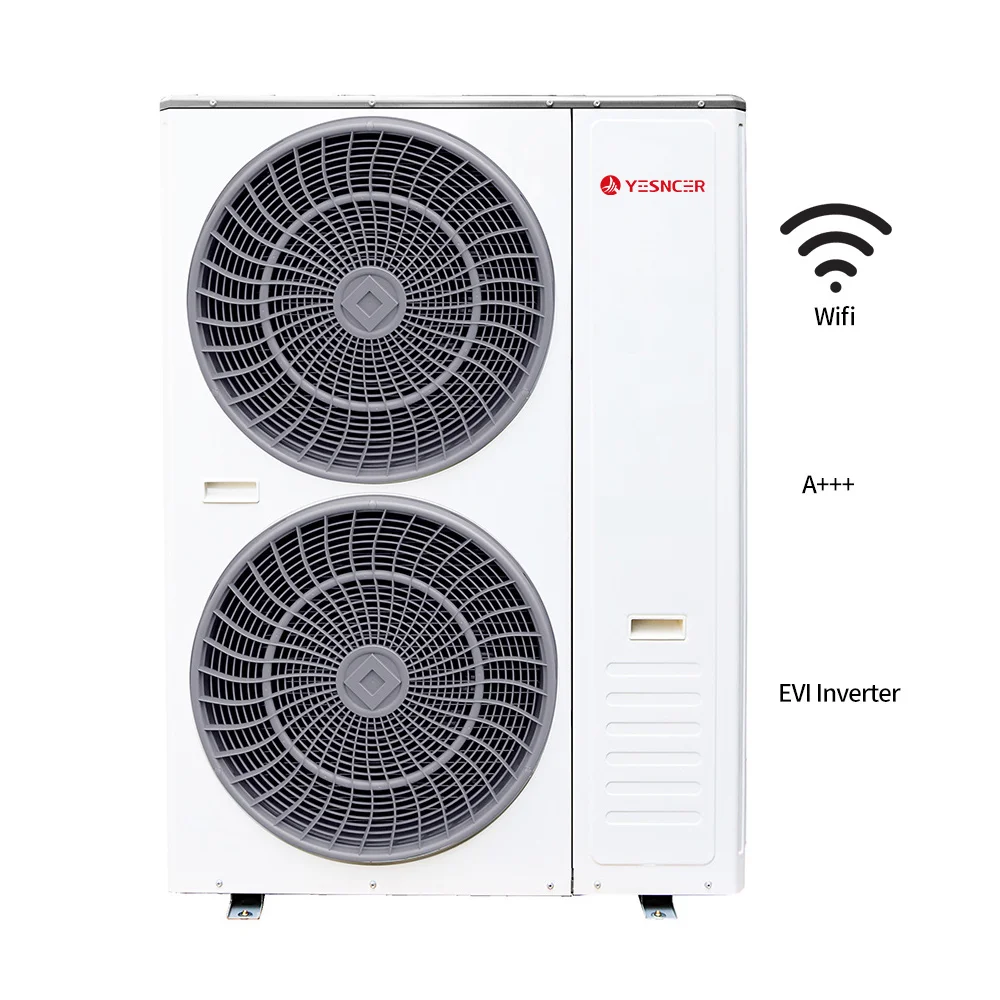

Details Images
EVI DC Inverter Compressor
The DC inverter technology in the Yesncer units reduces power consumption,which is related to the reduction of roomcooling and
heating costs.Its use translates to the quiet operation of the unit and faster achievement of the desired temperature, By using
durable and high-pressure resistant materials,the compressor in YESNCER heat pumps is extremely reliable. In addition, which is
why it can operate in extreme conditions in 24-hour mode and reach temperatures of up to 60 ℃。
heating costs.Its use translates to the quiet operation of the unit and faster achievement of the desired temperature, By using
durable and high-pressure resistant materials,the compressor in YESNCER heat pumps is extremely reliable. In addition, which is
why it can operate in extreme conditions in 24-hour mode and reach temperatures of up to 60 ℃。
DC Frequency Conversion Motor
DC inverter motor, according to the running state of the system, to achieve stepless speed regulation, reduce energy consumption.
Large diameter low noise fan blades reduce operating noise and ensure that the system is always in optimal condition.
Large diameter low noise fan blades reduce operating noise and ensure that the system is always in optimal condition.
DC Frequency Conversion Water Pump
DC frequency conversion efficient shielding type circulating water pump,high efficiency.the energy consumption is 20% lower than
the previous products, and the noise is 30% lower than the previous fixed frequency water pump,
quiet energy saving,to ensure the long-term use of the unit reliable operation.
the previous products, and the noise is 30% lower than the previous fixed frequency water pump,
quiet energy saving,to ensure the long-term use of the unit reliable operation.
DC drive plate
Intelligent IPM DC frequency conversion chip realizes the automatic adjustment and intelligent control of high and low frequency
operation of compressor and comprehensively improves the stability and high energy efficiency of the system.
operation of compressor and comprehensively improves the stability and high energy efficiency of the system.
Pressure Sensor
The Sensata Pressure Sensor, built with a ceramic core, is corrosion resistant, and the System pressure is converted into a signal
source to ensure stable operation of the system.
source to ensure stable operation of the system.
Specification
Remote control, the temperature is just right
Standard WiFi remote module, easy remote control 24 hours
Model Number | YMH-8 | YMH-10 | YMH-15 | |||||
Power Supply | V/Hz | 220-240/50 | 220-240/50 | 220-240/50 | ||||
ErP Level | 35℃ | A+++ | A+++ | A+++ | ||||
ErP Level | 55*C | A++ | A++ | A++ | ||||
Nominal Heating Capacity(A7℃/W 35℃) | kW | 8 | 10 | 15 | ||||
Heating (A7℃/6℃)(W30℃-35℃) | Heating Capacity Range | kW | 3.31-8.35 | 3.54-10.50 | 5.35-15.8 | |||
Heating Input Power Range | kW | 0.69-1.96 | 0.75-2.51 | 1.12-3.73 | ||||
COP Range | w/w | 4.78-4.25 | 4.72-4.18 | 4.76-4.24 | ||||
Heating (A7℃/6℃)(W50℃-55℃) | Heating Capacity Range | kW | 3.08-7.34 | 3.25-8.95 | 4.82-13.65 | |||
Heating Input Power Range | kW | 0.81-2.86 | 0.87-3.54 | 1.28-5.29 | ||||
COP Range | w/w | 3.82-2.57 | 3.74-2.53 | 3.78-2.58 | ||||
Hot Water (A20℃/15℃)(W15℃-55℃) | Heating Capacity Range | kW | 3.98-10.10 | 4.25-11.82 | 6.45-18.94 | |||
Heating Input Pow or Range | kW | 0.77-2.34 | 0.85-2.83 | 1.26-4.47 | ||||
COP Range | w/w | 5.15-4.32 | 5.02-4.17 | 5.10-4.24 | ||||
Cooling (A35℃/24℃)(W12℃-7℃) | Cooling Capacity Range | kW | 2.85-7.42 | 3.28-8.20 | 5.85-12.30 | |||
Cooling Input Power Range | kW | 0.93-2.78 | 1.10-3.24 | 1.89~4.52 | ||||
EER Range | w/w | 3.06-2.67 | 2.98-2.53 | 3.10-2.72 | ||||
Max.Rated Input Power | kW/h | 6.3 | 7.1 | 9.1 | ||||
Max.Pressure at high Pressure Side | Mpa | 4.2 | 4.2 | 4.2 | ||||
Max.Pressure at low Pressure Side | Mpa | 2.2 | 2.2 | 2.2 | ||||
Water Flow rate | m/h | 1.2 | 1.2 | 1.89 | ||||
Refrigerant Type/Input | kg | R32/1.5 | R32/15 | R32/2.3 | ||||
CO2 Equivalent | Tonnes | 1.02 | 1.02 | 1.56 | ||||
Compressor | Type | DC Inverter+EVI | ||||||
Fan Motor | Type | DC Inverter | ||||||
Water Pump | Type | DC Invertor | ||||||
Heating&Hot Water Temp | ℃ | 30-60 | ||||||
Outdoor Temperature limit | ℃ | -30 to 45° | ||||||
Indoor Unit | Auxilary Heating Power Input | kW | 3 | 3 | 3 | |||
Water Connection | Inch | 1.2/DN32 | 1.2/DN32 | 1.2/DN32 | ||||
Copper Pipe Connection | Inch | 3/8+5/8 | 3/8+5/8 | 1/2+3/4 | ||||
Noise Leve | Db(A) | 32 | 32 | 32 | ||||
Net Weight | kg | 46 | 47 | 50 | ||||
Net Dimension(L*W*H) | mm | 550*430*800 | 590*430*890 | 550*430*800 | ||||
Outdoor Unit | Noise Level | dB(A) | 55 | 55 | 57 | |||
Net Weight | kg | 69 | 75 | 102 | ||||
Net Dimension(L*W*H) | mm | 1000x390x860 | 1000x390x860 | 1000x390x1380 | ||||
Packing & Delivery
There are three options for packaging
The first:carton(normal)
Second:Foam film(optional)
Third:Customizable packaging (optional)
The first:carton(normal)
Second:Foam film(optional)
Third:Customizable packaging (optional)
Company Profile
Baoding Yuexin Heating & Cooling is the manufacturer of air source heat pumps(ASHP), air-cooled chillers, water-cooled chillers, rooftop packaged ac units, fan coil units, air handling units, etc.
Our advantages:
Strong R&D capability, Provide OEM/ODM service
10+ years of experience
24-hour online service
Our products are exported to Europe, the Middle East, North America, Australia, Southeast Asia, and other countries and regions.
Please trust us. We hope to achieve a win-win situation with you.
Our advantages:
Strong R&D capability, Provide OEM/ODM service
10+ years of experience
24-hour online service
Our products are exported to Europe, the Middle East, North America, Australia, Southeast Asia, and other countries and regions.
Please trust us. We hope to achieve a win-win situation with you.
Exhibition

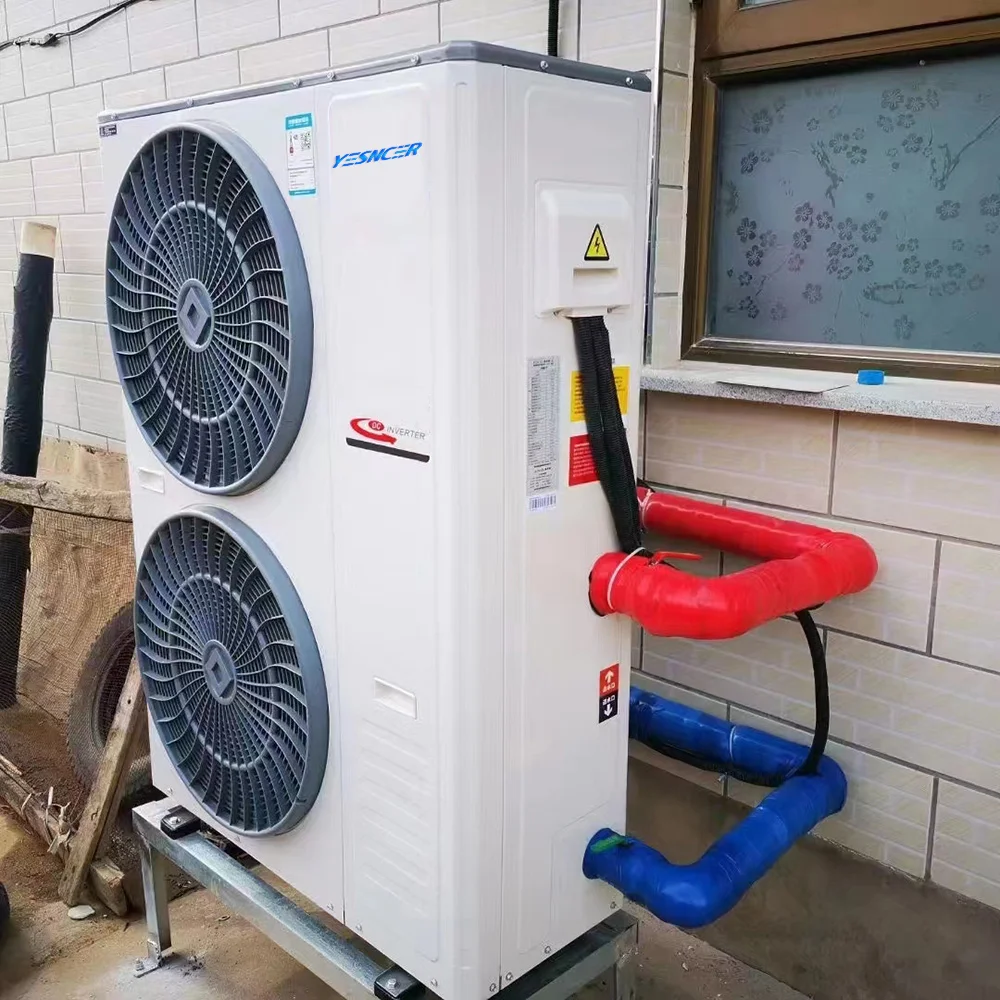

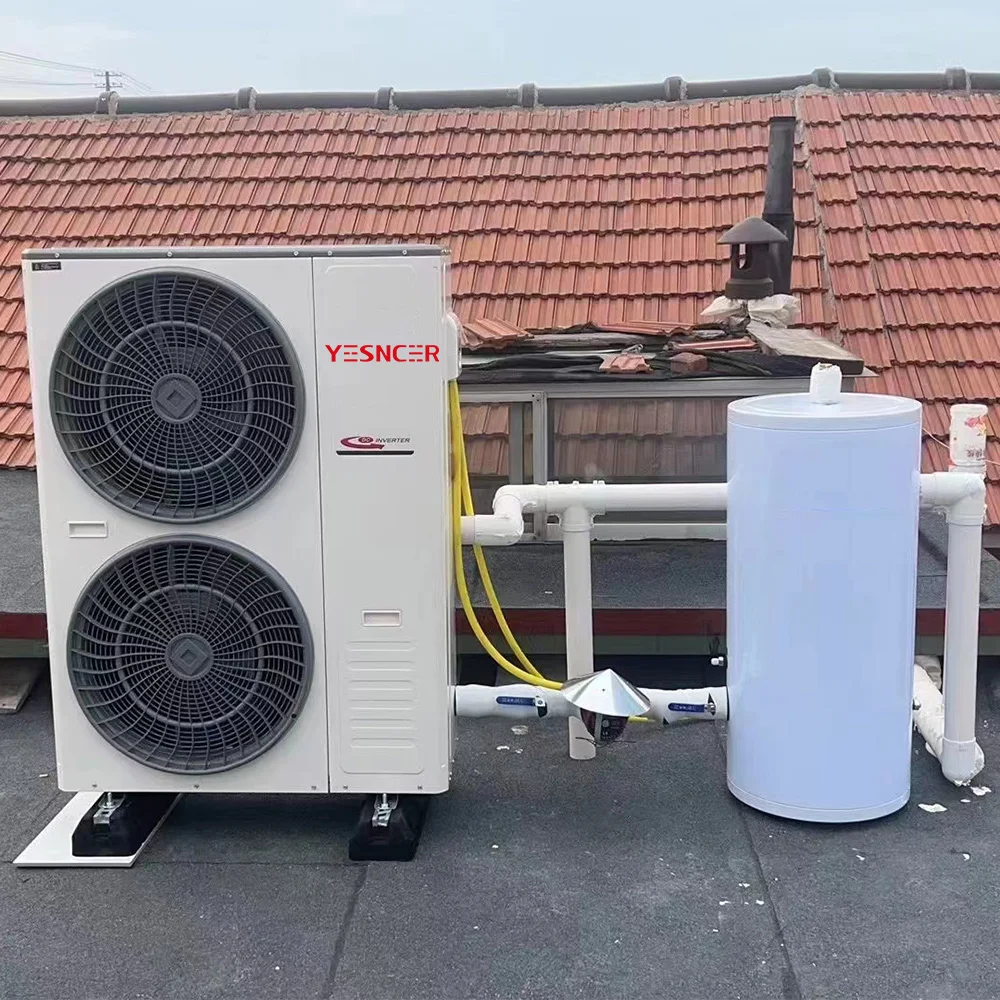

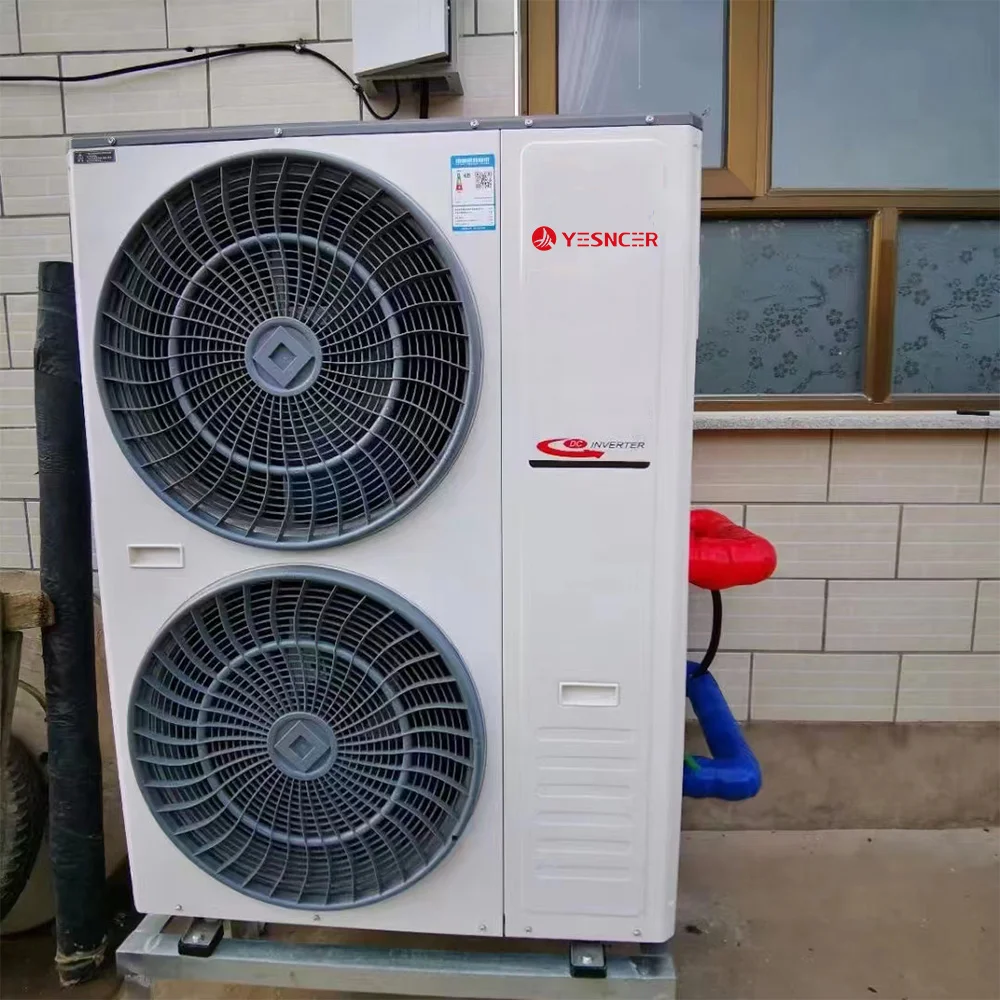

Customer Photos
FAQ
1. who are we?
We are based in Hebei, China, start from 2013,sell to Domestic Market(35.00%),Mid East(15.00%),North America(10.00%),Oceania(8.00%),Southern Europe(7.00%),Northern Europe(5.00%),Western Europe(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%),Central America(2.00%),Africa(2.00%),South America(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air Conditioners,Water chiller,Rooftop Packaged Unit,Air Source Heat Pump,Fan Coil Unit
4. why should you buy from us not from other suppliers?
We have more than 10 years of manufacturing experience and focus on technological innovation.Independently master the core technology, OEM service air-conditioning supporting solutions,100% purchase inspection of important components to 100% product safety
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
We are based in Hebei, China, start from 2013,sell to Domestic Market(35.00%),Mid East(15.00%),North America(10.00%),Oceania(8.00%),Southern Europe(7.00%),Northern Europe(5.00%),Western Europe(5.00%),Southeast Asia(5.00%),Eastern Europe(5.00%),Central America(2.00%),Africa(2.00%),South America(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air Conditioners,Water chiller,Rooftop Packaged Unit,Air Source Heat Pump,Fan Coil Unit
4. why should you buy from us not from other suppliers?
We have more than 10 years of manufacturing experience and focus on technological innovation.Independently master the core technology, OEM service air-conditioning supporting solutions,100% purchase inspection of important components to 100% product safety
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
