8CH PoE коммутатор 8-портовый ethernet для
- Категория: Network Switches >>>
- Поставщик: Shenzhen,Joney,Security,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 29.53 $* | 30.42 $* |
| Aug-15-2025 | 28.13 $* | 29.94 $* |
| Jul-15-2025 | 24.85 $* | 25.5 $* |
| Jun-15-2025 | 28.28 $* | 29.43 $* |
| May-15-2025 | 24.38 $* | 25.64 $* |
| Apr-15-2025 | 27.51 $* | 28.2 $* |
| Mar-15-2025 | 27.53 $* | 28.34 $* |
| Feb-15-2025 | 27.89 $* | 28.33 $* |
| Jan-15-2025 | 27.78 $* | 28.27 $* |
Характеристики
8CH PoE Switch 8 port POE ethernet switch network switches For Office Building
Specification
Standards | IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet |
PoE Spec | PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity PoE over current protection PoE circuit sorting protection PoE Power Output: Per Port 54V DC, Max. 30 watts (IEEE 802.3af/at) Power Budget: Max. 96W Power Pin Assignment: 1/2(+), 3/6(-) |
Transmission Media | 10 BaseT Cat 3,4,5 UTP/STP 100M BaseTx CAT 5 UTP/STP |
Filtering/Forwarding Rates | 100Mbps port-148,000pps 10Mbps port-14,880pps |
LED Indicators | Per Port: Link/Act(Green), Power:PWR(Green) |
Network Interface | 8 x 10/100Mbps RJ-45 PoE 1~8 Ports 2 x 10/100Mbps RJ-45 Uplink 9~10 Ports |
Power Input | Input: 100~240V/AC, 50~60 Hz, 2A Internal Power Supply |
Power Consumption | 96Watts(Max) |
Extend/ON | 1~4Port 10Mbps POE+Vlan 250M ;5~10Port 10/100Mbps |
Dimensions: (L x W x H) / Weight | 185*123*44mm / 1100g |
temperature | Operating: -5 ~ 45°C Storage: -20~70°C Humidity: 10~90%, Non-condensing |
Certifications | CE/FCC |
Product Overview

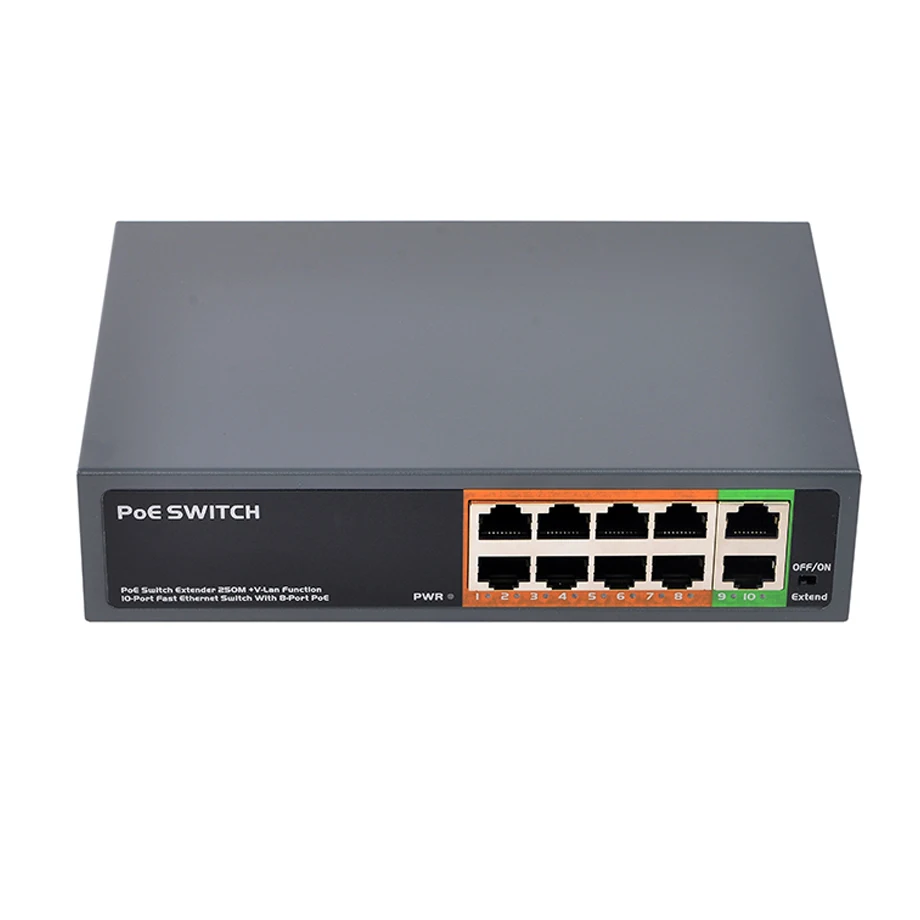

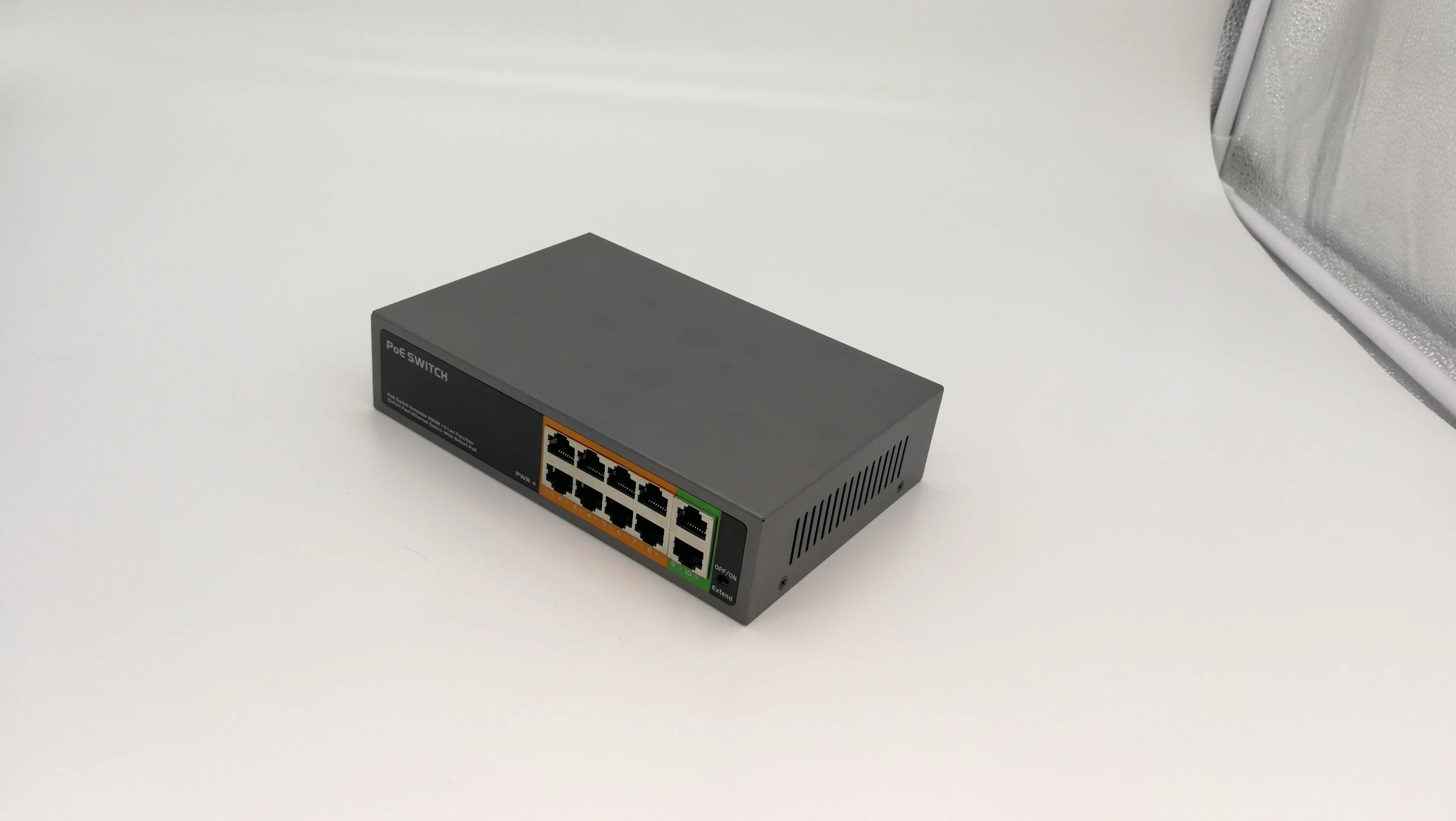

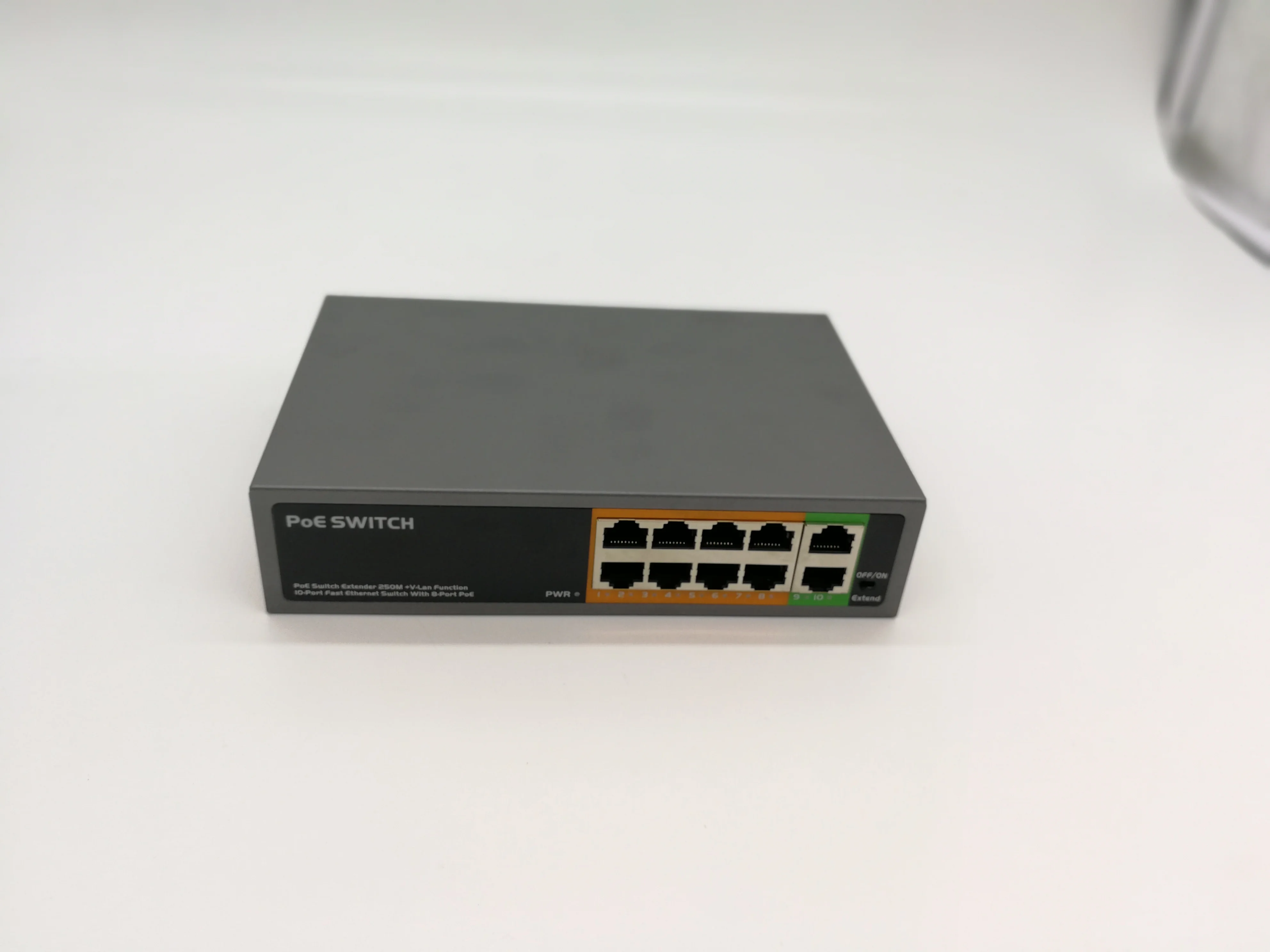

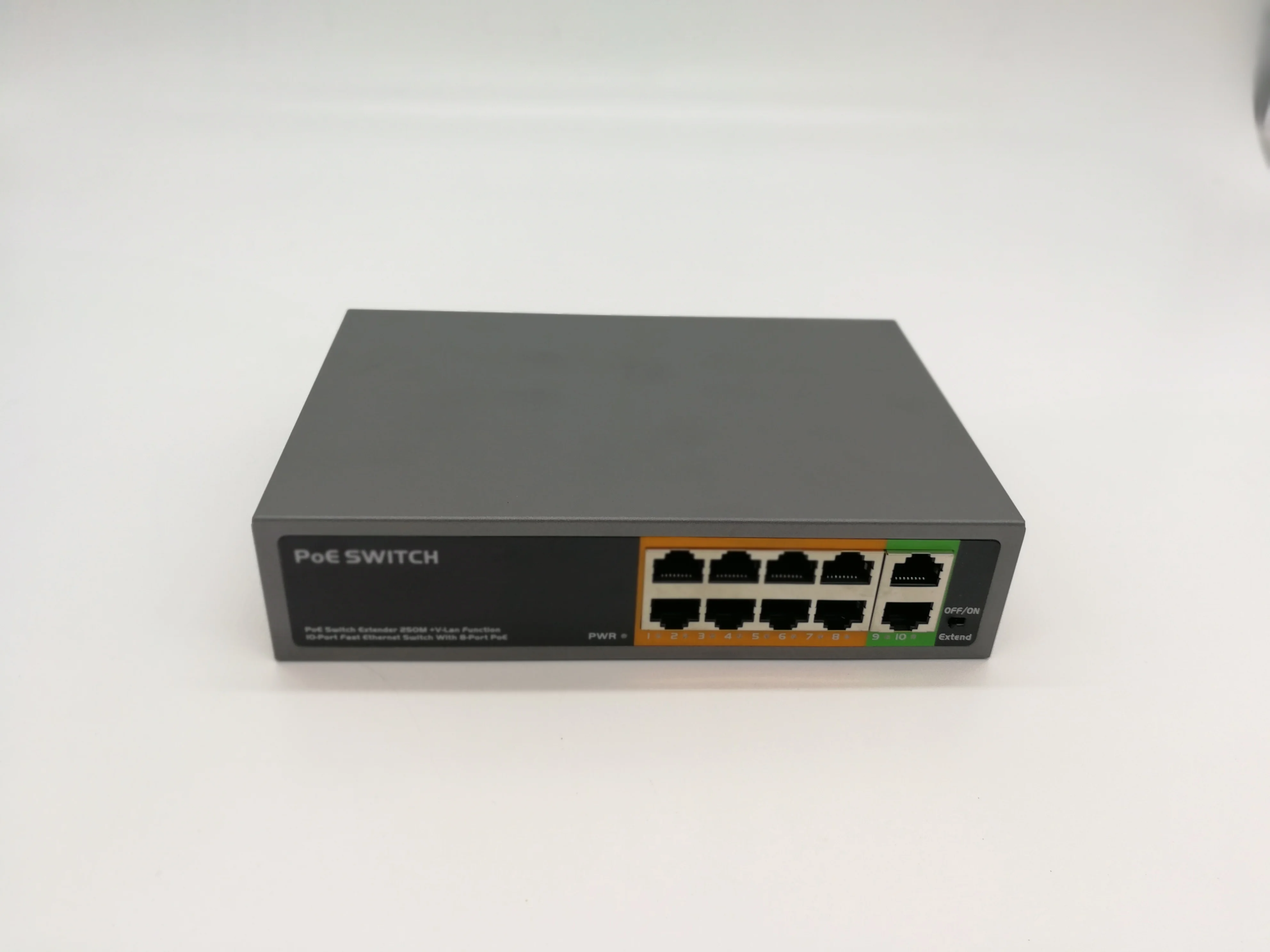

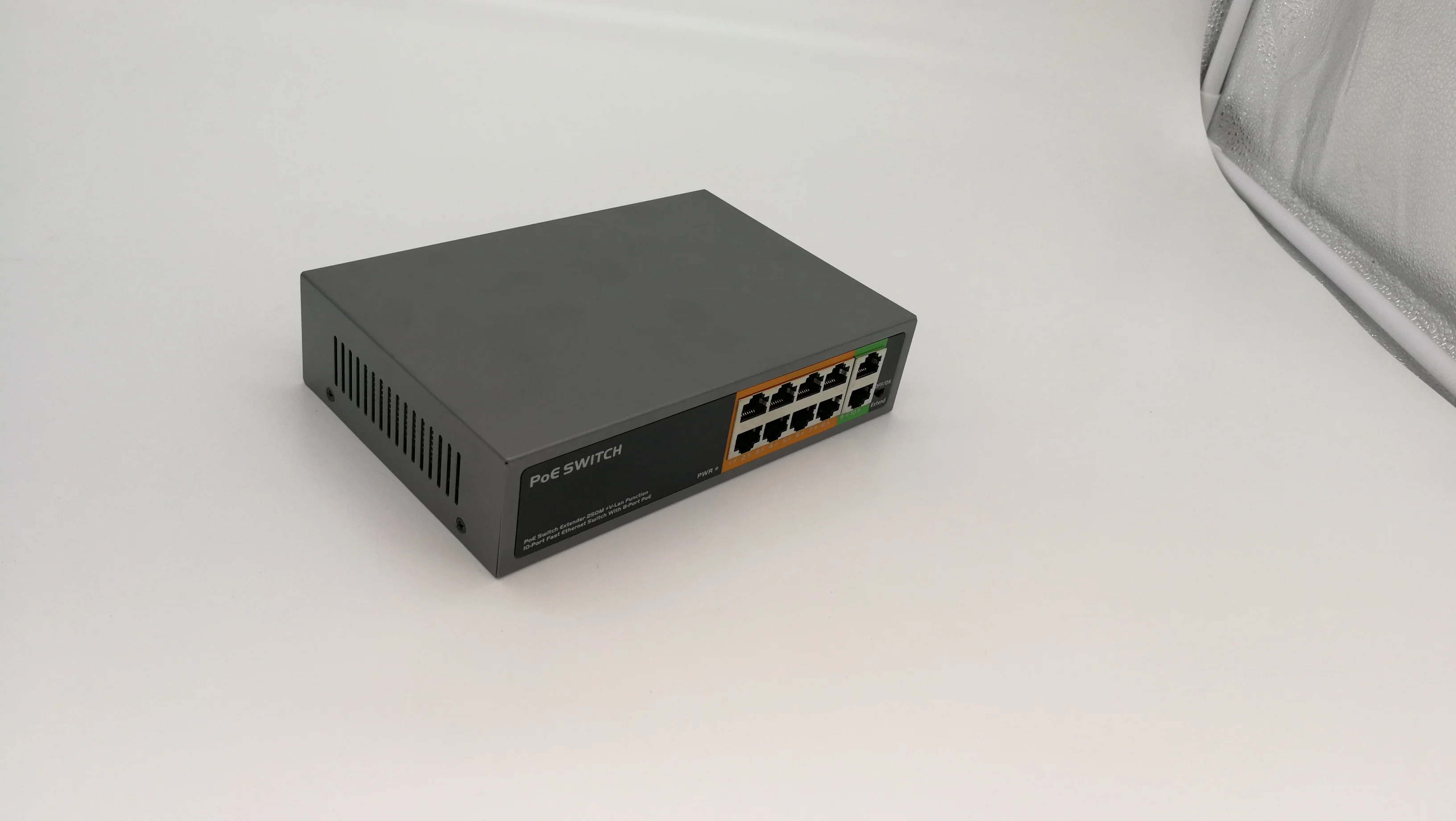

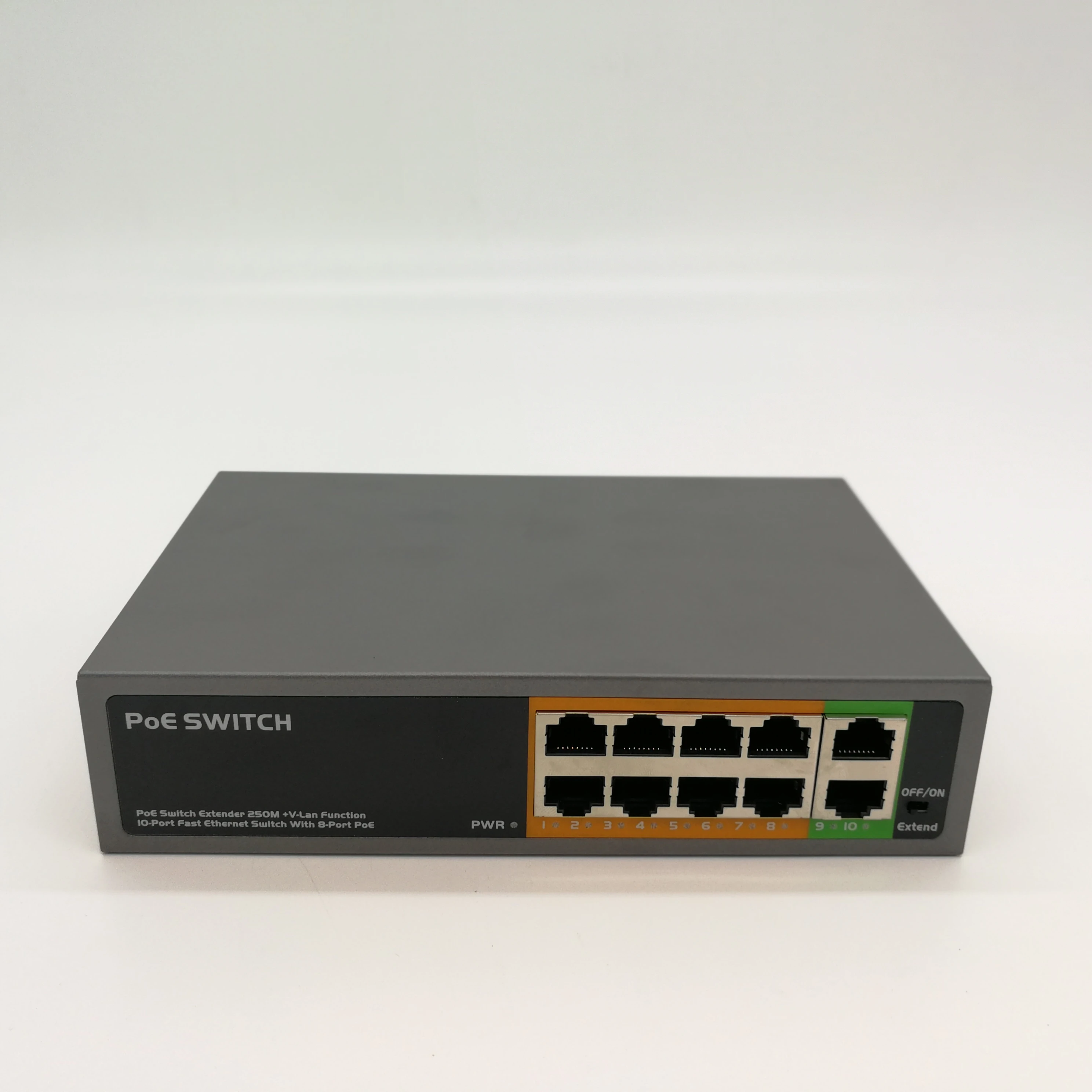

The PoE Switch PSE108EX provides 2 x 10/100Mbps and 8 x 10/100Mbps PoE Plus ports. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 96W, up to 30W per port. , which provides convenient and flexible installation. The PSE108EX is designed for small businesses that prefer an affordable solution for PoE deploying infrastructure.
Cost Effectiveness And Enhanced Flexibility
Featuring Power over Ethernet , which nearly doubles the power delivery comparing to the IEEE 802.3af/at PoE technology. Furthermore, it ensures that the power is used more efficiently due to the maximum power will only be requested when it is needed. Thus providing great cost savings by reducing power bills and eliminating the need for additional power cables and outlets.
Key Features
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x flow control protects against lost packets for reliable data transmission
- Simple Plug and Play installation
- switch Extend ,1-4Port V-Lan on; 5E cat Cable Distance 250M;Data Rate 10Mbps
- Total PoE power budget: 96W, up to 30W per port
- Compact Design Fits Easily in WLAN Access
- Easy installation and maintenance
-4KV common mode differential mode lightning protection
The PoE Switch PSE108EX provides 2 x 10/100Mbps and 8 x 10/100Mbps PoE Plus ports. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 96W, up to 30W per port. , which provides convenient and flexible installation. The PSE108EX is designed for small businesses that prefer an affordable solution for PoE deploying infrastructure.
Cost Effectiveness And Enhanced Flexibility
Featuring Power over Ethernet , which nearly doubles the power delivery comparing to the IEEE 802.3af/at PoE technology. Furthermore, it ensures that the power is used more efficiently due to the maximum power will only be requested when it is needed. Thus providing great cost savings by reducing power bills and eliminating the need for additional power cables and outlets.
Key Features
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x flow control protects against lost packets for reliable data transmission
- Simple Plug and Play installation
- switch Extend ,1-4Port V-Lan on; 5E cat Cable Distance 250M;Data Rate 10Mbps
- Total PoE power budget: 96W, up to 30W per port
- Compact Design Fits Easily in WLAN Access
- Easy installation and maintenance
-4KV common mode differential mode lightning protection
