Китайский гусеничный экскаватор 21 тонна 22 тонны
- Категория: Earth-moving Machinery >>>
- Поставщик: Shandong,Youtop,Machinery,Co.,Ltd.Shandong,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 80920.30 $* | 84966.22 $* |
| Aug-16-2025 | 80240.71 $* | 84252.38 $* |
| Jul-16-2025 | 67320.16 $* | 70686.2 $* |
| Jun-16-2025 | 78880.61 $* | 82824.59 $* |
| May-16-2025 | 68680.76 $* | 72114.60 $* |
| Apr-16-2025 | 77520.22 $* | 81396.85 $* |
| Mar-16-2025 | 76840.44 $* | 80682.77 $* |
| Feb-16-2025 | 76160.50 $* | 79968.53 $* |
| Jan-16-2025 | 75480.10 $* | 79254.28 $* |
Характеристики
Products Description

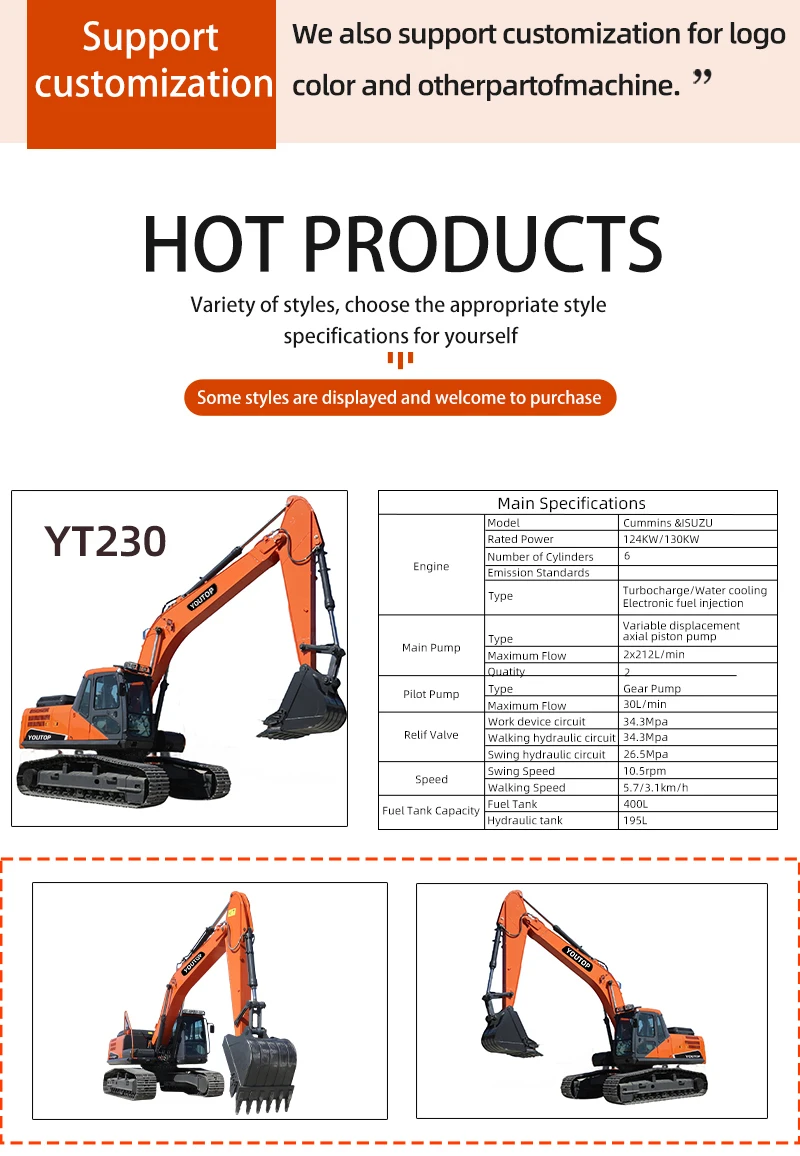

YT230 Excavator | ||||||||||
Main Specifications | Technical Parameter | |||||||||
Engine | Model | Cummins &ISUZU | Boom length | mm | 5700 | |||||
Rated Power | 124KW/130KW | Stick length | mm | 2900 | ||||||
Number of Cylinders | 6 | Max.digging reach | mm | 9873 | ||||||
Emission Standards | Max. digging reach at ground | mm | 9699 | |||||||
Type | Turbocharge/Water cooling/Electronic fuel injection | Max. digging depth | mm | 6592 | ||||||
main Pump | Type | Variable displacement axial piston pump | Max.loading height | mm | 6830 | |||||
Maximum Flow | 2x212L/min | Min.loading height | mm | 2501 | ||||||
Quatity | 2 | Max.digging height | mm | 9616 | ||||||
Pilot Pump | Type | Gear Pump | Max.height of bucket pin | mm | 8274 | |||||
Maximum Flow | 30L/min | Max.vertical digging depth | mm | 3929 | ||||||
Relif Valve | Work device circuit | 34.3Mpa | Max.vertical radius | mm | 7988 | |||||
Walking hydraulic circuit | 34.3Mpa | Min.digging reach | mm | 562 | ||||||
Swing hydraulic circuit | 26.5Mpa | Min.turning radius | mm | 3560 | ||||||
Speed | Swing Speed | 10.5rpm | Bucket digging force | KN | 149 | |||||
Walking Speed | 5.7/3.1km/h | Stick digging force | KN | 105 | ||||||
Fuel Tank Capacity | Fuel Tank | 400L | ||||||||
Hydraulic tank | 195L | |||||||||
Dimensions | ||||
Transport height (to the top of boom) | mm | 2950 | ||
Transport height (to the top of pipe) | mm | 3065 | ||
Transport length | mm | 9506 | ||
Transport width | mm | 3000 | ||
Tail Turning Radius | mm | 2794 | ||
Counterweight ground clearance | mm | 1096 | ||
Total height (to the top of cab) | mm | 2985 | ||
Width of rotary table | mm | 2870 | ||
Height of Cab (above table) | mm | 832 | ||
Width of Cab | mm | 1008 | ||
Center distance between guide wheel and driving wheel | mm | 3650 | ||
Track length | mm | 4440 | ||
Width | mm | 3000 | ||
Track width | mm | 600 | ||
Track height | mm | 950 | ||
Min.ground clearance | mm | 475 | ||
We have 800 KG to 40 Ton excavator with roof or cabin or air conditioner to choose, and some part of the machine have option,
Please contact us to get more information!
Product Paramenters

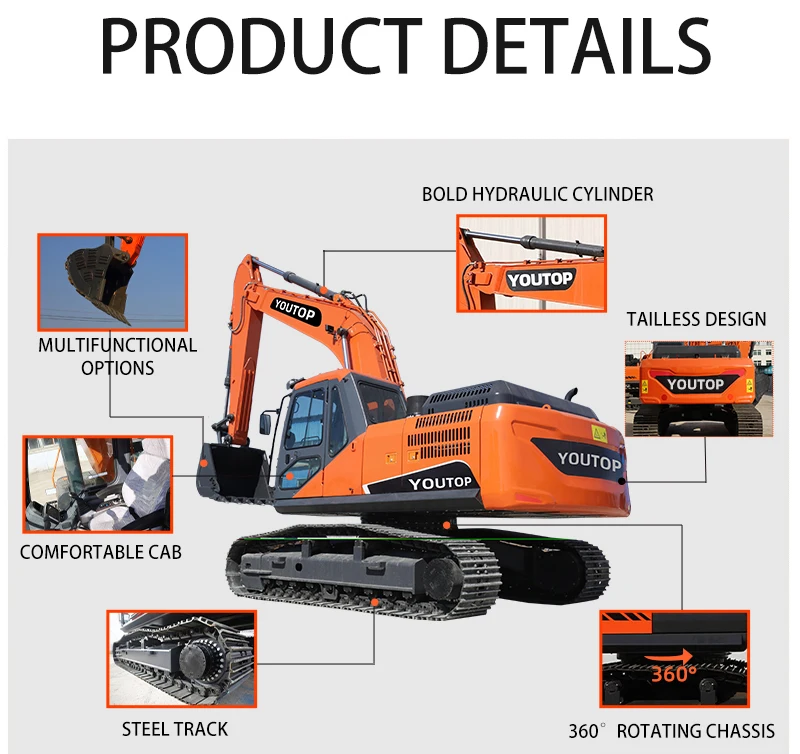

Details Images
Company Profile
Customer Photos
Certifications
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
What spare parts can you supply?
Provide parts for youtop.
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia, UAE, Jordan, Oman, Syria, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Cuba, Venezuela, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
What spare parts can you supply?
Provide parts for youtop.
