Самая дешевая экскаваторная машина 6 тонн 15 23 тонны 30 40 Колесные Гусеничные экскаваторы для продажи
- Категория: Earth-moving Machinery >>>
- Поставщик: Shandong,Youtop,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 83300.98 $* | 87465.40 $* |
| Aug-17-2025 | 82600.93 $* | 86730.66 $* |
| Jul-17-2025 | 69300.55 $* | 72765.0 $* |
| Jun-17-2025 | 81200.71 $* | 85260.0 $* |
| May-17-2025 | 70700.31 $* | 74235.15 $* |
| Apr-17-2025 | 79800.7 $* | 83790.24 $* |
| Mar-17-2025 | 79100.72 $* | 83055.58 $* |
| Feb-17-2025 | 78400.41 $* | 82320.3 $* |
| Jan-17-2025 | 77700.45 $* | 81585.75 $* |
Характеристики
Product Overview
Product Paramenters

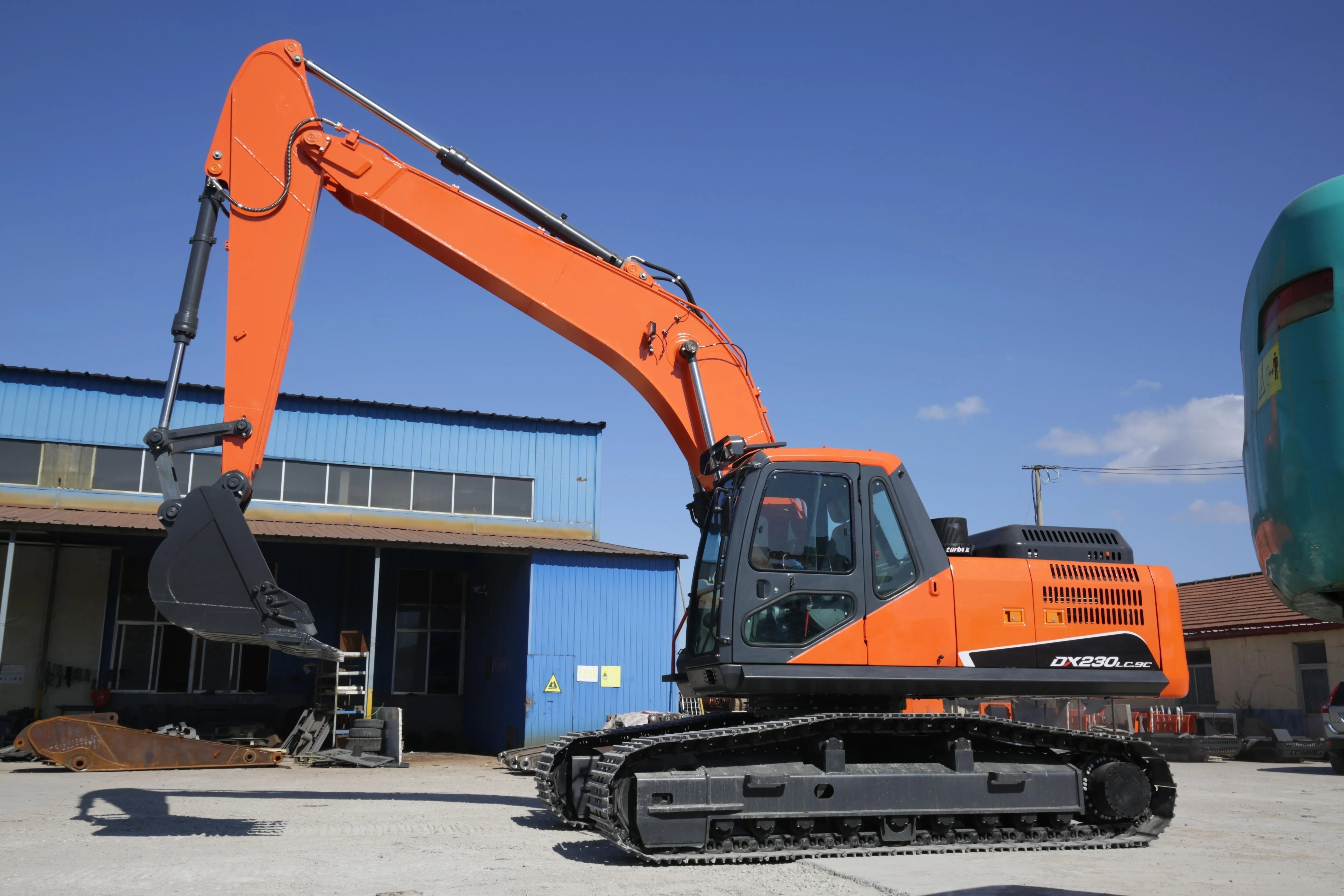

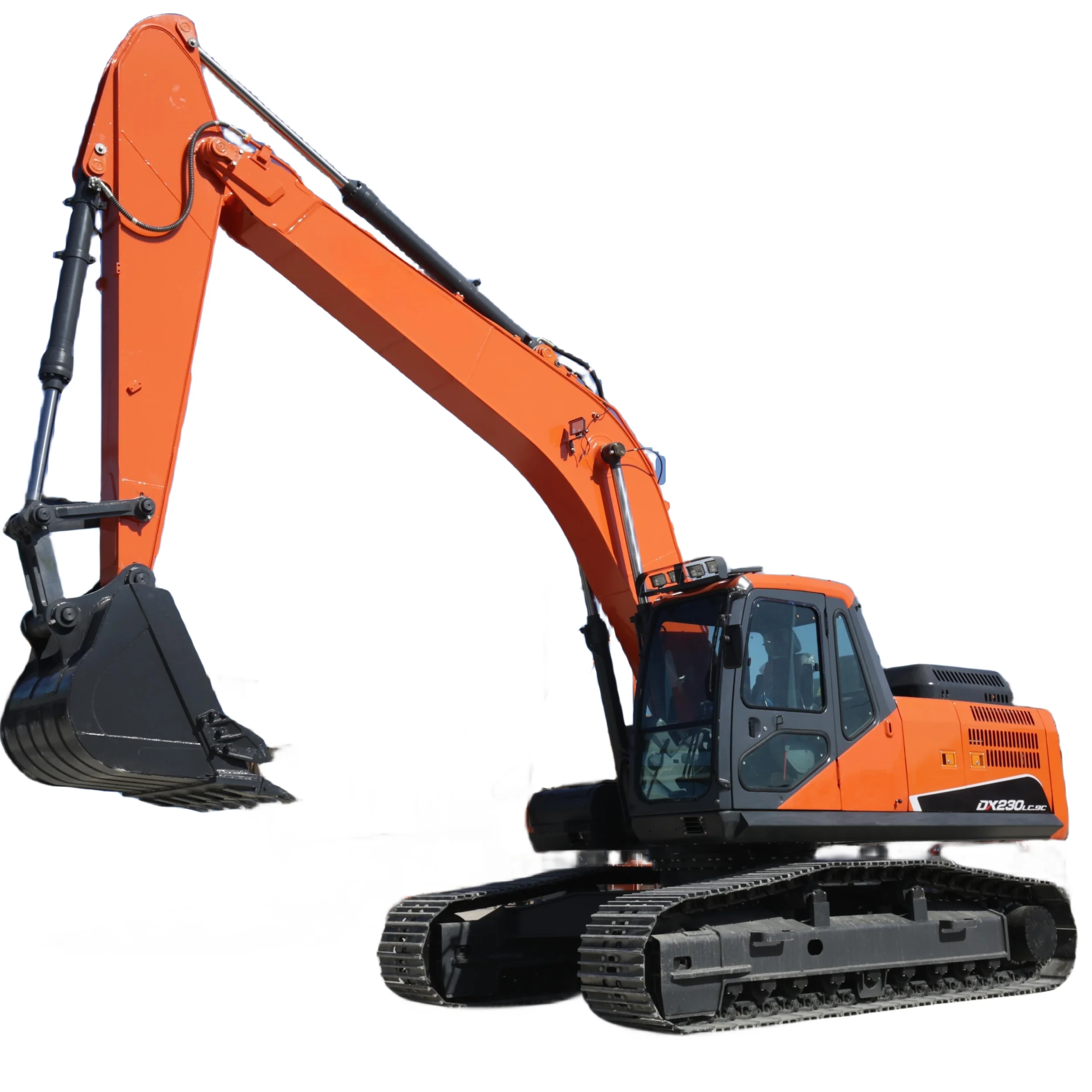

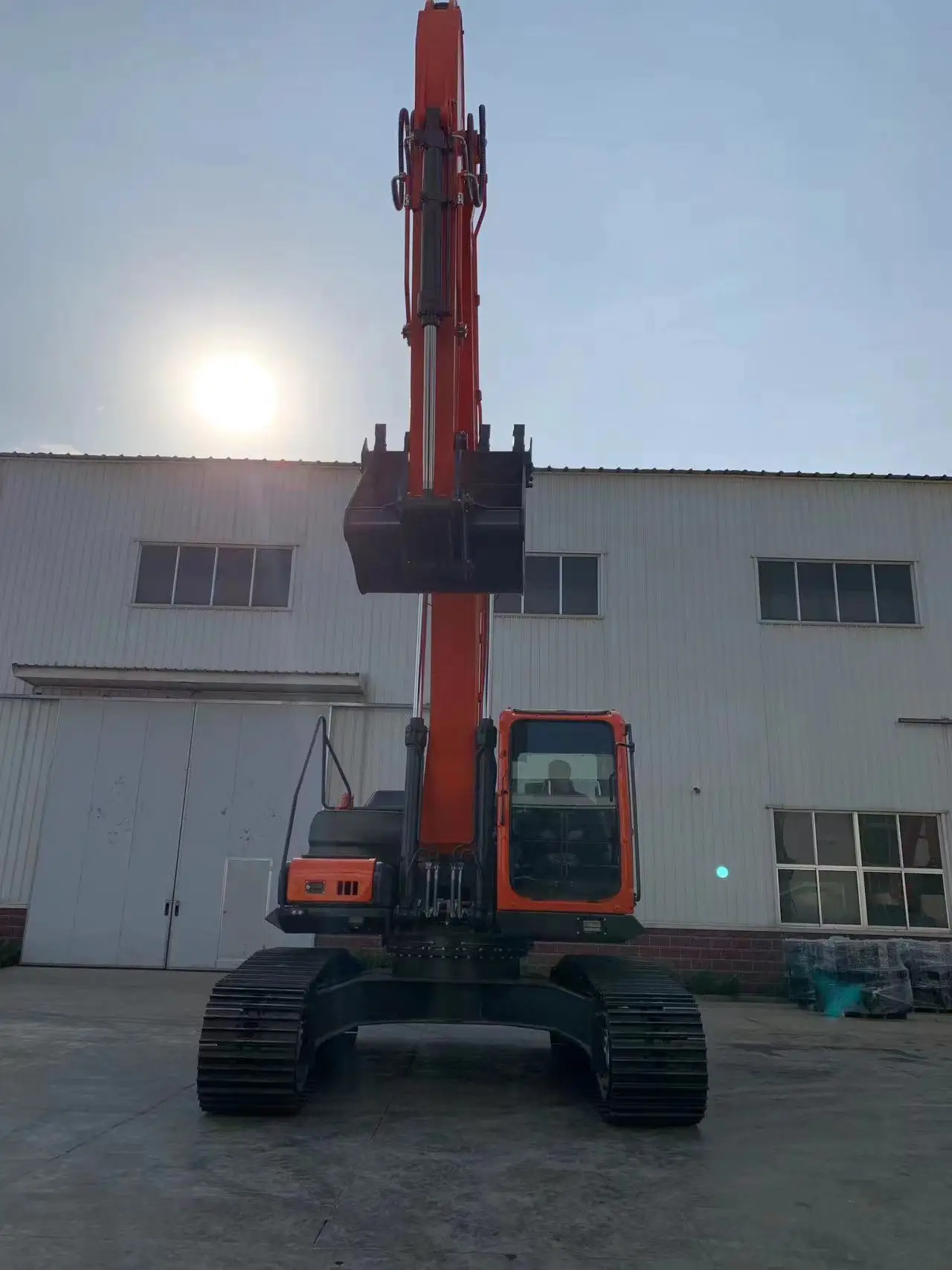

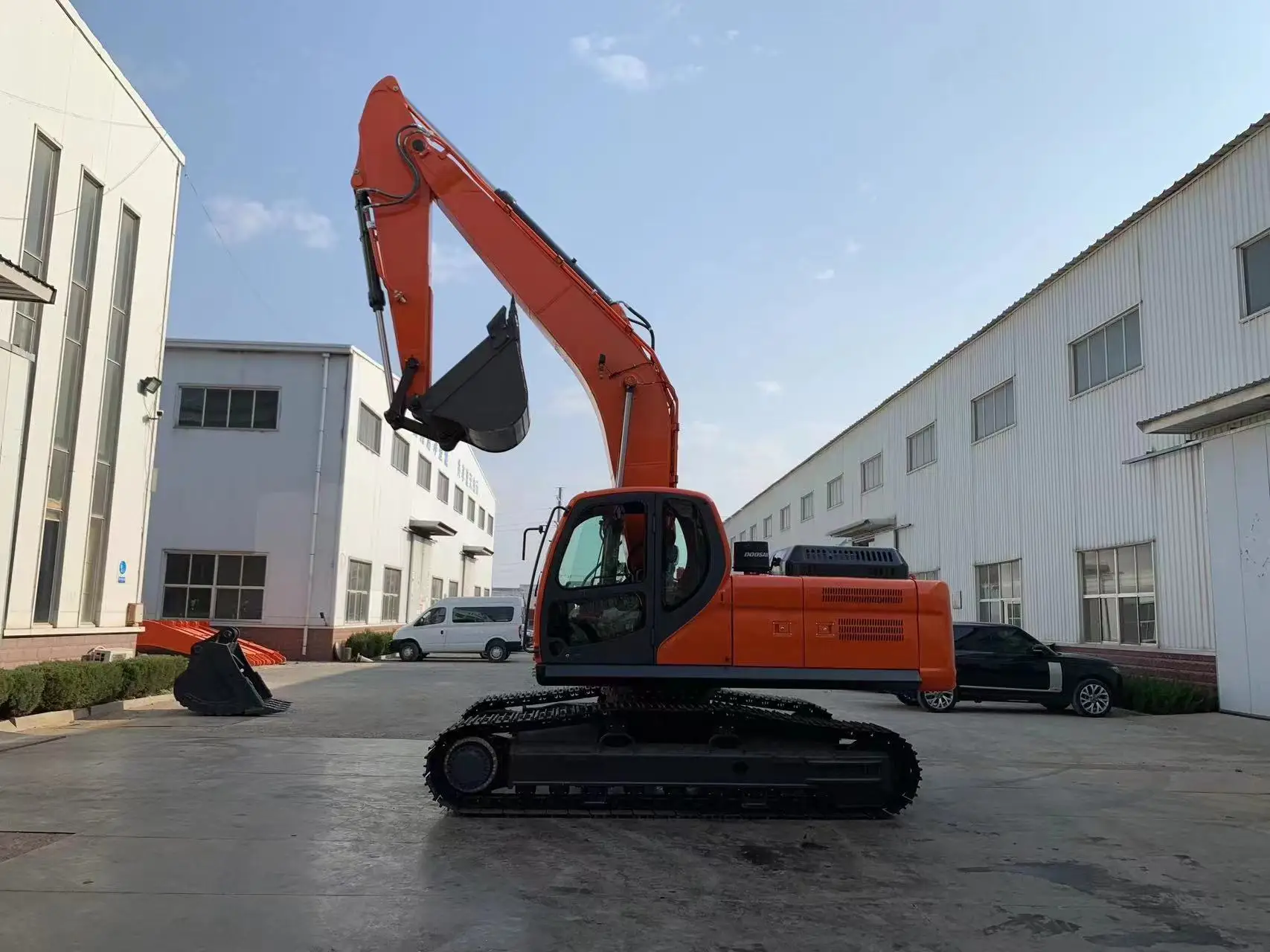

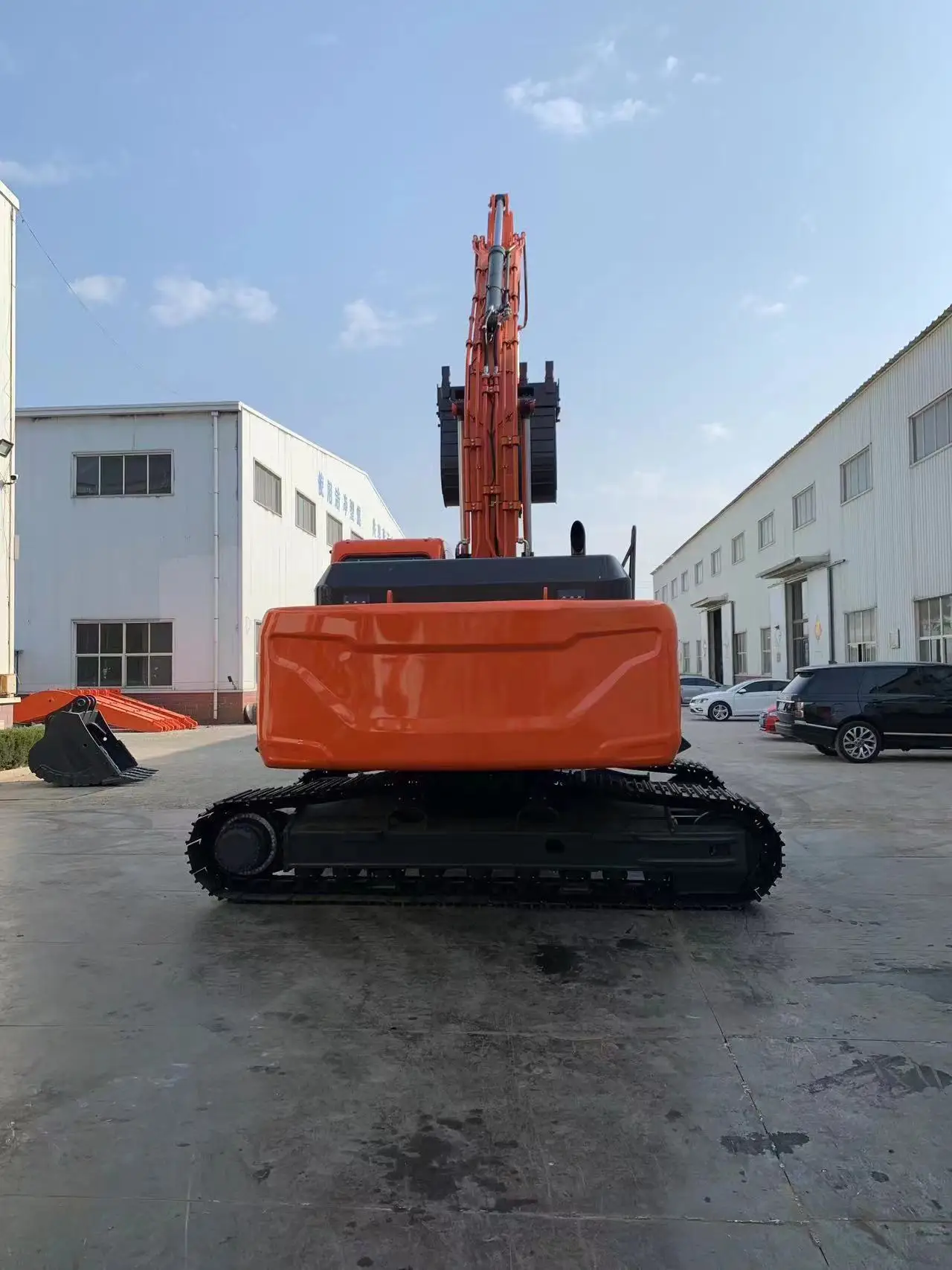

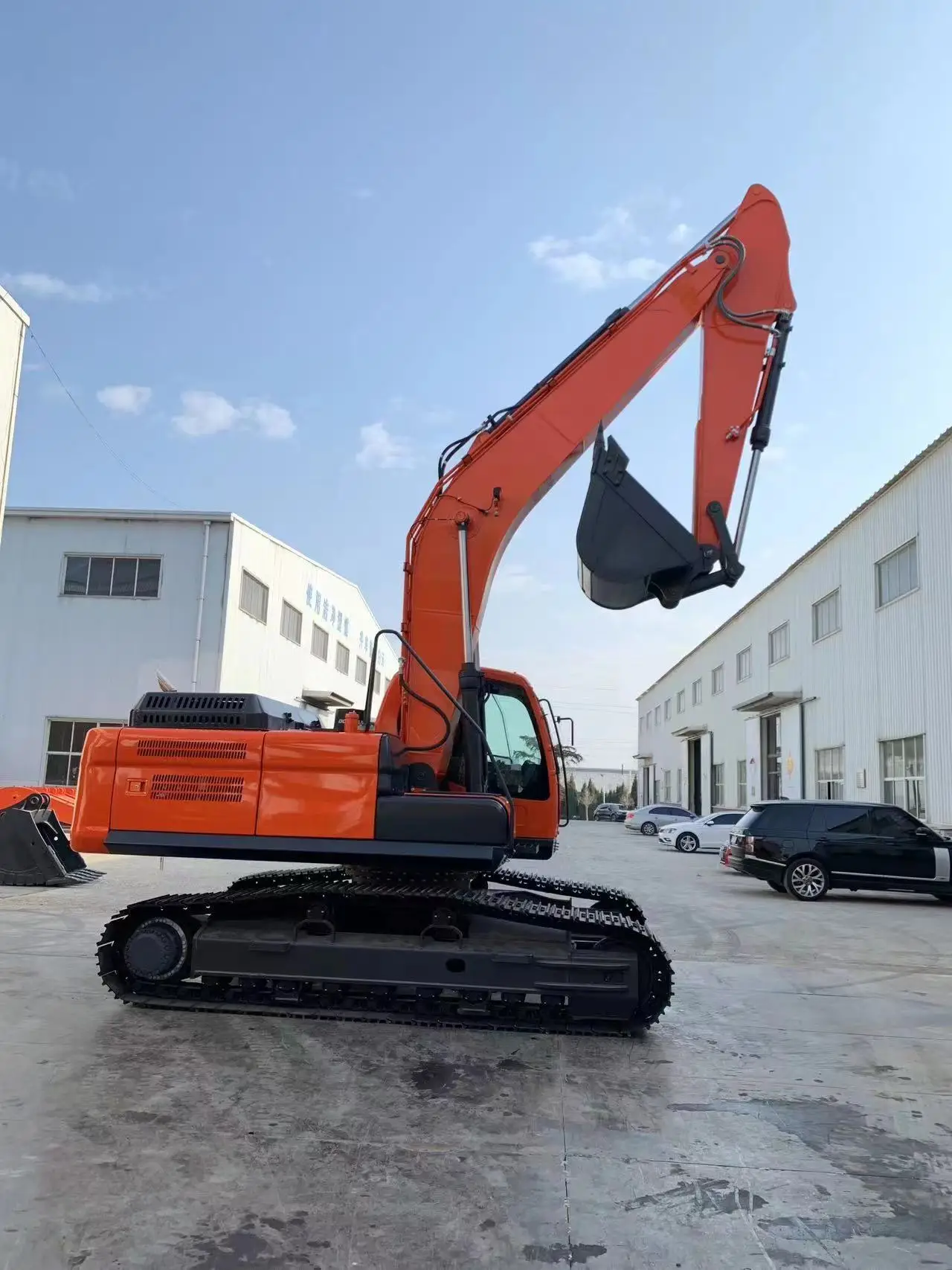

YT230 Excavator | ||||||||||
Main Specifications | Technical Parameter | |||||||||
Engine | Model | Cummins &ISUZU | Boom length | mm | 5700 | |||||
Rated Power | 124KW/130KW | Stick length | mm | 2900 | ||||||
Number of Cylinders | 6 | Max.digging reach | mm | 9873 | ||||||
Emission Standards | Max. digging reach at ground | mm | 9699 | |||||||
Type | Turbocharge/Water cooling/Electronic fuel injection | Max. digging depth | mm | 6592 | ||||||
main Pump | Type | Variable displacement axial piston pump | Max.loading height | mm | 6830 | |||||
Maximum Flow | 2x212L/min | Min.loading height | mm | 2501 | ||||||
Quatity | 2 | Max.digging height | mm | 9616 | ||||||
Pilot Pump | Type | Gear Pump | Max.height of bucket pin | mm | 8274 | |||||
Maximum Flow | 30L/min | Max.vertical digging depth | mm | 3929 | ||||||
Relif Valve | Work device circuit | 34.3Mpa | Max.vertical radius | mm | 7988 | |||||
Walking hydraulic circuit | 34.3Mpa | Min.digging reach | mm | 562 | ||||||
Swing hydraulic circuit | 26.5Mpa | Min.turning radius | mm | 3560 | ||||||
Speed | Swing Speed | 10.5rpm | Bucket digging force | KN | 149 | |||||
Walking Speed | 5.7/3.1km/h | Stick digging force | KN | 105 | ||||||
Fuel Tank Capacity | Fuel Tank | 400L | ||||||||
Hydraulic tank | 195L | |||||||||
Dimensions | ||||||||||
Transport height (to the top of boom) | mm | 2950 | ||||||||
Transport height (to the top of pipe) | mm | 3065 | ||||||||
Transport length | mm | 9506 | ||||||||
Transport width | mm | 3000 | ||||||||
Tail Turning Radius | mm | 2794 | ||||||||
Counterweight ground clearance | mm | 1096 | ||||||||
Total height (to the top of cab) | mm | 2985 | ||||||||
Width of rotary table | mm | 2870 | ||||||||
Height of Cab (above table) | mm | 832 | ||||||||
Width of Cab | mm | 1008 | ||||||||
Center distance between guide wheel and driving wheel | mm | 3650 | ||||||||
Track length | mm | 4440 | ||||||||
Width | mm | 3000 | ||||||||
Track width | mm | 600 | ||||||||
Track height | mm | 950 | ||||||||
Min.ground clearance | mm | 475 | ||||||||
We have 800 KG to 40 Ton excavator with roof or cabin or air conditioner to choose, and some part of the machine have option, contact us to get more information! WhatsApp: +8613332487466
We have various attachments to choose, can help you do different works, please kindly contact WhatsApp: +8613332487466 to get more options
Company Profile
Product packaging
