Очиститель и очиститель воздуха Hvac система рекуперации тепла вентиляция для
- Категория: Ventilation Fans >>>
- Поставщик: Sichuan,Guigu,Renju,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 558.69 $* | 569.28 $* |
| Jul-18-2025 | 452.29 $* | 461.92 $* |
| Jun-18-2025 | 549.60 $* | 560.80 $* |
| May-18-2025 | 544.22 $* | 555.93 $* |
| Apr-18-2025 | 435.25 $* | 444.92 $* |
| Mar-18-2025 | 536.45 $* | 547.34 $* |
| Feb-18-2025 | 531.98 $* | 542.75 $* |
| Jan-18-2025 | 527.44 $* | 538.90 $* |
Характеристики

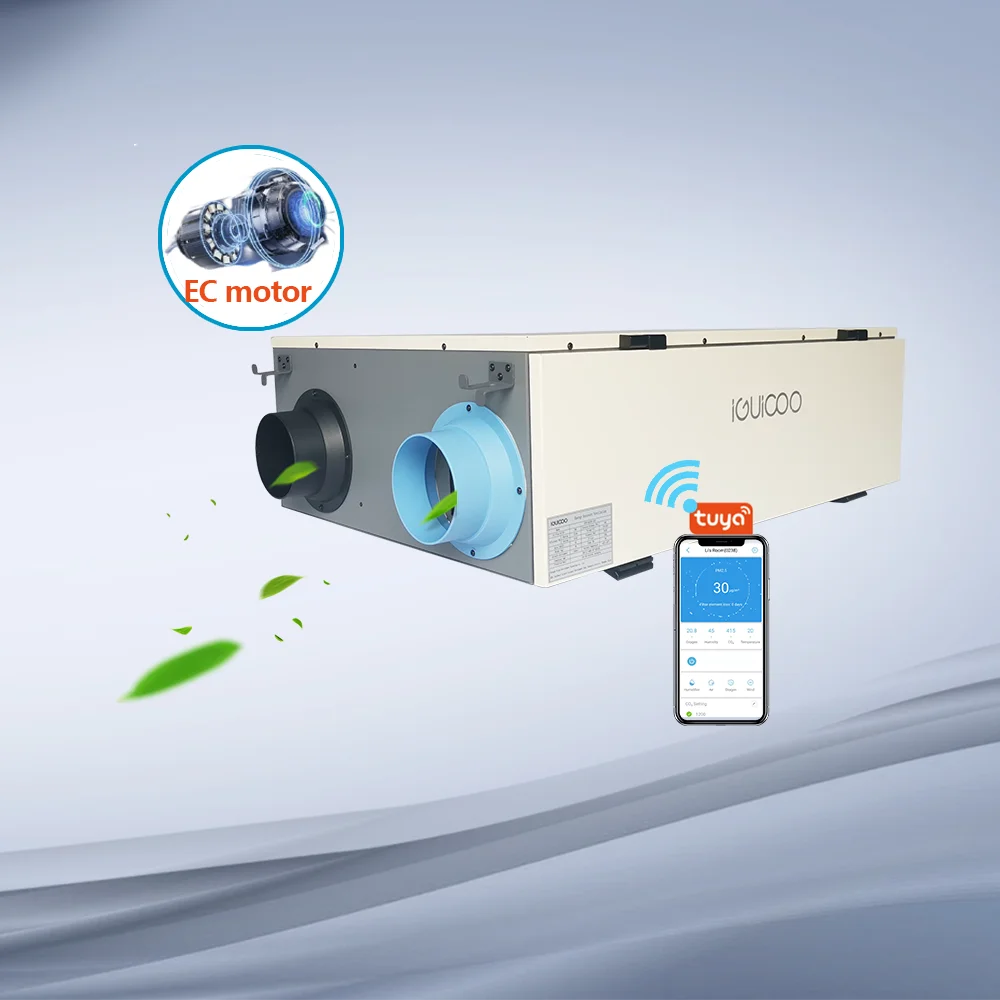

IGUICOO Hrv Heat Recovery Fresh Air Ventilation System Ceiling Ventilate Recuperator Energy Recovery Ventilation Hvac System
Heat Recovery Ventilation System Hvac Air Cleaner Air Purifier for seaside house
Specification
Item | Heat recovery ventilator/Energy recovery ventilation |
Warranty | 1 Year |
After-sale Service | Online technical support, Free spare parts |
Project Solution Capability | Provide overall solution |
Application | Hotel/School/Commercial building/Real estate project |
Design Style | Modern |
Place of Origin | China |
Model Number | TFPC-015(B1-1D2) TFPC-020(B1-1D2) TFPC-025(B1-1D2) |
Air Flow(m³/h) | 150~250 |
Install type | Ceiling |
Maintenance | Side door |
Heat Recovery Type | Sensible heat exchange core |
Efficiency(%) | 75% |
Power Voltage(V)/Frequency(HZ) | 110-240/50-60HZ 380V |
OEM/ODM | Accept |
Products Features
• Heat Recovery Ventilation • Intelligent Controller • EC motor
• Primary + H12 Filter+Medium efficiency filter(optional) • Fresh Air Purification
• By-pass Function • Ceiling-mounted Installation • Internal Sensors
• Primary + H12 Filter+Medium efficiency filter(optional) • Fresh Air Purification
• By-pass Function • Ceiling-mounted Installation • Internal Sensors
1. Fresh outdoor air: Fresh air fully filtered (Supply fresh air to reduce the concentration of carbon dioxide.)
2. Automatic Bypass Function: Built-in sensor, the bypass function is automatically enabled on arrival conditions
3. Heat Recovery: Aluminum foil heat recovery core, with high-efficiency heat exchange, energy-saving, and a service life of up to 10 years, can be washed with water，with drain pipe.
4. Four speed adjustment to create a comfortable environment.
5. Intelligent Detection: Detection of indoor temperature, humidity, CO2 concentration, and PM2.5 concentration.
6. Intelligent Control and Display:It can realize more than 128 centralized linkage controlLCD screen display, display function mode, display values of air volume, indoor temperature, humidity, CO2 concentration, and PM2.5 concentration.
7. EC silent motor: Low noise, energy-saving, and high efficiency.
2. Automatic Bypass Function: Built-in sensor, the bypass function is automatically enabled on arrival conditions
3. Heat Recovery: Aluminum foil heat recovery core, with high-efficiency heat exchange, energy-saving, and a service life of up to 10 years, can be washed with water，with drain pipe.
4. Four speed adjustment to create a comfortable environment.
5. Intelligent Detection: Detection of indoor temperature, humidity, CO2 concentration, and PM2.5 concentration.
6. Intelligent Control and Display:It can realize more than 128 centralized linkage controlLCD screen display, display function mode, display values of air volume, indoor temperature, humidity, CO2 concentration, and PM2.5 concentration.
7. EC silent motor: Low noise, energy-saving, and high efficiency.
• High eficiency heat recovery ventilation technology
In the hot season, the system precools and dehumidifies the fresh air, preheat in the cold season.
• EC motor
High-efficient and quiet, efficient copper core motor, stable and reliable performance.Power consumption is reduced, saving 70% energy consumption.
• Efficient heat recovery core
Aluminum foil heat recovery efficiency of heat recovery is up to 80%, effective air exchange rate is above 98%, with flame retardant, long-term antibacterial and mildew prevention function,dehumidification
• Double purification protection：
Primary filter+ high efficiency filter can filter 0.3μm particles, and the filtration efficiency is as high as 99.9%.
Model | Airflow （m³/h） | Rated E.S.P（Pa） | Temp.Eff. (%) | Noise （dB(A)) | Power input (W) | N.W(Kg) | Size(mm) |
TFPC-015(B1-1D2) | 150 | 100 | 73-80 | 34 | 82 | 35 | 845*600*265 |
TFPC-020(B1-1D2) | 200 | 100 | 73-80 | 36 | 105 | 35 | 845*600*265 |
TFPC-025(B1-1D2) | 250 | 100 | 73-80 | 38 | 180 | 35 | 845*600*265 |
About us
1.Have 2 plants meet the capacity demands 2.Possess 80 patents certificates
3. 10+ years experience HVAC industry 4. Have strong R&D and HVAC design team
5. Free installation plan design service 6.A full set of ventilation system installation pipe fitting supply
7.Have 2 laboratories(national approved enthanlpy and 30m³ laboratory
8. Duilt a sound certificate system of ISO9001, ISO 14001， ISO45001， CE certificate and other product certification system.
How to choose the right equipment?
1. Choose the proper installation types based on the building structure
2. Determine the required fresh airflow based on the usage scenario, area size, and persons
3. Select the right specifications and quantity according to the determined fresh airflow
2. Determine the required fresh airflow based on the usage scenario, area size, and persons
3. Select the right specifications and quantity according to the determined fresh airflow
Patent certificate
Our exhibition
Packing & Shipping
FAQ
Q1: How could I get a sample?
A:We do not provide free sample, if you are interested in our products please contact our customer service, she can tell you the details of the sample.
Q2: Sample time?
A: Existing products: Within 15 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
A: Existing products: Within 15 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
