DONGFENG 5 тонн авиационный реактивный бензовоз 5000 литров заправка
- Категория: Tanker Trucks >>>
- Поставщик: Huipin,Special,Auto,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 3744337.3 $* | 3931554.9 $* |
| Aug-18-2025 | 3712872.83 $* | 3898516.40 $* |
| Jul-18-2025 | 3115037.43 $* | 3270789.63 $* |
| Jun-18-2025 | 3649942.75 $* | 3832439.33 $* |
| May-18-2025 | 3177967.88 $* | 3336865.65 $* |
| Apr-18-2025 | 3587012.30 $* | 3766363.71 $* |
| Mar-18-2025 | 3555547.44 $* | 3733324.41 $* |
| Feb-18-2025 | 3524082.79 $* | 3700286.36 $* |
| Jan-18-2025 | 3492617.1 $* | 3667248.48 $* |
Характеристики
Products Description

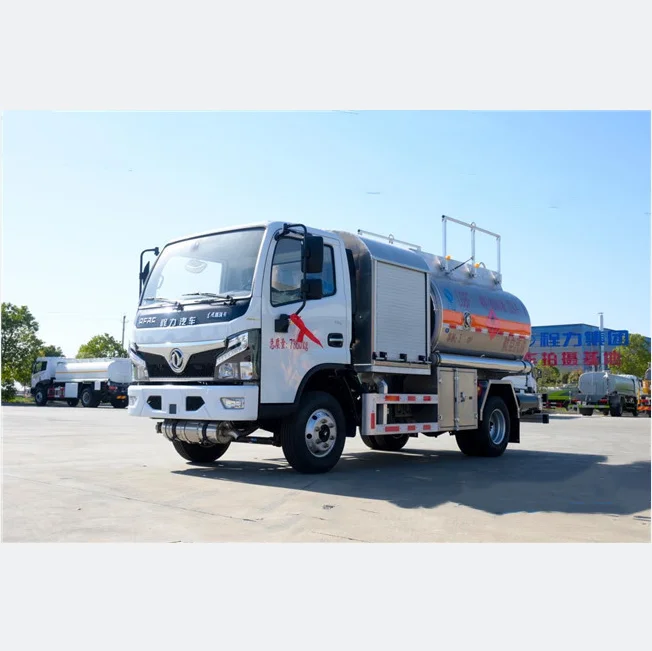

DONGFENG 5 Tons Aviation Jet Refuel Truck 5000 liter Refueling Tanker Truck Capacity
The Refueler truck is mainly used for refueling and defueling the aircraft which equipped underwing refueling interface in airport.
Working condition: The refueler is used on flat concrete or bitumen road in airport.
Temperature : -30°C~+46°C
Relative humidity:≤ 95%(25°C)
Temperature : -30°C~+46°C
Relative humidity:≤ 95%(25°C)
Main Function
1) Underwing refueling--after filtering and measuring, the fuel oil in the refueler‘s oil tank is filled into the plane’s oil
box(or other containers) by the hose and underwing nozzle on the reel or platform.
2) Defueling--after filtering and measuring, the fuel oil in the plane’s oil box(or other containers) is filled into this
refueller’s oil tank by the hose and underwing nozzle on the reel or platform..
3) Cycling--use pump to stir oil in a cycling way.
4) Loading-- use the oil pump and other equipments to fill fuel oil into the tank through the bottom of it.
1) Underwing refueling--after filtering and measuring, the fuel oil in the refueler‘s oil tank is filled into the plane’s oil
box(or other containers) by the hose and underwing nozzle on the reel or platform.
2) Defueling--after filtering and measuring, the fuel oil in the plane’s oil box(or other containers) is filled into this
refueller’s oil tank by the hose and underwing nozzle on the reel or platform..
3) Cycling--use pump to stir oil in a cycling way.
4) Loading-- use the oil pump and other equipments to fill fuel oil into the tank through the bottom of it.
Optional truck brand: DONGFENG, JAC, SINOTRUK HOWO, FAW, SHACMAN, YUEJIN, FOTON, etc.
Optional wheel drive: 4x2, 4x4, 6x4, 6x4, left hand drive or right hand drive.
DONGFENG 5m3 Oil Refueling Truck. Factory direct sale aviation refueling tank truck, high quality at competitive price..
Tank capacity: 5000L
Tank material: 304 Stainless Steel
Chaochai 120hp diesel engine
Color and logo can be made per customer requirement.
High quality 15m3 oil refueling truck
High Quality oil refueling truck
HOWO 10 tons refueling tank truck
Specification
Vehicle | Model | CLW5070GJYH5 |
Overall dimension | 5940*2000*2700 mm | |
Vehicle name | Dongfeng 5000L Jet refueling truck | |
Axle load | 1310/2040 kg | |
Gross weight | 7360kg | |
Curb weight | 3580 kg | |
Fuel | Diesel | |
Max Speed | 110 km/h | |
Manufacture year | 2023 new | |
Chassis | Brand | DONGFENG |
Model | EQ1045SJ3CDF | |
Tire | 7.00R16 | |
Wheelbase | 3308 mm | |
V.I.N | Will provide before delivery | |
Steering | 4x2 LHD/RHD | |
Gearbox | 5 Speed over drive | |
Cab | 2 passenger, Direction power assistance, center lock , electric lock and window | |
Engine | Model | D20TCIF1 |
Brand | Chaochai | |
Displacement | 1999ml | |
Power | 88 KW | |
Horsepower | 120hp | |
Emission standard | EUROIII | |
Tank | Volume | 5000 Liters ( petrol / diesel ) |
Tank dimension | About 3000*1760*1160 mm | |
Material | 304 stainless steel , 4 mm | |
Equipment | European standard manhole,stainless steel sea valve, anti-overflow probe, electrostatic wiring terminal, Float level gauge, Sampling Valve with Filter Sampling Valve and Filter Separator Sewerage Outlet Sampling Valve,HYJ-63 joint valve, 50WGF-50/10 filter separator, flow meter with waist wheel, high-level safety guardrail | |
Fuel Dispenser | Model | 65QZ-50/40, speical pump for aviation fuel, aluminum alloy material |
Brand | Hangzhou Weilong | |
Refuel Hose | 20m, automatic homing |

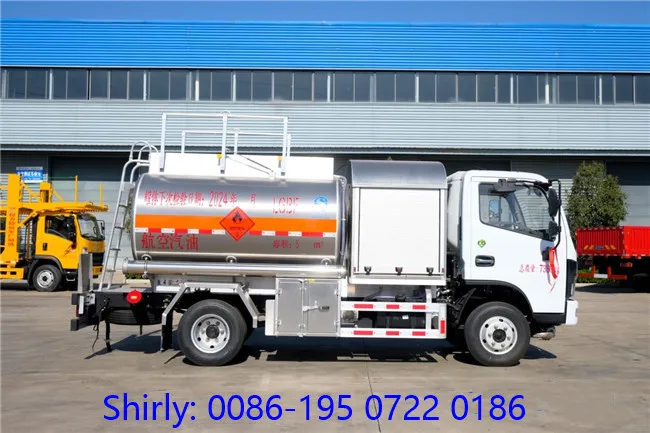

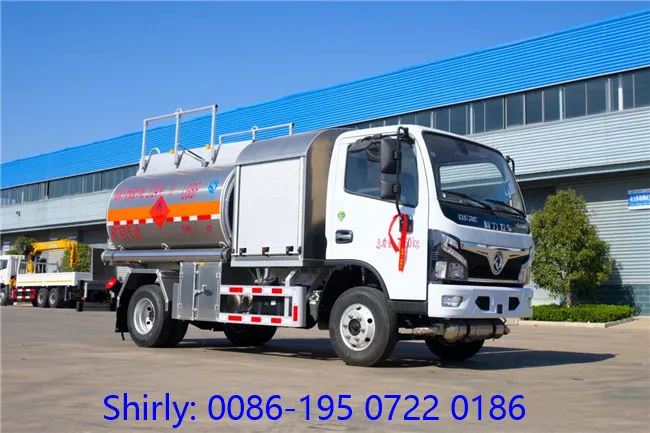

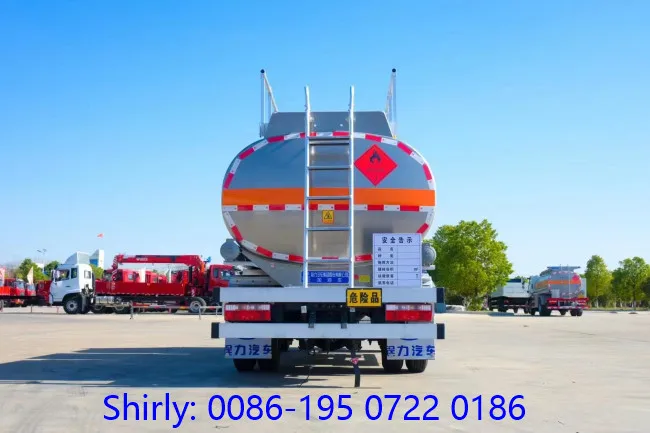

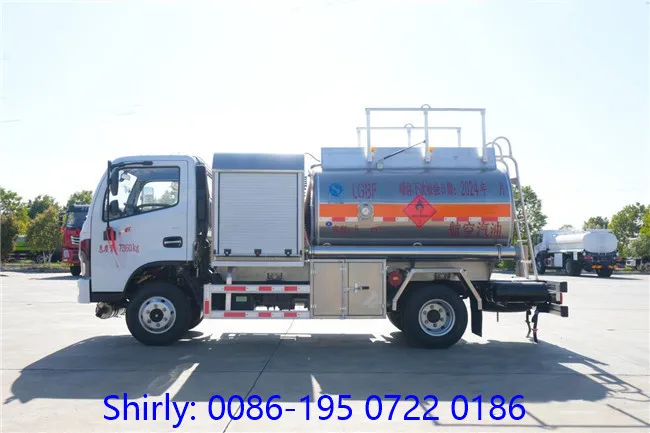

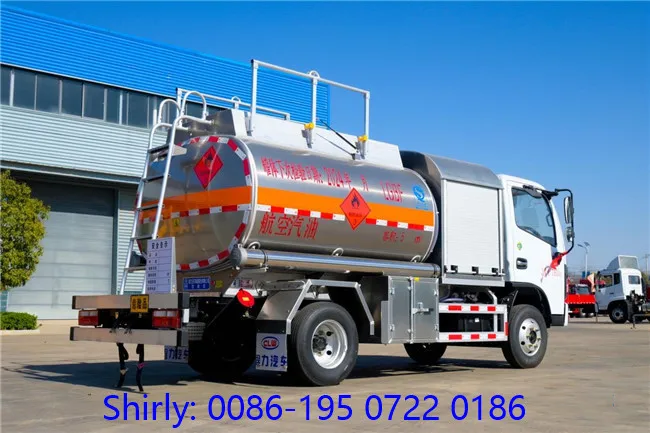

Detailed Images
Packing & Delivery
1> Packaging: Nude, but waxed before shipment in our factory.
2> Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements
2> Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements
Company Profile
Hubei Huipin Special Auto Equipment Co., Ltd. is located in suozhou city, hubei province, China, with total assets of 1 billion yuan and annual production capacity of 50,000 special vehicles. The main products are water sprinkler truck, garbage trucks, road sweeper, oil tank truck, chemical transport truck, aerial work platform trucks, fire fighting trucks, truck mounted cranes, refrigerated truck, LED dispaly truck, mobile food truck, RV caravans, camper trailer, truck spares and other over 300 varieties. Our products are sold well in 29 provinces and autonomous regions in China, and are exported to more than 30 countries and regions such as USA, Chile, Mexico, Peru, Philippines, Cambodia, Vietnam, Kazakhstan, Nigeria, Kenya, Ghana, Cameroon, etc.
Welcome to visit us. We are looking forward to the cooperation with you.
Welcome to visit us. We are looking forward to the cooperation with you.
FAQ
Q1. What is your warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos and videos of the products
before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to needs?
A: Yes, we can customize based customer needs.
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos and videos of the products
before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to needs?
A: Yes, we can customize based customer needs.
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q6. Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing, Shanghai or Guangzhou city, welcome to visit us for factory inspection.
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing, Shanghai or Guangzhou city, welcome to visit us for factory inspection.
