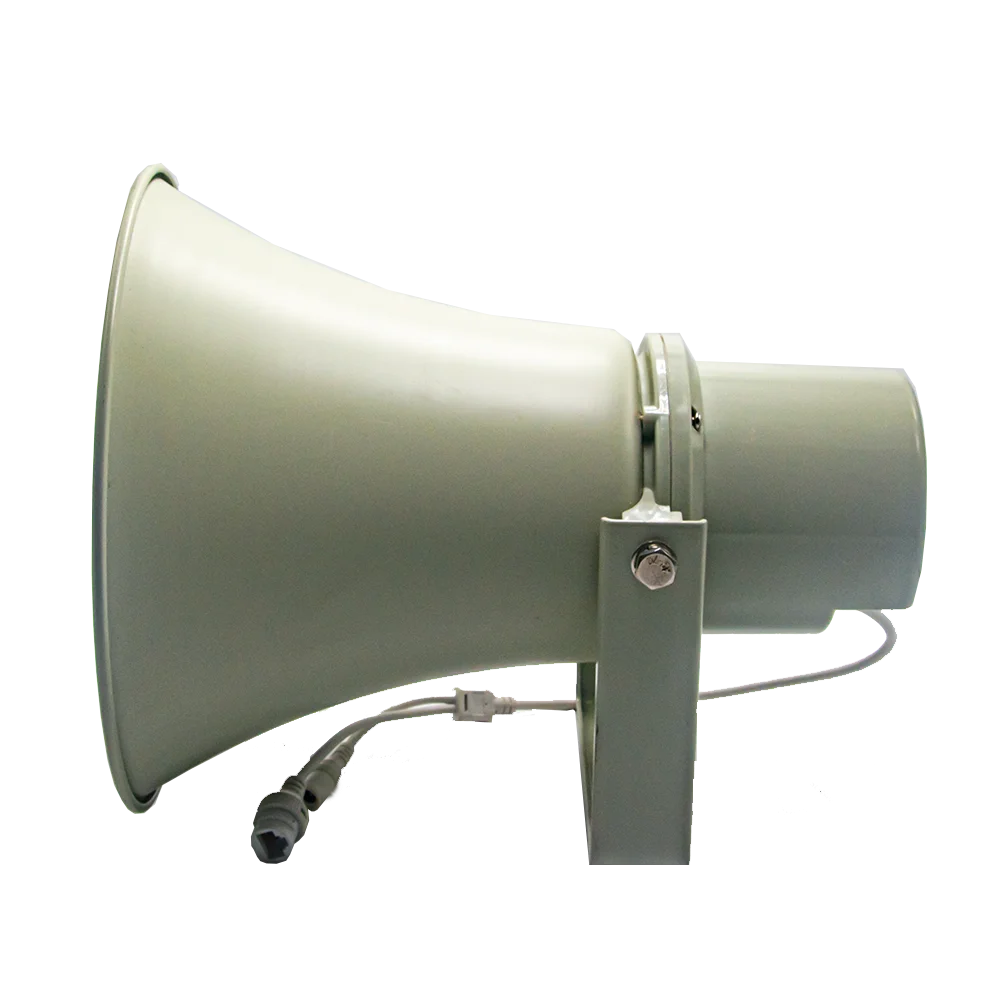

Система громкоговорителя SINREY SIP744V громкоговоритель

Система громкоговорителя SINREY SIP744V громкоговоритель

Категория: Broadcast\u00A0Intercom\u00A0Systems >>>
Поставщик: Guangzhou,Xinyue,Network,Equipment,Co.,Ltd.

Цена:125,00 $ - 135,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-17-2025	159.91 $*	162.75 $*
Jul-17-2025	129.36 $*	132.47 $*
Jun-17-2025	156.30 $*	159.78 $*
May-17-2025	155.10 $*	158.16 $*
Apr-17-2025	124.40 $*	126.46 $*
Mar-17-2025	153.35 $*	156.31 $*
Feb-17-2025	151.13 $*	154.86 $*
Jan-17-2025	150.0 $*	153.16 $*

Характеристики

Product recommendation

With UART and GPIO

With pins

With 2 * 15W power amplifier

Product Description

SIP AUDIO MODULE SIP2101T

SIP744T is a wall mounted network active speaker with 10 / 100M Ethernet interface, which can output and play network sound source

through built-in power amplifier and speaker;

SIP744T has built-in professional speaker and network decoder. The network decoder specially filters out the low-frequency signal

to make the playing sound clearer and the transmission distance longer. It can be used in places where long-distance sound source

amplification is needed.

Characteristic

Standard RJ45 network interface, provide firmware online remote upgrade;

Based on ARM + DSP architecture, high-speed industrial chip is adopted, and the start-up time is less than 1 second;

Built in decoding module, 30W / 50W power amplifier circuit;

Provide a variety of decoding methods;

Built in a full frequency high-quality horn, the sound is loud, penetrating and clear;

Outdoor waterproof shell;

Poe power supply can be selected; 50W version can be selected.

Specification

Network interface	10/100Base-TX adaptive network, RJ45 interface, sending and receiving data instructions
Network protocol	Support TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, etc.
Broadcast output	comes with 30W power amplifier and horn speaker
Input voltage	DC 12-20V
Power consumption	static <300Mw
Working temperature	DC 9~24V
Specification and size	Φ246x292mm
Panel	Metal shell, wall mountable

Application

Outdoor loudspeaker

Desktop walkie talkie

intercom terminal

PLAY

The network audio equipment can receive the audio stream from the network, and convert it into an analog audio signal for output after being decoded. The figure below is a standard playback application scenario.

INTERCOM

SIP2103T / SIP2403T / SIP2703T can be used in a two-way SIP intercom system

The broadcast intercom host can use our company's broadcast system control software, broadcast equipment, network microphones, etc., or use the SIP server prepared by the user.

The company is a national high-tech enterprise with high-tech products.

We have set up R & D center, chip factory and comprehensive manufacturing base in Guangzhou. The factory covers an area of 8500 square meters. The company is committed to building international top brands.
We have a professional and strong R & D team to provide further customization in terms of firmware, software and solution requirements.
