GoodCut оборудование для лазерной сварки машина очистки резки 3 в 1 1500 Вт с проволочным питателем металла нержавеющая сталь

Описание и отзывы

Трекер стоимости

Характеристики

GoodCut New Design Handheld 1500W MAX Laser Welding machine with fire feeder suitable for welding cutting and cleaning steel







Introduction of GoodCut New Design 3 in 1 Handheld Laser Welding machine with fire feeder:



   It emits laser by the fiber cable, welding for workpiece with multi-point or multi-surface.Its laser beam is high quality,welding spot uniform and small,easy to install and move,etc.The fiber transmission can effectively suppress the focal motion of the focused beam caused by the beam mode changes that cause by the thermal lens effect of the laser source.It effectively improves the quality and stability of welding.The structure design and solid metal outermost cover ensure that this laser system can be used in an online industrial production.And has a better protection for the impact, dust, vibration and temperature widely changes.







Welding Stainless Steel, Iron, Carbon Steel, Aluminum, Brass Plates, Pipe, Tube etc.

1kw can weld 1mm wire size, 1.5kw can weld 1.2mm wire size







Configuration of the machine
Model	GC-WCC
Fiber Laser source	1000W / 1500W / 2000W / 3000W
Brand of laser source	Raycus/MAX
Controller system	Chaoqiang Weiye
Welding / Cutting / Cleaning head	Chaoqiang Weiye
Wire feeder	Chaoqiang Weiye
Laser wavelength	1064nm
Weling min molten pool	0.1mm
Welding depth	≤3mm
Spot size adjustable range	0.3-3.0mm
Workbench repeatability	±15kw
Viewing system	Red light positioning
Cooling	Water cooling
Operating Temperature	0-45℃
Operating humidity	5%-95%
Graphic Format Supported	BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF
Net Weight	200KG
Warranty	Two year
Voltage	AC220V±10%/50Hz/60A
Machine Size	1200*700*950mm









Advantage of GoodCut three in one welding cutting cleaning machine for good price:



1.This machine adopts 300, 500, 750, 1000, 2000 watt fiber laser, which has high elector-optical conversion efficiency and long laser life;



2.The laser beam quality is very good, the welding speed is fast, is more than 5 times the speed of the traditional optical fiber transmission laser welding machine, the weld is fine, the depth is large, the taper is small, the precision is high, can fully meet the needs of users in different industries, and the welding is firm. Smooth and flat;



3.The whole machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs;



4.It can be time splitting or energy splitting, suitable for different processing applications, support both continuous welding and spot welding.









Nozzle:

The Nozzle are two model: one auto nozzle for auto wire feeding device. Another is manual nozzle.

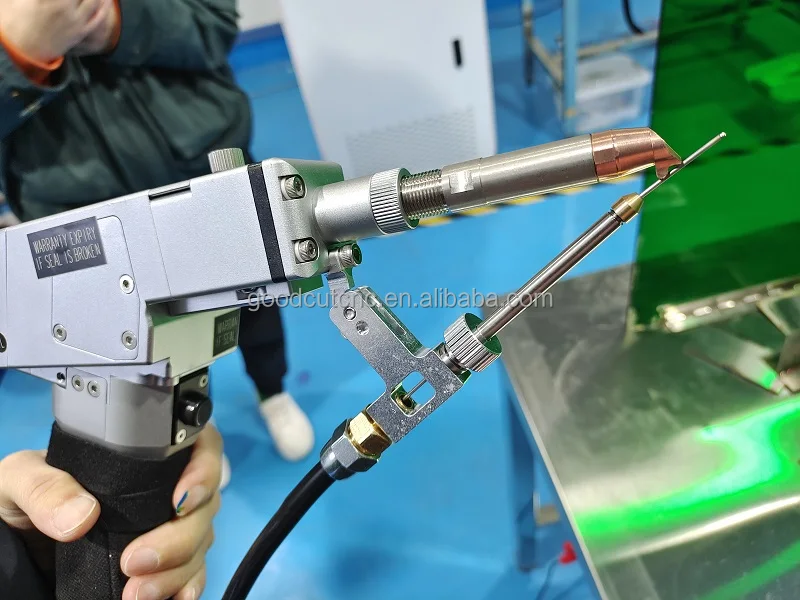

Laser Welding Head with Wire











Application



1. Material

Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper - brass, titanium - molybdenum, titanium - gold, nickel - copper and so on.



2. Welding Cutting and Cleaning

Kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, craft gifts, household and other industries.
