Npack высокоскоростная автоматическая машина для маркировки плоских и
- Категория: Packaging Machines >>>
- Поставщик: Shanghai,Npack,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 4760.24 $* | 4998.16 $* |
| Aug-17-2025 | 4720.15 $* | 4956.14 $* |
| Jul-17-2025 | 3960.23 $* | 4158.30 $* |
| Jun-17-2025 | 4640.51 $* | 4872.60 $* |
| May-17-2025 | 4040.62 $* | 4242.63 $* |
| Apr-17-2025 | 4560.8 $* | 4788.50 $* |
| Mar-17-2025 | 4520.45 $* | 4746.24 $* |
| Feb-17-2025 | 4480.94 $* | 4704.16 $* |
| Jan-17-2025 | 4440.40 $* | 4662.22 $* |
Характеристики

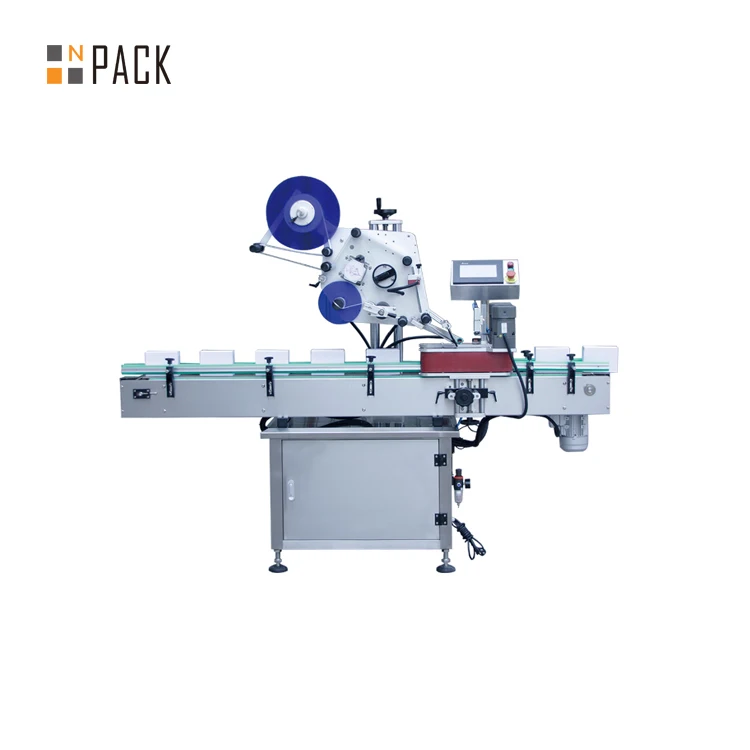

Automatic Top & Bottom Sides Labeling Machine
The automatic labeling machine is a plane labeling machine,it is suitable for labeling top and bottom of regular
rectangles and square objects.it can be affixed with the following two labels at one time,such as labeling on the
top and bottom of the box;separated separately and converted into two universal plane labelers.
rectangles and square objects.it can be affixed with the following two labels at one time,such as labeling on the
top and bottom of the box;separated separately and converted into two universal plane labelers.
Technical Parameters | ||||||
Machine Size | 1600(L)×1000(W)×1250(H)mm | |||||
Output Speed | 20-100pcs/min depends on label and bottle size | |||||
Height Label Object | 30-280mm | |||||
Bag size | max L60cm; max W 40cm; max H10cm | |||||
Label Height | 15-140mm | |||||
Label Length | 25-300mm | |||||
Pastes the sign precision | ±1mm | |||||
Roll inside | 76mm | |||||
Roll Outside Diameter | 300mm | |||||
Power Supply | 220V 0.8KW 50/60HZ | |||||
Power Supply | 2800(L)×1650(W)×1500(H)mm | |||||
Weight of Labeling Machine | 450Kg | |||||
List of Components
NO | Name | Brand | Qty | Original |
1 | PLC | Siemens | 1 | German |
2 | Touch Screen | Siemens | 1 | German |
3 | Frequency Converter | DANFOSS | 1 | Denmark |
4 | Servo Motor | Panasonic | 1 | Japan |
5 | Driver | DELTA | 1 | Taiwan |
8 | Label sensor | LEUZE | 1 | German |
9 | Bottle sensor | Omron | 1 | Japan |
10 | Machine Construction material | 304 Stainless steel 304 | 1 | |
11 | Motor | TCG | 1 | Taiwan |
