Аналоговый GSM FWT фиксированный беспроводной терминал для подключения
- Категория: Fixed Wireless Terminals >>>
- Поставщик: Shenzhen,Elefine,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 62.49 $* | 65.83 $* |
| Aug-18-2025 | 61.56 $* | 64.0 $* |
| Jul-18-2025 | 51.38 $* | 54.82 $* |
| Jun-18-2025 | 60.61 $* | 63.60 $* |
| May-18-2025 | 53.8 $* | 56.16 $* |
| Apr-18-2025 | 59.29 $* | 62.88 $* |
| Mar-18-2025 | 59.73 $* | 62.15 $* |
| Feb-18-2025 | 58.91 $* | 61.59 $* |
| Jan-18-2025 | 58.71 $* | 61.38 $* |
Характеристики
Product Description
Specification
item | value |
Model Number | EF-ETS8848 |
Type | FIXED WIRELESS TERMINAL |
Place of Origin | China |
Guangdong | |
Port Number | 2 |
Working Frequency | 2G/3G/4G |
Product name | Analog GSM FWT Fixed Wireless Terminal to Connect Fax Machine |
Color | Black/White |
RJ11 phone jack | 2pcs |
Caller ID display | Support |
DTMF 2'nd dialing out | Support |
IMEI Change | Support |
Polarity reversal for billing | Support |
Back up battery | Optional |
Working frequency | 2G/3G/4G optional |
Warranty | 1 Year |
Module Information
Note: 4G Frequency(Band) could be customized
1)For Europe/Middle East/Africa/Korea/Thailand
EC25-E:
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8
GSM: B3/B8
2)For North America
EC25-A:
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
EC25-AFX:
LTE FDD: B2/B4/B5/B12/B13/B14/B66/ B71
WCDMA: B2/B4/B5
3)For Australia/New Zealand/Thailand/Brazil
EC25-AU:
LTE FDD: B1/B21/B3/B4/B5/B7/B8/B28 LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
4)For Japan
EC25-J:
LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41
WCDMA: B1/B6/B8/B19
1)For Europe/Middle East/Africa/Korea/Thailand
EC25-E:
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8
GSM: B3/B8
2)For North America
EC25-A:
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
EC25-AFX:
LTE FDD: B2/B4/B5/B12/B13/B14/B66/ B71
WCDMA: B2/B4/B5
3)For Australia/New Zealand/Thailand/Brazil
EC25-AU:
LTE FDD: B1/B21/B3/B4/B5/B7/B8/B28 LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
4)For Japan
EC25-J:
LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41
WCDMA: B1/B6/B8/B19
Specifications
4G VOLTE Mobile Sim Card to Landline Converter FWT-8848 for Elevator Lift Alarm Security Burglary System
4G FWT Fixed Wireless Terminal for Common Phone/PBX/Alarm/Billing System with IMEI Change 8848
4G LTE Fixed Wireless Terminal EC25 AFX Module Inside FWT-4G 8848 for USA Market Verizon and AT&T
4G Fixed Wireless Terminal 17-year Factory Direct Sale 8848 4G VoLTE FWT
GSM+3G+4G LTE FCT Fixed Cellular Terminal for Voice Calls
GSM+3G+4G Fixed Wireless Terminal FWT 8848
Bands available(could be customized):
2G Band:B2,B3,B5,B8
3G Band:B1,B2,B5,B8
4G Band FDD:B1,B2,B3,B5,B8
4G Band TDD:B38,B39,B40,B41
4G FWT-8848 is a 4G to Analog converter(single port, insert 1 SIM card only),
the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the GSM network.
This device can both receive and make calls.
The main application is connecting the RJ-11 FXS line:
to connect ordinary telephone set for voice call;
to connect PBX for call extensions;
to connect billing systems for public phone use;
to connect alarm system for security purpose, etc.
4G FWT Fixed Wireless Terminal for Common Phone/PBX/Alarm/Billing System with IMEI Change 8848
4G LTE Fixed Wireless Terminal EC25 AFX Module Inside FWT-4G 8848 for USA Market Verizon and AT&T
4G Fixed Wireless Terminal 17-year Factory Direct Sale 8848 4G VoLTE FWT
GSM+3G+4G LTE FCT Fixed Cellular Terminal for Voice Calls
GSM+3G+4G Fixed Wireless Terminal FWT 8848
Bands available(could be customized):
2G Band:B2,B3,B5,B8
3G Band:B1,B2,B5,B8
4G Band FDD:B1,B2,B3,B5,B8
4G Band TDD:B38,B39,B40,B41
4G FWT-8848 is a 4G to Analog converter(single port, insert 1 SIM card only),
the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the GSM network.
This device can both receive and make calls.
The main application is connecting the RJ-11 FXS line:
to connect ordinary telephone set for voice call;
to connect PBX for call extensions;
to connect billing systems for public phone use;
to connect alarm system for security purpose, etc.
Features:
1) It is a 1 channel GSM fixed wireless terminal which has 2 RJ-11 outputs for extensions;
2) It can connect with ordinary telephone set, PBX, billing meter etc. ;
3) Dialing tone frequency:450hz;
4) Employ Industrial module to make;
5) Can adjust dial interval from 0.5 sec to 9 secs by setting up from telephone set;
6) Can adjust voice volume by setting up from telephone set;
7) SIM card supported (1.8V, 3V);
8) Caller ID display, hide subscriber caller ID(been sent out);
9) DTMF dialing;
10) Bell signal;
11) Polarity reversal;
12) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket(SMA);
14) IP presetting;
15) Working Status and Signal Strength by LED indicator;
16) IMEI Change(optional), GPRS function(optional), lock pin/network(optional).
17) Back up Li-ion battery 7.2V 1300mAh(optional), standby time: 24hrs, talking time: 2.5hrs.
2) It can connect with ordinary telephone set, PBX, billing meter etc. ;
3) Dialing tone frequency:450hz;
4) Employ Industrial module to make;
5) Can adjust dial interval from 0.5 sec to 9 secs by setting up from telephone set;
6) Can adjust voice volume by setting up from telephone set;
7) SIM card supported (1.8V, 3V);
8) Caller ID display, hide subscriber caller ID(been sent out);
9) DTMF dialing;
10) Bell signal;
11) Polarity reversal;
12) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket(SMA);
14) IP presetting;
15) Working Status and Signal Strength by LED indicator;
16) IMEI Change(optional), GPRS function(optional), lock pin/network(optional).
17) Back up Li-ion battery 7.2V 1300mAh(optional), standby time: 24hrs, talking time: 2.5hrs.
Technique Specifications
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying >2.5db
Sensitivity: <-104DBM
Transmitting power: <3W
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.
AC-Adapter type: EU, US, AU, British optional
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying >2.5db
Sensitivity: <-104DBM
Transmitting power: <3W
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.
AC-Adapter type: EU, US, AU, British optional
Packing & Delivery

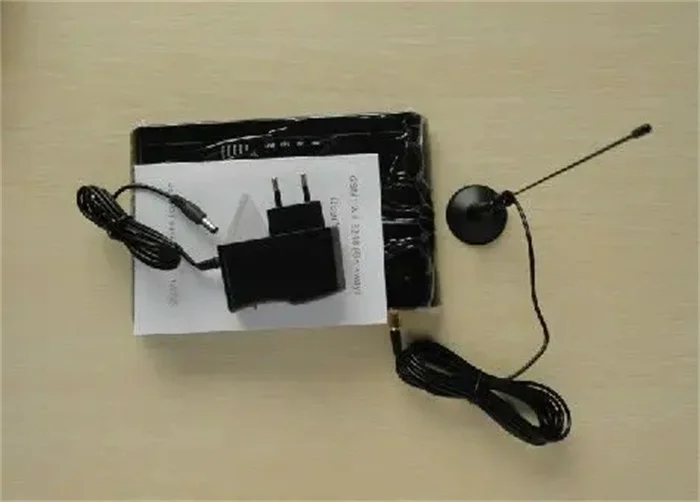

Carton package for Analog GSM FWT Fixed Wireless Terminal to Connect Fax Machine
