Высококачественные многофункциональные силосы с плоским дном

Высококачественные многофункциональные силосы с плоским дном

Категория: Silos >>>
Поставщик: Taian,Shelley,Engineering,Co.,Ltd.

Цена:28 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	33915.64 $*	35611.6 $*
Aug-16-2025	33630.6 $*	35312.1 $*
Jul-16-2025	28215.68 $*	29626.74 $*
Jun-16-2025	33060.72 $*	34713.35 $*
May-16-2025	28785.32 $*	30224.69 $*
Apr-16-2025	32490.64 $*	34115.19 $*
Mar-16-2025	32205.65 $*	33815.34 $*
Feb-16-2025	31920.81 $*	33516.83 $*
Jan-16-2025	31635.34 $*	33217.37 $*

Характеристики

Product Description

High Quality Multifunctional Flat Bottom Grain Silos

High Quality Multifunctional Flat Bottom Grain Silos(also called grain storage bins, grain bins) are the steel silos with a cone bottom.Assembly galvanized grain steel silos are erected on the supporting structure to make the delicate products unloading easily through gravity. Grain silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. The stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos through tapes, facilitating perfect extraction or dosage.
The hopper, rings and support steel are made of hot-dip galvanized steel sheet. All TSE Grain Silos in hot-dip galvanized hopper cone for grain storage are designed in accordance D-4097 or ASTM D-3299 standards for elevated cone heads. According to the stored grain products and storing situations, the hopper or cone angles are commonly designed at 45º and 60º. The structure of hopper silo depends on the type of products to be stored. In generally, free flowing products pellet products like corn, wheat, soybean and feed pellets require the hopper bottom silo with a 45° angle while powder or other material which is hard to flow fits 60° cone bottom silo storage.

Main Components of Shelley Grain Storage Silos

25º Sealed Roof

The special trapezoidal geometry of roof gives high strength and stiffness. The professional sealed technology enables tight connection of roof with the sidewall and keeps stored products from moisture.

Cylindrical Body
Shelley Brand hopper bottom silos are made with body sheets and stiffeners, manufactured with structural galvanized steel S350GD
of high elastic tolerance and the coating equivalent to 600 g/m2 of zinc.

Galvanized Bottom
The cone bottom made with galvanized steel provides strength to support the silo and keep longer life span up to 28 years. 45º hopper is easy to unload delicate materials like feed pellets and other products.

Specifications of TSE Assembly Galvanized Grain Silos hopper cone(45° TCZK Series ）

The volume of Shelley Brand hopper Bottom Storage Silo ranges from 20m³ to 1,875m³. The following is part of the specifications.

Model	Volume	Eave Height(m)	Total Height(M)	Weight(Ton)
TCZK08210	708	16.22	18.29	16.18
TCZK09011	960	17.79	20.07	25.5
TCZK10013	1360	20.47	22.97	30.766
TCZK11012	1536	19.79	22.5	35.5

Applications for Grain silos

High Quality Multifunctional Flat Bottom Grain Silos are widely applied for the storage of grains (sunflower seeds, soy, maize, sorghum, rice, industrial products and other products, etc) and feed pellets for animal, poultry and fish that require special storage conditions. They can also provide temporary storage of wet grain as part of a grain drying plant and other buffer bin applications in silo plants. Galvanized Grain steel hopper bottom Silos are widely used in poultry farm, rice mill, flour mill, soybean-oil mill, animal feed mill plant and brewery plant.

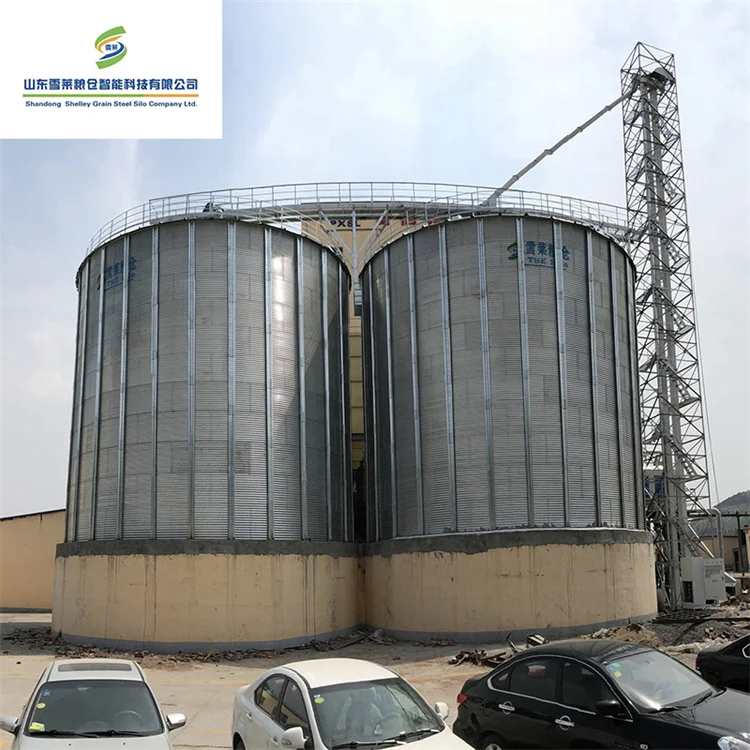

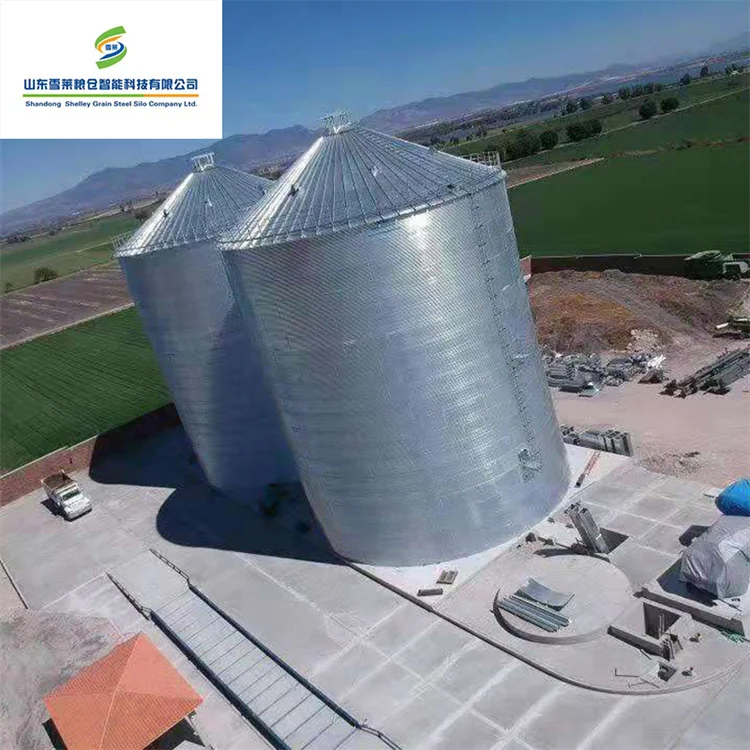

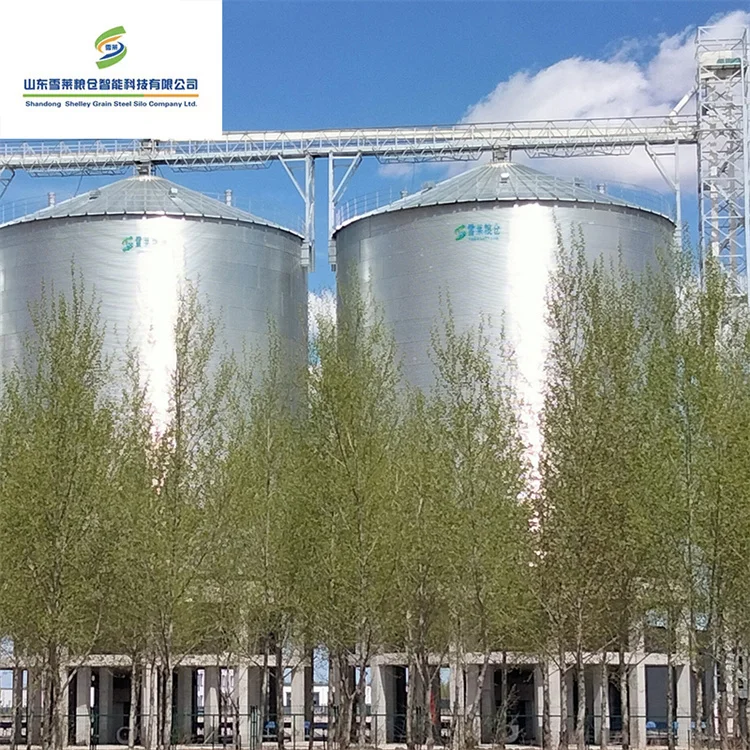

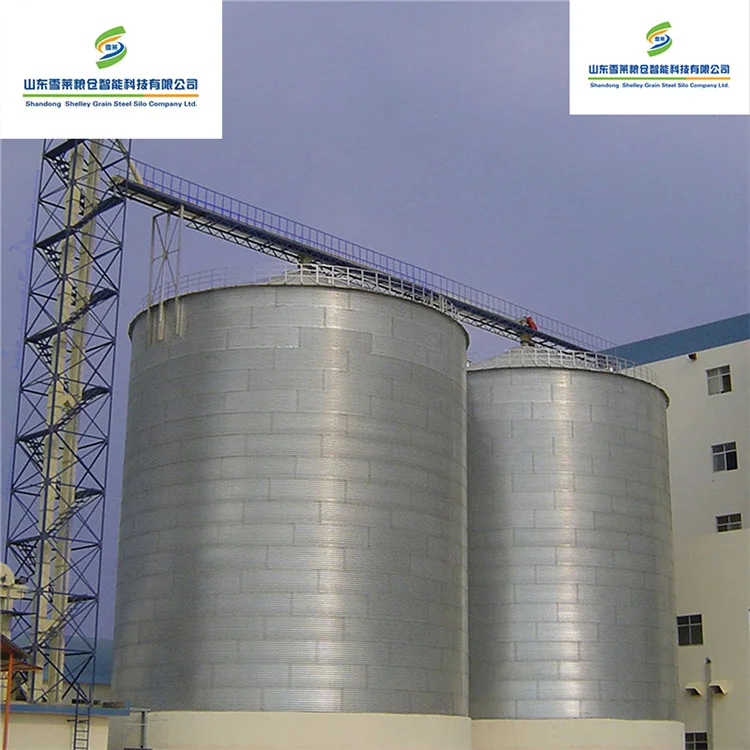

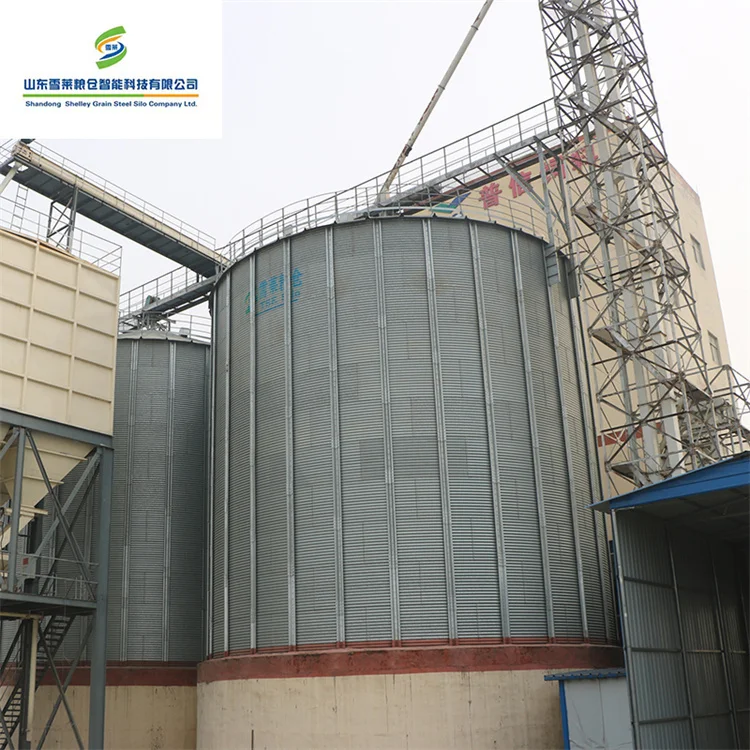

TSE Grain Silos Installation

TSE have professional installation teams,and can supply TURN-KEY silo solution for you!

Our TSE Taian Shelley Engineering Co.,Ltd

High Quality Multifunctional Flat Bottom Grain Silos (also called grain storage bins) are the efficient and economical facilities to handle your grains, which offer protection from outside insects and other affects as well as provide handling management conveniently. Shelley Engineering is the professional steel grain silos designer and manufacturer dedicated in supplying turn key grain storage and handling solutions to worldwide customers. We have more than 30 talented grain storage solutions experts and 9,000 square meters state-of-the-art factory. Our innovative, high-quality flat bottom silos, hopper bottom silos, powder silos, feed silos, bucket elevators, dust collectors and grain storage control system are integrated as a system to satisfy your grain storage requirements.
All of our steel silos can be designed and installed with heat retaining layer to meet your special insulated grain storage demands. Product innovation, quality assurance and customer satisfaction are our long term commitment to worldwide customers. We had been provided grain storage silos, solutions and services for over 50 countries since our foundation by Shelley Jin in 2007.
Hope to become your partners.

TSE Factory and workshop
