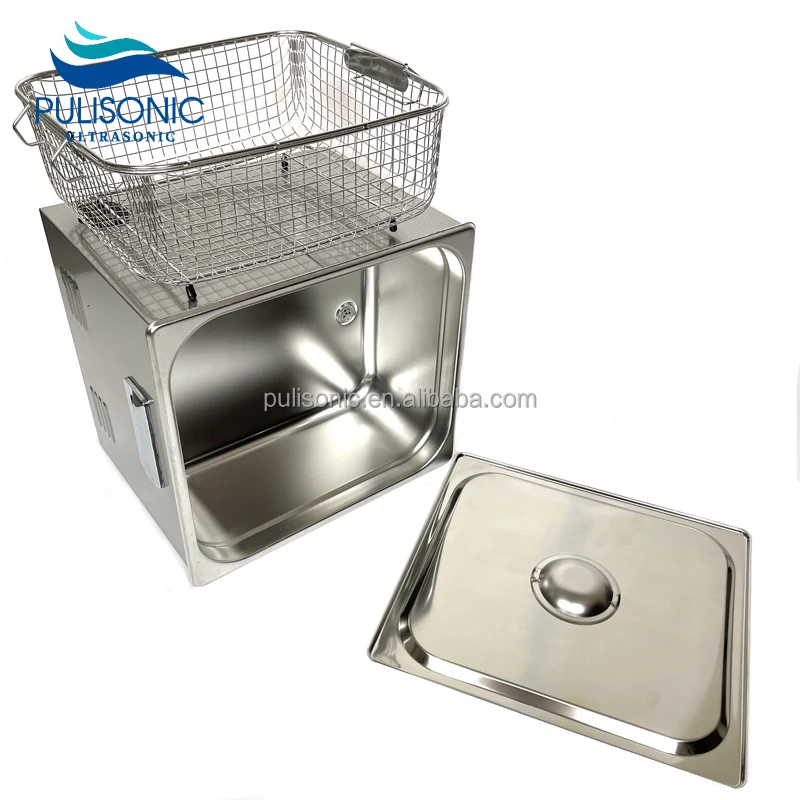

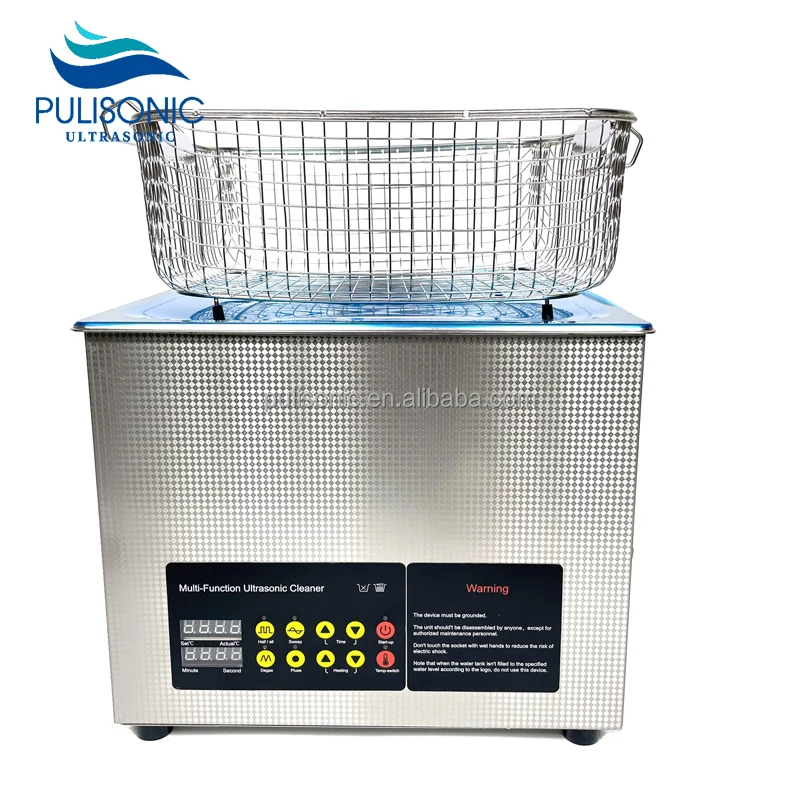

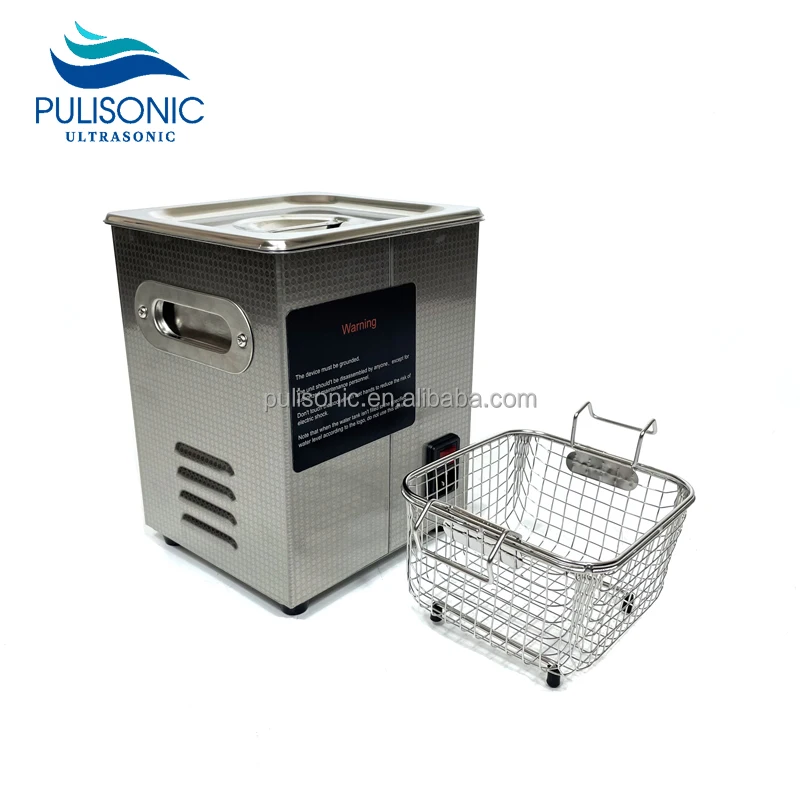

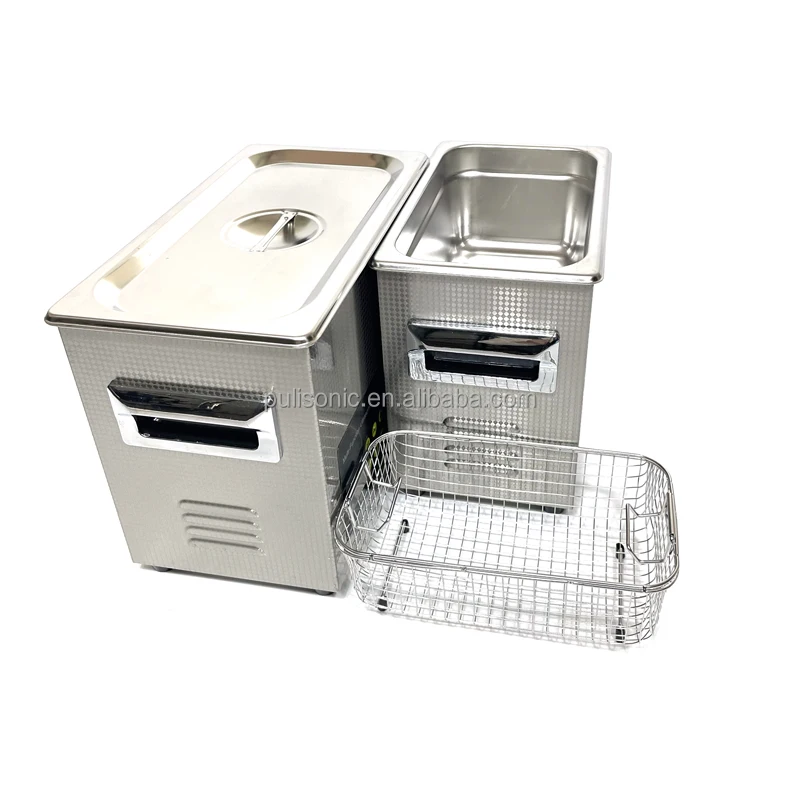

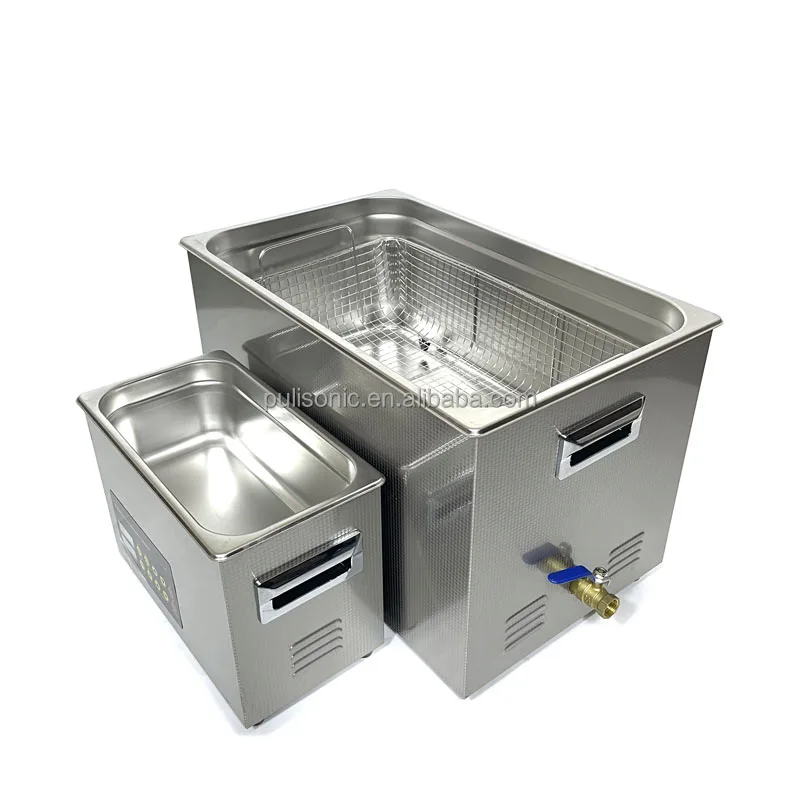

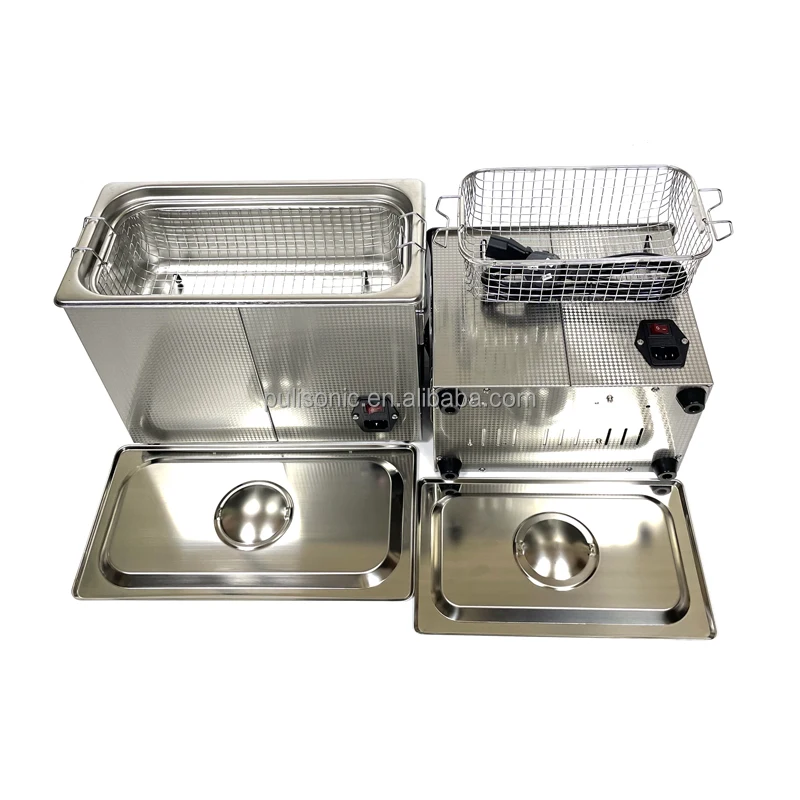

22L Timer And Heat Set Oil Dust Degreasing Ultrasonic Cleaner Tank Mother Board For Engine Block Parts Digital Cleaning Bath

The multifunctional ultrasonic cleaner manufactured by our company has the functions of sweep frequency, degassing, pulse, enhanced ultrasound and so on.

The desktop ultrasonic cleaner mainly converts the transducer to the sound energy of the power ultrasonic frequency source, and converts it into mechanical vibration to radiate the cleaning liquid in the tank to the ultrasonic wave through the cleaning tank wall. Due to the ultrasonic radiation, the microbubbles in the liquid in the tank can keep vibrating under the action of sound waves. When the sound pressure or sound intensity is under pressure to a certain extent, the bubble will expand rapidly and then close suddenly. In this process, the shock wave is generated at the moment when the bubble is closed, resulting in PA pressure and local temperature regulation around the bubble. The huge pressure generated by ultrasonic cavitation can destroy insoluble dirt and make them differentiate into solution. The direct and repeated impact of steam cavitation on dirt. On the one hand, it destroys the adsorption between the dirt and the surface of the cleaning part, on the other hand, it can cause the fatigue damage of the dirt layer and be removed. The vibration of gas bubbles scrubbes the solid surface. Once the dirt layer has a crack and can be drilled, the bubbles immediately "drill in" and vibrate to make the dirt layer fall off. Due to the function of cavitation, the two liquids are rapidly dispersed and emulsified at the interface. When the solid particles are wrapped by oil and adhered to the surface of the cleaning part, the oil is emulsified Solid particles fall off by themselves. When ultrasonic propagates in the cleaning solution, it will produce positive and negative alternating sound pressure, form jet and impact the cleaning parts. At the same time, due to the nonlinear effect, it will produce sound flow and micro sound flow, while ultrasonic cavitation will produce high-speed micro jet at the interface between solid and liquid. All these effects can destroy dirt, remove or weaken the boundary dirt layer, increase stirring and diffusion, and accelerate the dissolution of soluble dirt, Strengthen the cleaning effect of chemical cleaning agent.



Digital ultrasonic cleaner are widely used in electronic devices, semiconductor silicon wafers, circuit boards, electroplated parts, optical lenses, audio magnetic heads, polyester filter elements, chemical fiber spinnerets, spinnerets, printer inkjet heads, latex molds, magnetic materials, medical instruments, surgical instruments, glassware, photographic instruments, communication instruments, fire masks, stainless steel products, gold and silver jewelry, clock and watch parts, glasses Parts, sewing machine parts Cleaning, oil removal, rust removal, carbon removal and surface treatment of precision mechanical parts, hydraulic parts, pneumatic parts, hardware tools, three-way valves, bearings, bearing shells, nozzles, oil pumps, carburetors, fuel injectors, cylinder heads, cylinder heads, cylinder blocks and locomotive spare parts, especially for the cleaning of deep holes, blind holes and concave convex grooves.



Type	Capacity	Power	Fre	heating	Tank size	Overall size	drainage
*	L	W	KHZ	W	(L*W*H)mm	(L*W*H)mm	yes/no
PLS-MD1LH	1.3L	60	40	150	150*135*65	175*160*210	/
PLS-MD2LH	2L	60	40	150	150*135*100	175*160*220	/
PLS-MD3LH	3.2L	120	40	150	240*135*100	265*165*220	/
PLS-MD4LH	4.5L	180	40	300	300*150*100	325*180*225	/
PLS-MD6LH	6.5L	180	40	300	300*150*150	325*180*308	yes
PLS-MD10LH	10L	240	40	450	300*240*150	325*265*308	yes
PLS-MD15LH	15L	360	40	450	330*300*150	360*325*308	yes
PLS-MD22LH	22L	480	40	600	500*300*150	530*325*308	yes
PLS-MD22LH-1	22L	600	40	600	500*300*150	530*325*308	yes
PLS-MD30LH	30L	600	40	600	500*300*200	530*325*354	yes
PLS-MD30LH-1	30L	720	40	600	500*300*200	530*325*354	yes
Welcome OEM size enquire
