Диапазон частот анализаторов спектра SSA3032X Plus от 9 кГц до 3

Диапазон частот анализаторов спектра SSA3032X Plus от 9 кГц до 3

Категория: Spectrum Analyzers >>>
Поставщик: Siglent,Technologies,Co.,Ltd.

Цена:2 430,00 $ - 2 439,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	2892.33 $*	3037.55 $*
Aug-19-2025	2867.44 $*	3010.3 $*
Jul-19-2025	2406.33 $*	2526.17 $*
Jun-19-2025	2819.9 $*	2960.53 $*
May-19-2025	2454.78 $*	2577.11 $*
Apr-19-2025	2770.82 $*	2909.12 $*
Mar-19-2025	2746.84 $*	2883.6 $*
Feb-19-2025	2722.6 $*	2858.54 $*
Jan-19-2025	2697.24 $*	2832.28 $*

Характеристики

Product Description

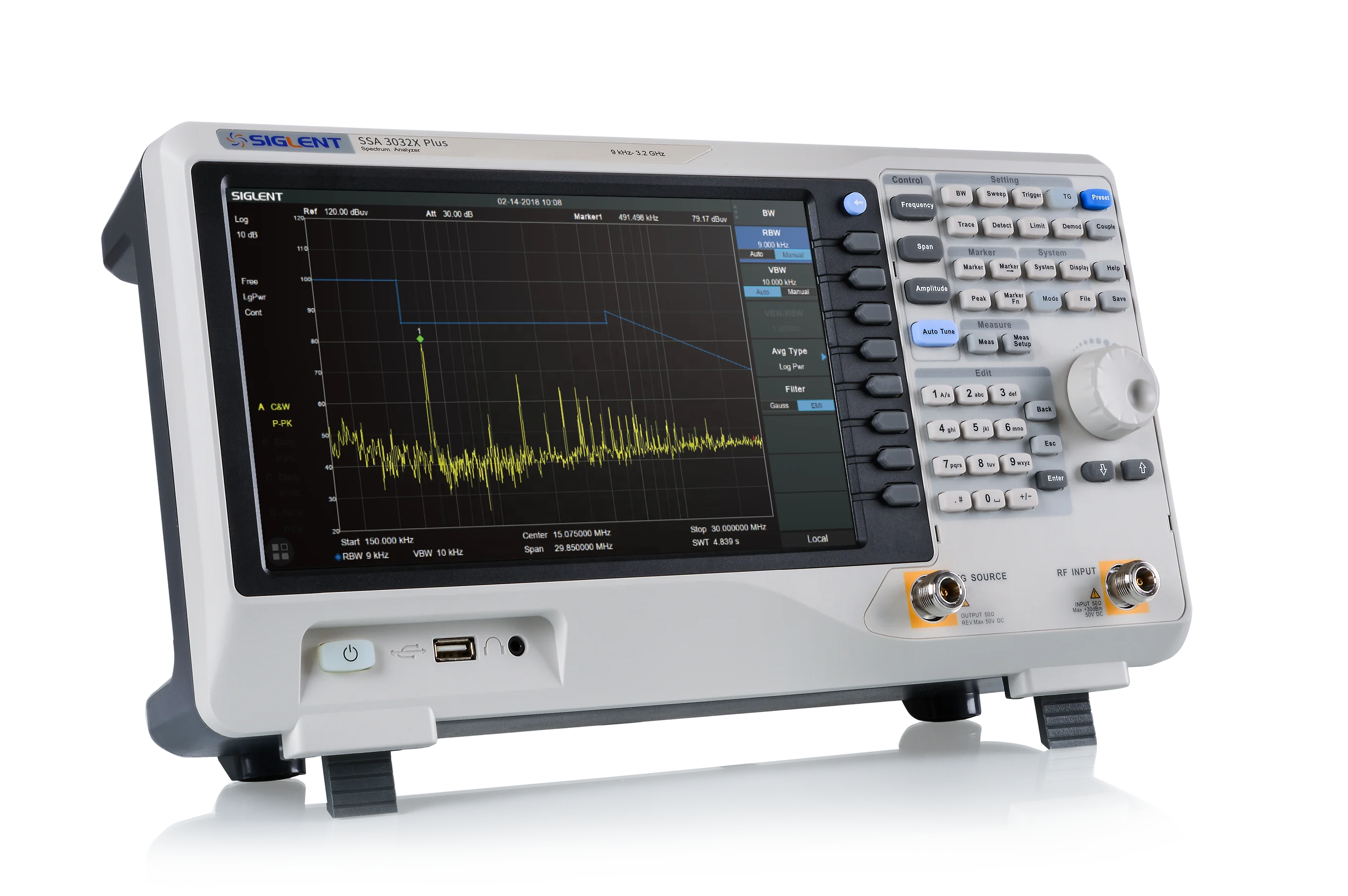

SSA3000X Plus Series Spectrum Analyzers

Main Features

Frequency range from 9 kHz to 1.5/2.1/3.2/7.5 GHz

-165 dBm/Hz Displayed average noise level (typical)

-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)

1 Hz Minimum Resolution Bandwidth (RBW)

Tracking generator (TG) included at no charge

10.1 inch Touch Screen

Product Overview

Excellent Performance

· With their light weight, small size, and friendly user interface, the SSA3000X Plus present a large, bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications include research and development, education, production, maintenance, and pre-compliance testing.
· Bandwidth 9 kHz to 1.5 / 2.1 / 3.2 / 7.5 GHz, minimum resolution bandwidth 1 Hz
· Display average noise level below -165 dBm/Hz, full amplitude accuracy better than 0.7 dB
· Standard preamplifier, free tracking generator, remote control instruction set, EasySpectrum PC software, Webserver, Touch screen
· Transmission response, VSWR measurement, signal power measurement, EMI pre-compliance test

SWR and Transmission Response Measurement

The SSA3000X Plus can be used as a network analyzer:
· With the tracking generator, the filter transmission response and the cable insertion loss can be measured.
· With tracking source and external directional coupler (RB3X20), it can measure antenna and cable standing wave ratio VSWR, return loss.

Abundant Power Measurement

With variety of wireless communication signal power measurement capabilities:

· CHP, Channel Power
· ACPR, Adjacent Channel Power Ratio
· OBW, Occupied Bandwidth
· T-Power, Time Domain Power
· TOI, Third-Order Intercept

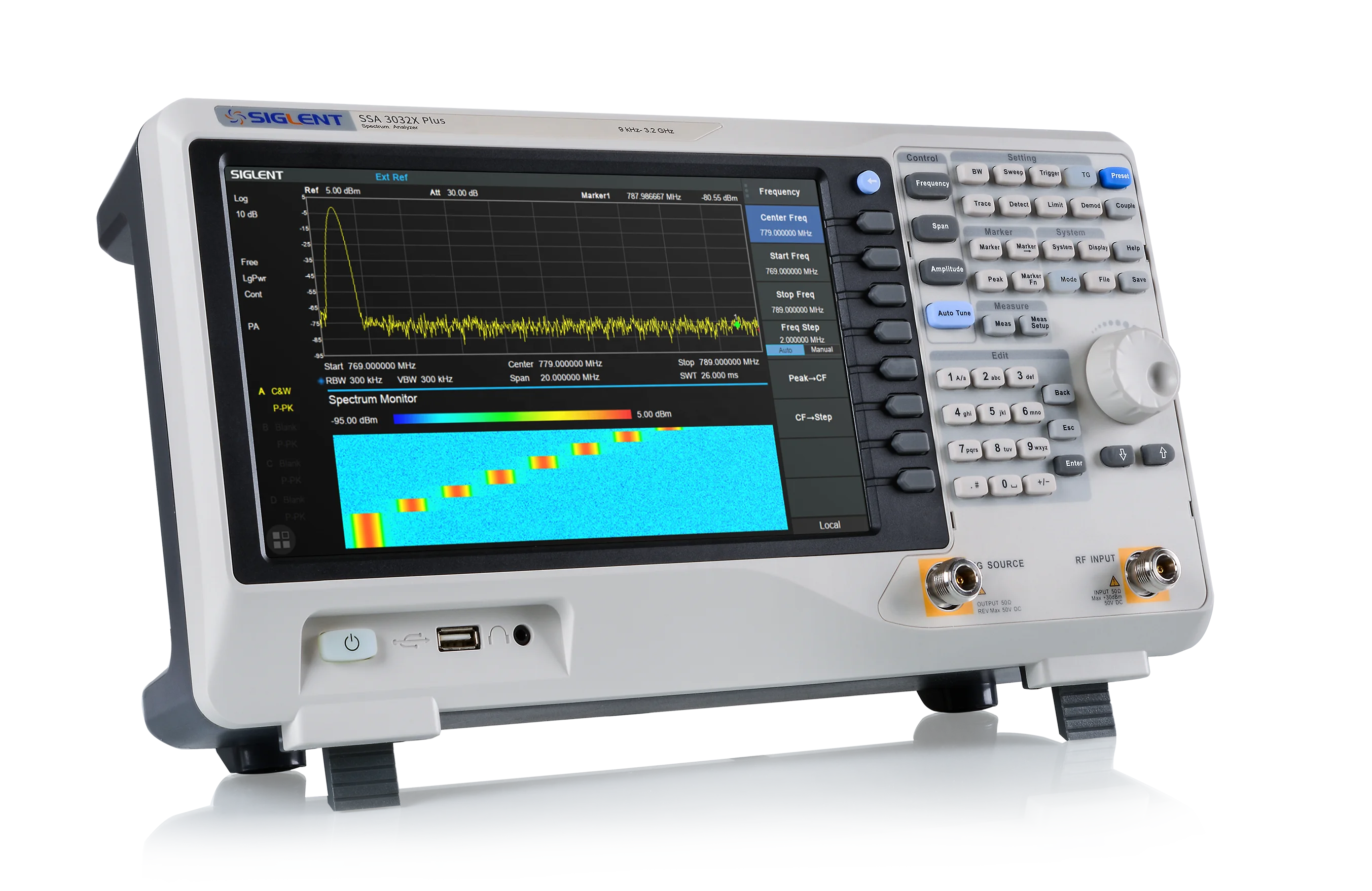

· Spectrum Monitor

EMI Pre-compliance Solution

Extensive features and accessory support for EMI diagnostics and EMI pre-compliance testing, including:

· Test compensation Correction, frequency response compensation for probe, antenna, LISN, cable
· Support Limit line , Including EMI international standard limit template, or user-defined limit line
· Compliant CISPR 16 EMI filter and quasi-peak detector for quasi-peak measurement dwell time
· Support SRF5030T near-field probe set to find interference sources for radiation, cables, PCBs, etc.
· Provide SEM5040A artificial power network for single-phase device conducted disturbance voltage measurement
· EasySpectrum PC software, supports complete EMI pre-compliance test automation implementation process
· The PC software also supports the file configuration of the whole process, which is convenient for project management.

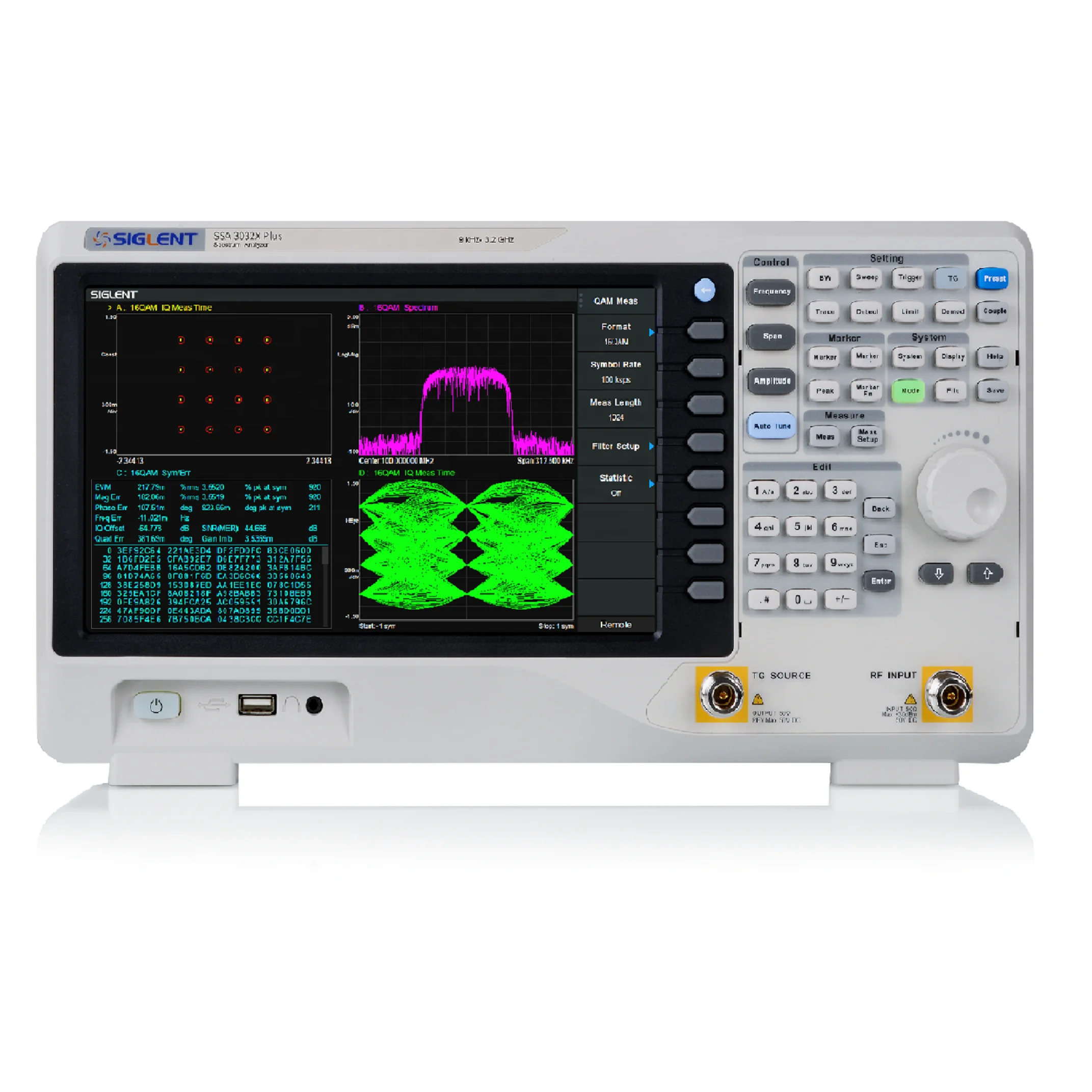

Deep Analysis of Modulated Signals

Abundant demodulation analysis:
· Supports AM/FM analog modulation analysis and complex modulation analysis functions such as ASK/FSK/PSK/MSK/QAM
· EVM, amplitude and phase offset error, IQ offset error, gain imbalance and many other data analysis capabilities
· It has various analysis formats such as eye diagram, constellation diagram, phase diagram, time domain, frequency domain and error domain
